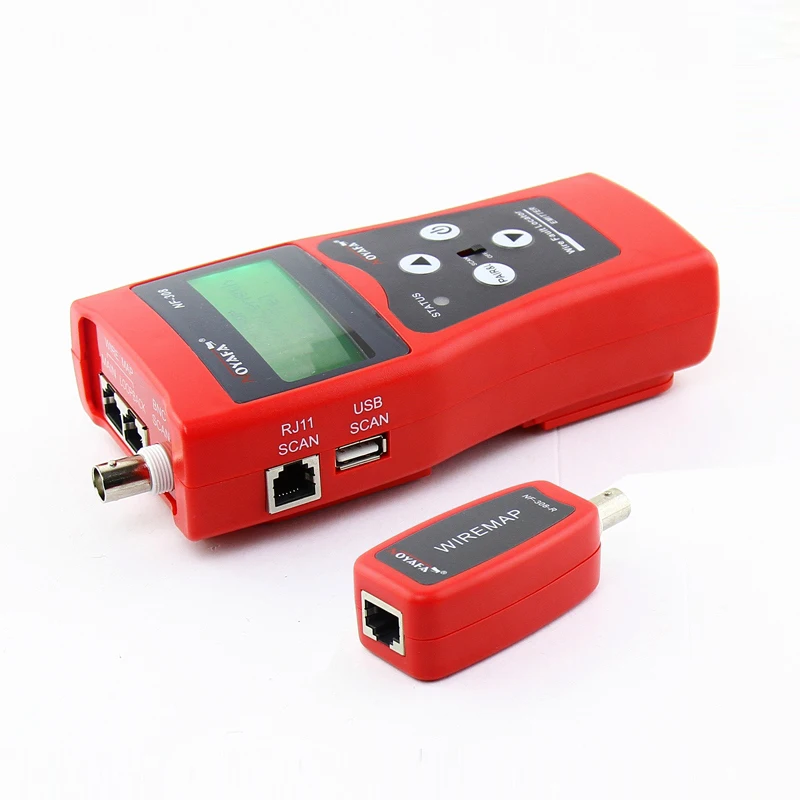

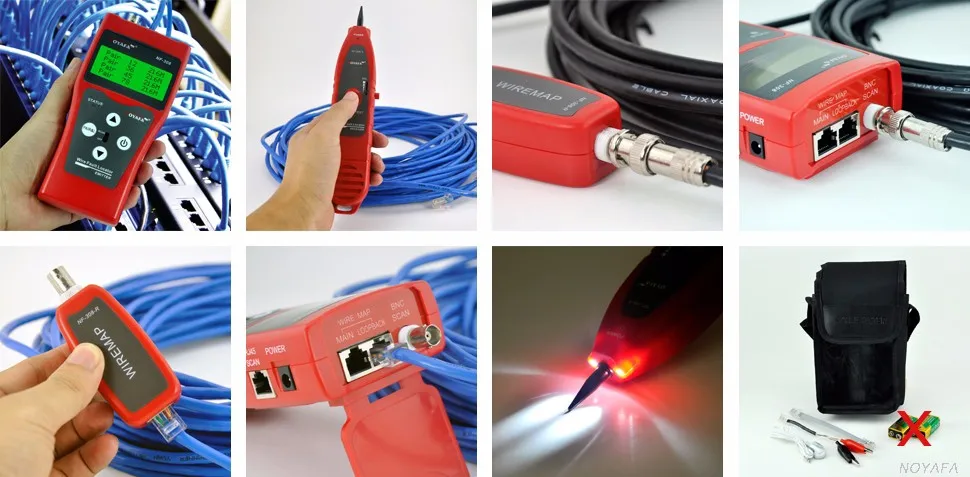

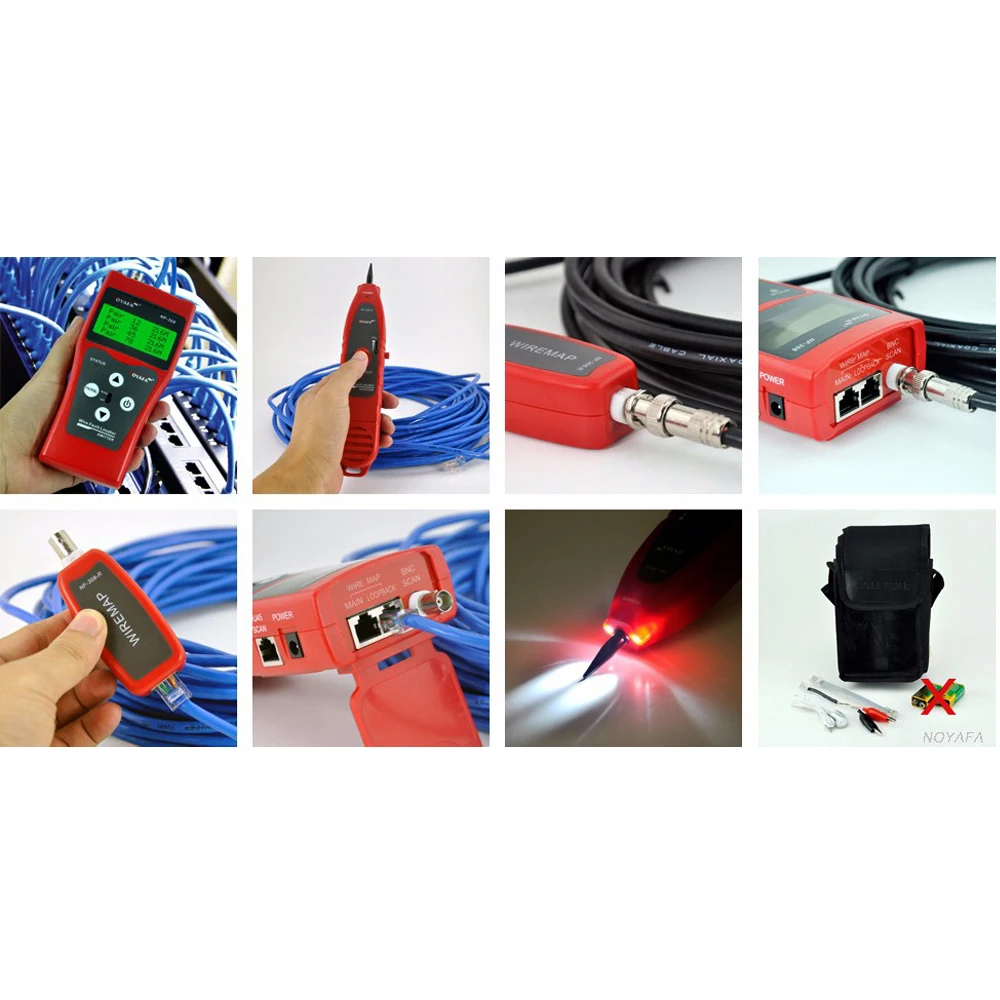

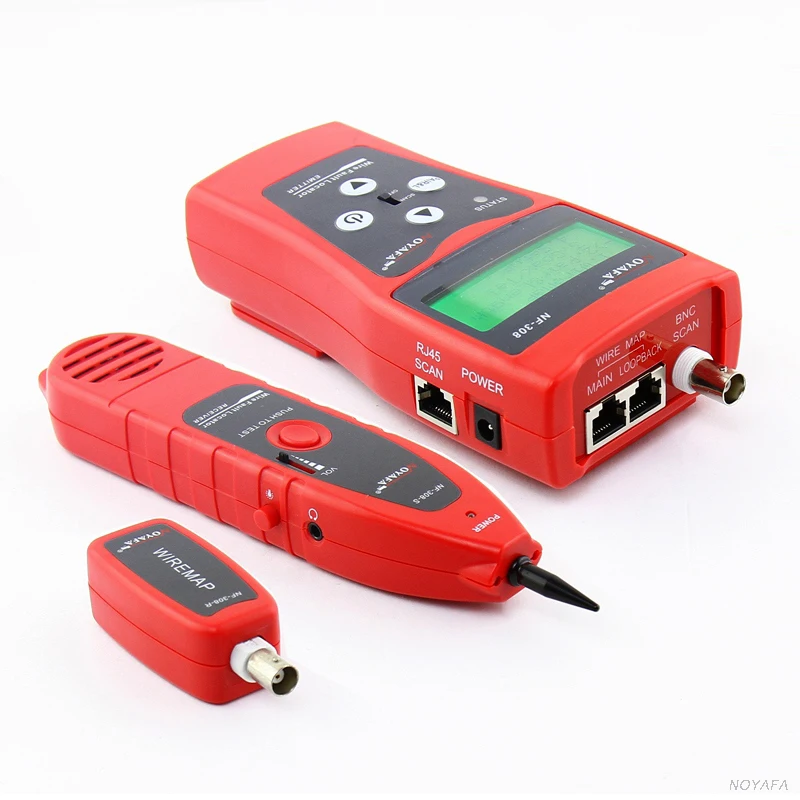

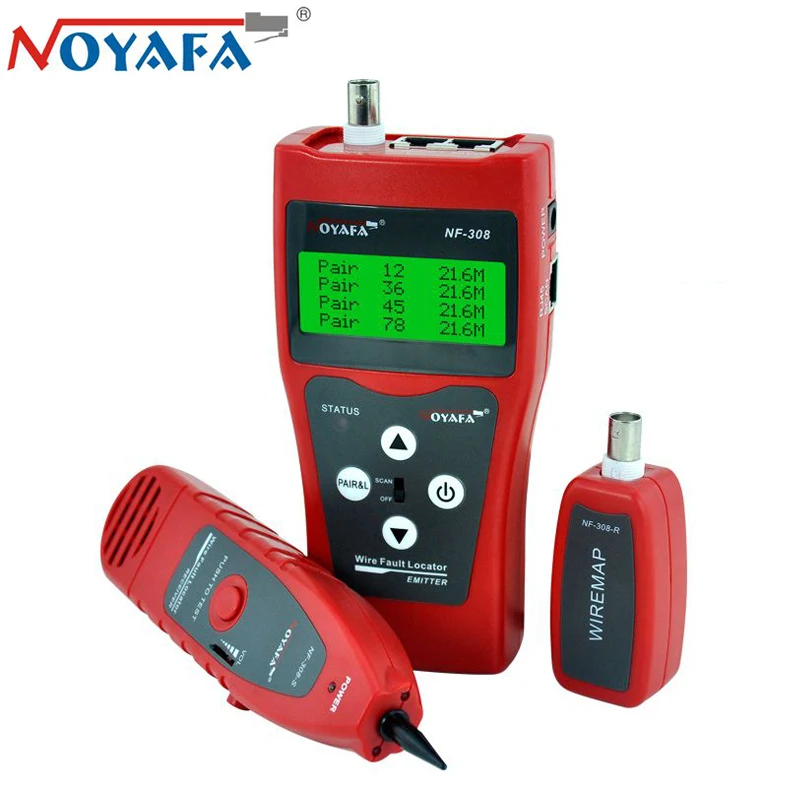

Noyafa Red NF-308 LAN Network Cable Tester Locator for Cat5e Cat6e RJ45 Coacial USB BNC RJ11 Telephone Wire Tracker Tracer NF308 cable tester tracer Networking Tools
Code: TD-33012323790
3 orders
Free Shipping
$ 91.04
$ 93.73
Other people want this. 18 people have this in their carts right now.
| Brand Name: | NOYAFA |
|---|---|
| Package: | No |
| Type: | Cable Tester |
| Model Number: | NF-308R NF 308 |
| Type: | For Noyafa NF-308R |
| Colour: | Red |
| Model: | JX331-Red |
| Features: | With Black Pouch |
Features:
1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of breakage point.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Technical indexes:
NF-308 Transmitter specifications
Indictor
LCD 53x25 mm, with back light
Tone frequency
225 Hz
Max. distance of transmission
2 km
Max. distance of cable map
300m
Max. working current
Less than 70mA
Tone mode
2 Tone adjustable
Compatible connectors
RJ11, RJ45,Coacial, USB
Max. signal voltage
15Vp-p
Function selection
3 position buttons & 1 power switch
Function and faults LCD display
LCD display ( wiremap, Tone, short, , No adapter, Low battery )
Cable map indication
LCD (#1-#8)
Shielded indication
LCD ( #9)
Voltage protection
AC 60V/DC 42V
Battery Type
(NOT Included)
Dimension(LxWxD)
185x80x32mm
NF-308 Receiver specifications
Frequency
225kHz
The Max. working current
Less than 70mA
Earjack
1
LED illumination
2
Battery Type
DC9.0V (NEDA 1604/6F22 DC9V) x1pcs
Dimension(LxWxD)
218x46x29 mm
NF-308 Remote unit specifications
Compatible connectors
RJ11, RJ45,Coacial, USB
Dimension(LxWxD)
107x30x24mm
Function Comparison:
Function
NF-838
NF-8208
NF-308
NF-838
NF-868
Find Cables
RJ45+RJ11+BNC
USB + 1394
RJ45
RJ45+RJ11+BNC
USB
RJ45+RJ11+BNC
USB
RJ45+RJ11+BNC
USB
Address Cables
RJ45+RJ11+BNC
USB + 1394
RJ45
RJ45+BNC
RJ45+BNC
RJ45+RJ11+BNC
USB
Test Length
×
RJ45
RJ45
RJ45
RJ45+RJ11+BNC
USB
Test cross cables
√
√
RJ45+BNC
RJ45+BNC
√
Test short-circuit
√
√
RJ45+BNC
RJ45+BNC
√
Test crosstalk
√
√
RJ45+BNC
RJ45+BNC
√
Lighting
√
√
√
√
√
Earphone
√
√
√
√
√
Anti-jamming
√
√
√
√
√
Voltage Withstand
√
√
√
√
√
Tone
9 types
1 type
2 types
2 types
1 type
Included:
Emitter
1 x Receiver
1 x Adapter
1 x RJ11 cable
1 x RJ45 cable
1 x Cable with crocodile clamp
1 x Earphone
1 x Instruction Manual
1 x Black Pouch
