New GRBL 4Axis Stepper Motor Controller Control Board With Offline/300/500W Spindle USB Driver Board For CNC Laser Engraver wood pellet mill for sale Woodworking Machinery

Code: TD-2255800024334246 59 orders
Free Shipping
$ 128.96 $ 195.25
Color:
Offline and 4 Axis
4 Axis
Note

Quantity:
Other people want this. 15 people have this in their carts right now.
Brand Name:  CRONOS
Origin:  CN(Origin)
Model Number:  GRBL 4 Axis
CNC or Not:  CNC
Is Smart Device:  Yes
Condition:  New
Certification:  NONE

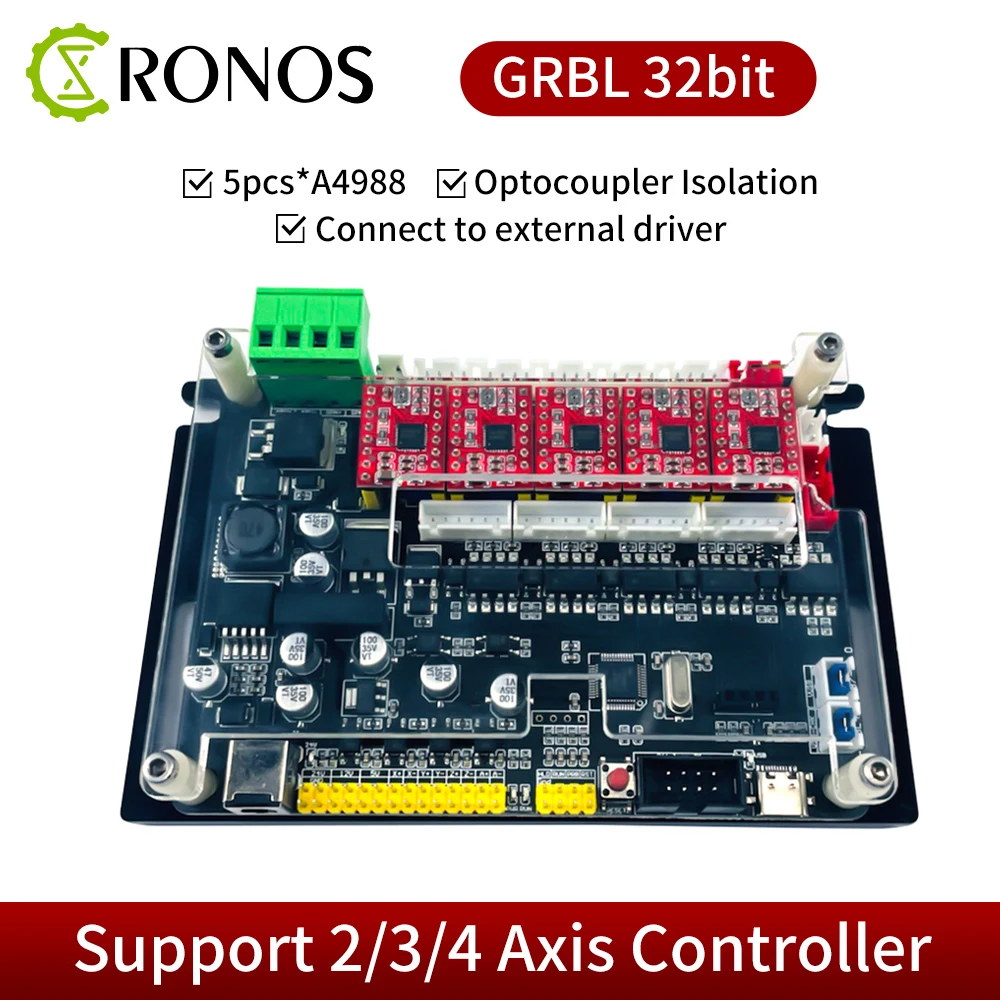

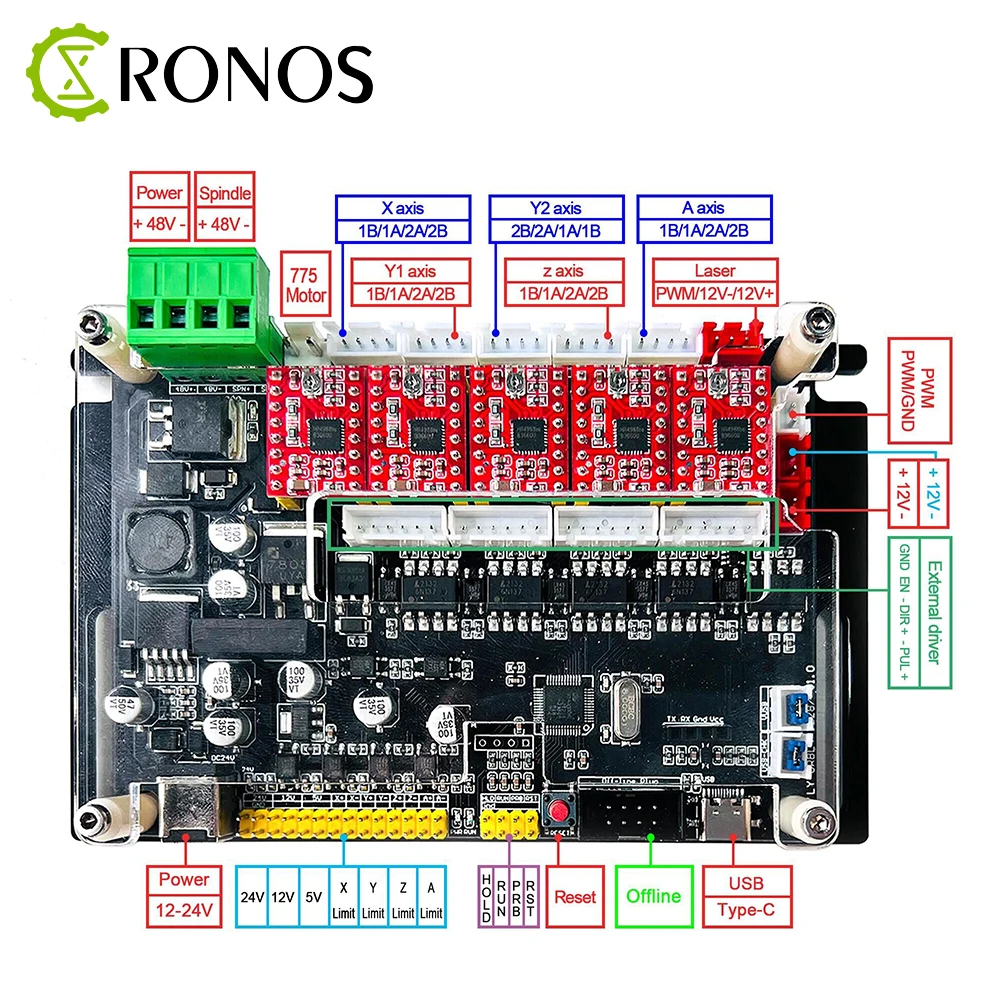

Four-axis 3.0 Control Board Features:

This control board is a 32-bit MCU control board, which runs faster, the maximum no-load speed reaches 40000mm/min, the algorithm is optimized better, the vibration of the machine is smaller when the machine moves at high speed, and the performance is more stable;

Using the Type-C USB interface, it is more convenient to use and the data transmission is more stable;

Support external drive, the reserved interface for external drive is consistent with the high-power drives on the market, which is convenient for wiring;

The control board power supply and line number circuit are isolated by optocoupler, the whole control board is safer and more stable;

Y-axis dual drive, stronger drive capability;

Support USB automatic identification. When plugged in USB and connected to the computer, it will automatically shield the offline interface to avoid offline interference with data. At the same time, it supports external buttons, which can switch offline/USB control with one key;

There are long strip-shaped mounting holes on the shell, which is convenient for the installation of various devices;

Reserve 24V, 12V, 5V power output ports to facilitate the expansion of various functions;

Support USB flash firmware, firmware upgrade is more convenient

Product Parameters:

Product Name:4 Axis 3.0 Control Board

Product Specifications:4 Axis

Package Size:185mm*115mm*55mm

Package Weight:300g

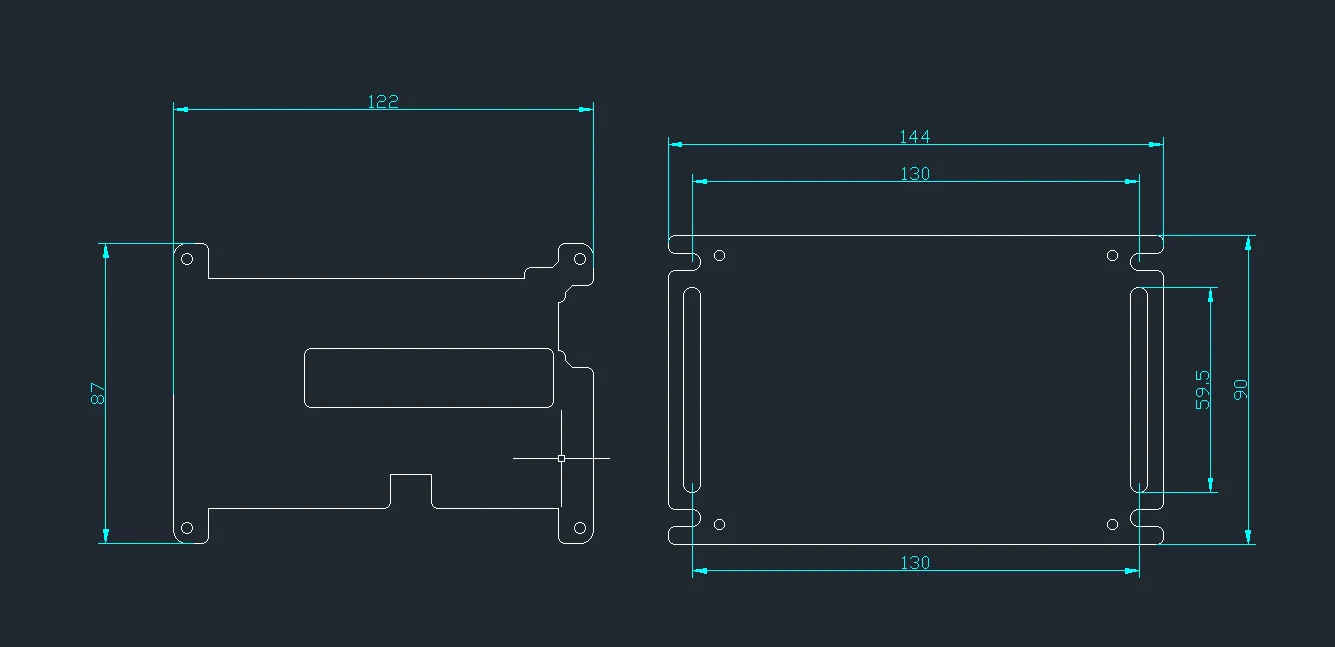

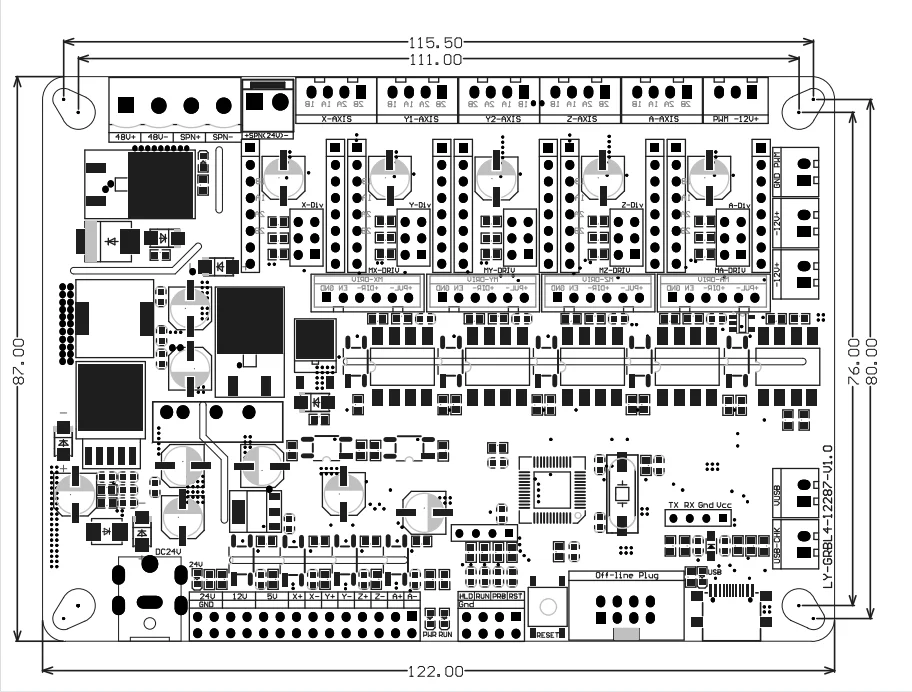

Product Size:122mm*87mm

Product Weight:150g

Operating System:Window/Linux/Mac

Interface Type:TypeC

Supply Voltage:DC24V- 5A

Software Support:Candle/LaserGRBL/LightBurn/USG

Packing List 1:1*Control Board+1*Motor Cable+1*Type C Cable

Packing List 2:1*Control Board+1*Offline+1*Motor Cable+1*Type C Cable

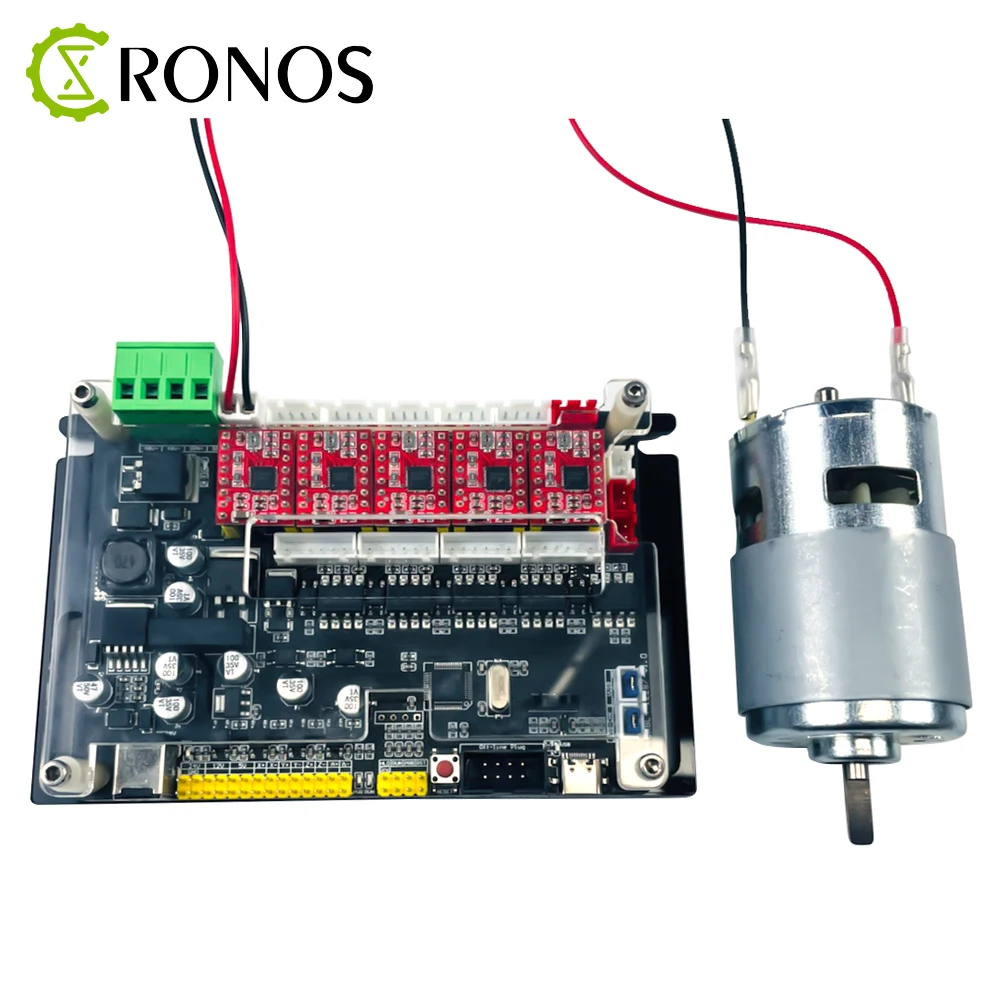

Connect To 775 Motor:

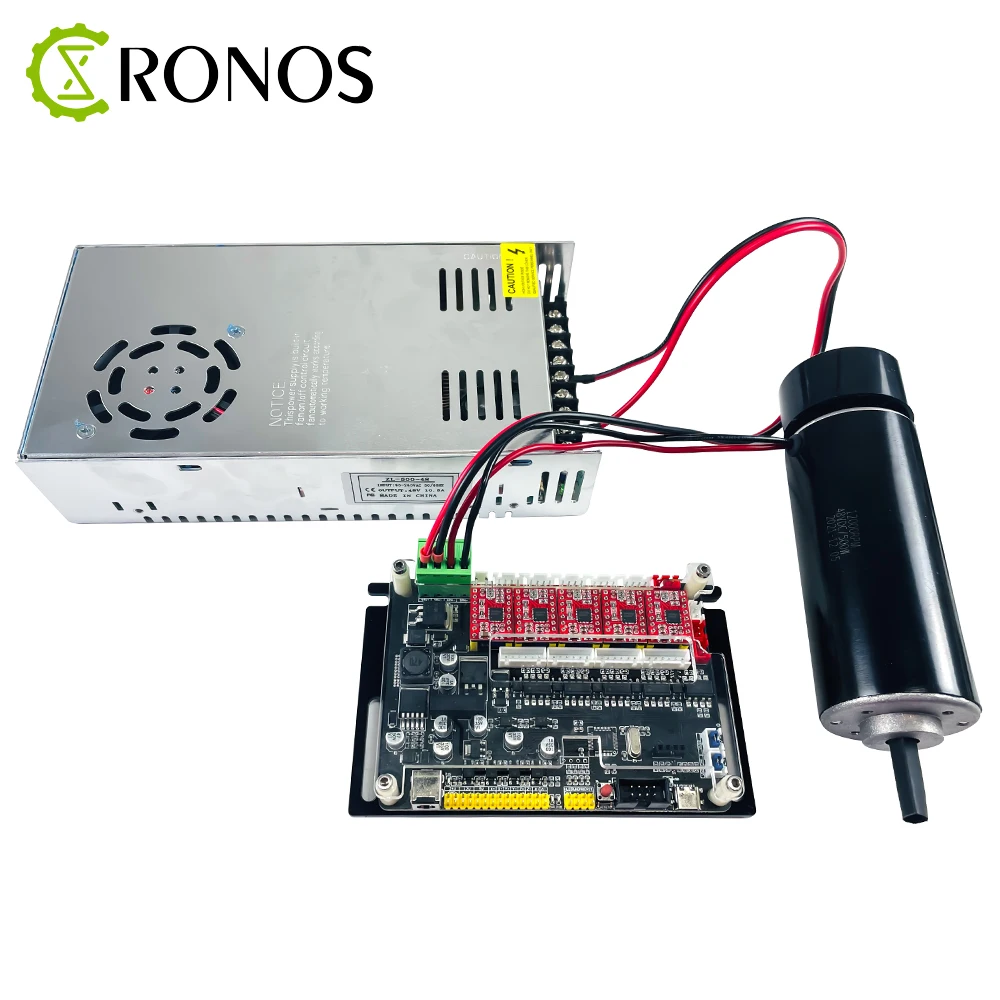

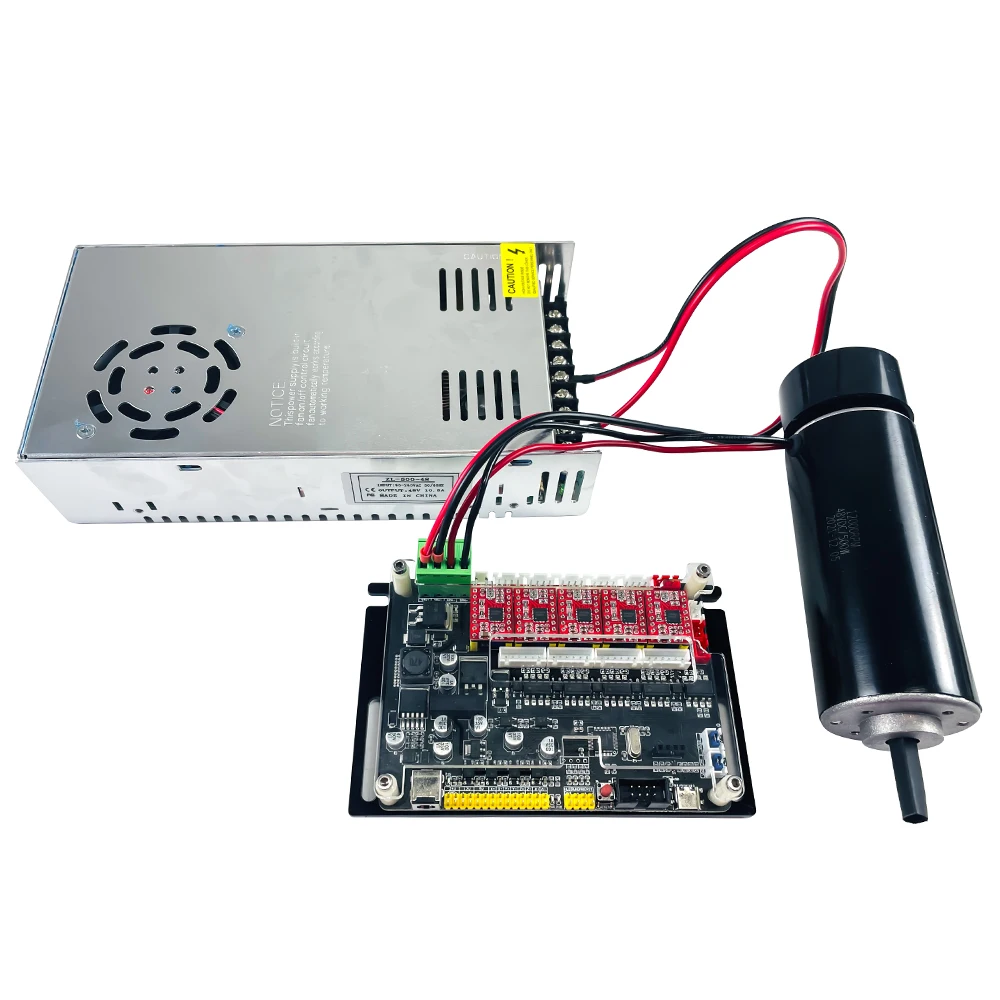

Connect To 300W/500W/800W Motor:

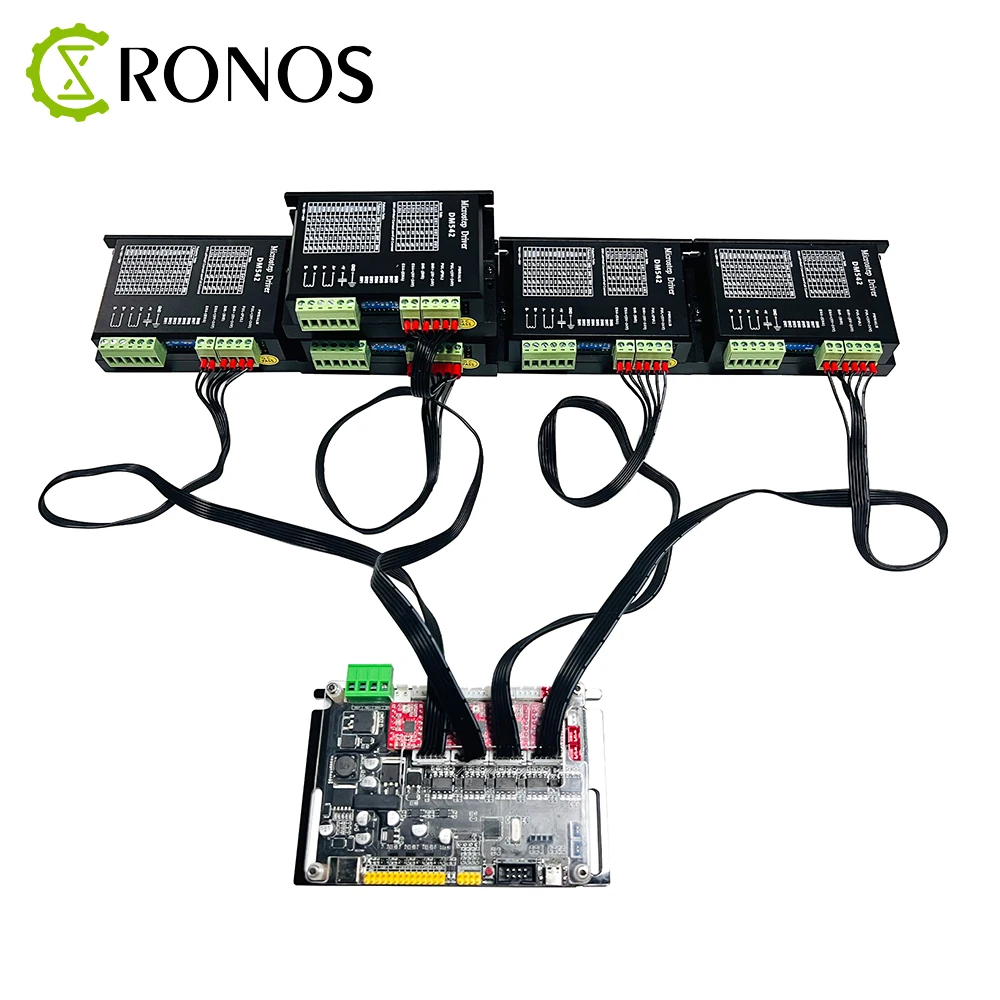

Connect To External Drive Motor:

Package:
