New Global Version Xiaomi Mi Wireless Router AX3200 WiFi Repeater 3202Mbps Dual-Frequency VPN Mesh 256MB Signal Amplifier PPPOE

Brand Name:	XIAOMI
With Modem Function:	Yes
Origin:	CN(Origin)
Type:	wireless
WAN Ports:	1 x10/100/1000Mbps
Wi-Fi Supported Frequency:	2.4G & 5G
Model Number:	AX3200
Function:	Firewall
Certification:	CE
Standards And Protocols:	Wi-Fi 802.11g
L*W*H (per unit):	284*186*186mm
Processor:	MediaTek Filogic800 Dual-core A53 1.35GHz CPU
Memory:	256MB
Dual-band:	2.4GHz, 5GHz
Management applications:	Supports Web, Android, iOS

Specification

 L×W×H (per unit)

  284mm × 186mm × 186mm

 Product color

  Black

 Processor

  MediaTek Filogic800 Dual-core A53 1.35GHz CPU

 Memory

  256MB

 2.4GHz Wi-Fi

  4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)

 5GHz Wi-Fi

  4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

 Antennas

  External omnidirectional antennas

 Total ports

  10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1

10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3

 LED indicator light

  2 lights, incl. System indicator × 1, Internet indicator × 1

 System reset button

  ×1

 Mesh networking button

  ×1

Power input port

  ×1

 Protocol standards

  IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

 Dual-band

  2.4GHz, 5GHz

 Modulation

  11b：DSSSDBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),

64QAM(48/54Mbps)

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

 Operating system

  Mi WiFi ROM, a smart router operating system based on OpenWRT

 Wi-Fi Encryption

  WPA-PSK/WPA2-PSK/WPA3-SAE encryption. Tookfun

 Management applications

  Supports Web, Android, iOS

 Working environment Temperature

  0-40℃

 Operating humidity

  10%-90%RH (non-condensing)

 Storage temperature

  -40-70℃

 Storage humidity

  5%-90%RH (non-condensing)

 Package contents

  Xiaomi Router AX3200 ×1

User Manual ×1

Power cord ×1

Network cable ×1

Xiaomi Router AX3200

Main Features

MU-MIMO technology

OFDMA technology

Xiaomi mesh networking

Smart living with 256MB of memory

Ultra-fast Wi-Fi 6, A brand-new network experience

Dual-Band unleashes the full potential of network performance

Directional enhanced signal for greater coverage

Detailed parameters

Xiaomi Router AX3200

Ultra-fast Wi-Fi 6, A brand-new network experience

The Wi-Fi 6 (802.11ax) is the latest generation in Wi-Fi standards. Thanks to its higher transfer rates, Xiaomi Router AX3200 allows you to easily enjoy nearly twice the speed of a typical AC1200 router. The Wi-Fi 6 router significantly reduces latency and unresponsiveness in end devices, even when multiple users are using multiple devices at the same time. Glide through the new digital era with true ultra-fast network responsiveness.

Dual-Band unleashes the full potential of network performance

Xiaomi Router AX3200 offers both 2.4GHz and 5GHz. The two bands do not interfere with each other, and have a combined theoretical wireless speed of 3202Mbps maximum. Enjoy ultra-fast Internet access, stable signal coverage, high-speed usage, seamless HD videos and large-scale online gaming.

MU-MIMO technology*

Smoother Internet access for multiple users

MU-MIMO technology allows the multiple antennas of your Xiaomi Router AX3200 to provide network connection to multiple devices simultaneously. If a router is a highway, this one comes with extra lanes that both increase transfer rates and prevent unresponsiveness in your devices.

OFDMA technology* Take control with efficient transmission

OFDMA technology allows your router to send data to multiple end devices with just one transmission, where a traditional router would need to send multiple transmissions. OFDMA makes for more efficient transmission and reduced latency so you can use multiple devices at the same time, and enjoy instant responsiveness when online gaming, whether that be large-scale or via your smartphone.

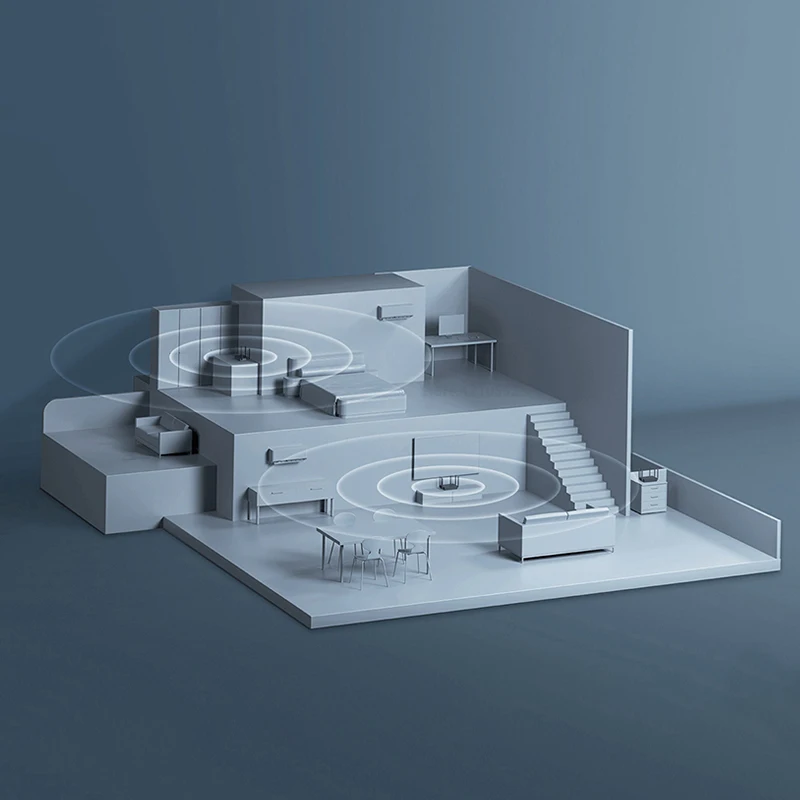

Xiaomi mesh networking

Full-home coverage with Wi-Fi 6

Set up mesh networks comprised of multiple routers with compatible Xiaomi mesh router products. No need to worry about the layout of your home, this system is built to work in all kinds of complex layouts and provide full-home signal coverage. The wireless signal roams between each router seamlessly, allowing you to use your network however you please.

MediaTek Filogic800

Optimum network status at all times

Features dual-core quad-threaded processors with a single-core clock speed of up to 1.35GHz. With overall performance improvements, your Internet connection is more enjoyable and diverse.

Smart living with 256MB of memory

A large memory means you can connect up to 128 devices*. Enjoy the technology-enabled benefits of your router with smooth, stable network connections across multiple devices.

Beamforming technology

Directional enhanced signal for greater coverage.

Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance. The router can strengthen the Wi-Fi signal for the corresponding direction, improving quality and stability, and expanding the effective range.

Greater specialist technology support

Notes:

* 3202Mbps is the maximum theoretical wireless speed when the 2.4GHz (800Mbps) and 5GHz (2402Mbps) bands are used concurrently. Actual speeds may vary depending on environmental factors.

* Use of Wi-Fi 6 (802.11ax), and features including 80MHz, OFDMA, MU-MIMO, and 1024 QAM require end devices that also support the corresponding features.

* 128 devices is the combined total connections for 2.4G/5G under laboratory conditions.

*WPA3 technology requires end device support.

*IPTV-supported services vary depending on the country/region. For specific IPTV service contents in your location, please consult your local operator.
