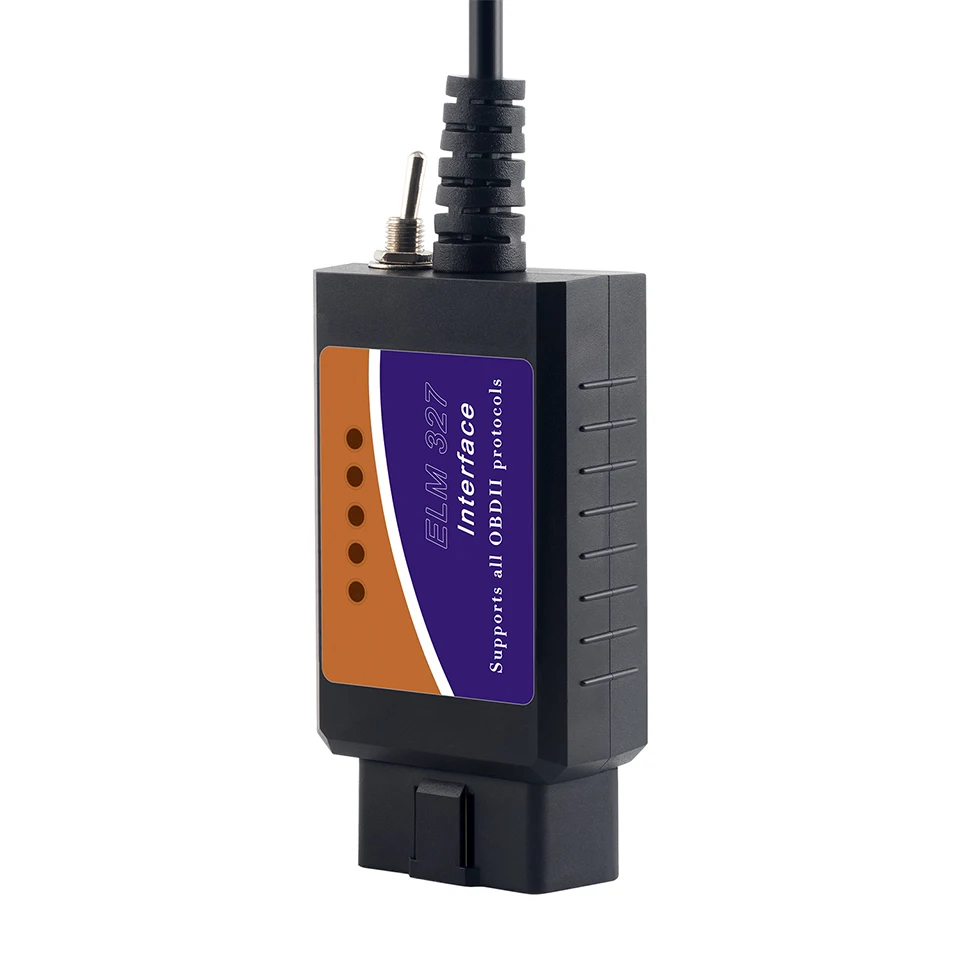

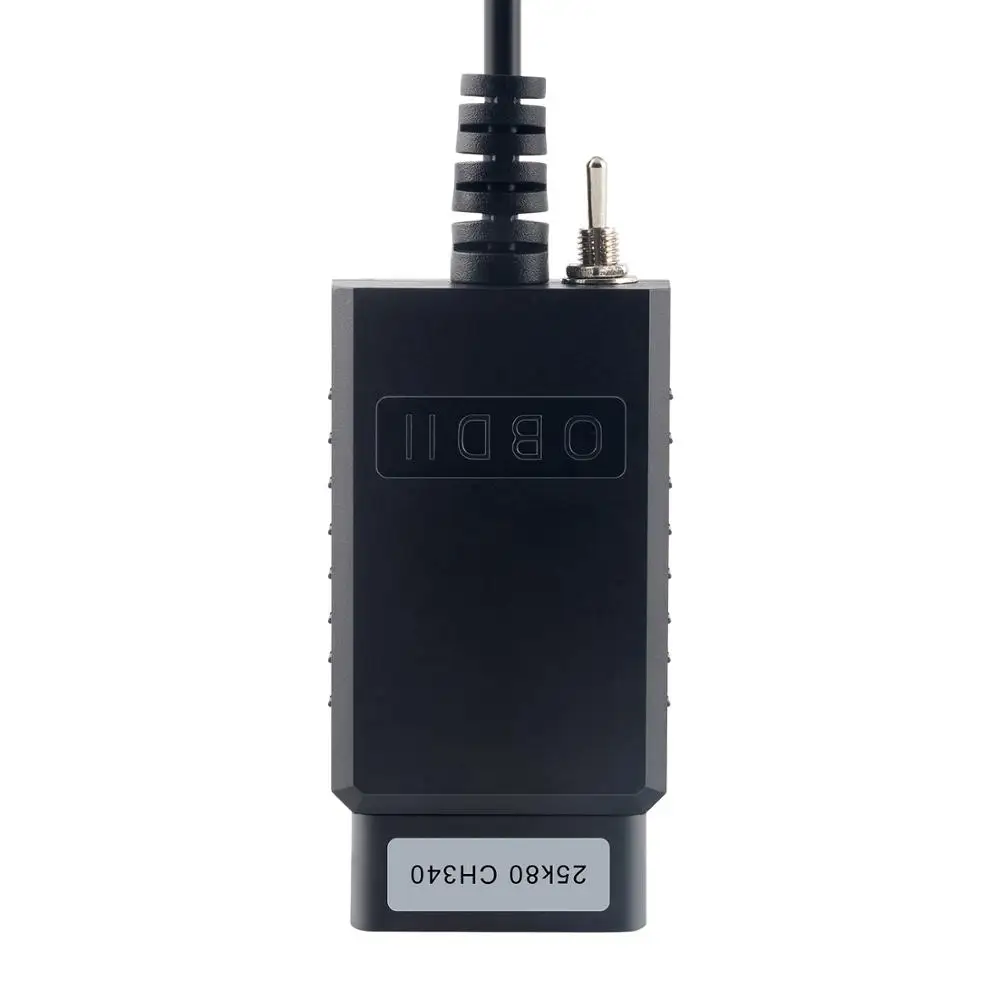

NEW ELM327 V1.5 USB PIC18F25K80&CH340 HS/MS CAN For Ford elm327 For FORScan OBD2 Scanner CH340 Diagnostic Auto Tool switch obd 2 automotive engine analyzer Diagnostic Tools

NEW ELM327 V1.5 USB PIC18F25K80&CH340 HS/MS CAN For Ford elm327 For FORScan OBD2 Scanner CH340 Diagnostic Auto Tool switch obd 2 automotive engine analyzer Diagnostic Tools

Name: NEW ELM327 V1.5 USB PIC18F25K80&CH340 HS/MS CAN For Ford elm327 For FORScan OBD2 Scanner CH340 Diagnostic Auto Tool switch obd 2 automotive engine analyzer
Brand: MMO Dropship
SKU: 3256802101377555
Price: 34.77 VND
Availability: InStock
Rating: 4.9 (98 reviews)

Code: TD-3256802101377555 25 orders

Free Shipping

$ 34.77 $ 36.5

Color: USB ch340

Note

Quantity:

Other people want this. 8 people have this in their carts right now.

Description
Shipping & Returns

Origin:	CN(Origin)
External Testing Certification:	ce
Hardware Version:	newest
Item Length:	15inch
Special Features:	USB
Software Version:	v1.5
Item Width:	3inch
Model Name:	ch340
Electronic:	No
Item Height:	3inch
Item Type:	Car Diagnostic Cables and Connectors
Item Weight:	0.1kg
elm327 supports car 2:	12V gasoline & Diesel car
elm 327 operate system:	PC
Software Update:	NO
elm 327 feature:	obd2 code reader scanner
elm327 supports car 1:	OBDII & CAN compliant with 16 pin port
Product Name:	ELM327 with PIC18F25K80 ch340
Operating system:	Windows XP/7 32bits
CHIP:	PIC18F25K80 ch340

Note:

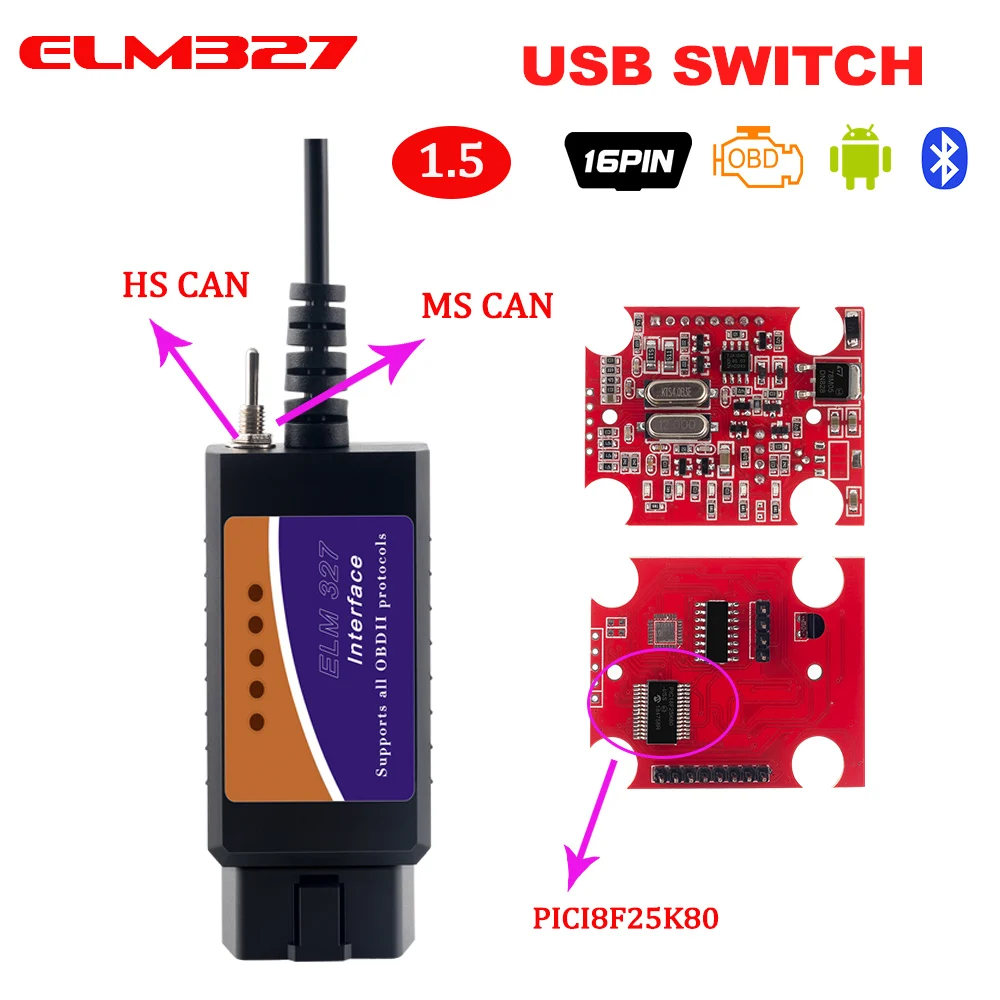

1.HS MS USB V1.5: ELM327 USB V1.5 version With PIC18F25K80 chip,CH340 chip,and HS-CAN/M-S CAN Switch

(with CD)

（

Many customers use HS-COM/MS-COM V1.5 ELM327 for Ford with FORScan）

ELM327 USB Switch V1.5 Forscan for ford

Different with ELM327 USB forscan :

It is

with PICI8F25K80 and CH340 chip

HS MS USB V1.5:

The function is same with ELM327 USB Forscan

ELM327 USB Swith Packing List:

1*ELM327 USB Swith

1*CD

Description for ELM327 USB Diagnostic Cable With Switch

Top 4 Reasons to Get Plastic USB ELM327:

1: Latest ELM327 includes PIC25K80 and CH340T.

2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.

3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.

4: Support Windows XP and WIN7 32bite.

OBDII Protocols:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2 (5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250*Kbaud)

CAN (11*bit ID, 125*Kbaud)

CAN (11*bit ID, 50*Kbaud)

Introduction:

With the cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models

Pin Configurations:

Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:

For FORScan

For Elmconfig

For FoCCCus

For FF2

Plus more

Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

English , Czech , Danish , German , Spanish , French , Croatian , Hungarian , Italian , Polish , Serbian , Turkish

ELM327 USB Switch Functions:

Read/erase fault codes/parameter ids (PIDs) from ALL modules, including OBD2/EOBD

Access modules on both HS-CAN and MS-CAN mode

Read and Change car configuration data

Actuator tests

Live Data

Injector coding

Software updates

Service procedures

Force DPF regeneration

Programming

Coding

Adaptations

Run tests

Air Flow Rate

Display and read

Engine RPM

Vehicle Speed

Intake Air Temperature

Long Term Fuel Trim

Short Term Fuel Trim

Timing Advance

Oxygen Sensors

Fuel System status

ELM327 USB Forscan Support Car List:

For MAZDA

For BMW

For VW

For GM

For AUDI

For CHEVY

For TOYOTA

For LEXUS

For Lincoln

For MERCEDES

For Mercury

For HYUNDAI

For KIA

For MITSUBISHI

For NISSAN

For SUZUKI

For JAGUAR

For LAND ROVER

For CHRYSLER

For HONDA

AND SO MUCH MORE!

Hidden function Support car list

2006-2016 classical for Focus

2012-2015 new for Focus

2013-2015 for Kuga

Please note that many for Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
