Name: NEJE Master 2s Plus A40640/N40630 CNC Laser Engraving Machine Cutting Wood Cutter Printer APP Wireles Bluetooth Benbox Lightburn wood pellet machine
Brand: MMO Dropship
SKU: 3256802594535011
Price: 698.5 VND
Availability: InStock
Rating: 4.9 (83 reviews)

Code: TD-3256802594535011 5 orders

Free Shipping

$ 698.5 $ 1597

Other people want this. 17 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	NEJE
Origin:	CN(Origin)
Model Number:	Plus
CNC or Not:	CNC
Is Smart Device:	Yes
Condition:	New
Certification:	CE
Certification:	FCC
Certification:	RoHS
Certification:	UL

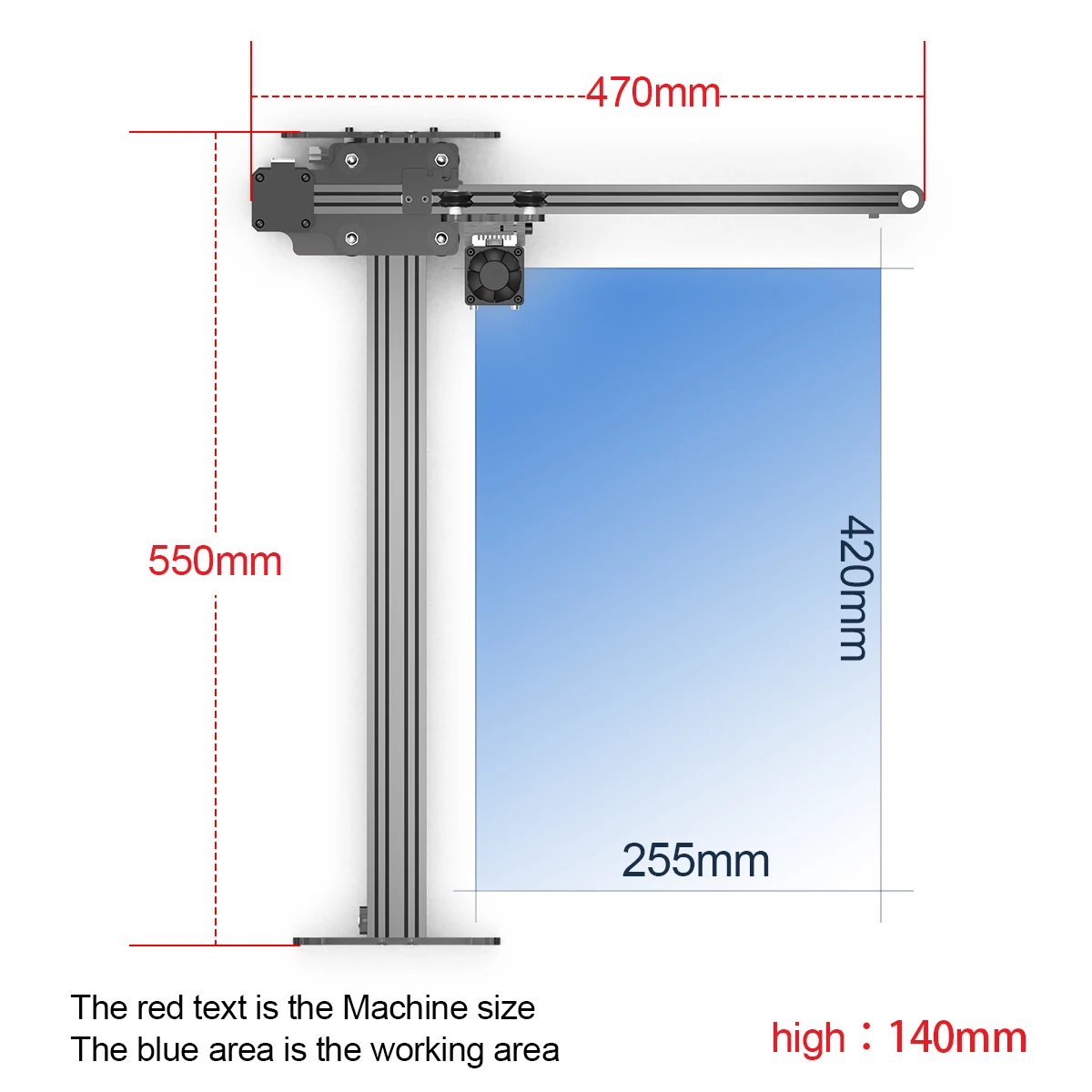

Working Size:	255x 440 mm
Satety Protection:	MEMS
Brand:	NEJE
80W Laser Model:	A40640
40W Laser Model:	A40630
30W Laser Model:	N40630

NEJE N40630 Product Specification

Model：NEJE Module N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Optical power output：5.5W (5500mW)

Input power：30W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

NEJE Master 2S Plus N40630 Product Specifications

1. Larger area, 255 x 440 mm engraving and cutting area

2. optical power output 5.5W, focal point 0.01mm, support engraving and cutting.

3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

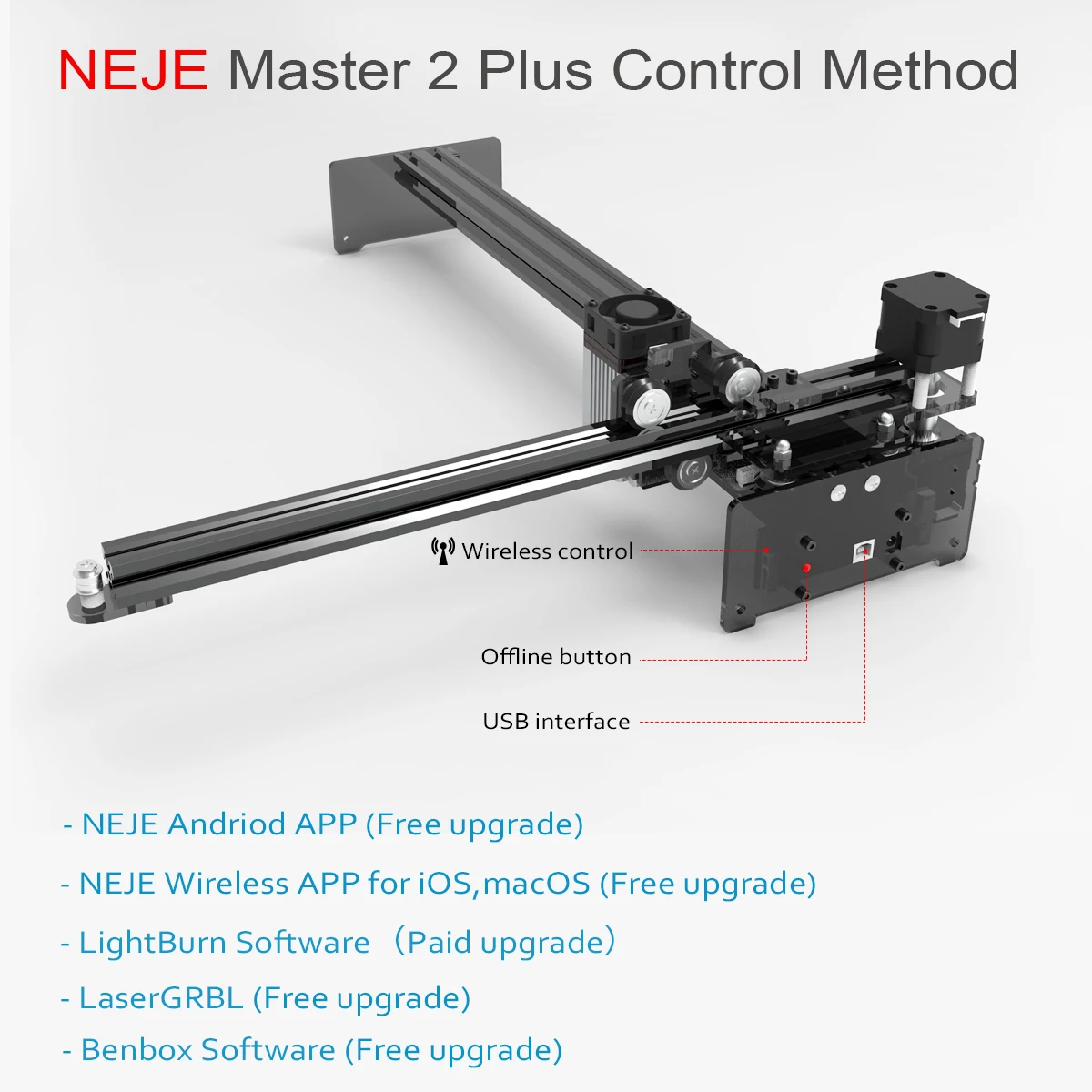

4. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

7. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

8. Support NEJE 4pin interface series modules,

9. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty!

NEJE A40640 Product Specification

Model：NEJE Module (A40640)

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：Metal/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stainless Steel

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Optical power output：10W

Input power：60W-80W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 4-5A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

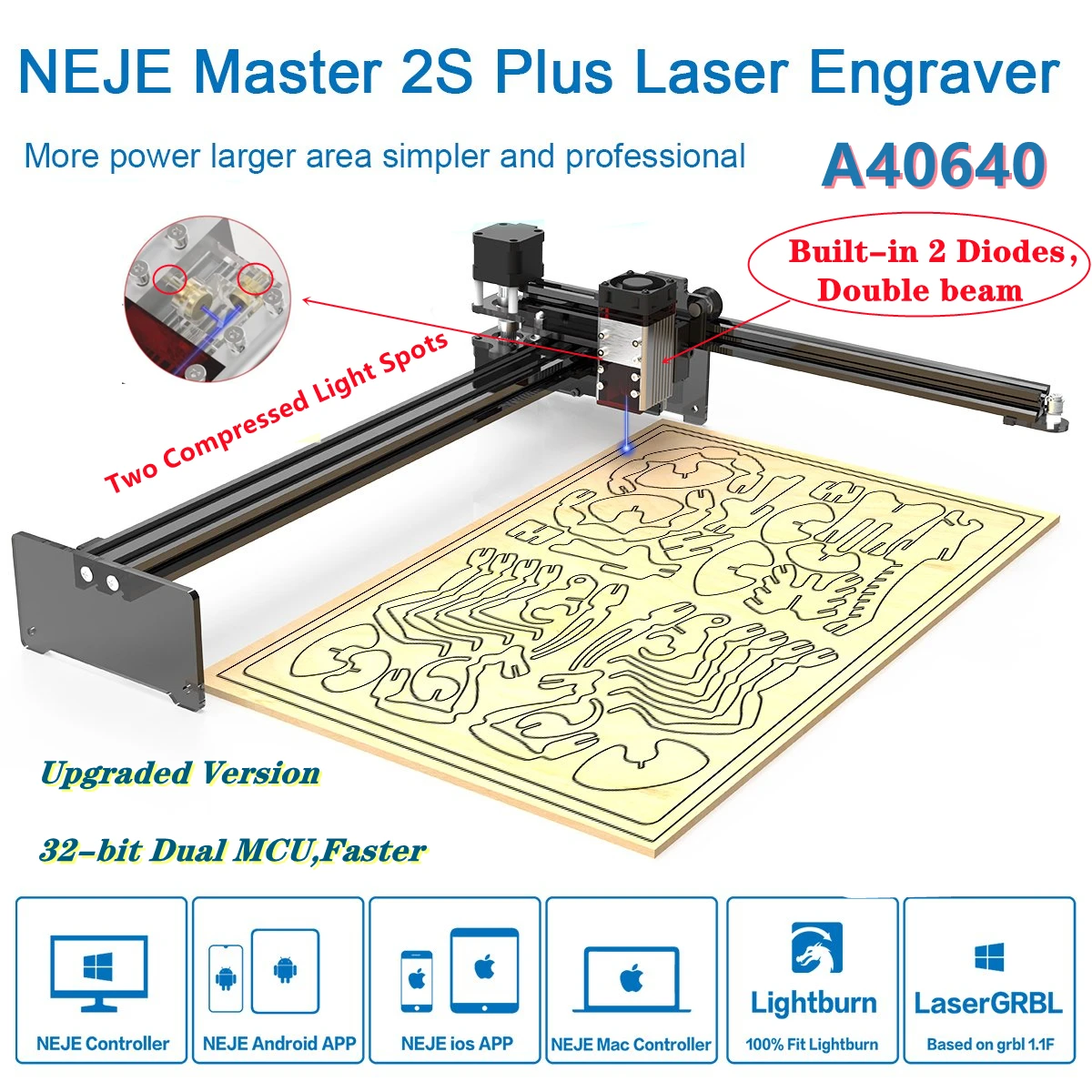

NEJE Plus A40640 Product Specifications

1. Larger area, 255 x 440 mm engraving and cutting area

2. optical power output 10W, focal point 0.01mm, support engraving and cutting.

3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

8. Support NEJE 4pin interface series modules,

9. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty!

NEJE (A40640) Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.10W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.slidable mounting fixture is provided for easy adjustment of focus.

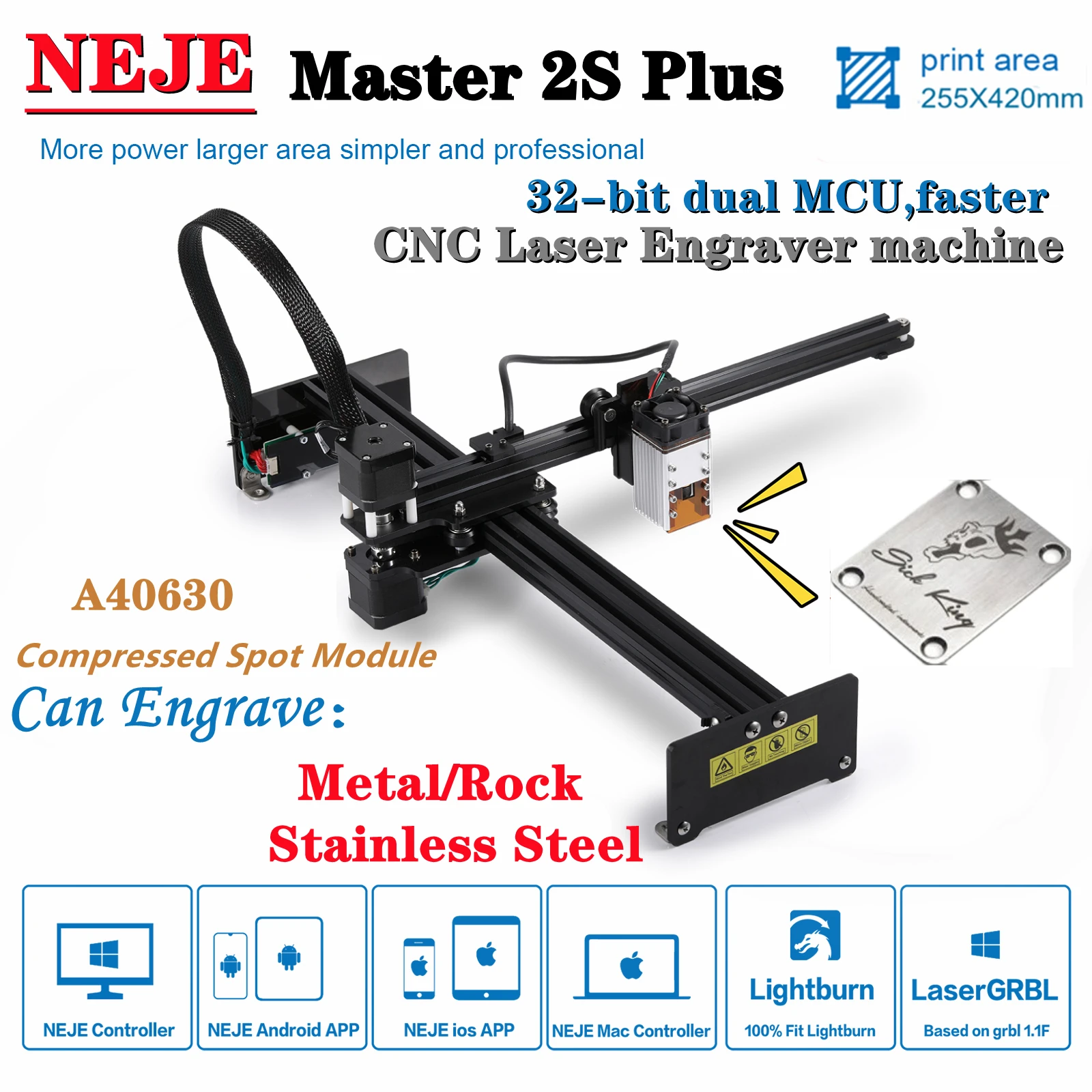

New NEJE Master 2S Plus A40630 General Specification:

Model：NEJE Module （A40630）

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Compressed Spot Module

Can Engrave：Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Optical power output：5.5W (5500mW)

Input power：40W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

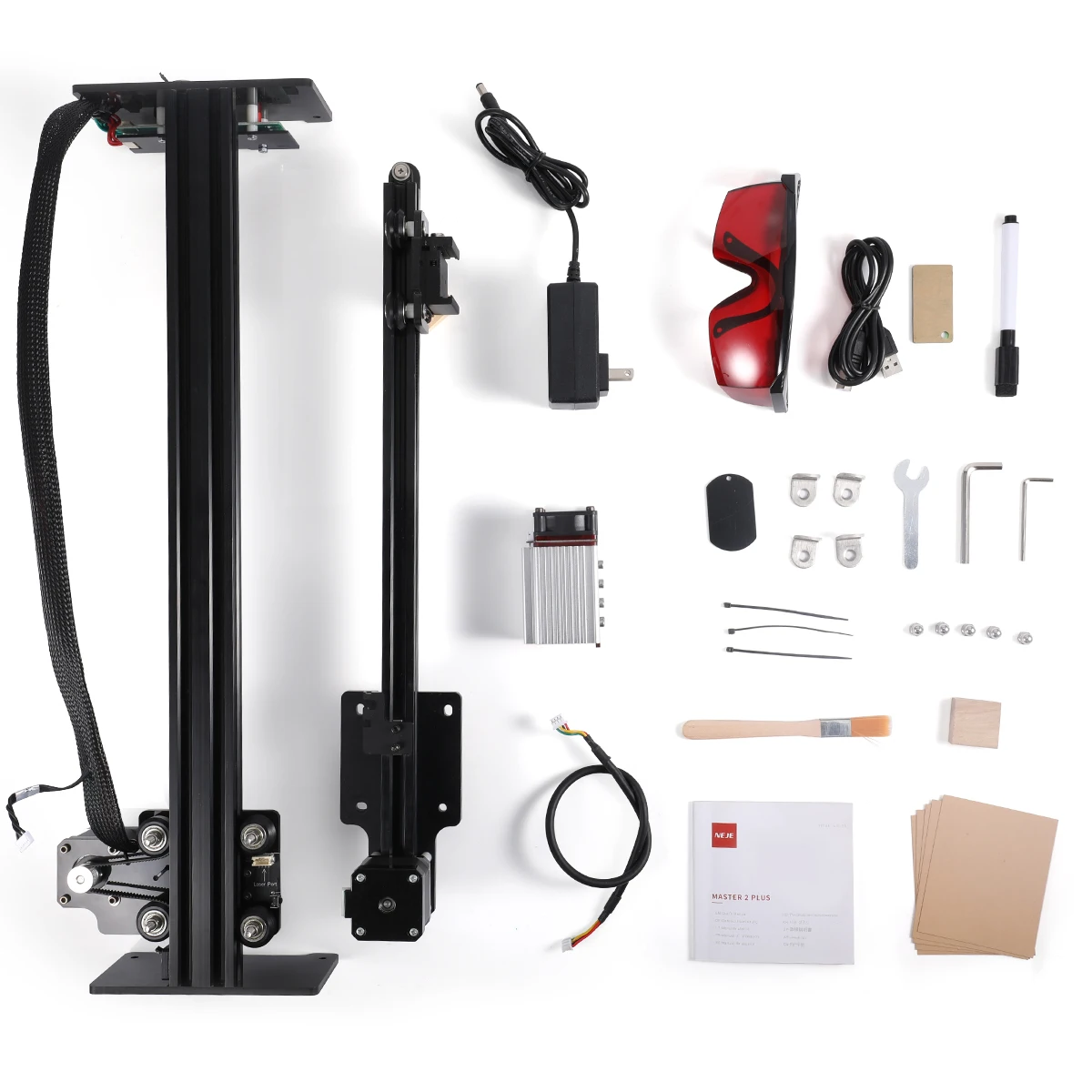

Package List

1* Laser engraving machine

1* N40630/A40640/A40630 module

1* 12V3A /4A power supply

1* European standard adapter

1* Manual

1* Red glasses

1* Data cable

1* wooden board

5* paper

1* pen

1* brush

1* focusing film

4* angle iron

1* alumina film

3* cable tie

5* nut

1* large hexagon wrench

1* small hexagon wrench

1* Open wrench
