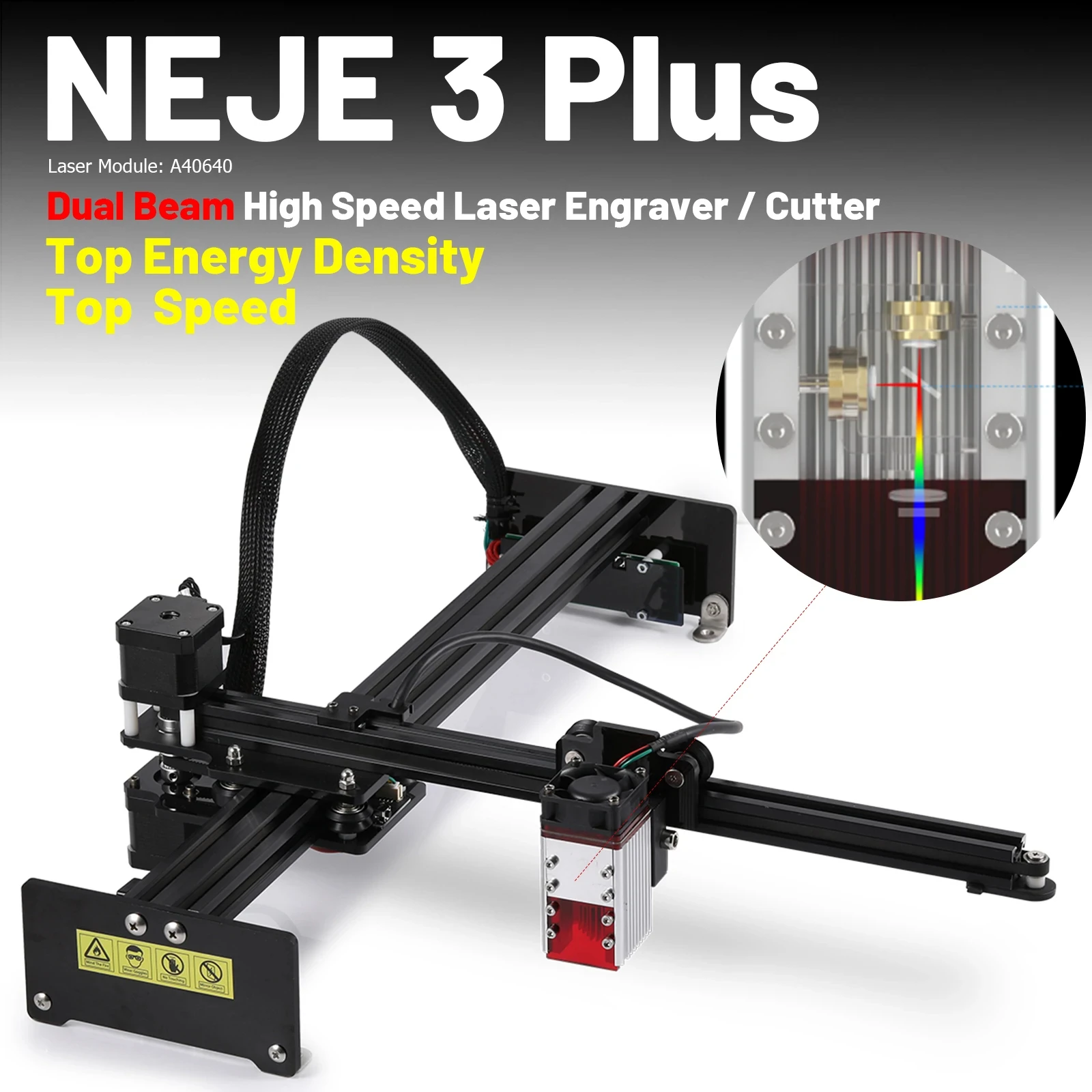

NEJE 3 Plus A40640 Professional Large Area Laser Cutting Machine, Laser Engraving Machine,Lightburn,Bluetooth App woodworking boring machine Woodworking Machinery

Origin:	CN(Origin)
Model Number:	NEJE 3 plus
CNC or Not:	CNC
Is Smart Device:	Yes
Condition:	New
Certification:	CE
Certification:	FCC

Overseas warehouse stock, fast delivery

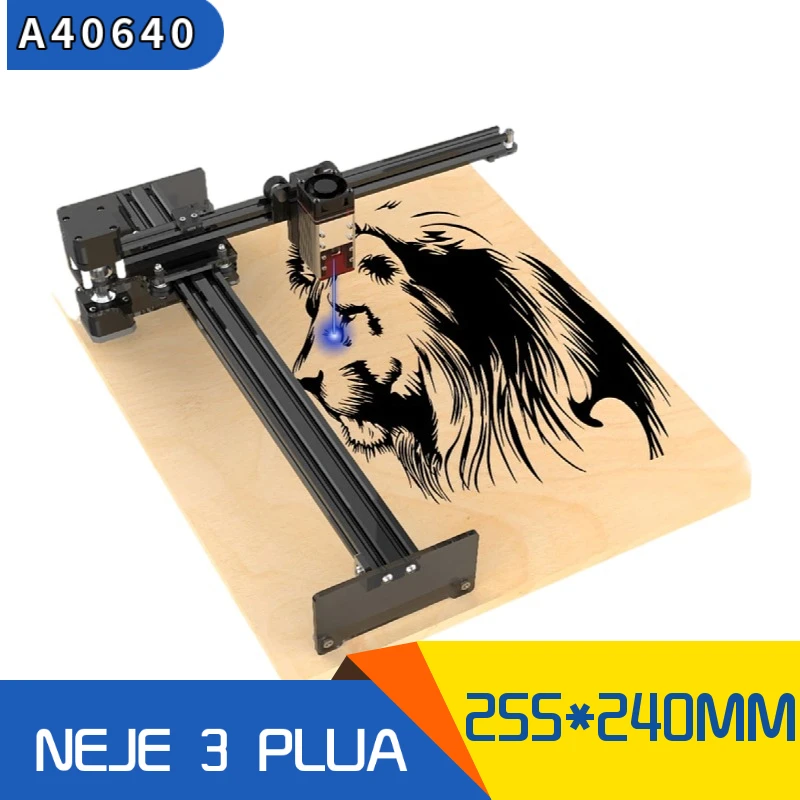

NEJE A40640 module is an zoom carving and cutting module specially designed to overcome high hardness materials and high-speed engraving, and it also has strong cutting ability. NEJE adopts NEJE's unique optical processing technology to compress the focus to 0.04x0.06mm and has 12W pulse Power, focus are clearer than ordinary 2 LD modules, there is no stray light interference on the edge, each pixel is powerful, it can directly and clearly engrave grayscale images on stainless steel and stone surfaces, as well as on wooden 3D images\ Plasma high-definition effect. Stronger energy density and clearer engraving focus than 4xLD laser module, can be said to be the king of engraving. The NEJE A40640 module is an zoom focus module, which can obtain a 20mm thickness cutting ability at a 55mm focus, and has excellent performance in cutting acrylic, wood board, fabric, balsa, corrugated paper, EPE and other materials. NEJE designed a metal quick-release air nozzle for the A40640 module, which can be compatible with cutting needs of different focal lengths. The latest lens has added a high-temperature window lens, which can effectively prevent water and smoke from damaging the lens. If you want to find a model that can A module that solves almost all your needs, A40640 is the best choice.

Feature

【Top engraving speed】

Just fit on a desktop with a width of 600mm, and the left side of the machine is not limited by the size of the material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels, engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the installation.

【Top engraving capabilities】

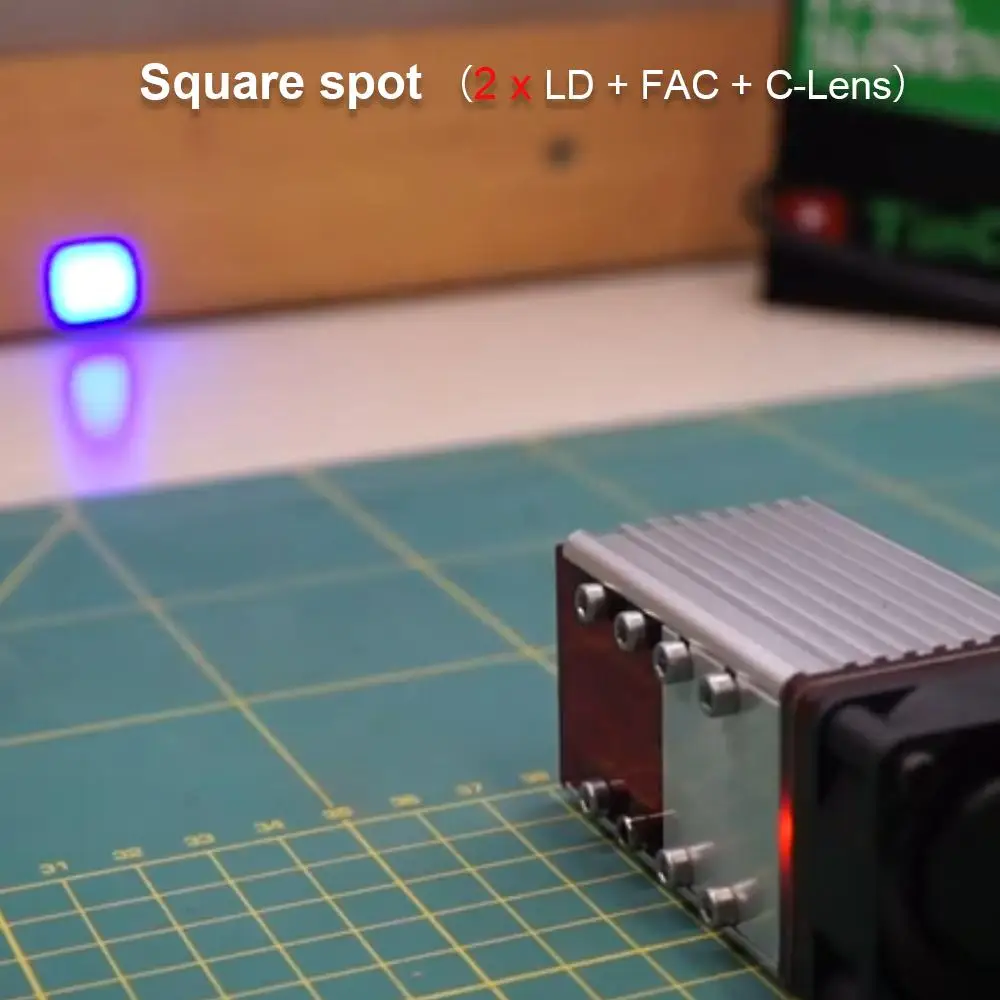

 The laser beam is formed by combining two high-power laser diodes distinctive technology. The minimum focus point reaches 0.04x0.06mm(A40640 module). 12w pulse real pulse output. It can directly engrave clear grayscale on the stainless steel surface. Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

【More materials, clearer】

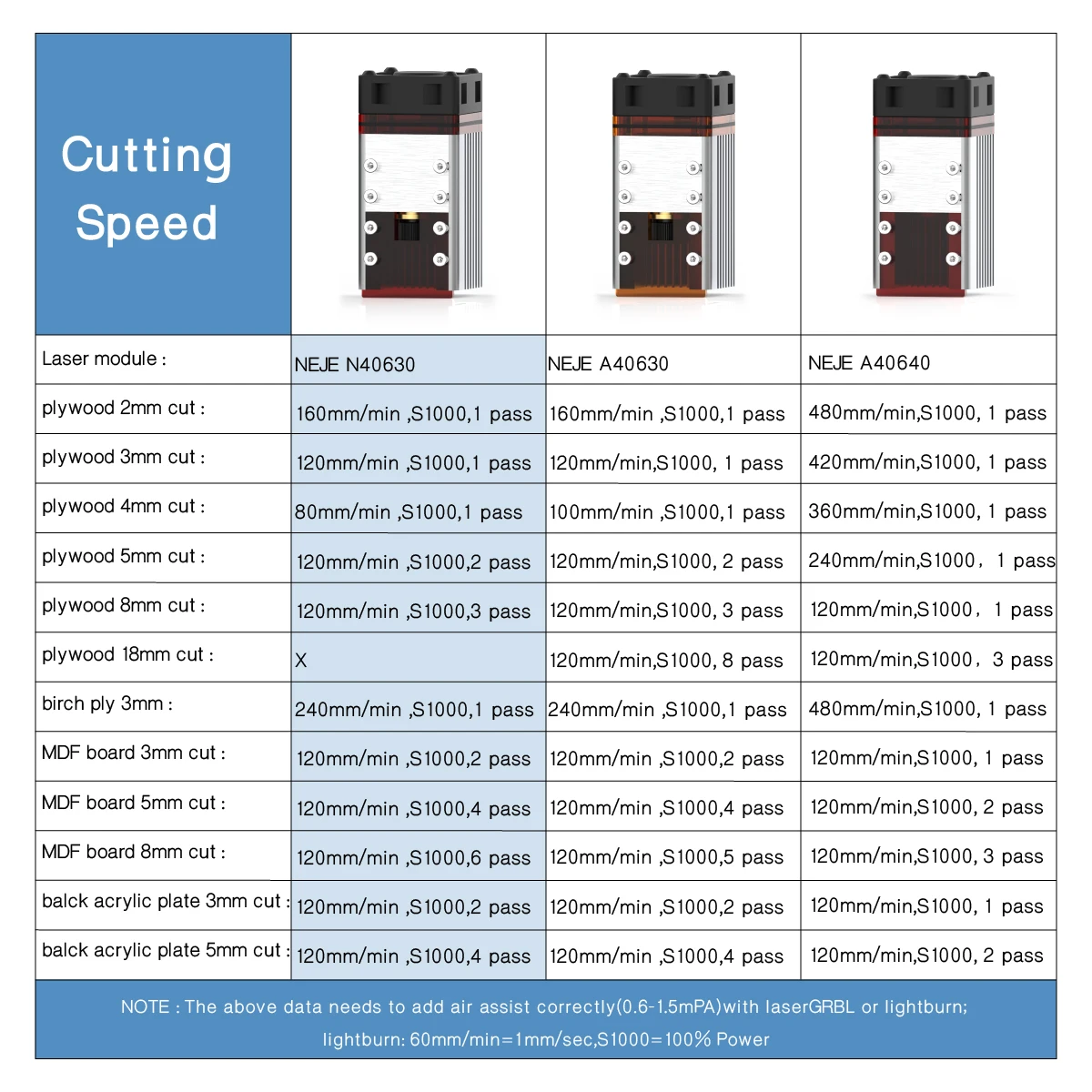

 Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs air-assisted cutting once (A40640), and the cutting is very clean. Can directly engrave stainless steel, glass, transparent acrylic and so on.

【Portable professional control software]】

32-bit control system, the fastest speed can reach 200,000mm/min, supports LaserGRBL, Lightburn, NEJE Win software, NEJE APP (Android phone, iphone, iPAD, macbook), you can change it by taking photos with your mobile phone or selecting images from the album To complete the work quickly, NEJE provides free software OTA upgrade services.

【Perfect after-sales service]】

The whole machine is guaranteed for free for 2 years (laser module: 2 years and 20,000 hours warranty), and vulnerable parts are shipped worldwide within 24 hours.

SPECIFICATION

Frame

 size (L - W -H): 550x480x140mm
Working area( X - Y): 255 x 420mm
Dot Pitch: 0.075mm, 338dpi
Pixel: 2400 x 5600 px
Drive accuracy: 0.01mm
Max Move Speed: X:1500mm/s(with A40640 module 204g), Y:1000mm/s
Frame Material: High precision PC material hybrid frame
Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving: Yes (45°)
Motor Size: 42 x 42 x 50mm
Motor Drive Current: 0.9A
Module Height Adjuster：Yes
Home: Rear Left
Origin: Front Left
Compatible Modules: All NEJE 4pin 12V Laser Moudle (Recomend: A40640, N40630, A40630, E40, N308220, N30610, B30635)

MCU

: 32-bit 200Mhz MCU (Top 32-bit MCU)
BLE APP control: Yes
MEMS protection: Yes
M7 Control: Yes (For building automatic smoke extraction systems)
M8 Control: Yes (For building automatic air assist systems)
Door Control: Yes (Emergency Suspension and Safety Door Control)
Limit Switch: Yes
ON/OFF Switch: Yes
Input: DC 5.5 2.1, 12V 4A or 5A (Power Adapter)
System: Win 7 / Win 8/ Win 10, Android, iOS, ipadOS, macOS, HarmonyOS.
File format supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
OTA Upgrade: Yes
NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use.
Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction.
Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone.
Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work.
NEJE Android APP: Yes
NEJE iphone/iPad APP: Yes
NEJE Cloud Gallery Service: Yes
Software Download: Https://neje.wiki

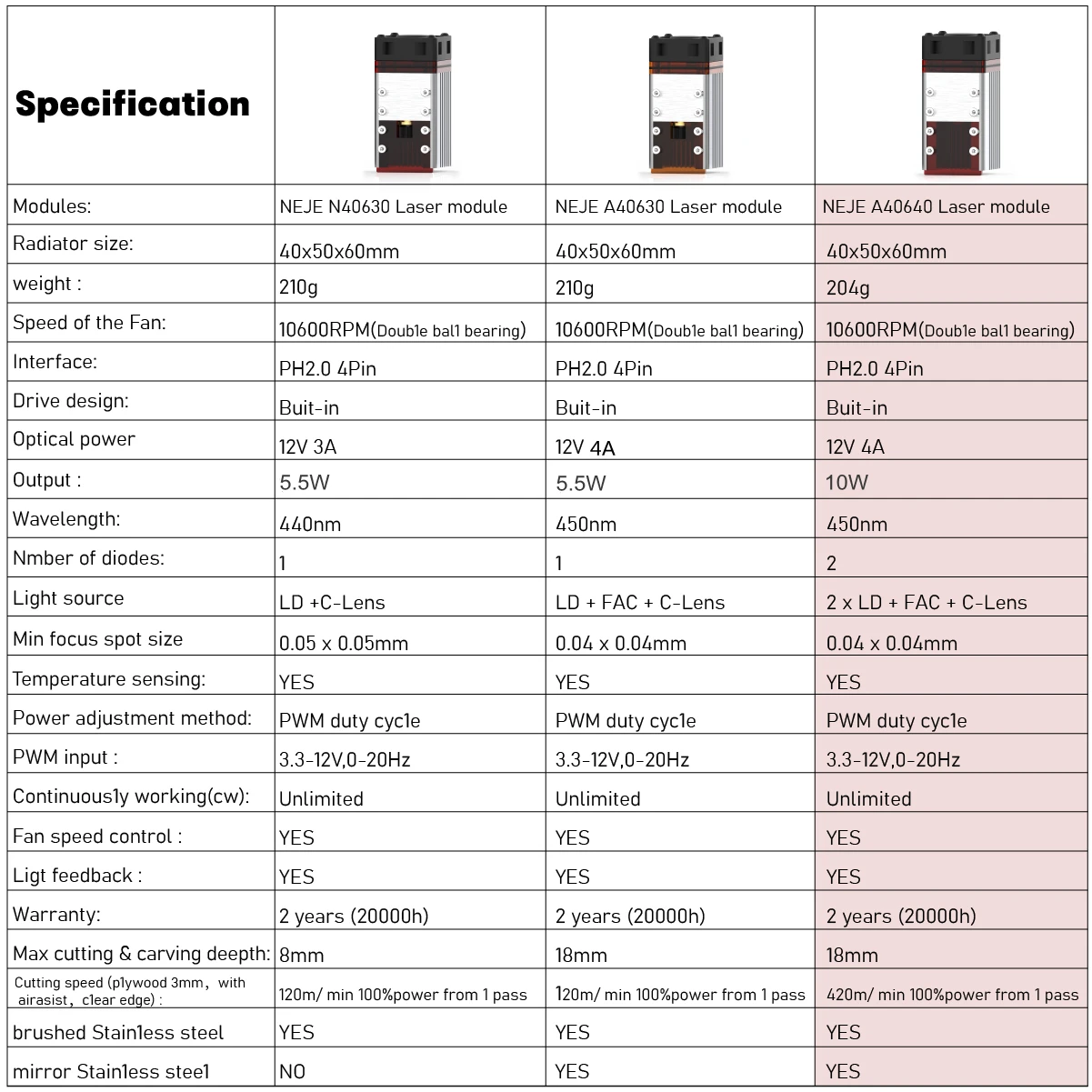

Module

: NEJE A40640
Focus: 0.04x0.06mm
Focus method: adjustable ( Recommend 30-55mm )
Optical power: Pulse 12W+, CW 11W
Replaceable lens design: Yes
Stainless steel direct grayscale engraving: Yes
3D hardwood engraving: Yes
Maximum cutting thickness: 20mm
Wavelength: 450nm
Weight: 204g
Module Size: 40x50x85 mm
Input: DC 12V 4A
Interface: 4pin PH2.0
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc...
Power control: PWM Power Modulation
Fan: double ball high life fan
Drive: NEJE smart quiet drive, built-in static elimination technology.
Surge protection: Yes
Smart feedback: Yes
Temperature feedback: Yes
Temperature control: 45℃
air pump: 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Original registered brand: Yes

Warranty

: 2 years
Warranty Statement: The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment.

View Manual:

https://neje.wiki

Specification

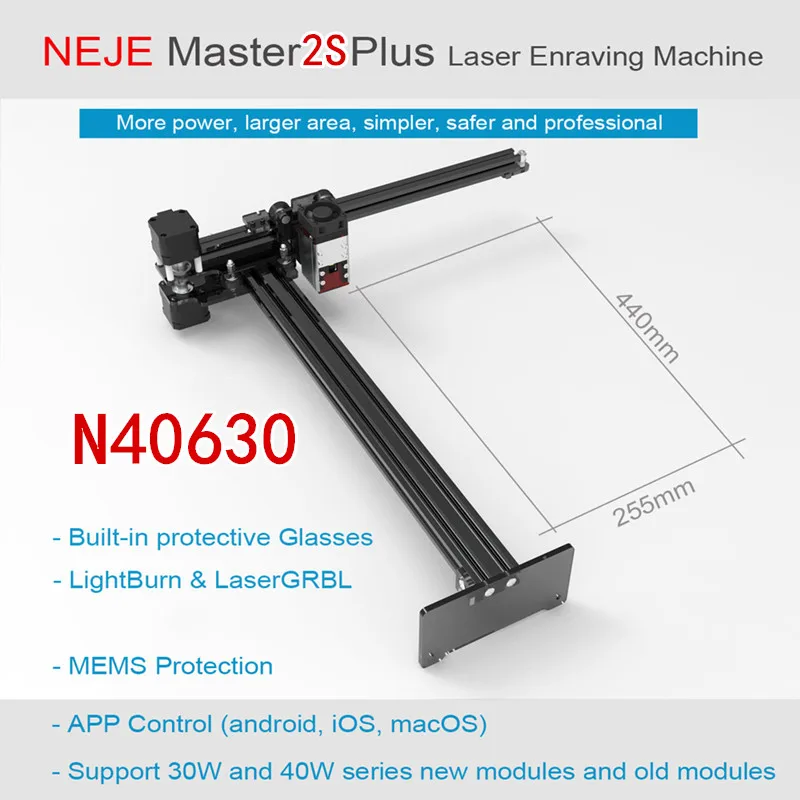

Model：N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters

Module Input：20-30W

Optical power output：5.5W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on the wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

ABOUT WARRANTY

Laser Module Warranty:

2 Years

Control system warranty:

2 Years

Hardware warranty:

2 Year

Statement:

The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment. If the wrong voltage is input, or the lens is damaged due to lack of maintenance, it is not within the scope of free after-sale; for maintenance instructions, please refer to NEJE.WIKI
