Name: Multifunction TL631 Pro Universal Laptop And PC PCI PCI-E Mini PCI-E LPC Motherboard Diagnostic Analyzer Tester Debug Cards network wire tester
Brand: MMO Dropship
SKU: 1005002618245102
Price: 93.95 VND
Availability: InStock
Rating: 4.9 (82 reviews)

Code: TD-1005002618245102 7 orders

Free Shipping

$ 93.95 $ 126.55

Color:

Note

Quantity:

Other people want this. 13 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	HUAHUAQI
Certification:	CE
Origin:	CN(Origin)
Package:	Yes
Type:	Multifunction Network Tester

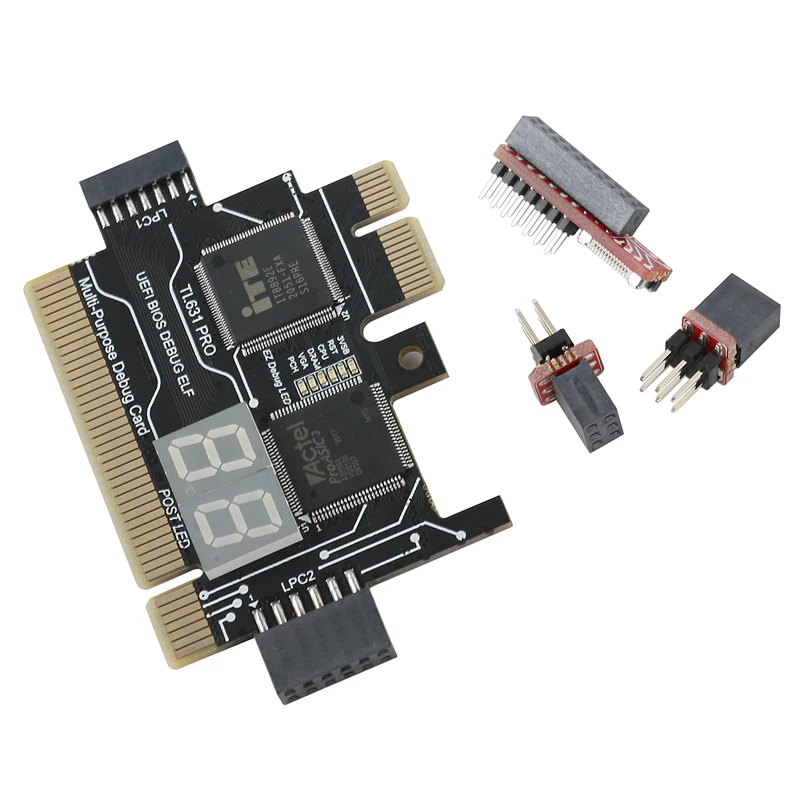

TL631 PROuses the new 130-nanometer actel ProASIC3 flash memory series chip with a new pure system. Inherit the family design language style. Added 2.0 and 2.54 modules, added ASUS, MSI, ASRock, diagnostic functions, and added flying line functions.

Please note that not all motherboards are applicable. Please refer to the picture below.

When you place an order, please provide your email address and we will provide English instructions. Will send to you

1.LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module

(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG).

2.PCI high-speed channel = support all PCI slots.

3.LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPl.

4.PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).

5.3VSB power indicator, to detect whether the power is normal.

6.RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)

7.CPU indicator light, to detect whether the CPU module is normal.

8.DRAM memory indicator, to detect whether the memory module is normal.

9.VGA graphics indicator light, to detect whether the graphics card module is normal.

10.PCH south bridge indicator light, to detect whether the south bridge module is normal.

11.DP decimal point, CLK signal display.

12.DP decimal point, FRAME frame signal display.

13.threading hole
