MTK MT7628 2.4G 2T2R AP Router WIFI OpenWrt MT7612 MT7615 MT7628 Chipset PCBA ODM OEM Low Cost Custom Sim Card Board

Code: TD-2251832630666853 11 orders
Free Shipping
$ 96.22
Bundle:
BaseBoard
5G WIFI MT7612E Half
5G WIFI MT7612E Full
Color:
MTK MT7628 2.4G 2T2R AP Router WIFI OpenWrt MT7612 MT7615 MT7628 Chipset PCBA  ODM OEM Low Cost Custom Sim Card Board
MTK MT7628 2.4G 2T2R AP Router WIFI OpenWrt MT7612 MT7615 MT7628 Chipset PCBA  ODM OEM Low Cost Custom Sim Card Board
Note

Quantity:
Other people want this. 14 people have this in their carts right now.
Brand Name:  GGNet
Origin:  CN(Origin)
With Modem Function:  No
Type:  wireless
Wired Transfer Rate:  10/100Mbps
WAN Ports:  1 x10/100Mbps
Number of USB Interfaces:  1 x USB 2.0
Wi-Fi Supported Frequency:  2.4G
Package:  Yes
Supports WDS:  Yes
Max. LAN Data Rate:  300Mbps
Model Number:  U7628-01
Standards And Protocols:  Wi-Fi 802.11b
Standards And Protocols:  Wi-Fi 802.11n
Standards And Protocols:  Wi-Fi 802.11g
Wi-Fi Transmission Standard:  802.11n
2.4G Wi-Fi Transmission Rate:  300 Mbps
LAN Ports:  4
Supports WPS:  No
Function:  Firewall
Function:  VPN
Function:  QoS
Application:  ENTERPRISE
is_customized:  Yes
Products Status:  Stock
WAN Ports:  1
Wireless:  Wireless
Number of USB Interfaces:  1
Firewall:  Yes
Max. LAN Data Rate:  100Mbs

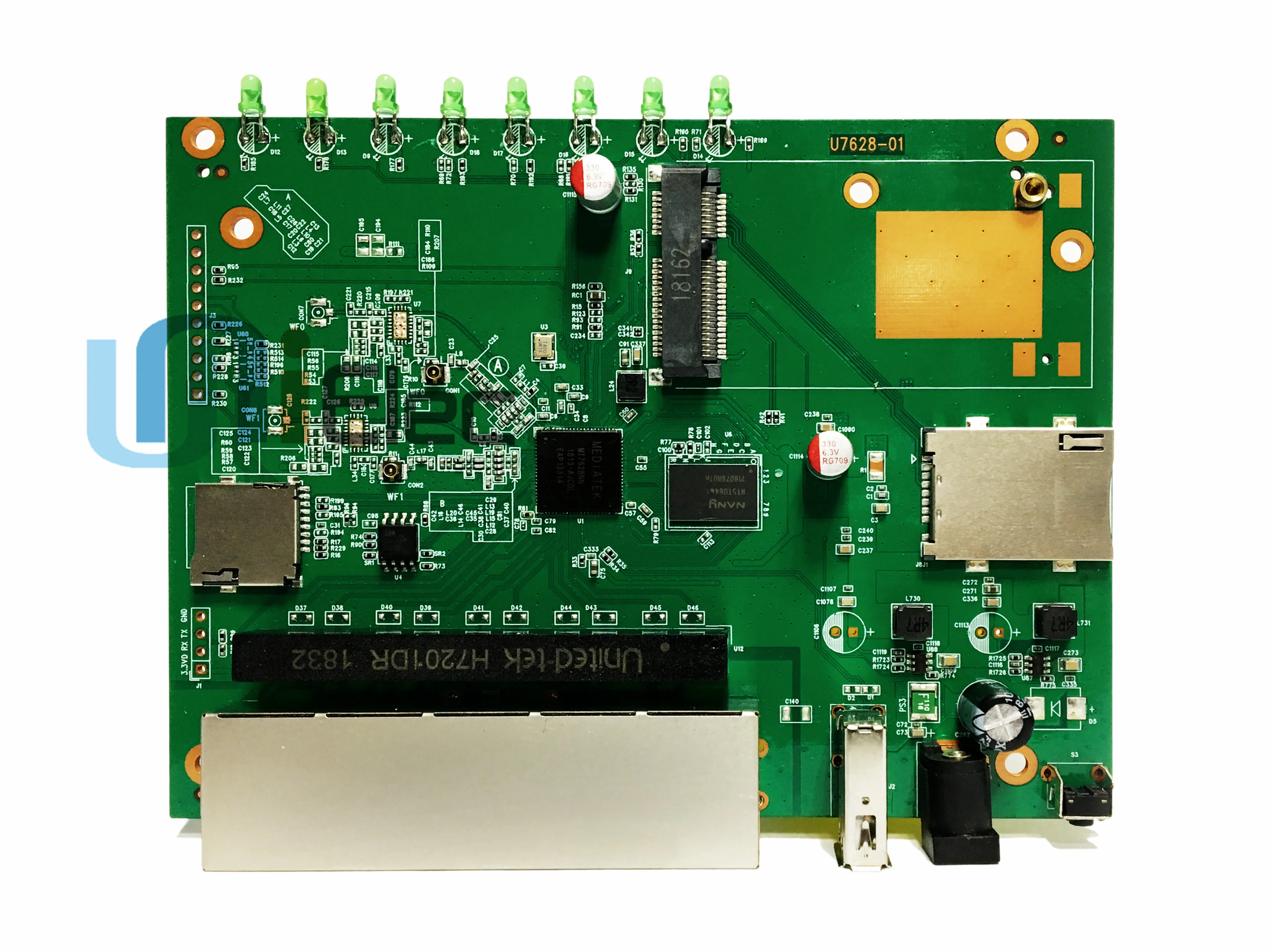

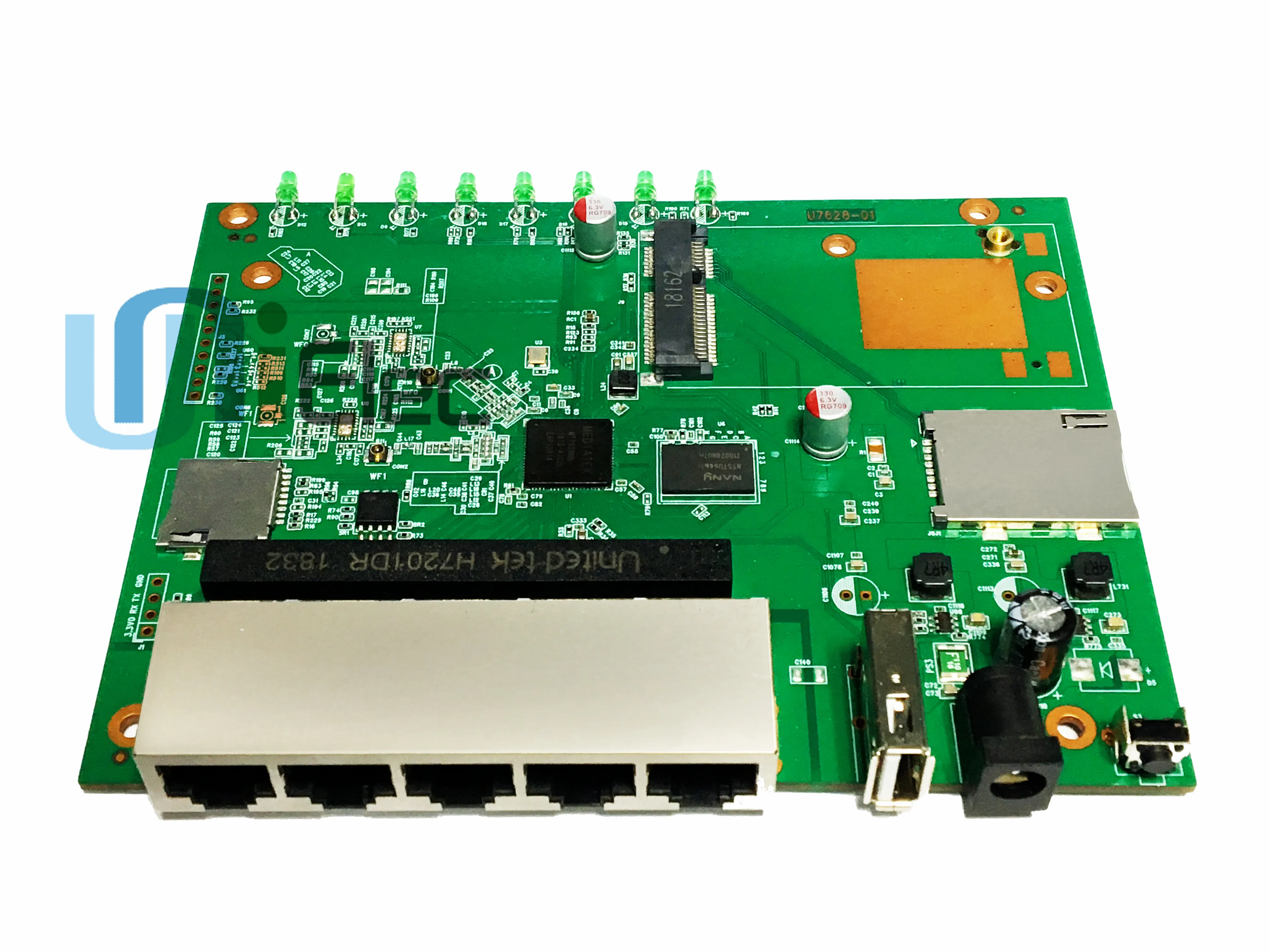

U7628-01 router-on-a-chip includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 575/580 MHz MIPS® 24K™ CPU core, a 5-port

10/100 fast ethernet switch. The MT7628 includes everything needed to build an AP router from a single chip. The embedded high performance

CPU can process advanced applications effortlessly, such as routing, security and VoIP. The MT7628 also includes a selection of interfaces to

support a variety of applications, such as a USB port for accessing external storage.

★ MIPS24KEc (580 MHz) ,64 KB I-Cache and 32 KB D-Cache.

★ support both 3G/4G module and 11ac module.

★ 2T2R 300Mbps 11n 2.4 GHz  19dbm.

★ Low power dissipation and applicable for outdoor and indoor application.

★ Low BOM cost.

U7628_01_低功率_框图2

Chipset

          CPU: MTK MT7628

System Memory

          Default DDR2  128MB (optional 64/256 Mbytes)

NOR Flash

          Default  16Mbyte  (optional 8 Mbytes)

PCIE

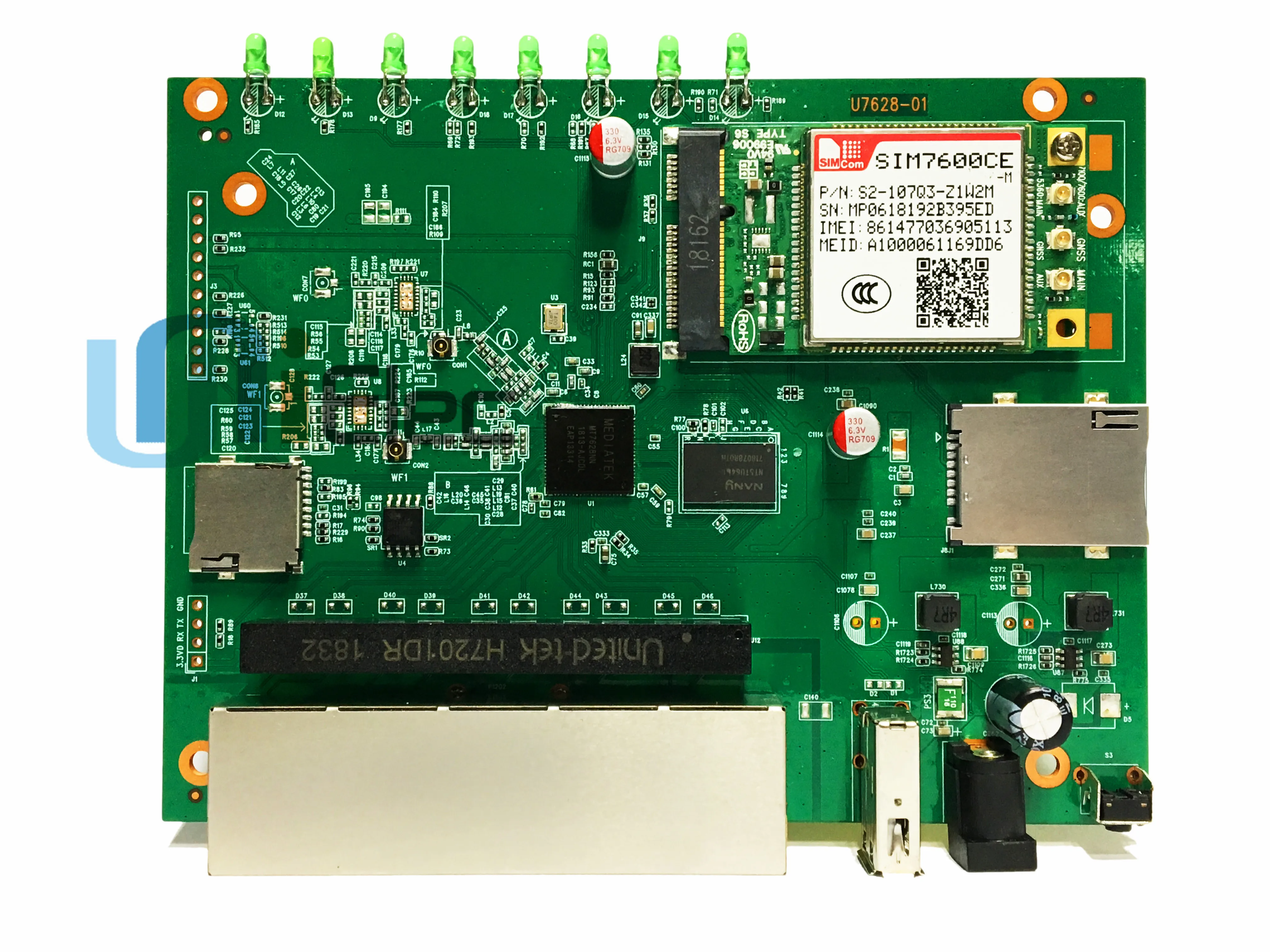

          1x PCIE connector for 3G/4G Module or 11ac WIFI module

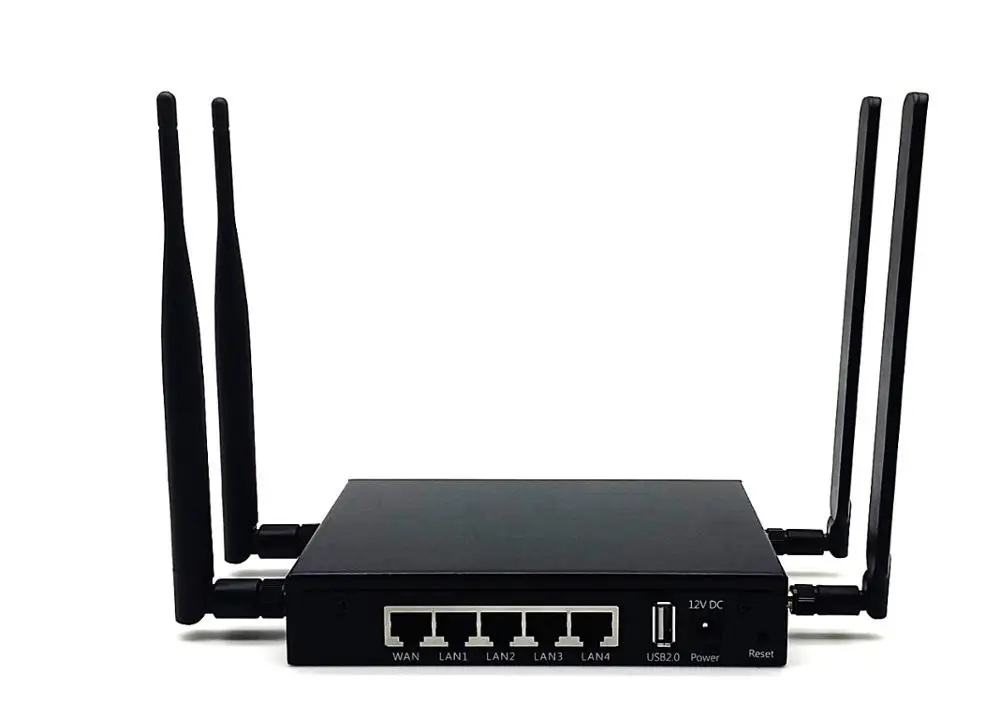

Interface

          5x 100Mbps 4*LAN+1*WAN(Auto MDI-X)

          1x 10 Pin GPIO expand Connector1

          1x Serial Debug Port 4 Pin Connector1

          1x USB2.0 connector

x

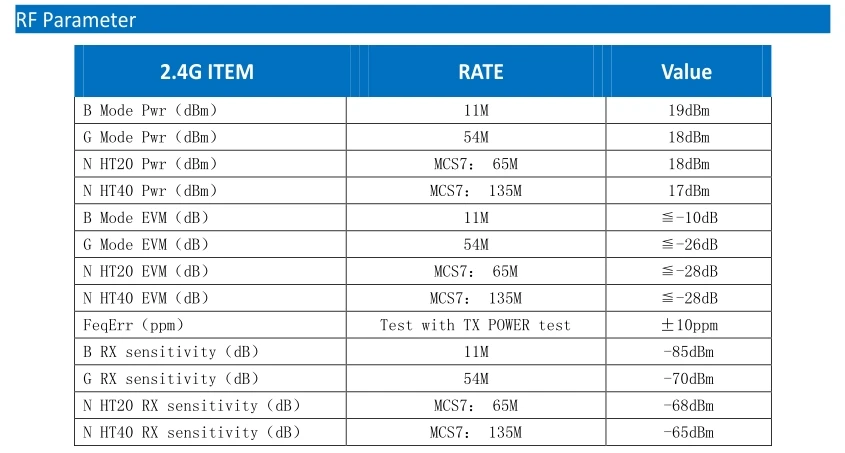

          2.4G 2T2R 300Mbps 19dBm@B mode

Reset Button

          Yes

LED

          Indicators: Power LED, LAN,LTE, WIFI,1x GPIO Signal Indicator,

DC Power

         1x DC Jack Connector: 12V@1A

Power Consumption

         6Watt (Max)

Software

         OpenWRT  or MTK Linux SDK (Default)  which includes Uboot, Kernel ,Driver and Tool Chain

Environmental

         Temperature: Operating: -20-50°C, Storage: -40ºC to 90ºC

         Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%

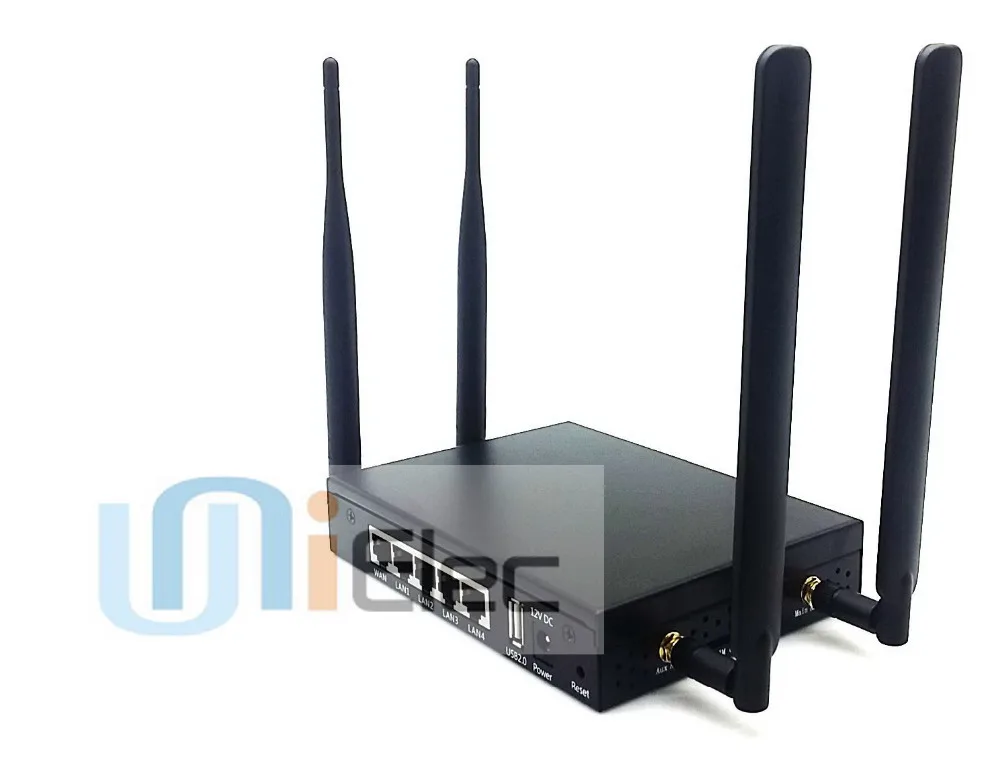

CASE

         Material: Iron, Dimensions: 154.5 x 110.5 x 29 mm

Other Features

         Watchdog Timer

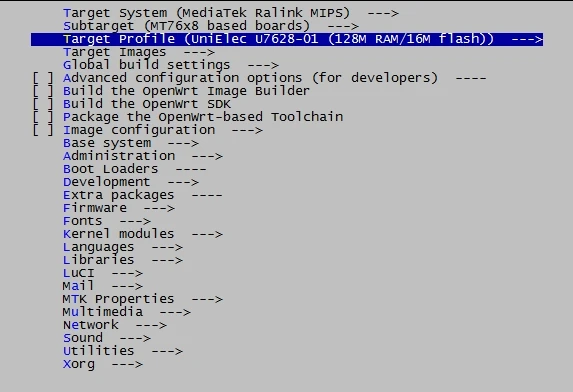

Latest open source Openwrt can support this board directly. You can choose our board model in the kernel menu as below picture

            after you download Openwrt SDK. You also can email to us for the image if you don't want to download and compile the Openwrt SDK.



https://openwrt.org/toh/unielec/unielec_u7628-01
