motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart Wall Switches

Code: TD-3256802745547938 31 orders
Free Shipping
$ 47.47 $ 48.65
Color:
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
Note

Quantity:
Other people want this. 25 people have this in their carts right now.
Brand Name:  CNMAWAY
Origin:  CN(Origin)
Certification:  NONE
Certification:  NONE
Current:  100A
Features:  Proximity Sensor switch
Material:  Alloy
Item Type:  Switches
Warranty:  1Y
Model Number:  LJ12A3-4-Z/BY/AY/BX/AX
Switch Type:  Proximity Switch
Product Name:  Proximity Sensor switch
Voltage:  5~36V DC(9V 12V 18V 24V 36V)
The diameter:  12mm
Detecting distance:  0~4mm
Switch Type:  PNP/NPN NO/NC
Wire:  3-Wire type

LJ12A3-4-Z/BY:  PNP NO 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/AY:  PNP NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/BX:  NPN NO 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/AX:  NPN NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CX:  NPN NO+NC 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CY:  PNP

NO+NC

 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/EX:  NO 2-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/DX:  NC 2-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-J/EZ:  NO 2-Line AC type 12mm diameter ; 4mm detection distance

LJ12A3-4-J/DZ:  NC 2-Line AC type 12mm diameter ; 4mm detection distance

[Main Parameter]

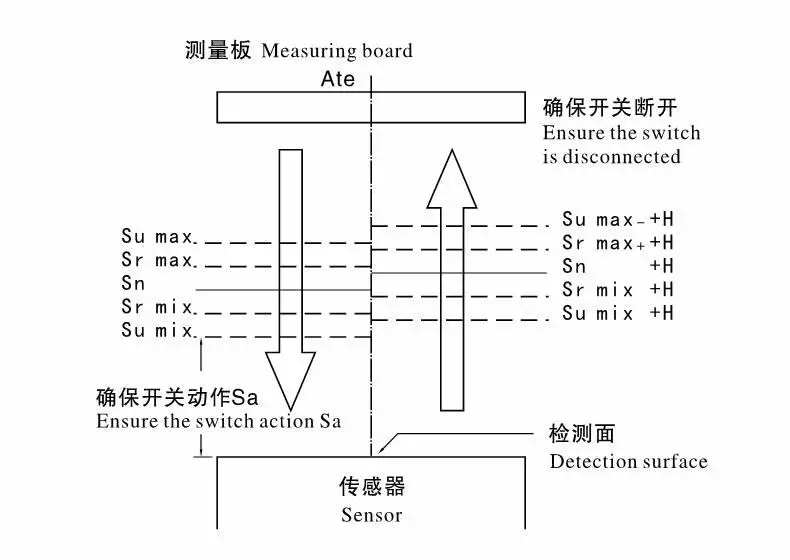

Detection distance:  4mm ± 10%

Set distance:  0~3.6mm

Current:  5V 360mA, 12V 200mA, 24V 96mA,   maximum instantaneous current 2A

Delay distance:  10% below of the detection distance

Detection object:  Magnetic metal(the detection distance decreases when it is non-magnetic metal)

Stand detection object:  Iron 15*15*1mm

Response frequency:  DC:0.5kHz

Supply voltage:  DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% below

Withstand voltage:  AC1000V 50/60Hz 1min between charging part and housing

Meterial:  (Housing:Nickel plated brass) (Detection surface:ABS)

Protection influence:  IP67(IEC specification)

This product can be applied to control relays, counters,PLC, etc.!

motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
motion detector light switch 10PCS LJ12A3-4 BX BY AY CY Inductive Proximity Switch NPN LJ12A3-4-Z/AX  PNP Sensor NO NC DC5~36V 4mm Detection Distance light switch smart
