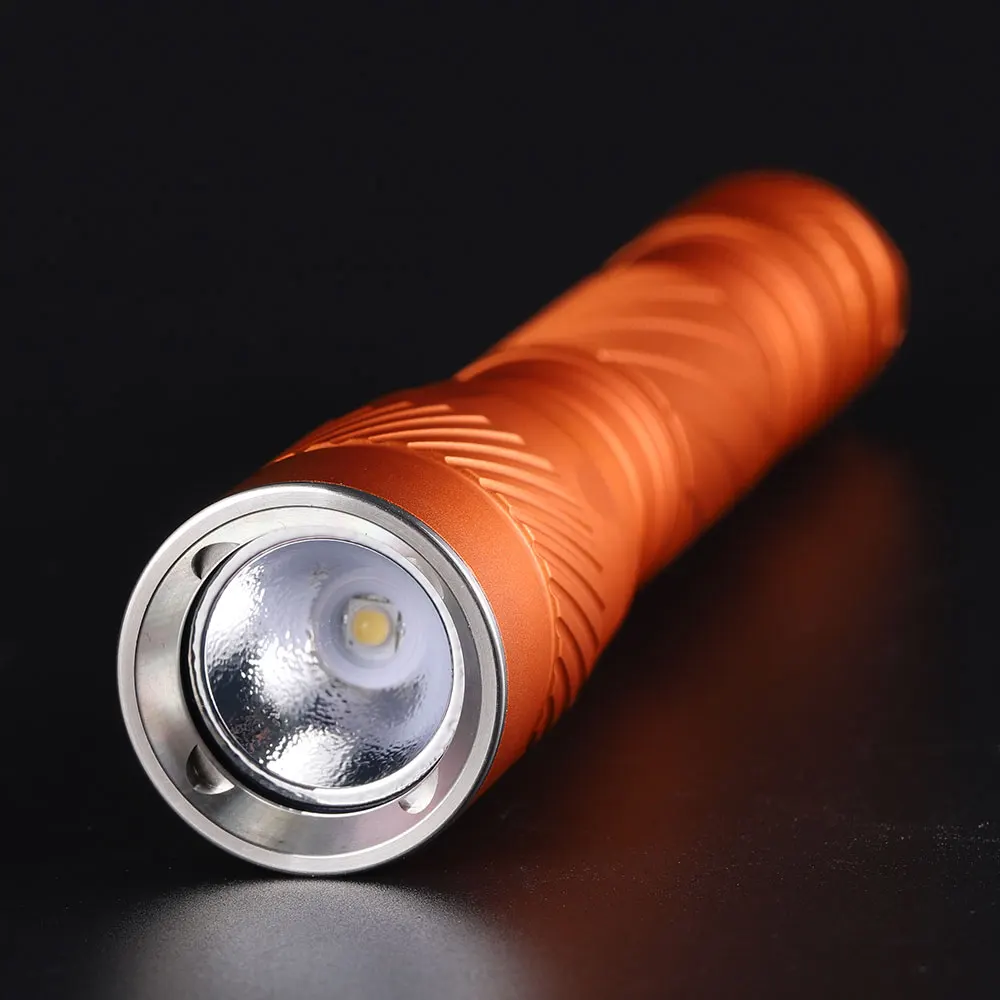

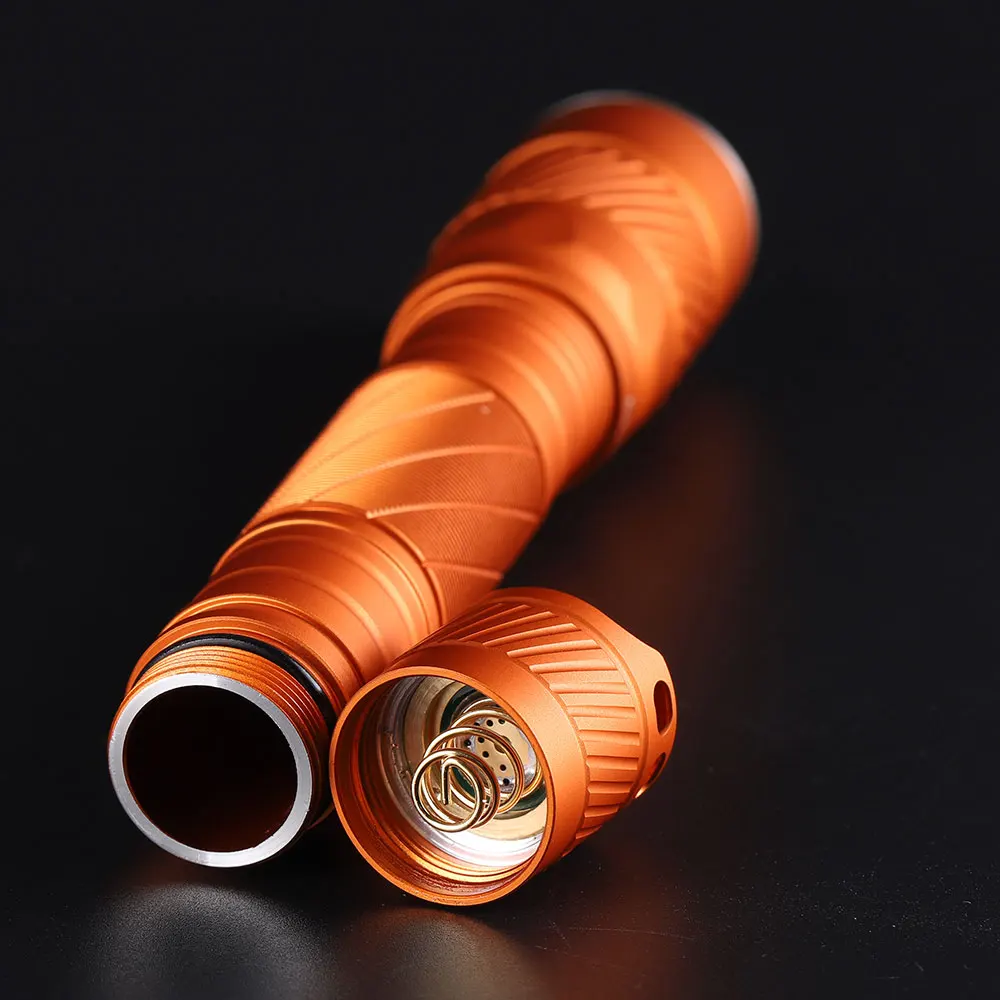

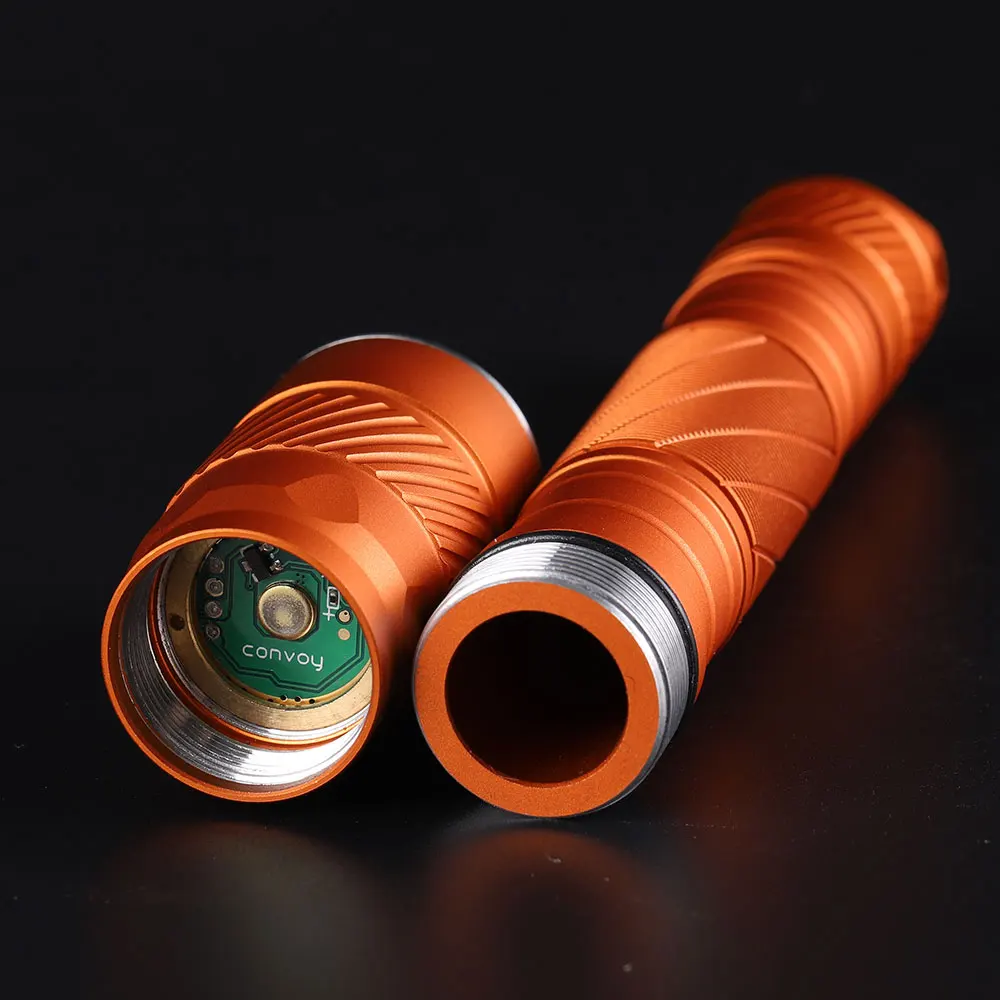

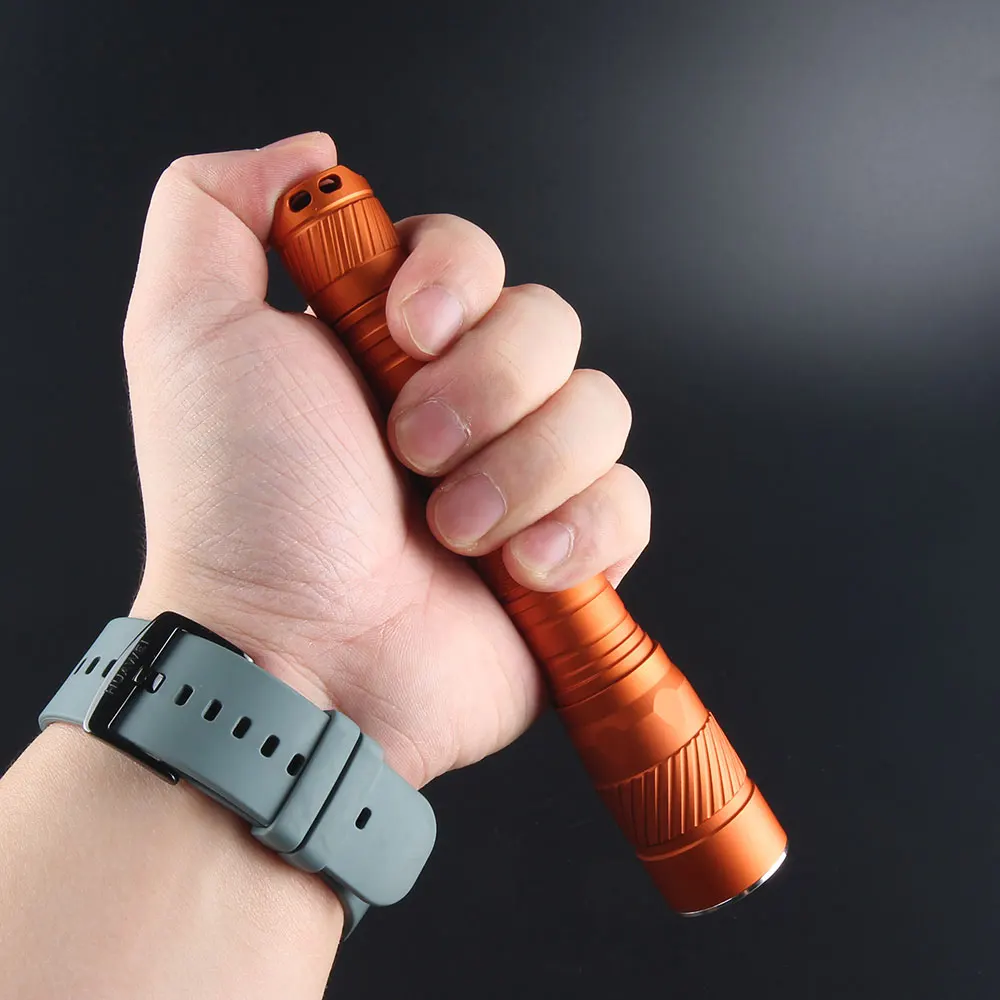

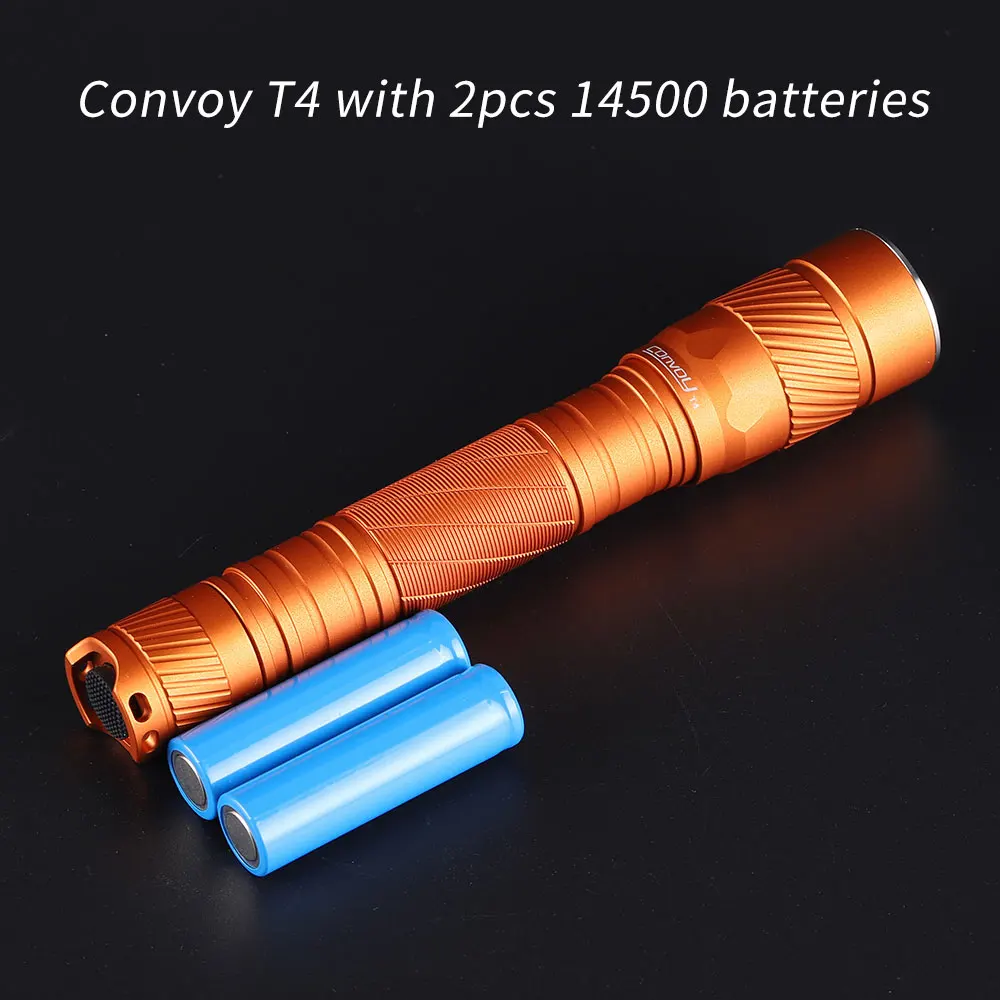

most powerful torch in the world Convoy T4 flashlight, with 2*14500 battery inside 13 groups powerful rechargeable torch Flashlights

Brand Name:	CONVOY MK
Origin:	CN(Origin)
Certification:	NONE

PARAMETER

Material:  Aluminum Alloy



Low voltage warning:  Yes(14500) / No (AA)

NO

Lens type:  light-green coated glass lens





Tailstand:  Yes

Battery included:

  include 2*14500 lithium batteries



NOTE: 1.6V-1.8V lithium metal primary disposable batteries will not work with this version.



,



Max flux (@3000mA):

               219B 500LM

               219C / SST20 4000K 3000K 650LM

               LH351D 800LM

               SST20 6500K / 5000K 1000LM



153.3mm / 27mm / 21mm

 98

Gross weight: 110g

13 groups:

if flashlight is turned on,tap the switch 10 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)



Option 1 (normal-flash 1 time + buzz-flash):

tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (1%、10%、30%、100%)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (1%  10%、35%、100%、strobe、biking、batcheck)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (1%, 10%, 35%, 100% ,this group is the same as the first group, in the next batch this group will be deleted)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (100%、35%、10%、1%)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%、20%、100%、strobe、biking、batcheck、sos)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (1%、20%、100%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (100%、20%、1%)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(1%、10%、50%、strobe、biking、batcheck、sos)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (1%、10%、50%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (50%、10%、1%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (20%、100%)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%、20%)

       -------------sub-option 1.13 (normal-flash 12 times) : tap the switch to select mode group 13(100%)



Option 2 (normal-flash 2 times + buzz-flash):

tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.



14500 battery-check





instructions:



<2.95V*2





1 flash,

2.95-3.25V*2





2 flashes,

3.25-3.55V*2





3 flashes,

3.55-3.85V*2





4 flashes,

>3.85V*2





5 flashes



Notice that there is no battery-check function if flashlight is powered by the 1.5V battery
