Brand Name: | BRANDOO TEAM |
---|---|
Origin: | CN(Origin) |
Chipset Manufacturer: | Allwinner |
Frames Per Second: | 25 |
Assembly Mode: | After The Loading Machine Integrated |
Certification: | NONE |
Memory Card Required Reding Speed: | Class 10 |
View angle: | <105° |
Original Package: | Yes |
Item Type: | Car DVR |
Number Of Lenses: | 4 |
Camera Resolution: | 1280x720 |
GPS logger: | NONE |
Special Features: | Cycle Recording |
Imaging Sensor: | 1/3"Sony Ccd |
Battery: | None |
OSD Language: | English |
Video Format: | AVI |
Pixels: | 130Mega |
Screen Ratio: | 16:9 |
Touch Screen: | Yes |
Display Size: | <3" |
Interface: | AV-Out |
Max External Memory: | 512G |
Video Code: | H.264 |
Memory: | Max support 512GB |
Power input: | 12V-36V |
Compression: | H.265 |
Product name: | Car Video recorder 4 Channels |
Power: | 9V-36V |

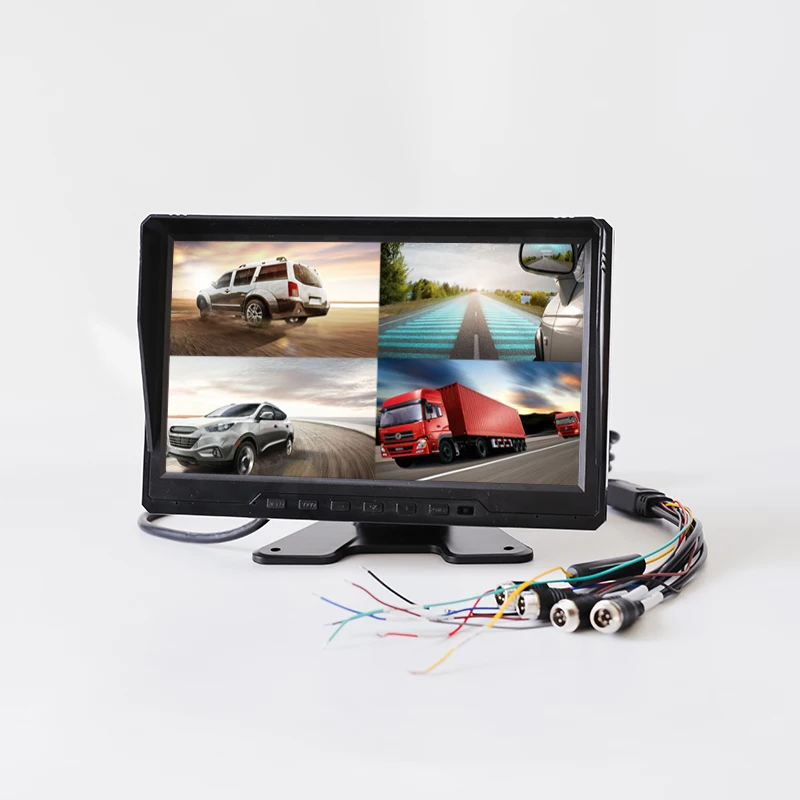

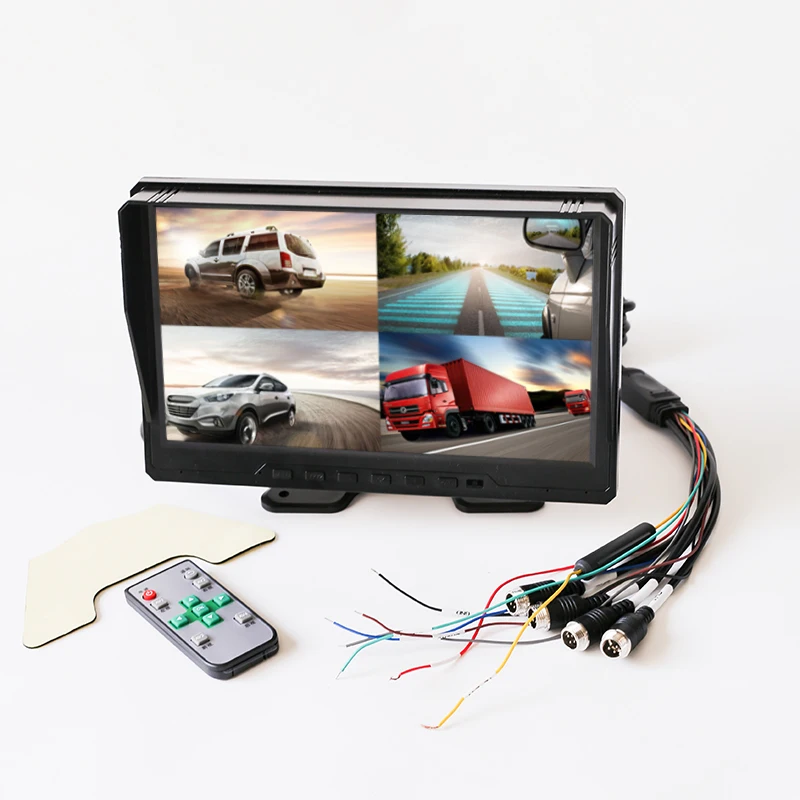

This is a video recorder with built-in LCD monitor developed for vehicles like cars, van, trucks, buses.
This DVR can also be used successfully in any application which requires a small size,
easy to use DVR with built-in monitor like shops, flats etc.
1.
10.1
inch
IPS Screen

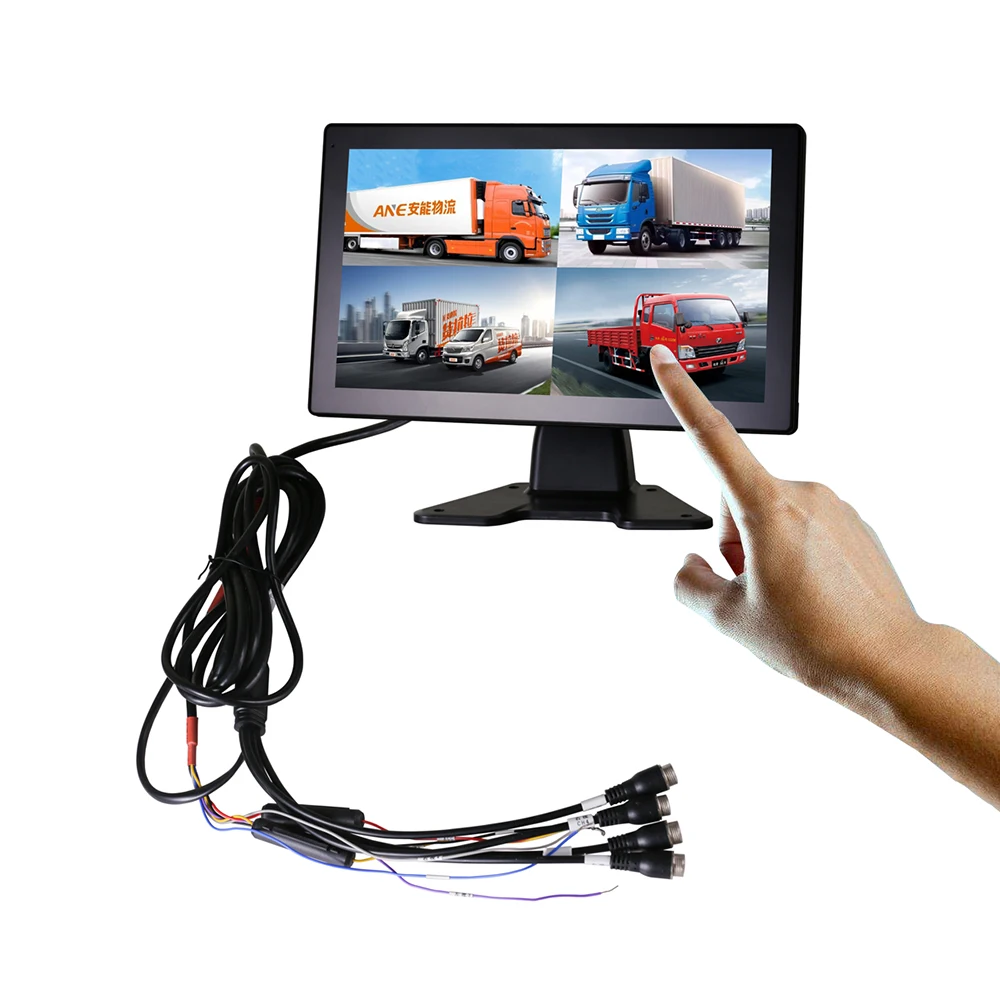

2.
Touch
screen optional
3.
Build in
4
ch 720p DVR
4.
H
.265 compression, 200fps
5.
M
ax. 512GB Micro SD Card
6.
Works with
1
.3mp/1mp AHD camera
7.

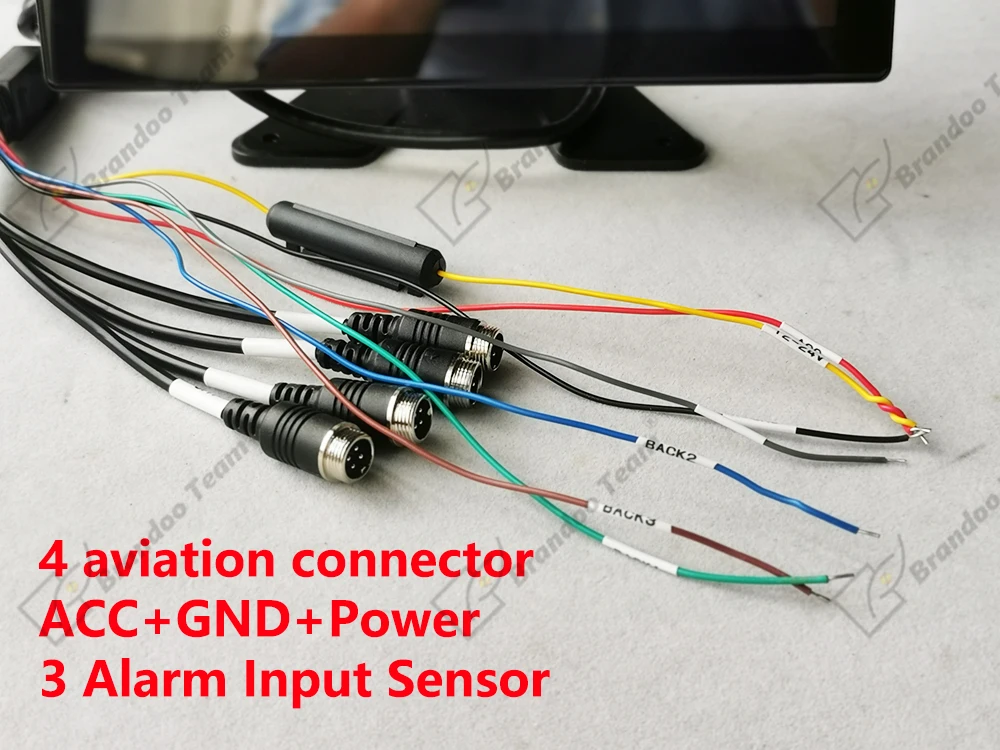

9V-36V power input and 12V output
8.
3
Alarm Input
Parameters
Item
Data
P
rogram
A
LLWINNER V526
OS
Linux
Language
English/Chinese (Customized)
Compression
H.265
OSD
Support

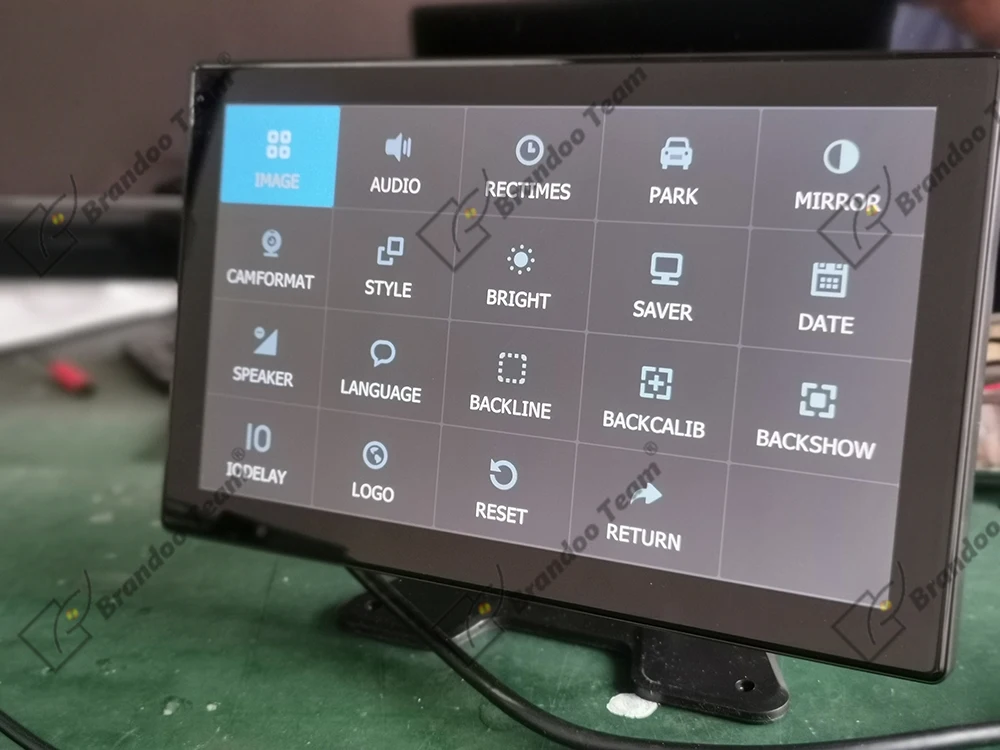

GUI
ICONS
Connect with RGB screen, touch screen optional
Video and Recording
Video In
1.3mp AHD video input, 1.0Vp-p, 75Ω
Preview
4 screen, full screen, shift to alarm channel
Resolution
1080X720P
Frame rate
PAL:100 f/s,CCIR625line
NTSC:120 f/s,CCIR525line
720P:800Kbps - 4Mbps,8 level video quality optional
Rec. Mode
Auto / ACC
Alarm Input
3 inputs
Memory
Media
1pcs 512GB Micro SD card
Upgrade
Micro SD upgrade
File format
TS
File system
exFAT32
Playback
Search
Time index
Playback
1 channel only
Power
P
ower management
Adaptive wide-width power input, with overload, under-voltage, short-circuit, reverse connection and other protection functions, support delayed shutdown function.
Input
DC:+10V - +36V
Output
Consumption
Normal<14W, Standby<0.5W
Working Condition
Temperature
-20
℃
- +70
℃
Humidity
20% - 80%
DVR info
Dimension
250
mm(L)*40mm(W)*155m(H)without bracket
Weight
1.3KG
