modern light switches 40 50 60 70 80 90 100 DegC NC Normally Closed NO Normally Open 1.5A Thermal Switch Temperature Sensor Thermostat KSD-01F JUC-31F light switch wireless Wall Switches

Code: TD-3256803077640871 8 orders
Free Shipping
$ 27.56 $ 27.69
Color:
40C
45C
50C
55C
60C
65C
70C
75C
80C
85C
90C
95C
100C
105C
110C
115C
120C
125C
130C
135C
Standard:
Normally open H
Normally closed D
Note

Quantity:
Other people want this. 27 people have this in their carts right now.
Brand Name:  Stlxy
Origin:  CN(Origin)
Certification:  NONE
Current:  3A
Features:  Normally Closed NO Normally Open
Material:  Plastic
Item Type:  Switches
Warranty:  365Days
Is Smart Device:  Yes
Model Number:  KSD-01F JUC-31F
Switch Type:  Temperature Switch

1. When the contact temperature sensing installation is adopted, the metal cover should be close to the installation surface of the controlled appliance. In order to ensure the temperature sensing effect, the heat conducting silicone grease or other heat conducting medium with similar performance should be coated on the temperature sensing surface.

2. Do not collapse, loosen or deform the top of the cover during installation, so as not to affect the performance. 3. Do not allow liquid to penetrate into the inside of the temperature controller, crack the shell, and change the shape of the external terminal at will.

4. When the product is used in the circuit with current less than 5a, the copper core section should be 0.5-1mm

2. Wire connection; The copper core with a cross section of 0.75-1.5mm shall be selected for the circuit with current less than 10A

2 wire connection. 5. The products should be stored in the warehouse with relative humidity less than 90% and ambient temperature below 40 ℃, which is ventilated, clean, dry and free of corrosive gas.

Contact type: 1D (normally closed) or 1H (normally open)

Contact load: 220vac1.5a/3a or 249dc1.5a/3a

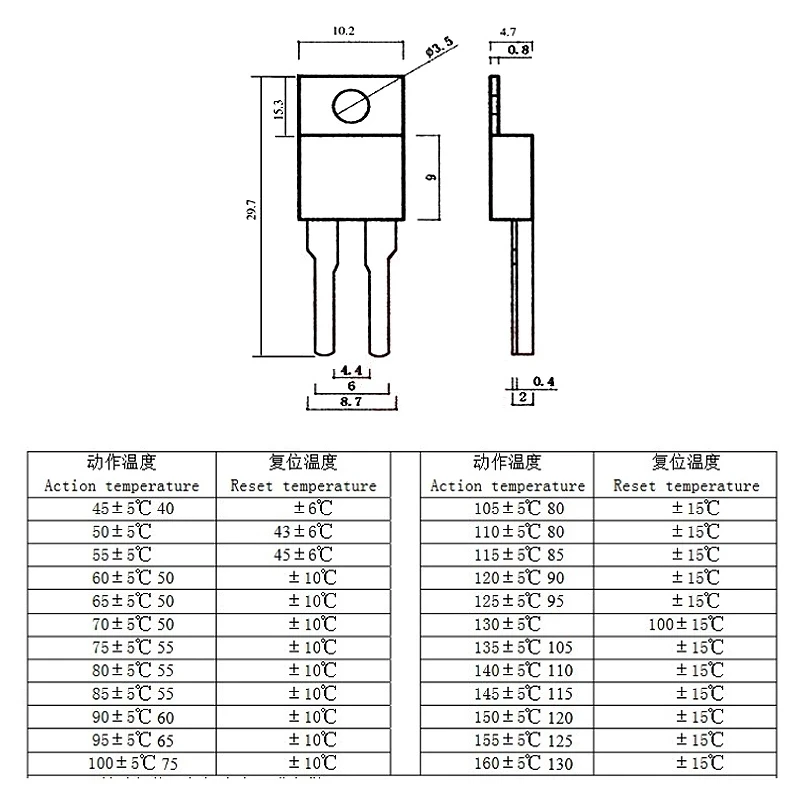

Operating temperature: 0-130 ℃ (optional). Allowable tolerance: ± 3、 ± 5℃

Reset temperature: (difference from action temperature): 8-35 ℃

Ambient temperature: 55C + 180C

Overheat temperature: 250 ℃ / instant

Insulation resistance: normal temperature and humidity ≥ 100m9

Contact resistance: ≤ 50mg

Dielectric withstand voltage: ≥ 1500vac

Service life: ≥ 30000 times
