mic 2.4G Wireless Lavalier Clip-on Camera Lapel Microphone System for Smartphone DSLR Tablet Camcorder Recorder Vlog Video Recording karaoke microphone Microphones

Brand Name:	Kimafun
Style:	Lavalier Microphone
Transducer:	Condenser Microphone
Use:	Pro Studio
Certification:	CE
Certification:	FCC
Certification:	RoHS
Set Type:	Multi-Microphone Kits
Origin:	CN(Origin)
Polar Patterns:	Omnidirectional
Communication:	wireless
Package:	Yes
Model Number:	KM-G10
Color:	Black
Style:	Lavalier Microphone, Shock Mount, Recording Microphone
Use:	INTERVIEW, Smart Phones, Recording, Teaching, PA
Material:	Plastic, ABS
Polar Pattern:	Omni-directional, Cardioid
Dynamic Range:	>100dB
Frequency Response:	50Hz-16KHz
THD:	< 0.5% at 1KHz
Signal/Noise Ratio:	≥95dB
Application:	Smartphones DSLR/Camera
Package size:	12.5X9.5X4.5 cm
Feature:	Recording Real-time Monitoring

 The NOTE Before Using

NOTE 1:

The item is just for collecting sound, you will still need another device to make it work. Such as you can use the smartphone,camera to record the sound.

NOTE 2:

The recording devices such as smartphones/Cameras can't output the sound. General smart devices are only used for sound recording or video recording.

The problems you may encounter during use has been listed in the user guide. Please read the instruction manual carefully before use so that the microphone can work well with your device.

Product Description：

KIMAFUN 2.4G Wireless Lavalier Clip-on Camera Lapel Microphone System for Smartphone DSLR Tablet Camcorder Recorder Vlog Video Recording

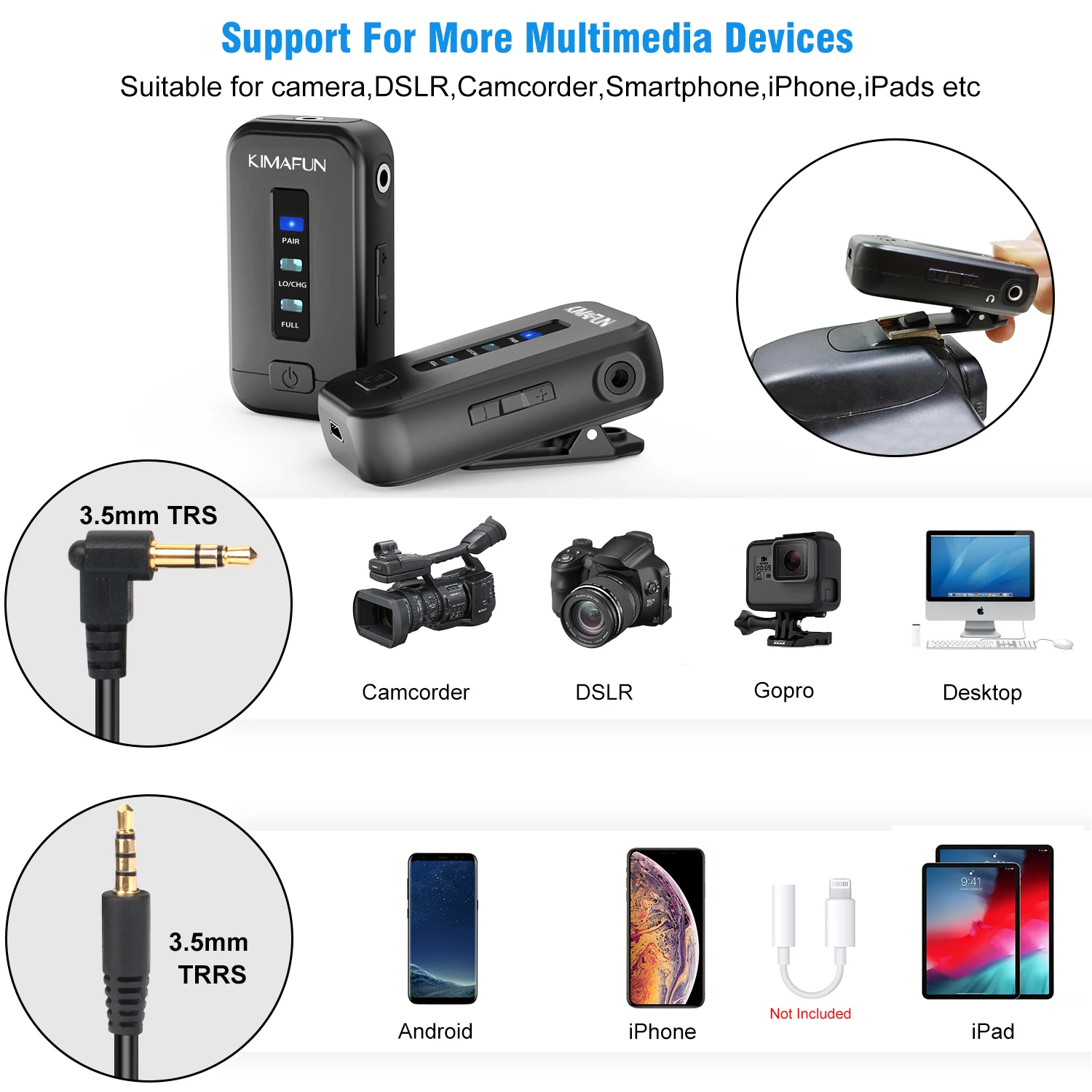

WIDE COMPATIBILITY

-

The receiver originally has TRS 1/8" (3.5mm) plug. Packaged TRS camera extension cable can works with DSLR camera and digital camera. Equipped with TRRS mobile phone adapter cable which can be used for smartphones with 1/8'' jacks. For smartphones without 1/8” jack, you should use TYPE-C/Lightning to 3.5mm adapter cable (NOT INCLUDED IN PACKAGE).

EASY TO USE

-

Turn on transmitte and receiver, they will match automatically without any setting. Plug and play, no special drivers are required. This wireless system adopts 2.4G wireless technologyIt which is legally allowed to use freely in all parts of the world, and you can use it anywhere. The transmission distance can reach 50ft without obstacles. Built-in 20 channels, click the button '+' and '-' on the transmitter to quickly switch to a different channel to avoid signal interference.

RECHARGEABLE

-

This wireless system adopts rechargeable lithium battery which is more environmental friendly than disposable battery. The suitable battery capacity ensures you can use it for 5 hours when it is fully charged. You can quickly know the current remaining power from the charging indicator. You can fully charge them simultaneously in 2 hours with the dual USB cable. When you do not use them, please turn off and make sure charge them once a month to extend battery life.

MULTIPLE SCENES

-

Click the button '+' and '-' on the receiver to quickly increase and reduce the volume. The back clip of the transmitter/receiver has a cold shoe suitable for cameras and smartphone holders, designed for recording video and audio. You can also use it to record Tik Tok, record vlog, record Youtube video, live broadcasts on Facebook/YouTube, interview, etc.

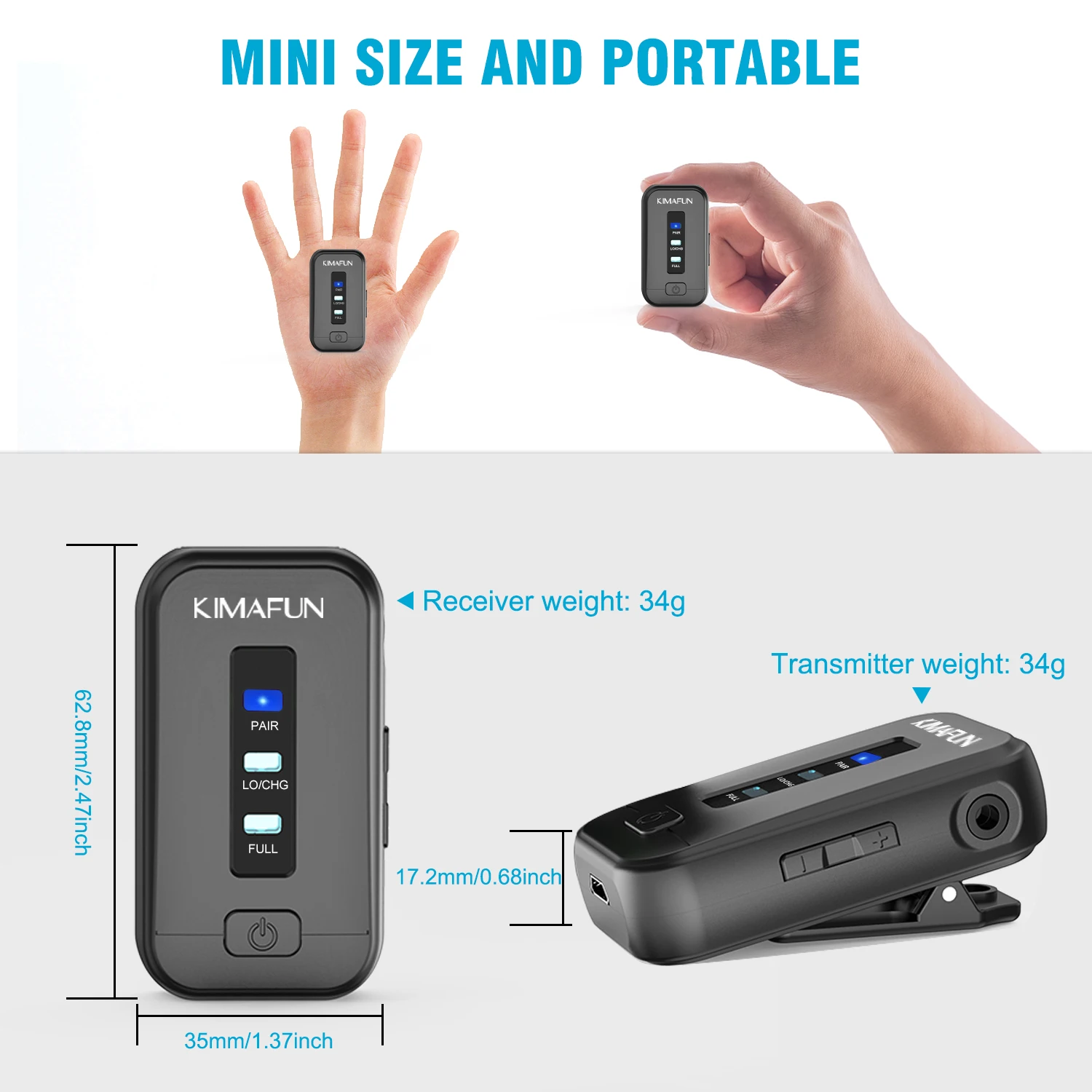

LIGHTWEIGHT AND PORTABLE

-

The weight of a single transmitter/receiver is only 34g, which is small and sturdy. The transmitter has a built-in microphone and back clip, you can easily clip it to the collar for use. A external lavalier microphone is also included in the package, so this system can be used as a lavalier wireless microphone system. The videographer can monitor the sound transmitted by the transmitter in real time through the monitor headphone jack on the receiver.

Product Specification:

Wireless Transmitter / Receiver

Frequency Band: ISM 2.4GHz (2405-2478MHz)

Channels: Built-in 20 channels

Modulation Mode: GFSK digital modulation/demodulation

Frequency Response: 50Hz-16KHz

Delay Time: <5ms

Sampling Rate: 32KHz*24bit

SNR: >90dB

Dynamic Range: >95dB

Communication Distance: 15 meters (without obstacles)

Power Supply: Built-in 3.7V rechargeable lithium battery

Battery Life: 5 hours Working Temperature: -10 ~ +55℃

Material: ABS

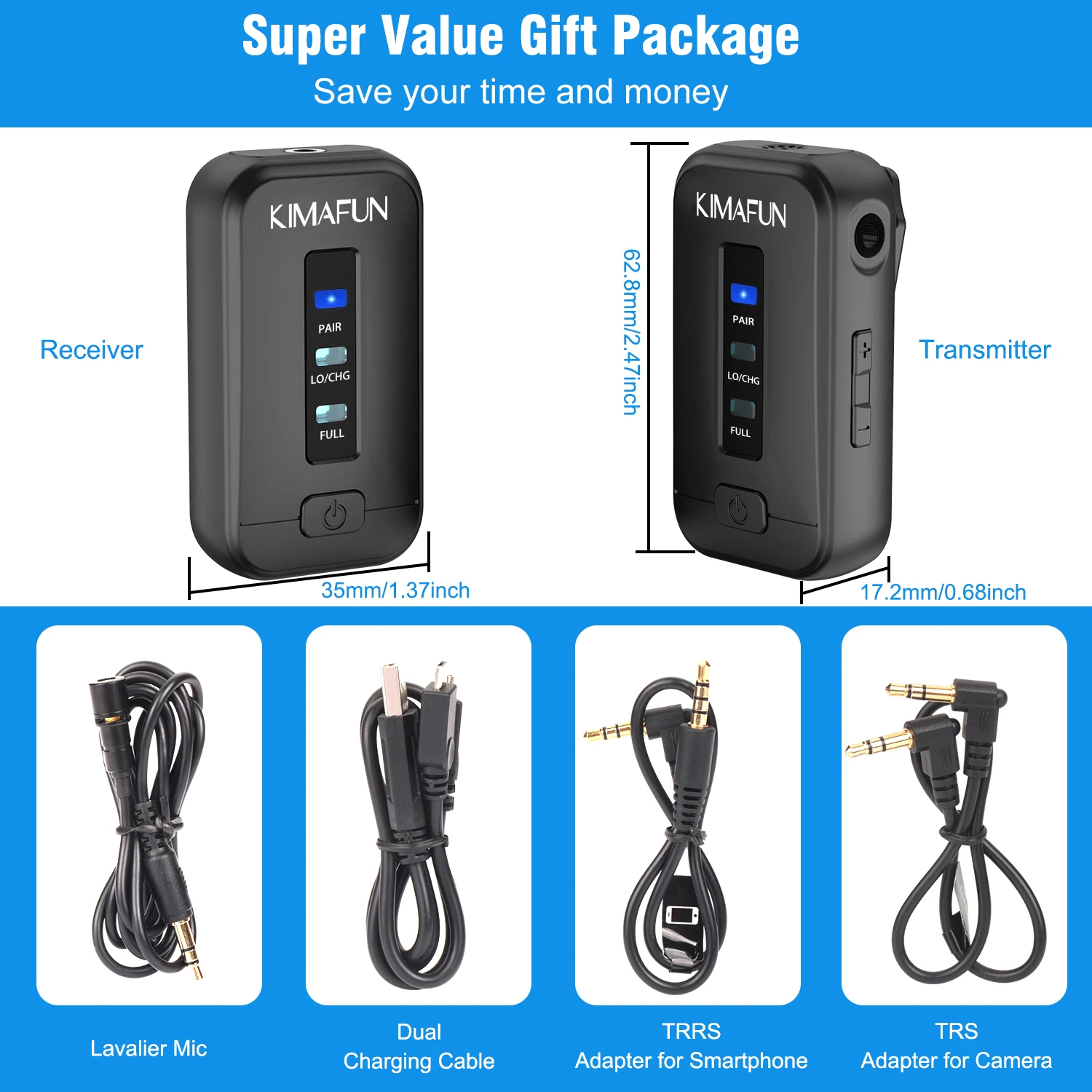

Product Size: Transmitter/receiver 35 x 17.2 x 62.8 mm

Product Net Weight: Transmitter 34g / Receiver 34g

Transmitter

Pickup Mode: Omnidirectional

Audio Input: Built-in mic or external lavalier mic input

Antenna: PIFA antenna

Buttons: Power Button, Channel Switching Button

Indicator Light: Pairing Indicator, Low Voltage/Charging

Indicator, Battery Full Charge Indicator

Lavalier Microphone

Pickup Mode: Omnidirectional

Microphone Size: 6mm

Q&A

Question:

Can I use this product while charging

Answer:

No. Please turn off the power when charging.

Question:

Are the two ends of the camera adapter cable the same?

Answer:

Yes, you do not need to distinguish.

Question:

Are the two ends of the mobile phone adapter the same?

Answer:

No. One end of the phone adapter is a TRS 3-pin jack,which is used to connect to the receiver. The other end is the TRRS 4-pin, which is used to connect to your phone.

Question:

Can I use a Bluetooth earphone to connect to the receiver for monitoring?

Answer:

No. This device does not support Bluetooth connection, please use a 3.5mm wired headphone.

Question:

How to quickly distinguish the transmitter and receiver?

Answer:

Observe the top of the device, the one with the pickup hole is the transmitter, and the one with the LINE OUT hole is the receiver. Observe the side of the device, the receiver has a headset icon.

Question:

I use the monitor headset to hear the sound of the mic working, why is my phone not recording any sound?

Answer:

The audio heard by the monitor headset is the audio from the transmitter/microphone, not the actual content recorded by the device. You need to listen to the actual recorded audio to ensure that the microphone is compatible with your device. When the recording finish,you need to unplug all the adapter cable from phone to use the phone’s speaker to listen to the recording.

Question:

Why I use the lightning adapter cable, but still can't make the microphone work normally with my Apple phone?

Answer:

Please make sure to use the original lightning adapter or purchased from the Apple. Some unofficial adapter cables on the market do not support external mics.
