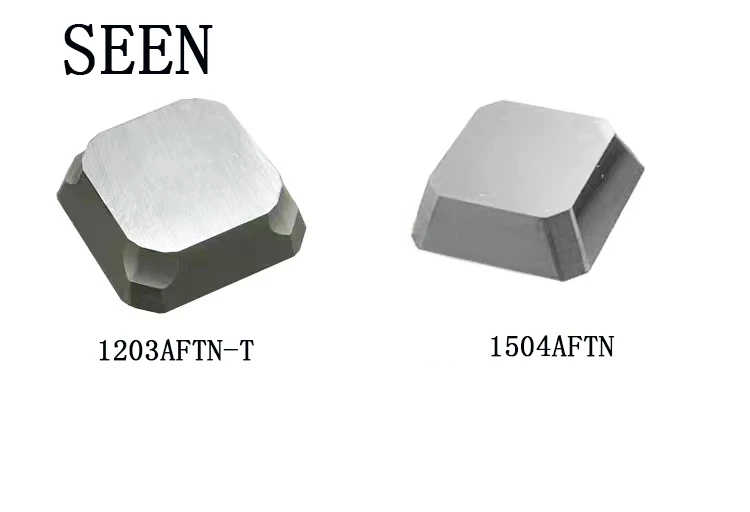

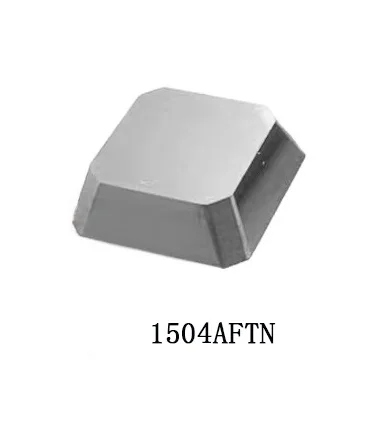

Metal Ceramic Fine Milling Cutter Insert SEEN1203/1504AFTN for Steel，

Cast Iron Parts Peripheral Grinding Finish

Metal ceramic inserts are composite materials made of ceramic and metal, which have the toughness, high thermal conductivity and good thermal stability of metal, but also have the high temperature, corrosion and wear resistance of ceramic. With a long service life.

Features:

Sharp point、Chip removal flow、 Not easy to produce chip block、Improve cut finish.

Applicable Machined Material:

Adapted to cutting processes from low to high speeds, Semi-finishing and finishing of all kinds of steel and cast iron parts.

The cabinet just show part of our products,lot of products has not been uploaded to the store, if you can't find tools you need or if have any question, please contact us,we will give you a reply as soon as possible.

Questions and Answers about Blades:

    The following problems are often encountered in the machining of inserts, most of which are not addressed during the machining process.During the process, you can try to adjust properly according to the engineer's requirements.

1. Rear tool face wear: (This is a common form of effectiveness)

    Impact: Gradual change in workpiece dimensions or loss of surface finish.

    Reason: High linear speed, reaching the tool life.

    Measures: adjust the processing parameters, such as reducing the line speed to use a higher wear                               resistance of the insert.

2. The problem of chipping: (bad form of effectiveness)

    Impact: The size of the workpiece or surface finish suddenly changed, resulting in spark surface burrs.

    Reason: Parameter setting is not suitable, blade material selection is not suitable workpiece rigidity is                       not good, blade clamping instability.

    Measures: Check whether the parameters are set reasonably, according to the workpiece material                               selection of the corresponding tool.

3. Severe fracture: (very bad form of effectiveness)

    Impact: Suddenly and unpredictably occur, resulting in toolholder material scrap or workpiece failure and                  scrap.

    Reason: Wrong processing parameter setting, vibrating tool workpiece or insert is not installed in place.

    Measures: Set reasonable processing parameters, should reduce the amount of feed and reduce the                           chip to choose the corresponding processing inserts, strengthen the rigidity of the workpiece                       and inserts.

4. Built-up edge

    Impact: Inconsistent size of the workpiece, poor surface finish, the workpiece surface attached to chips                    or burrs.

    Reason: Cutting speed is too low, feed too low blade / not sharp enough.

    Measures: Improve the cutting speed, feed the amount of use of higher sharpness of the insert.
