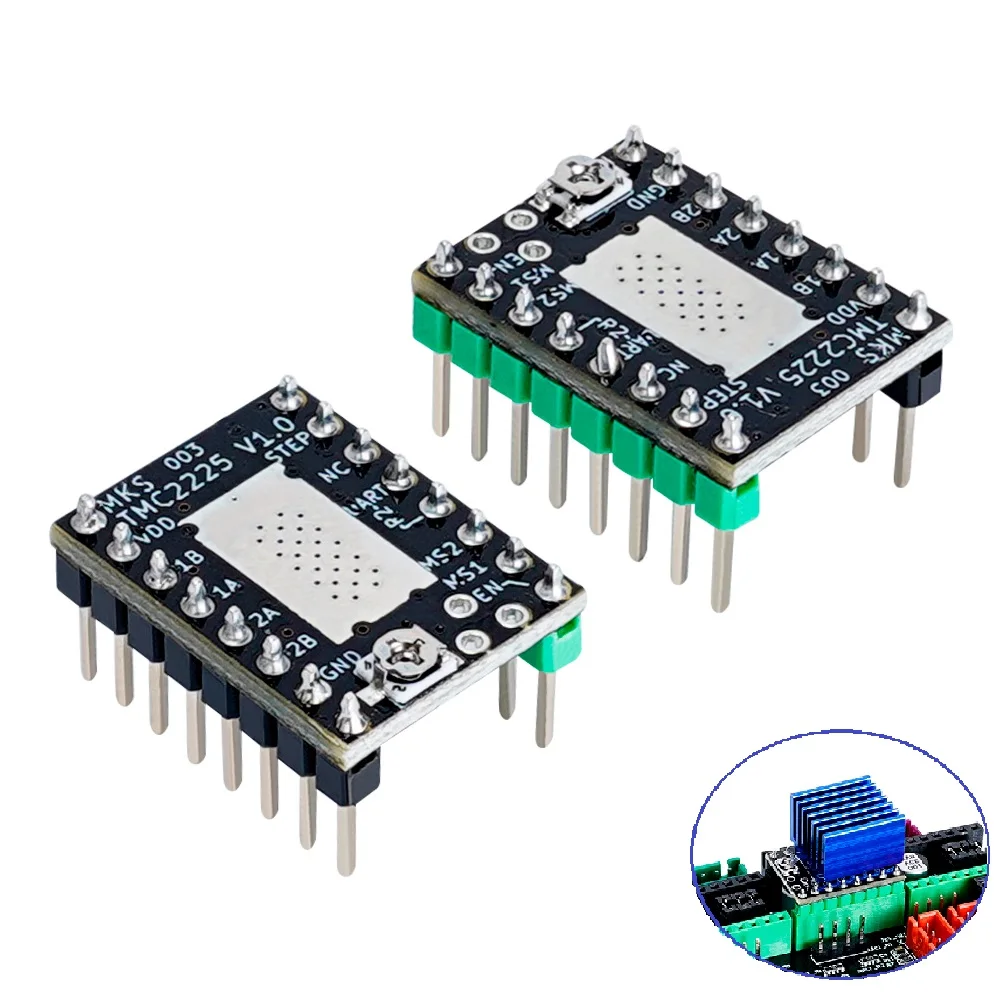

MEGA 5SETS TMC2225 Stepper Motor Driver V1.0 Module Microstep 1/256 Ultra Silent 3D Printer Parts For Replace TMC2208 TMC2209

Code: TD-3256802486144029 9 orders
Free Shipping
$ 38.57 $ 44.67
Color: Driver Heatsink Gift
MEGA 5SETS TMC2225 Stepper Motor Driver V1.0 Module Microstep 1/256 Ultra Silent 3D Printer Parts For Replace TMC2208 TMC2209
Note

Quantity:
Other people want this. 18 people have this in their carts right now.
Brand Name:  mega
Origin:  CN(Origin)
Item Type:  DRIVER
Model Number:  B01582 TMC2225
Package include:  4SETS add 1set as a gift
Color:  Blue and black
Net Weight:  0.008kg/set
Logic Voltage:  3.3V-5V
1SET include:  1pc TMC2225 Driver, 1PC Heat sink

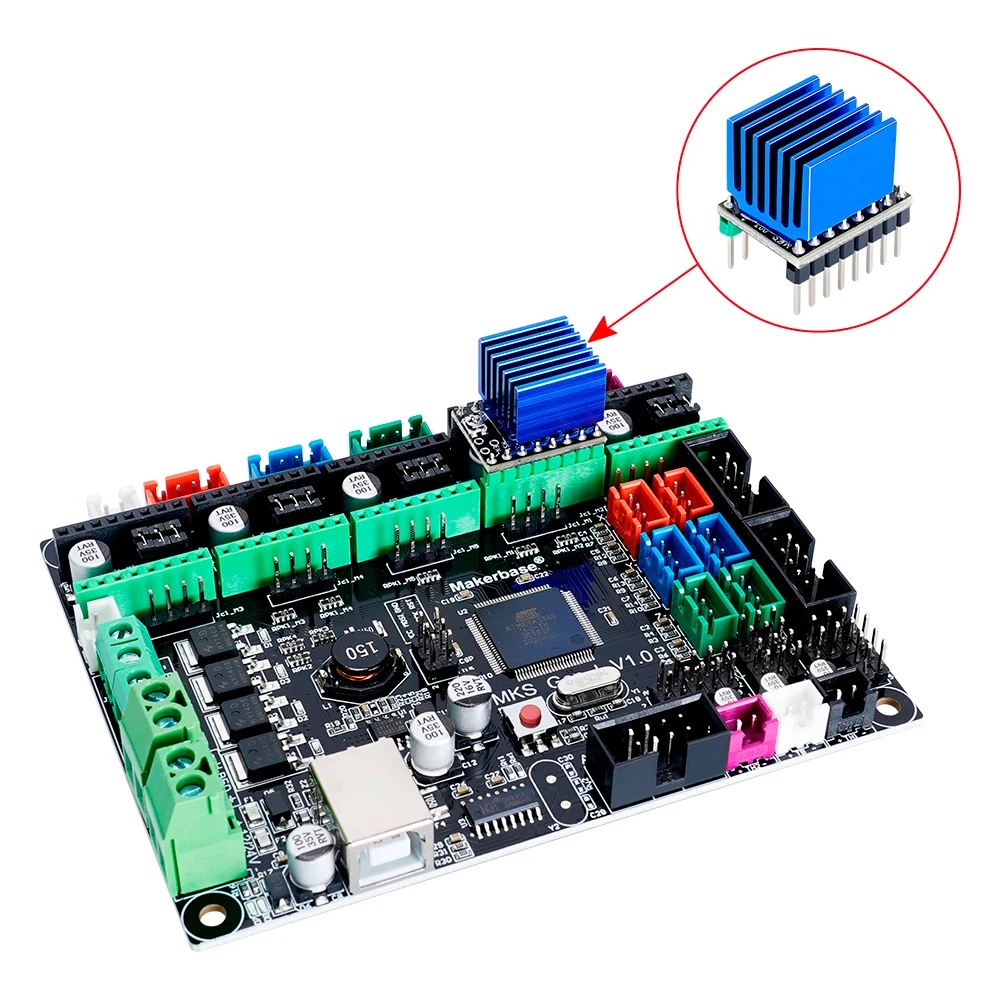

Apply for:  SGen_L Gen_L Robin Nano

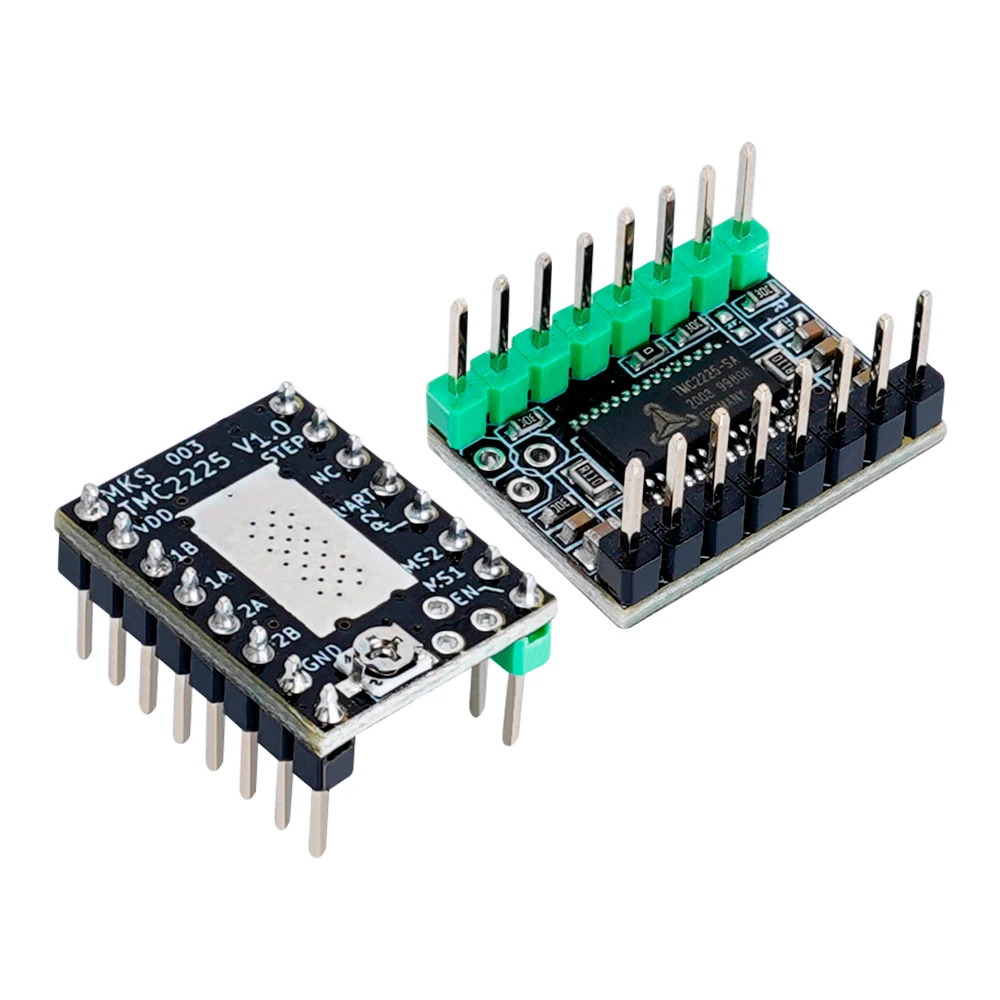

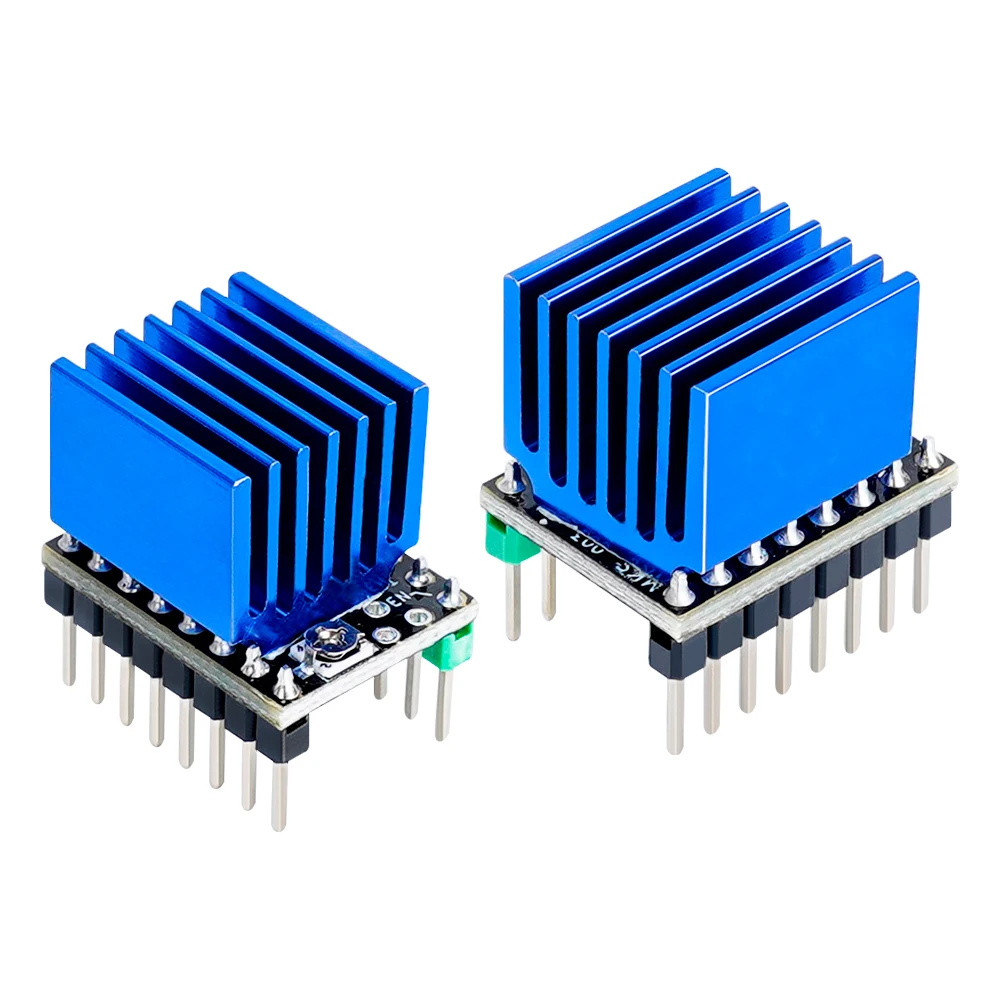

TMC2225 is an upgraded product to replace tmc2208. It has a better price than tmc2208. What's more, a larger heatsink contributes to its better heat dissipation performanceThe only difference between TMC2225 and TMC2208 is package.The package of TMC2225 is HTSSOP,and the package of TMC2208 is QFN.



It can replace

TMC22

08 and TMC2209

 completely.

Specifications:

Configuration: STEP/DIR or UART

Micro steps: Up to 1/256

MicroPlyer: 1/256

Logic Voltage: 3.3-5V

Motor Voltage: 4.75-36V

Motor Phase Current: 1.2A RMS, 2.0A Peak

Microstep setting:

M0M1STEP

GNDGND4

VCC-IOGND8

GNDVCC_IO16

VCC_IOVCC_IO32

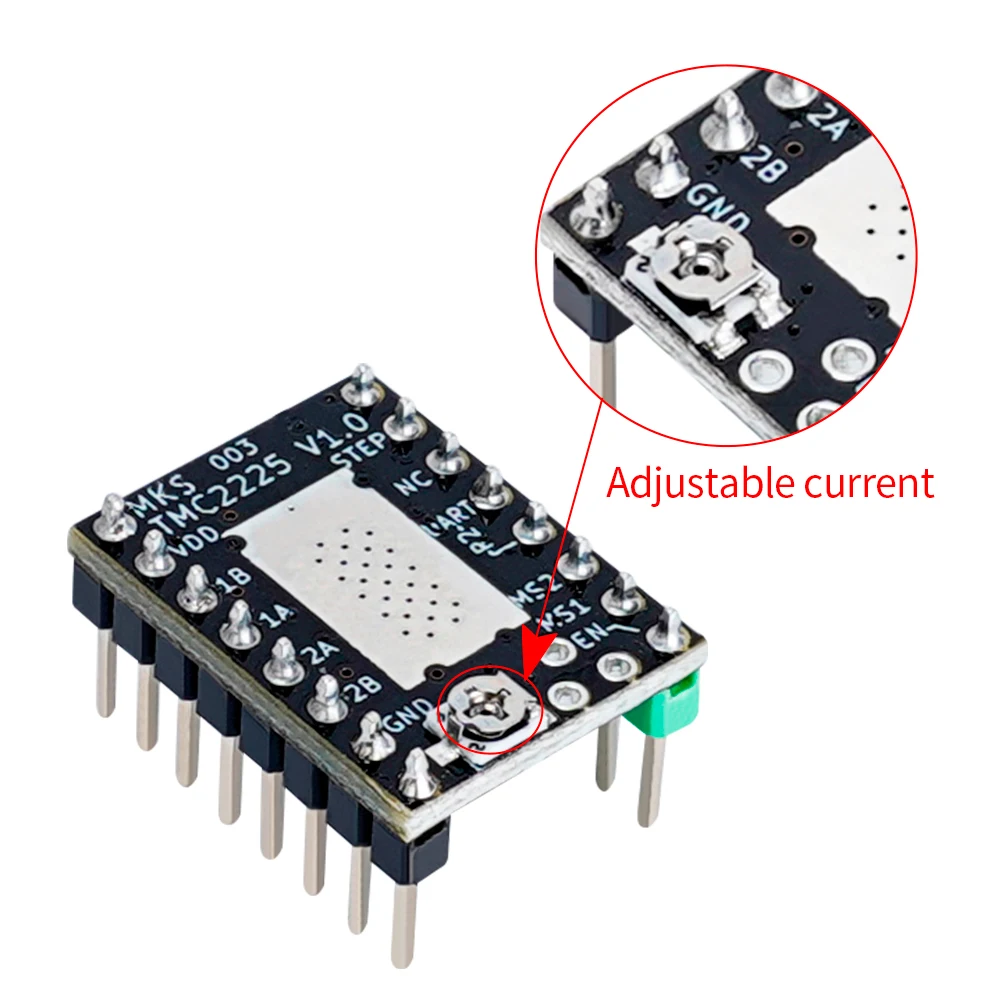

Driver current regulation:

Verf measures the voltage of Gnd and potentiometer middle.

Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.

Please connect the power supply when measuring voltage as well, do not connect only the USB power.

Please pay special attention to the direction, do not insert wrongly!

Driver current algorithm:

I = Vref    Default I = 1.25A

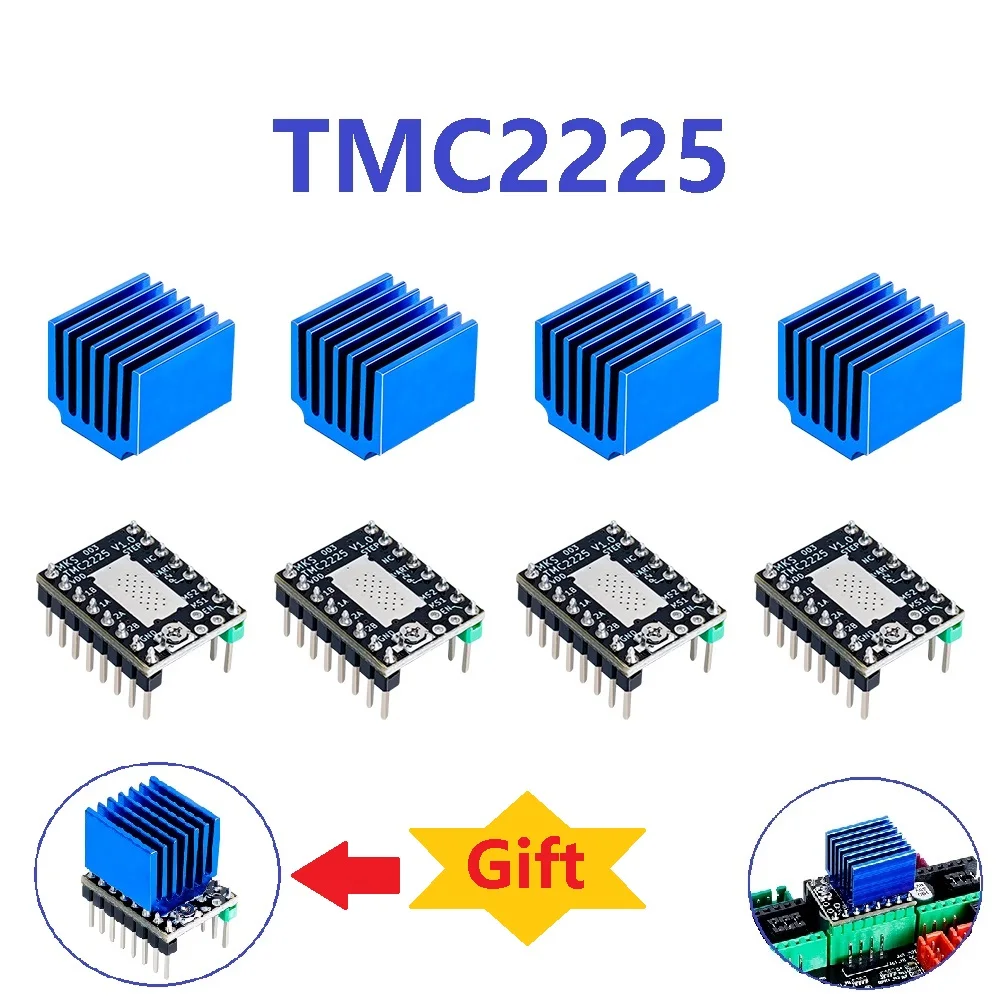

Package include:

4SETS add 1set (a gift)

1SET list

: 1pc MKS TMC2225 Driver



1PC Heat sink



Please allow 1-3mm error due to manual measurement. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
