MC7430 4G Module FDD-TDD LTE CAT6 HSPA+ GNSS WWAN Card USB 3.0 MBIM interface PCIe mini 4G Card mobile broadband modem 3G Modems

Code: TD-1005003065971238 1 order
Free Shipping
$ 93.36 $ 96.6
Quantity:
Other people want this. 27 people have this in their carts right now.
Brand Name:  fenvi
Certification:  CE
Origin:  CN(Origin)
Kind:  Internal
Application:  Laptop
Model Number:  MC7430
Package:  No
Interface Type:  PCI Express
Card Type Device:  4G Card
Type:  wireless

Note! If you are not sure whether it is compatible with your own computer, please consult the seller first!

Condition: Used, 95% New, Test before ship out

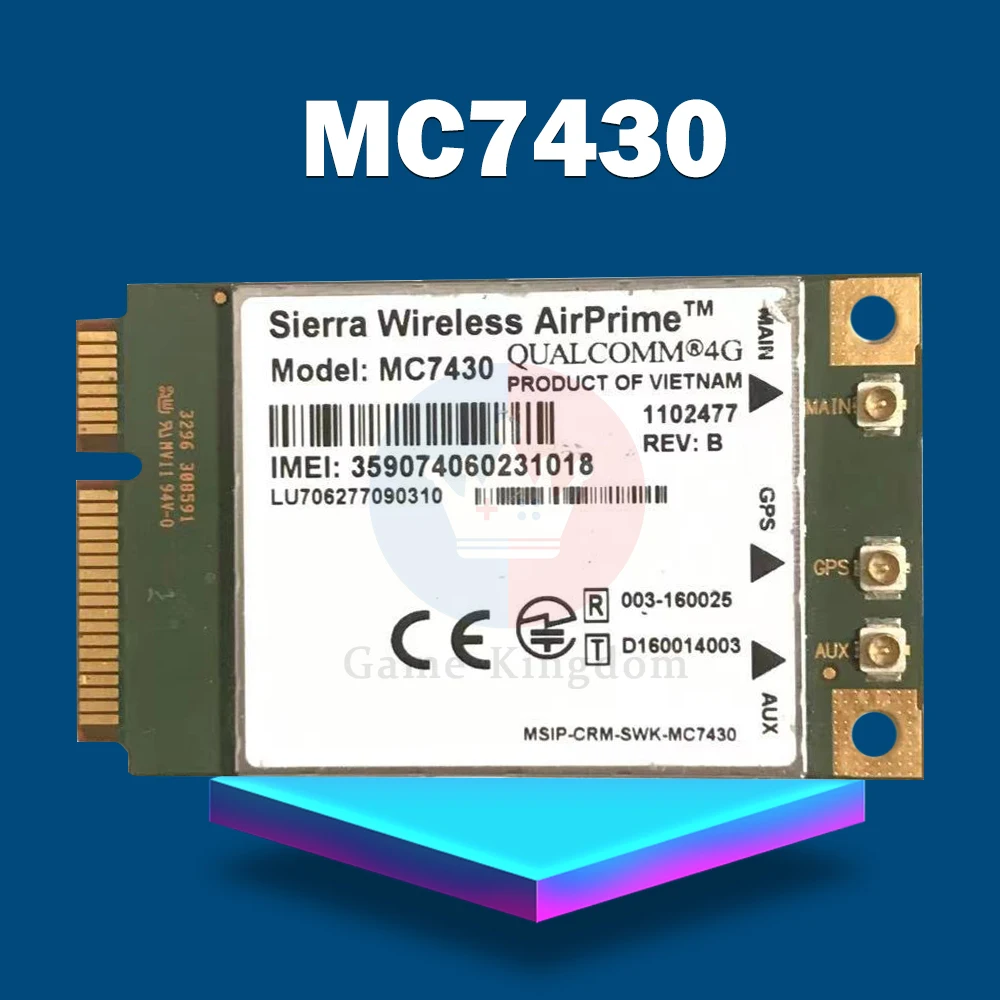

MC7430 PCI Express Mini Card is a compact, lightweight, wireless LTE-Advanced and UMTS based modem. It provides LTE-FDD, LTE-TDD, DC-HSPA+, TD-SCDMA, HSPA+, HSDPA, HSUPA, WCDMA, and GNSS connectivity for networking, and M2M applications over several radio frequency bands and supports 3G roaming.  MC7430 is a 4G-LTE cat 6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Asia Pacific (APAC). Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G-HSPA+DC with Rx diversity. A GNSS receiver is integrated.

Model:MC7430

* Form factor: PCIe Mini Card

* Chipset:  MDM9230

* Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS

* Support 4G bands: B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B18 (850), B19 (850), B21 (1500), B28 (700), B38 (2600/TDD), B39 (1900/TDD), B40 (2300/TDD), B41 (2500/TDD)

* Support 3G bands: B1 (2100), B5 (850), B6 (800), B8 (900), B9 (1700), B19 (800), B39 (1900/TD-SCDMA)

* Support LTE Peak Data rate: DL 300 Mbps, UL 50 Mbps

* GNSS (GPS, Glonass, Beidou, Galileo*):

* Regulatory: JRF/JPA, NCC, CE,GCF

* Dimensions: 51 x 30 x 2.5 mm

* Supply Voltage: 3.3 V nominal

* Operating Temperature: -40°C to +85°C

* Supported Carriers: docomo, Telstra(Planned: KDDI, Softbank)

- Control, Software and Features

* Control options: AT Commands, QMI SDK, MBIM

* For optimum control the QMI SDK is recommended

* Drivers: Android, Linux, Windows

* Switch networks anytime with up to three different certified firmware variants on board.

- Connectors

* System connector: 52 position Mini PCIe

* Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS with DC bias)

- Interfaces

* 1x USB 3.0 and USB 2.0 High Speed

* 1x Wake host

* 1x Wireless disable

* 1x System RESET

* 3x Antenna Control (muxed with GPIO 1-3)

* 1x Dynamic Power Control, DPR (muxed with GPIO 4)

* 4x GPIO (muxed with Antenna control or DPR)

* 1x LED driver output

* 2x SIM interface: 1.8/3V

* 1x Digital Audio

- Audio

* Optional

* Digital audio: PCM/I2S

* 4G: VoLTE

* 3G: Circuit Switched Fall Back (CSFB voice)
