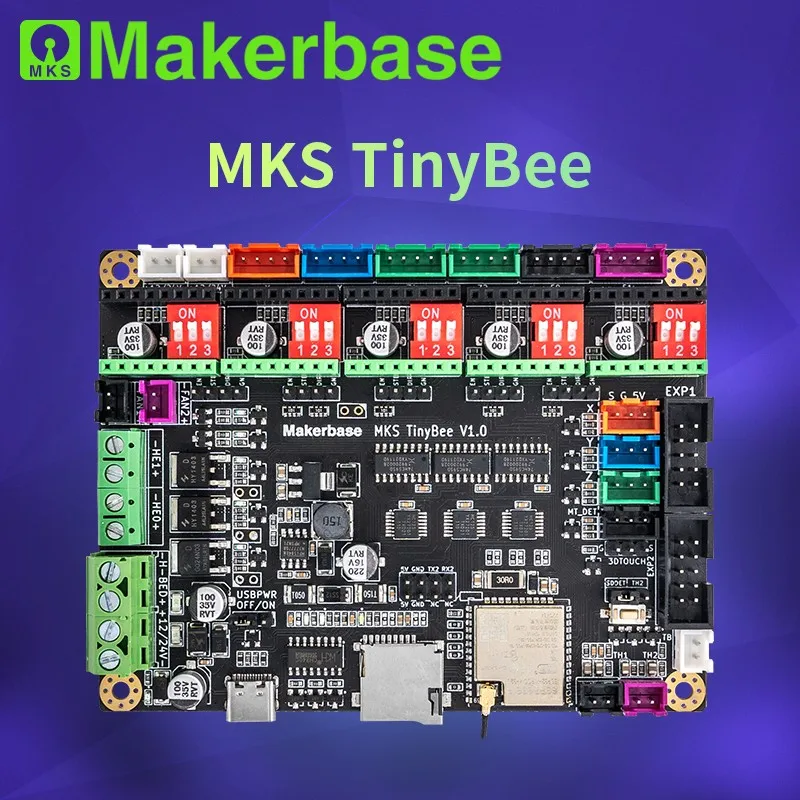

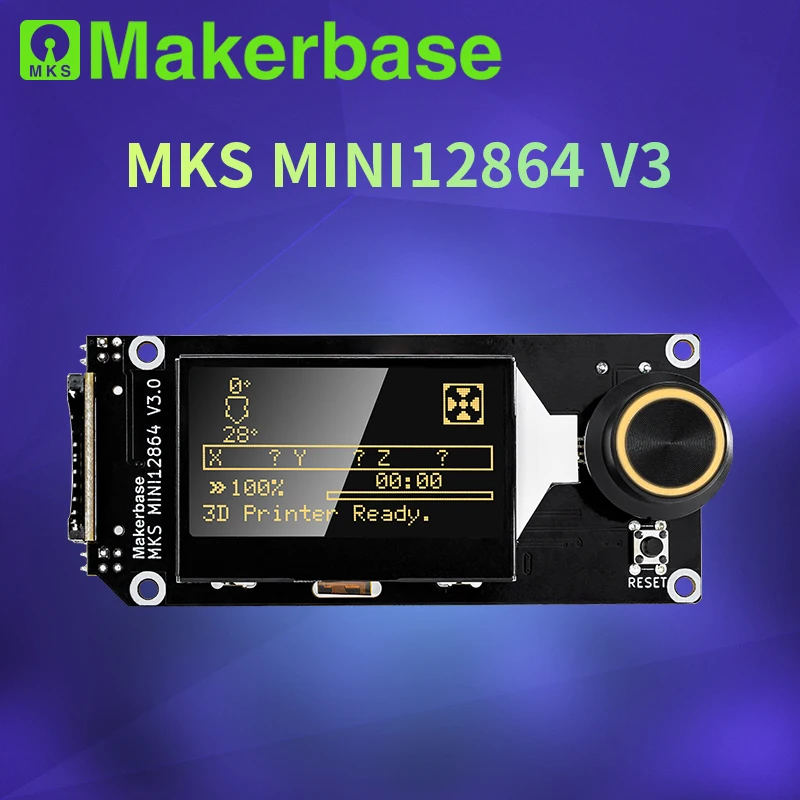

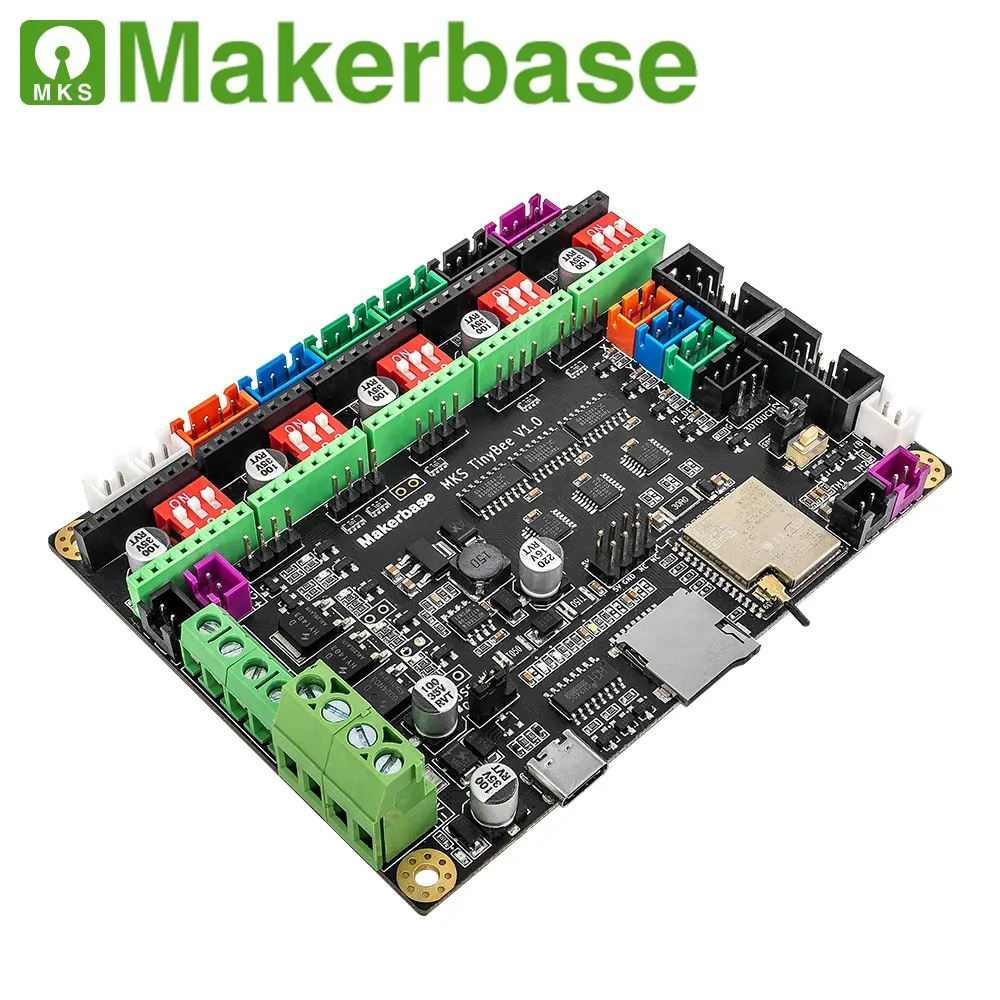

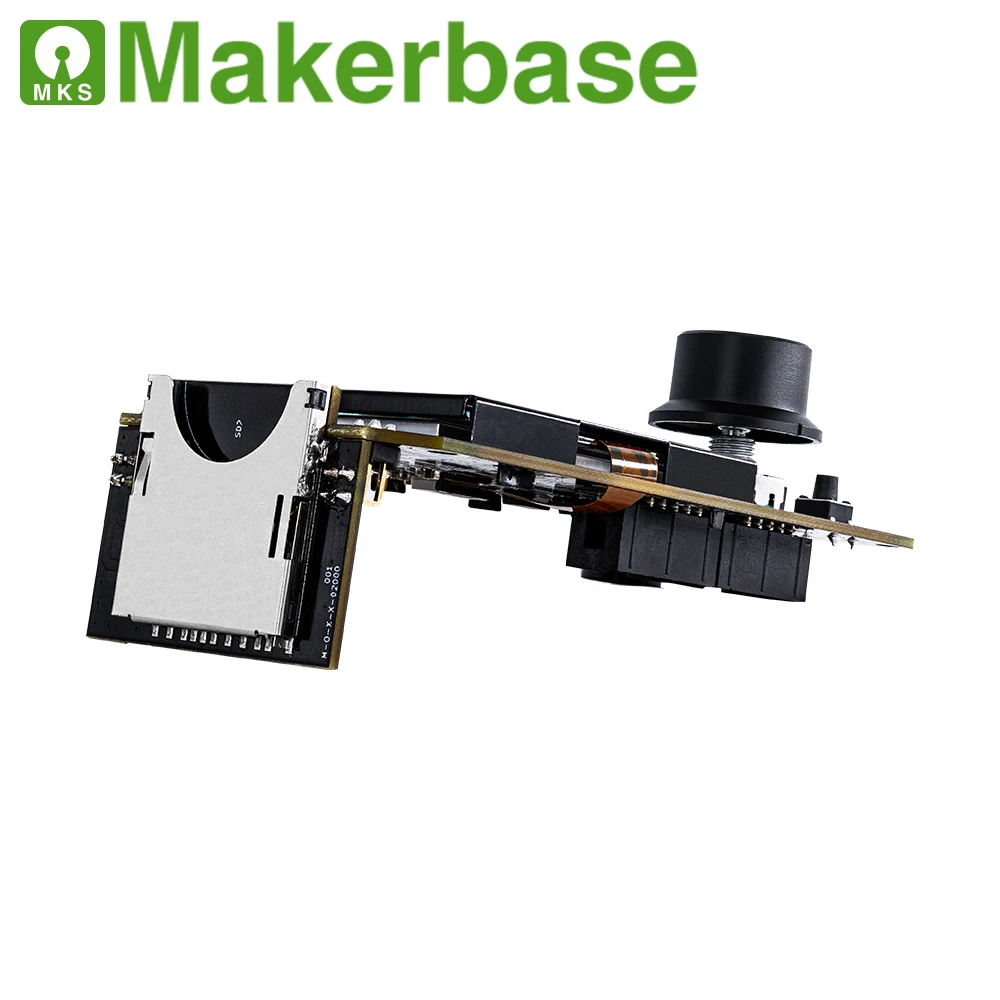

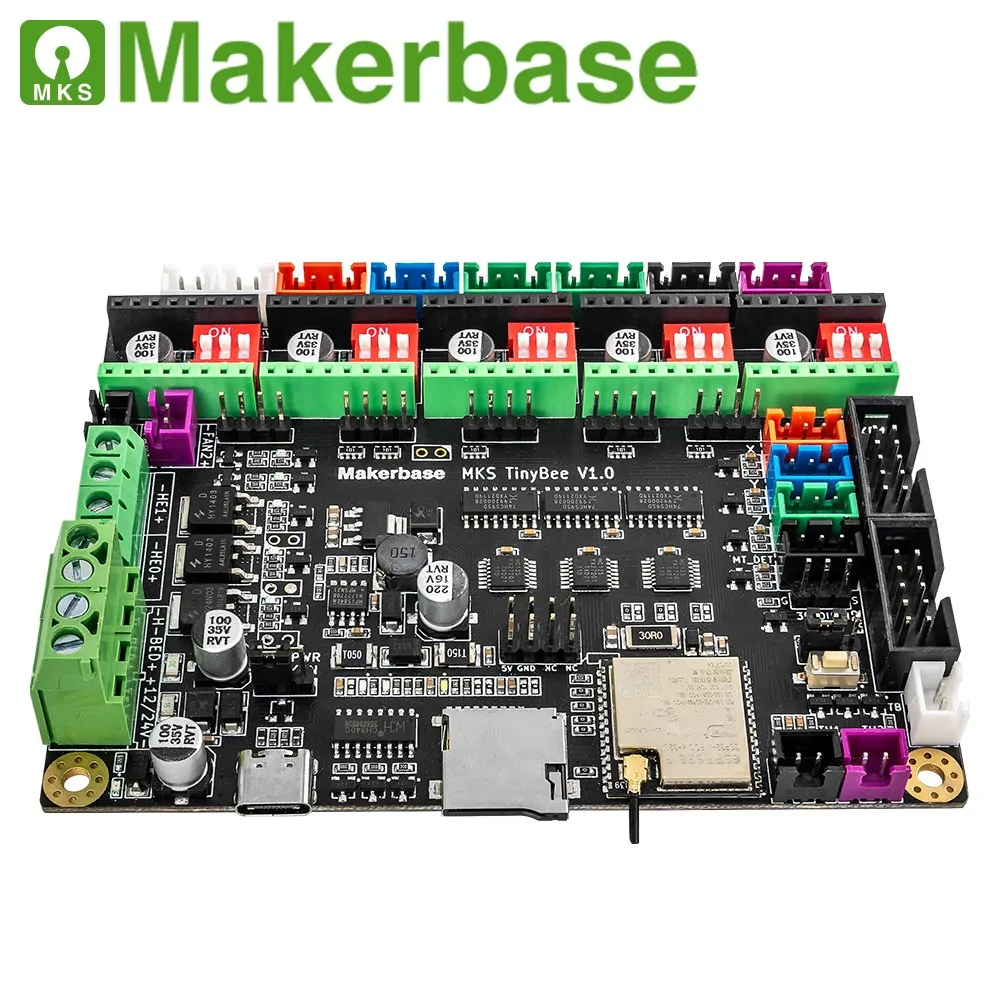

Makerbase MKS TinyBee mainboard ESP32 wifi MCU 32bit 3D printer article controller board kit MKS MINI12864LCD 12864 LCD display pipe bender Machine Tools & Accessories
Code: TD-3256803602448438
7 orders
Free Shipping
$ 54.61
$ 87
Other people want this. 8 people have this in their carts right now.
| Brand Name: | MacroBase |
|---|---|
| Origin: | CN(Origin) |
| Certification: | NONE |
| Is Smart Device: | Yes |
| Application: | 3d printer |
| Model Number: | MKS TinyBee + MINI12864LCD |
| Motherboard: | MKS TinyBee v1.0 |
| USB Drive: | CH340 |
| Firmware: | Marlin |
| MCU: | ESP32 |
| Support: | WIFI/WEB/Bluetooth |
TMC2160 stepper motor driver for Nema 23 motor MKS TMC 2160 stepping driver module two phase hybrid controller 3d printer engine
USD 10.85/piece
3d printer controller kit mainboard MKS GEN L V2.1 + MKS TFT 24 touch screen colorful display + stepstick stepper motor driver
USD 43.52-57.60/piece
GRBL shield 32 bits control card MKS DLC32 V2.1 TS35 touchscreen CNC offline controller upgrade for mini laser engraving machine
USD 15.64-47.79/piece
GRBL 1.1 OFFLINE display touch screen monitor MKS DLC v2.1 control plate CNC card CNC3018 pro upgrade parts AnnoyTools board
USD 19.43-53.60/piece
TMC2209 stepper motor driver TMC 2209 engine parts stepping driver board 3d printer stepstick module cnc controller for Nema 17
USD 16.80/lot
3d printing parts MKS TFT24 touch screen v1.1 RepRap controller panel 2.4'' TFT LCD shield display splash screen lcds module
USD 22.62/piece
CNC Z Axis touch probe Router mill Zero check touch tools CNC auto leveling sensor toolsetter for CNC laser engraving machine
USD 3.96/piece
Makerbase MKS TinyBee mainboard ESP32 wifi MCU 32bit 3D printer article controller board kit MKS MINI12864LCD 12864 LCD display
USD 29.61/piece
Packing List
Github:
https://github.com/makerbase-mks/MKS-TinyBee
Name: MKS TFT24 Touch Screen
MKS TFT24 is a colorful touch screen which is used independently on 3d printer.
This display is no need to set mainboard firmware but work together directly.
And it is easy to replace into your logo and edit your local language.
Powerfully,it is capable to wirelessly control 3D Printer and support Cloud printing.
More, it is available to self-define up to 13 commands .
More features as follows:
Wiring
Size
How to assemble with mainboard.
Set the baud rate, ensure both TFT and controller board are the same.
1.MKS Series mainboards
Such as, MKS TinyBee,MKS GEN,MKS BASE, MKS GEN-L,etc.
Flash firmware to mainboard .( TFT display has updated latest config inside already).
Connect TFT display to AUX-1 of the board.
No need to configure on board firmware,they will work together directly after wire.
The boards need a external 12V power supply.
2.Firmware Upgrade
Please copy following documents to the root of SD card.
(Please don't edit the documents name.)
mks_pic mks_config mkstft24
Then, plug the SD card to the TFT and power on. It will update automatically.
3.Config
4.Bed Leveling
Auto Leveling
After the machine assembles with a bed leveling controller, then run leveling on TFT interface.
#The command of auto leveling (G29 is available for Marlin.
While G32 is for Repetier and Smoothieware)
>cfg_auto_leveling_cmd:G28;G29;
Manual Leveling
Manual leveling is good for MB,i3 etc machines. It is available to set 3,4,5 point .
#The point number of manual leveling:(3,4,5 point available)
>cfg_point_number:4
5.Filament Replace
It is easy to replace the filament when it runs out.
You are able to set temperature and the speed of filament in-out on config.
As following:
#the speed of filament replacing(mm/min)
>cfg_filament_change_speed:1200
#the length of filament replacing(mm)
>cfg_filament_change_step:5
#the min temperature of filament replacing
>cfg_filament_limit_temperature:175
Then, here is the steps to replace filament.
1).On printing
pause-----more-----change----in/out-----stop
2).Before start printing
set-----change-----preheat-----in/out-----stop
6.Print from Breakpoint
TFT has a one of the excellent features is able to print from Breakpoint.
Below is the way to do it.
Firstly, set target temperature of extruder and heated bed, and then preheat.
Secondly, when preheat ready, go home .(Notice: if power off happens during operating printing from breakpoint, please must home .)
Thirdly, move extruder to the breakpoint which is available to set allowable error.
#Breakpoints continued playing Z-axis error setting
>cfg_breakpoint_z_error:0.2
Fourth, click set, and then click Continue(Means Print from Breakpoint).
After that, choose the file you want.
(If you pause the printing, and turn the printer off,
then it will resume to print from the pause point after power on.)
7.Filament Outage Detecting
Connect detecting switch to PB1 of TFT.
Set configuration to trigger low level or high level available.
#the level signal of outage detection module PB1(low level:0; high level:1)
>cfg_PB0_PB1_Level:1
