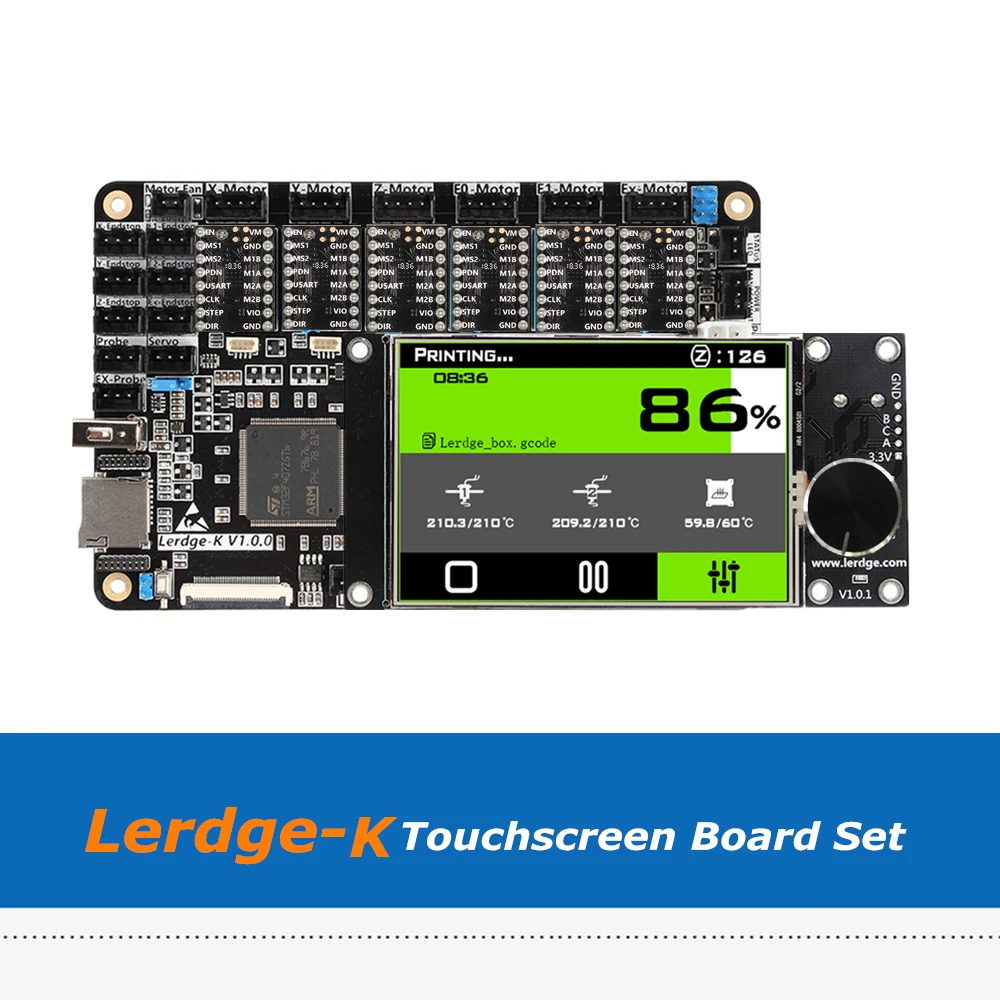

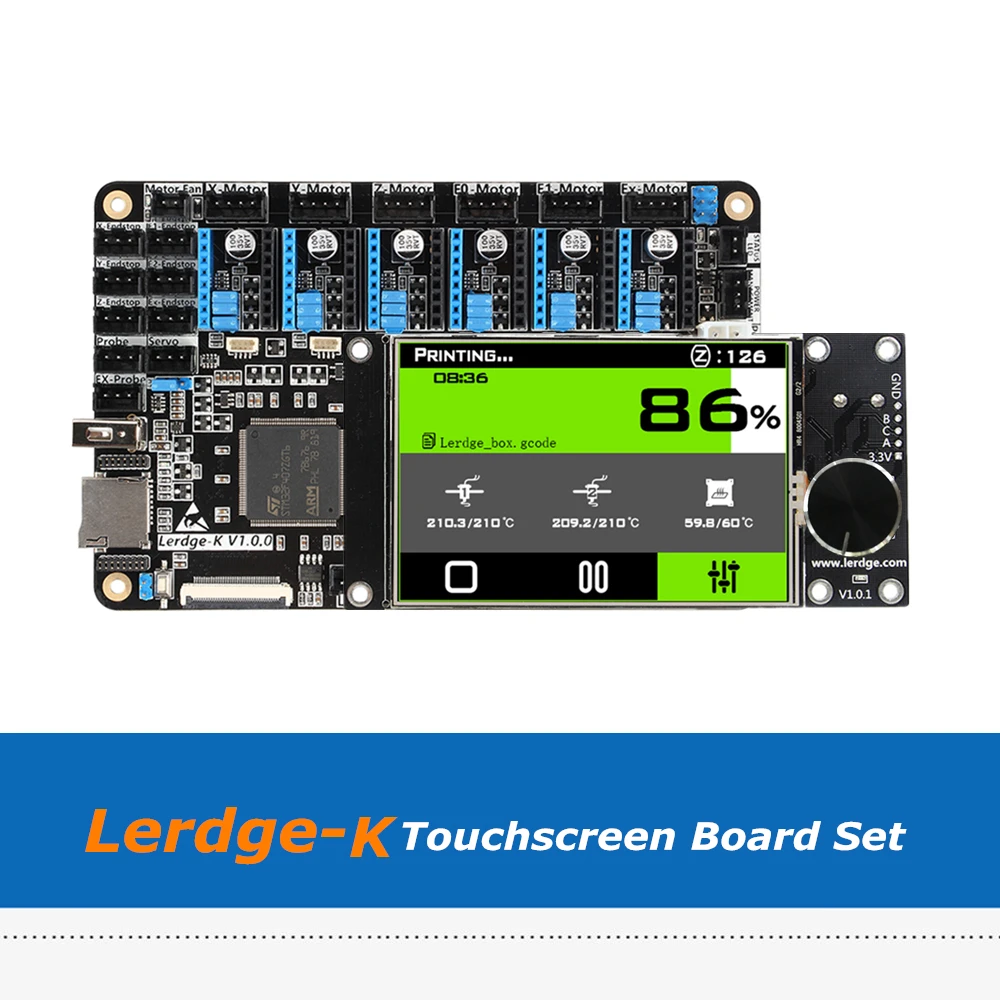

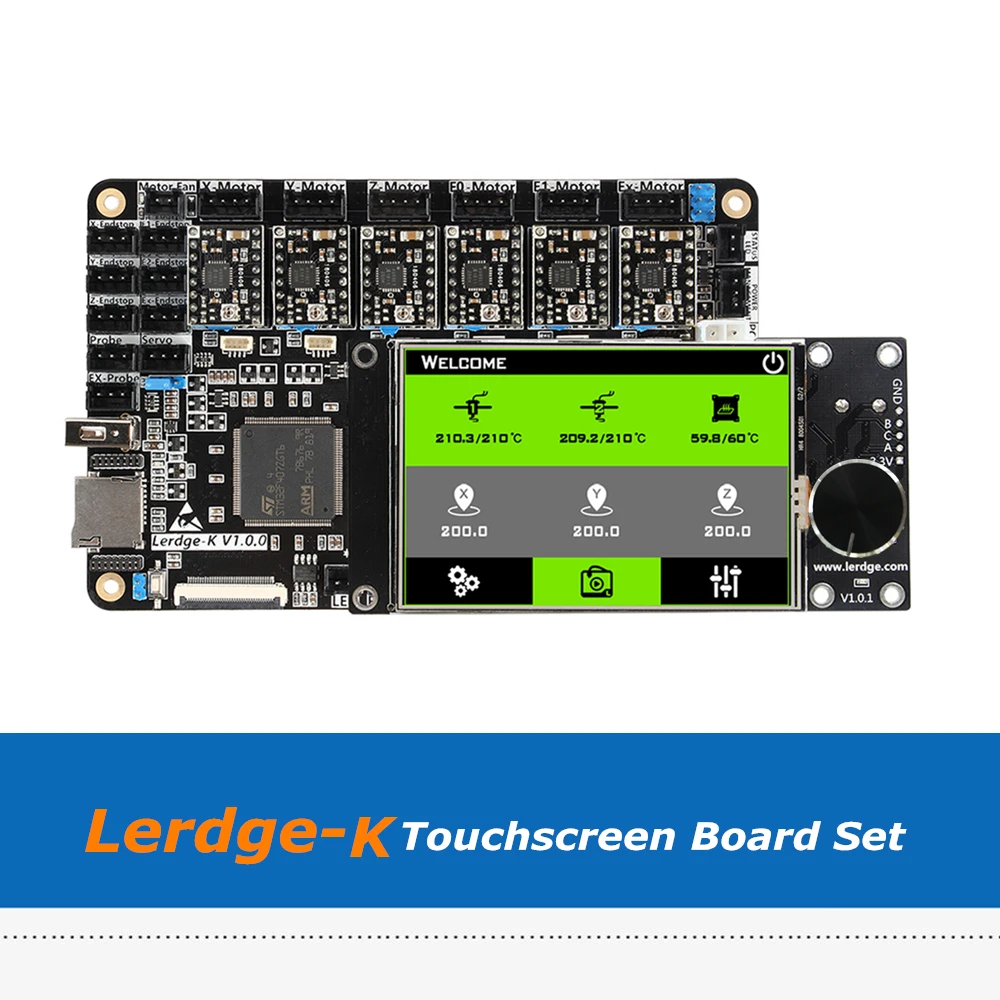

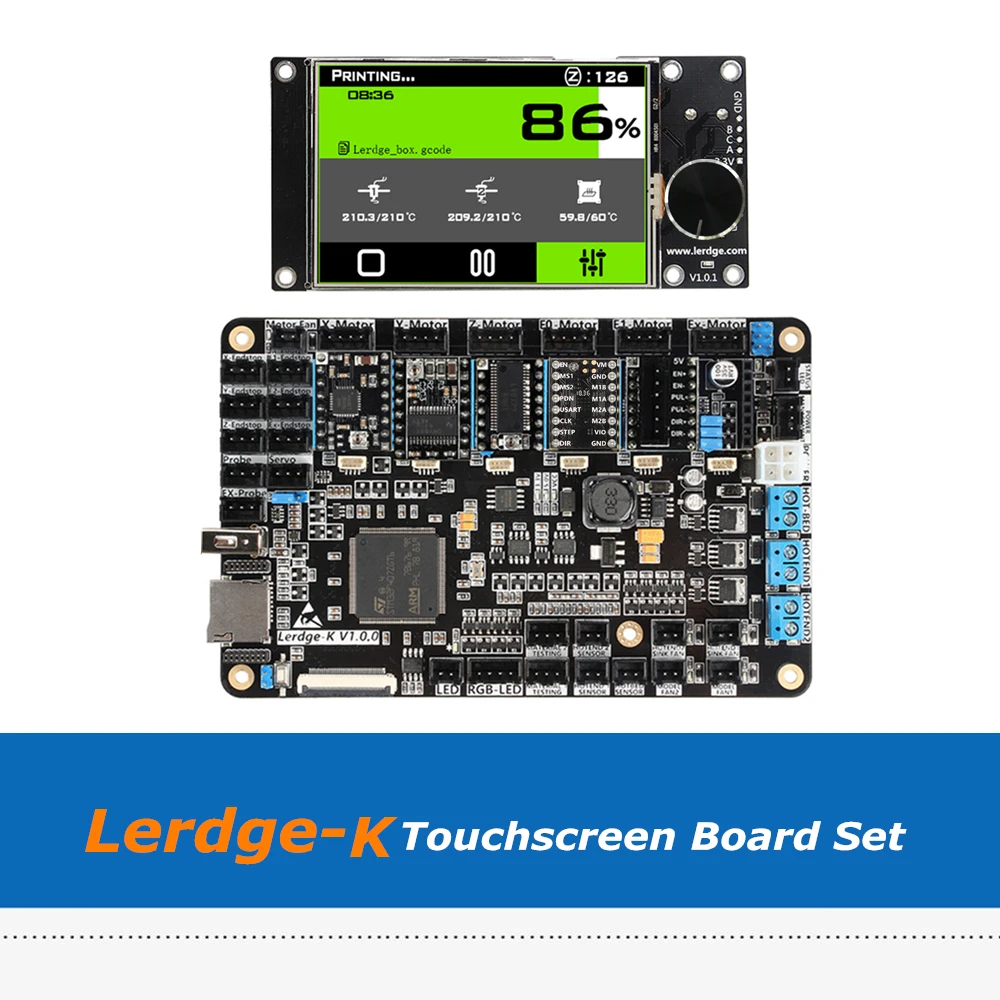

LERDGE-K 3D Printer Board ARM 32Bit Controller Motherboard + 3.5'' Screen Kit With 6pcs TMC2208 TMC2225 TMC2209 Driver

LERDGE-K 3D Printer Board ARM 32Bit Controller Motherboard + 3.5'' Screen Kit With 6pcs TMC2208 TMC2225 TMC2209 Driver

Name: LERDGE-K 3D Printer Board ARM 32Bit Controller Motherboard + 3.5'' Screen Kit With 6pcs TMC2208 TMC2225 TMC2209 Driver
Brand: MMO Dropship
SKU: 2251832660990405
Price: 194.42 VND
Availability: InStock
Rating: 4.9 (85 reviews)

Code: TD-2251832660990405 1 order

Free Shipping

$ 194.42

Size:

no driver

6pcs TMC2225

6pcs TMC2226

6pcs TMC2208

6pcs TMC2209

Note

Quantity:

Other people want this. 19 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	NoEnName_Null
Origin:	CN(Origin)
Item Type:	Motherboard
Model Number:	Lerdge-K board set
board size:	140*90mm
input voltage:	8-35V
touch screen:	3.5 inch TFT
micro processor:	STM32F407
compatible driver:	A4988/LV8729/TMC2208/TMC2209
slicing software:	Cura, Makerware, Repetier-Host, Simplify 3D
support file format:	Gcode
supported printer:	XYZ, Ultimaker, Delta, Hbot, Corexy
support auto-leveing:	yes
with 1m HT-NTC100K cable:	yes
range:	3d printer part

LERDGE-K 3D Printer Board ARM 32Bit Controller Motherboard + 3.5'' Screen Kit With 6pcs TMC2208 TMC2225 TMC2209 Driver

Tip:

The Lerdge K motherboard have to match with our 3.5-inch touch screen to be used.

Applicable model：
XYZ(Ultimaker、Makerbot)、Detla、CoreXY(Hbot) and CoreXZ

About power continued to play function:

Lerdge-K motherboard comes with printing pause, printing save, and start-up function. But if you need the function of saving power and continue to play when power off unexpectedly, and the function of automatically turning off after the printing finished, a

power monitoring module

s needed.

About printing instructions:

The Lerdge-K motherboard defaults to offline printing (Use TF card printing or U disk printing). If need the online printing, an

online module

is needed.

About the use of heated bed:

The heated bed with a power of no more than 150w can be connected directly to the motherboard. If the heated bed power is too large, please use a

high-power MOS hot bed module.

Motor Driver Cooling Fan Interface：

When any motor drive is enabled, the fan is turned on;

When all motor drives are disabled, the fan is turned off.

Hothead0 Cooling Fan Interface：

When the temperature of the hot head is higher than 45℃, the fan is turned on；

When the temperature of the hot head is lower than 40℃, the fan is turned off.

Ex-Motor Interface：

Ex axis can be used to synchronize X\Y\Z\E0 motor movement or expand to E1 motor interface.

System Reset Interface：

A two-wire normally open switch can be connected here to realize the emergency stop button.

Servo Power Selection Pin：

Select the servo power supply voltage between 5V and the mainboard power interface voltage,

short-circuit the middle and left pins, and select 5V power;

short-circuit the middle and right pins, and select the Power interface voltage.
