lavalier microphone FREEBOSS FB-U36 Handheld Wireless Microphone 2 Way Adjustable Frequency Party Karaoke Microphone dynamic microphone Microphones

Brand Name:	FREEBOSS
Transducer:	Dynamic Microphone
Set Type:	Transmitter Sets
Style:	Handheld Microphone
Use:	Karaoke Microphone
Origin:	CN(Origin)
Package:	Yes
Model Number:	FB-U36
Polar Patterns:	Cardioid
Certification:	NONE
Communication:	wireless

FB-U36

Handheld Wireless Microphone 2 Way Adjustable Frequency Party Karaoke Microphone

Selling Point

1. UHF band,adjustable frequency:

2*82 channel

Frequency 1:

(A：530.30-554.60     B：555.35-579.65)

Frequency 2:

（A：640.30-664.60     B：665.35-689.65）

2. Working range: over 30M (over 98 ft)

3.  Material：

Receiver----------------------------------plastic

Transmitter----handheld mic----plastic

4.  Non-slip metal grill

5.  2 XLR output

Receiver Technical Specification

Frequency Range:

1)   A：530.30-554.60     B：555.35-579.65

2)   A：640.30-664.60     B：665.35-689.65

Channels: 2*88

Signal to noise ratio: >90dB

Distortion:     0.5%

Power :110-230V

Receiver front panel function:

1.) Power Switch:

A)  Connect the power adapter to receiver power socket, then connect the power adapter to 110V or 220V power.

B)  Press the receiver power button, power indicator will be on, the receiver is on "working" status.

2.) Channel adjust button:

Press "UP" or "Down" button to choose different frequency when there is interference.

3.) IR button

a) after choose the frequency

b) Face the transmitter's IR receiver (screen) to the receiver's IR SYNC light,the distance is no more than 30 cm.

c) Press the SET button, after 1-3 seconds,SYNC is ok.

4.) Volume knob

rotate the volume knob to adjust the volume of the microphone.

5.) LED Screen:

A.) RF Signal

when the receiver is on "working" status,

a) Microphone A/B no power, No RF signal.

b) Microphone B/B has power, there are RF signal.

B.) AF Signal

when microphone A/B power is on, and when there is signal,

a) Microphone A/B pick up the sound, there is  AF signal

b) no sound is picked up, no AF signal .

Receiver back panel function:

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can control the microphone A  or microphone B separately.

2) Mix out socket:

A.) Need 6.35 mm plug cable.(included in the package)

B.) From the socket,

a) you can link the receiver to amplifier or active speaker,etc.

b) you only can control the microphone A and B together.

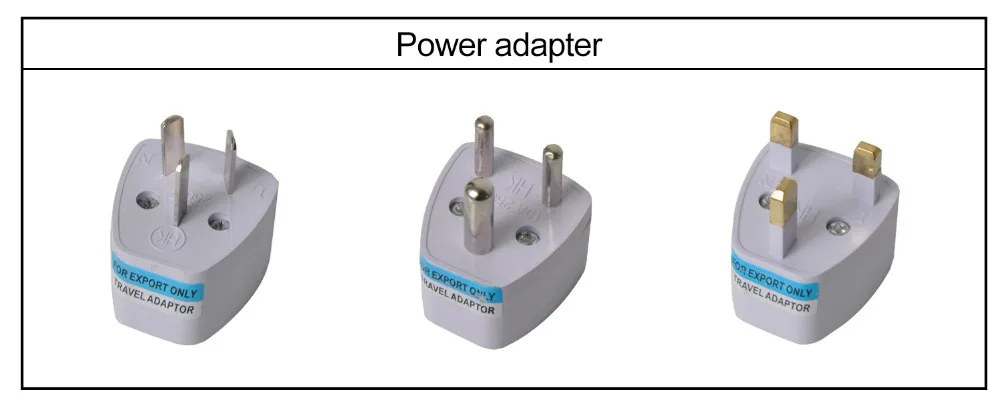

Power adapter:

1) EU PLUG

2) US PLUG

3) PLUG adapter

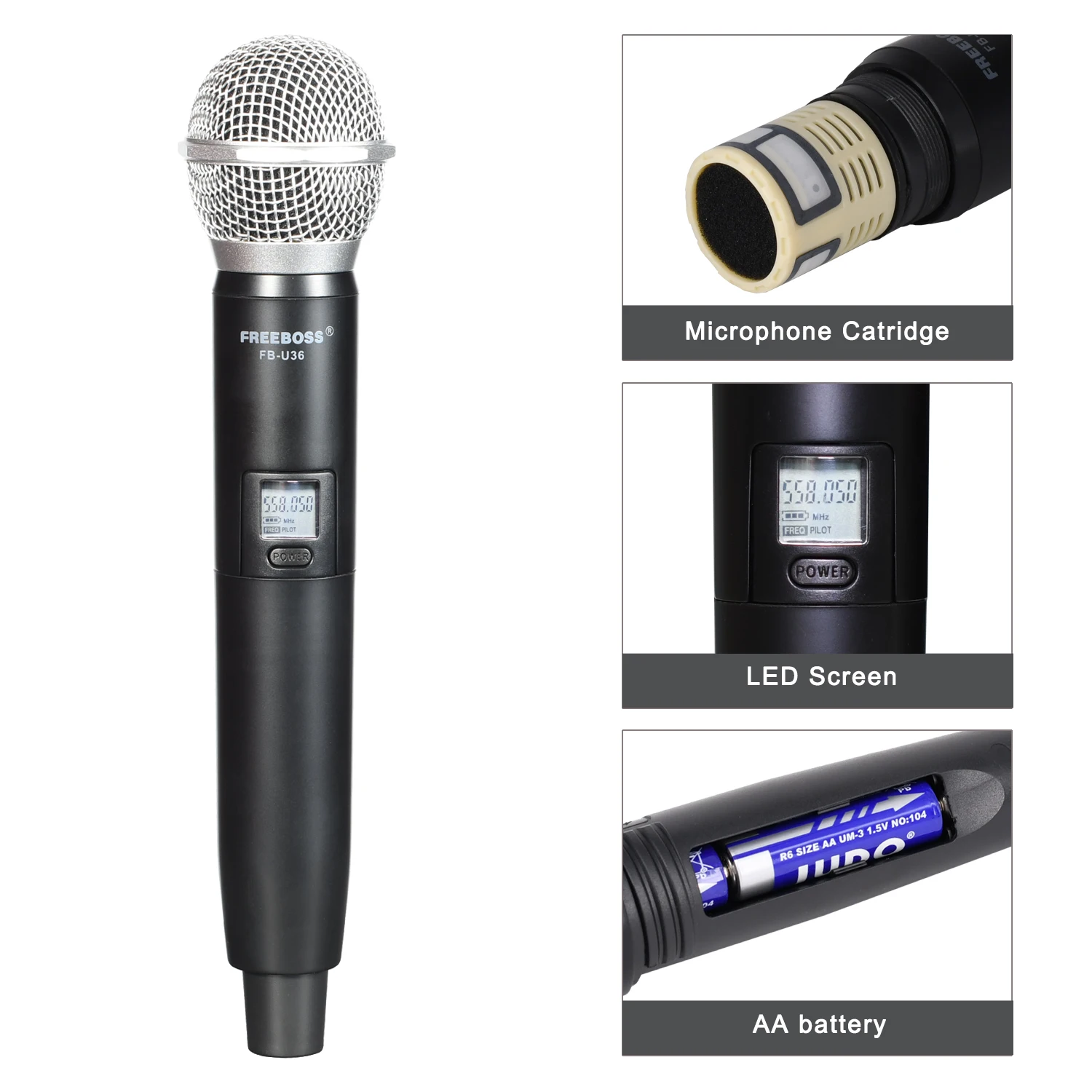

Transmitter--Handheld Microphone

Frequency Range:

1)   A：530.30-554.60     B：555.35-579.65

2)   A：640.30-664.60     B：665.35-689.65

High wave suppression: >55dBc

Maximum frequency offset:  48KHz

Frequency Response: 50Hz-15KHz(-3dB)

Signal to noise ratio: >105dB(A)

Battery: 2* AA  (8 hours)

Material:

Plastic handheld microphone, Comfort and smooth handling experience with elegant appearance.

Metal grill

Polygon design to prevent rolling.

Cartridge:

1) Type: Moving coil

2) Polar pattern: Cardioid

Led Screen:

1) display channel

2) display battery power

Application:

Packing

Packing list:

1) Handheld Microphone transmitter   2pcs

2) Receiver                                          1pc

3) Audio cable                                     1pc

4) Power Adapter                                1pc

5) Owner's manual                              1pc

1) use 6.35 plug cable to connect the microphone receiver to audio mixer (there is one piece cable in the package)

2) Use XLR CABLE to connect the wireless microphone receiver to audio mixer
(you need buy the XLR cable)

3) Use 6.35 plug cable to connect the receiver to amplifier
(there is one piece 6.3 plug cable in the package)

4) Use 6.35 plug cable to connect the receiver to active speaker
(there is one piece audio cable in the package)
