L830-EB LTE Cat6 4G wireless Card 4G module M2 for THINKPAD X380/T480S/T480/X280/T580/L580/L480/S1 4th gen internet extender 3G Modems

L830-EB LTE Cat6 4G wireless Card 4G module M2 for THINKPAD X380/T480S/T480/X280/T580/L580/L480/S1 4th gen internet extender 3G Modems

Name: L830-EB LTE Cat6 4G wireless Card 4G module M2 for THINKPAD X380/T480S/T480/X280/T580/L580/L480/S1 4th gen internet extender
Brand: MMO Dropship
SKU: 1005001320856836
Price: 46.28 VND
Availability: InStock
Rating: 4.9 (77 reviews)

Code: TD-1005001320856836 1 order

Free Shipping

$ 46.28 $ 120.8

Other people want this. 22 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	WTXUP
Origin:	CN(Origin)
Kind:	Internal
Application:	Laptop
Model Number:	L830-EB
Package:	No
Interface Type:	NGFF
Card Type Device:	4G Card
Type:	wireless
Transmission Rate:	Other

Welcome to our store.

If you have any questions, you can leave a message by email, we’ll reply as soon as possible.

We have abundant supply, and advantage price , looking forward to have a long-term cooperation with you. We expect your coming for negotiation!

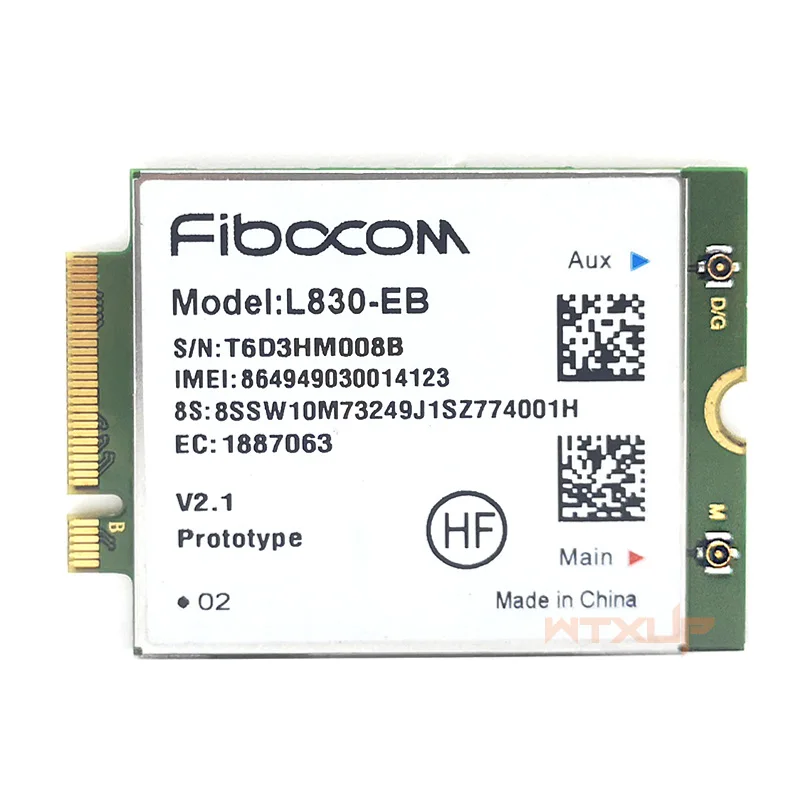

* Model: L830-EB 4G LTE M.2 WWAN card for Thinkpad laptops

* LTE Cat6 cellular module

* LTE DL 300Mbps/UL 50Mbps

* Support LTE Band 1/3/5/7/8/20/28

* Form factor: M.2

FIBOCOM L830-EB series are M.2 form factor LTE wireless communication modules which support LTE-FDD/WCDMA. The highest speed can reach Cat6 300Mbps DL and 50Mbps UL. L830-EB can cover multi-countries network, including EMEA, Taiwan, and etc. L830-EB can be widely used in consumer electronics(Laptop/Tablet), gateway industry.

FIBOCOM L830-EB Specifications and Feature:

* LTE Cat6 cellular module

* Form factor: M.2

* Laptop/Tablet SKU With GNSS

* Gateway SKU Without GNSS

* Support 4G LTE FDD Band 1/3/5/7/8/20/28

* Support 3G WCDMA/UMTS Band 1/5/8

* CSFB Support

* GNSS Support

* Operating Voltage: DC 3.135~4.4V, Typical 3.3V

* Operating Temperature: - 30~+65℃

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX Power: FDD LTE:23dBm WCDMA:23.58Bm

* RX Sensitivity：FDD LTE:-98dBm~102dBm WCDMA:~-220dBm

* Data Rates:
- FDD LTE: 300Mbps DL, 50Mbps UL
- UMTS: 384Kbps DL, 384Kbps UL

* Interfaces:
- USIM Card: 1.8V/3.0V
- USB 2.0
- EINT
- System Indicator
- Clock

* Drivers:Win 10

* Approvals: Laptop/Tablet SKU:GCF,CE,RoHS,HF,CB,NCC,etc.Total 18 certs for global shipment

* Gateway SKU 1: NCC, Anatel(TBD),RoHS,HF

* Gateway SKU 2: GCF,CE,RoHS,HF,FCC,Vodafone

42 * 30 * 2.5 mm

Compatibility(only):

- ThinkPad X280 (machine types: 20KE ... 20KF)

- ThinkPad X380 Yoga (machine types: 20LH ... 20LJ)

- ThinkPad S1 4th Gen (machine types: 20LK ... 20LL)

- ThinkPad P52s (machine types: 20LB ... 20LC)

- ThinkPad T580 (machine types: 20L9 ... 20LA)

- ThinkPad T480s (machine types: 20L7 ... 20L8)

- ThinkPad T480 (machine types: 20L5 ... 20L6)

- ThinkPad L580 (machine types: 20LW ... 20LX)

- ThinkPad L480 (machine types: 20LS ... 20LT)

Package included:

L830-EB Module

L830-EB LTE Cat6 4G wireless Card 4G module M2 for THINKPAD X380/T480S/T480/X280/T580/L580/L480/S1 4th gen internet extender
