Brand Name: | HTRC |
---|---|
Origin: | CN(Origin) |
Display screen: | Yes |
Quick charge: | Yes |
Type: | Electric |
Intelligent Charge: | Yes |
Certification: | NONE |
Package: | Yes |
Model Number: | Imax-B6AC |
Voltage: | 3.7 В |
Use: | Standard Battery |
Use: | Vehicles & Remote Control Toys |
Remote Control Peripherals/Devices: | Battery Charging Units |
For Vehicle Type: | Helicopters |
Tool Supplies: | Assembled class |
Four-wheel Drive Attributes: | Assemblage |
RC Parts & Accs: | Lipo Charger |
Material: | Metal |
Upgrade Parts/Accessories: | Charger |
Dimensions: | about 135 x 144*36mm |
Charger Plug: | US EU UK AU Optional |
EU plug /US plug /AUplug /UK plug Optinal ,
Please choose right ,if not sure ,please contact us !!
Note:
1.There are two types for choose: b6 no adapter and b6 with adapter,you can choose as you want.
2.This imax b6 is HTRC brand and produced by HTRC,HTRC is a factory which
focus on the production of high quality chargers. Not Other Brand ,Not Fake ,We have not need Security Code .If you mind it ,please not buy ,thanks!
3.After you received the goods,please follow the using turn
(1.plug in the adapter firstly,then plug the machine) if you plug the mahcine firstly, then plug the adapter that will caused it can not open or work unnormally
If any problems ,please contact us ,thanks!
Specification:
Oeration voltage range : DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz
Circuit power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. charge power 80W
Max. discharge power 5W

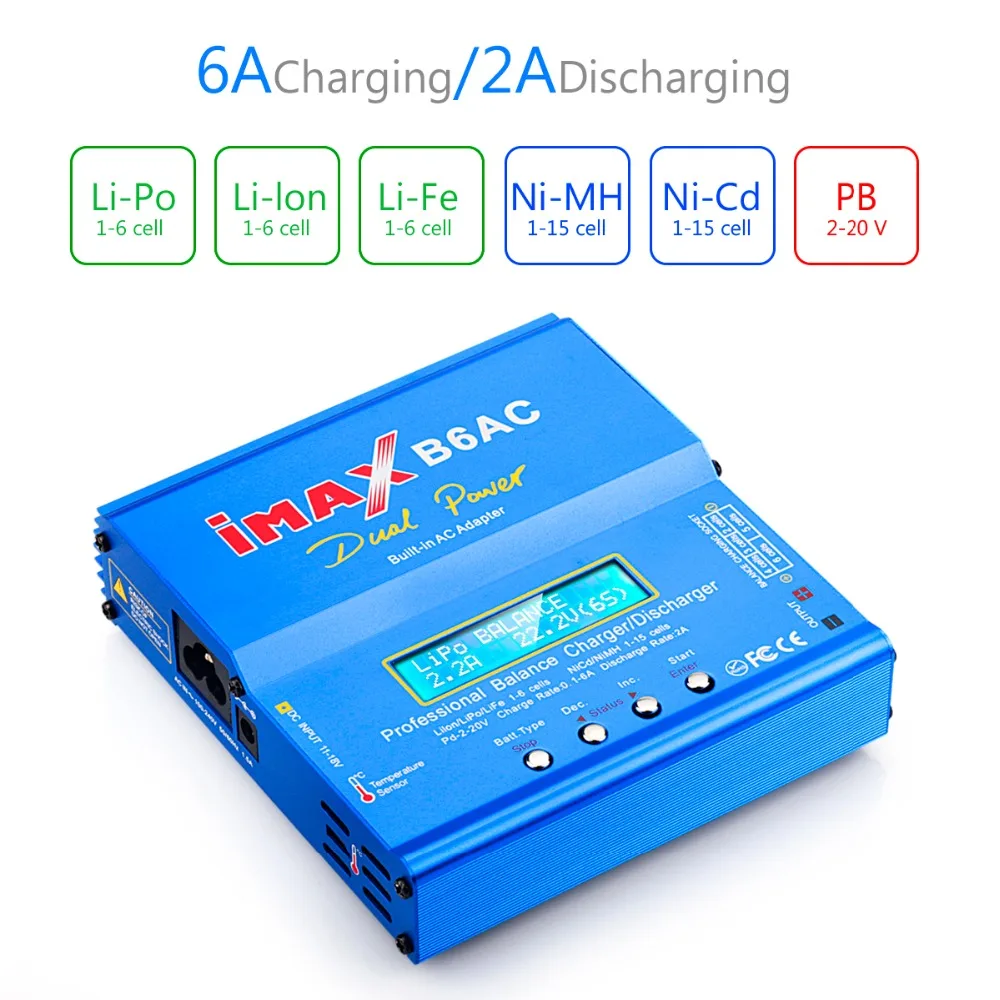

Charge current range : 80w: 0.1~6.0A 50w :0.1-5.0A
Discharge current range : 80W:0.1~2.0A 50W:0.1-1A
Current drain for balancing Li-Po : 300mAh/cell
NiCd / NiMH battery cell count : 1~15 cell
Li-Ion / Polymer cell count : 1~6 series
Pb battery voltage : 2V~20V
Dimensions : about 135 x 144*36mm
Package weight: 778g

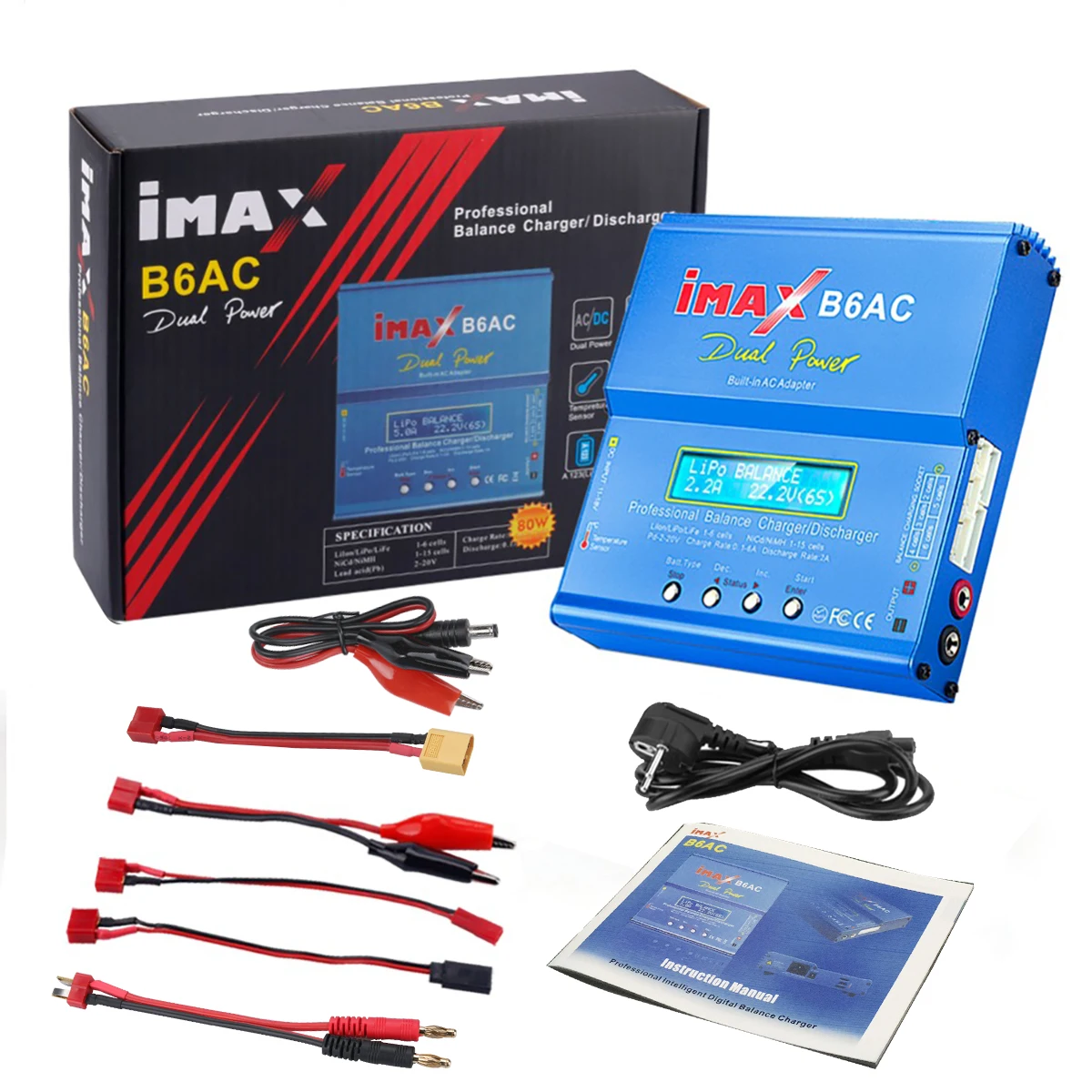

Package include:
1 x imax B6AC charger (80w )
1 x Multi-fuctional extension wire
1 x Universal crocodile clip
1 x JST plug
1 x Manual
1 x AC plug
Please note:
our machine can't support to measure the 1s battery 's voltage and
Resistance

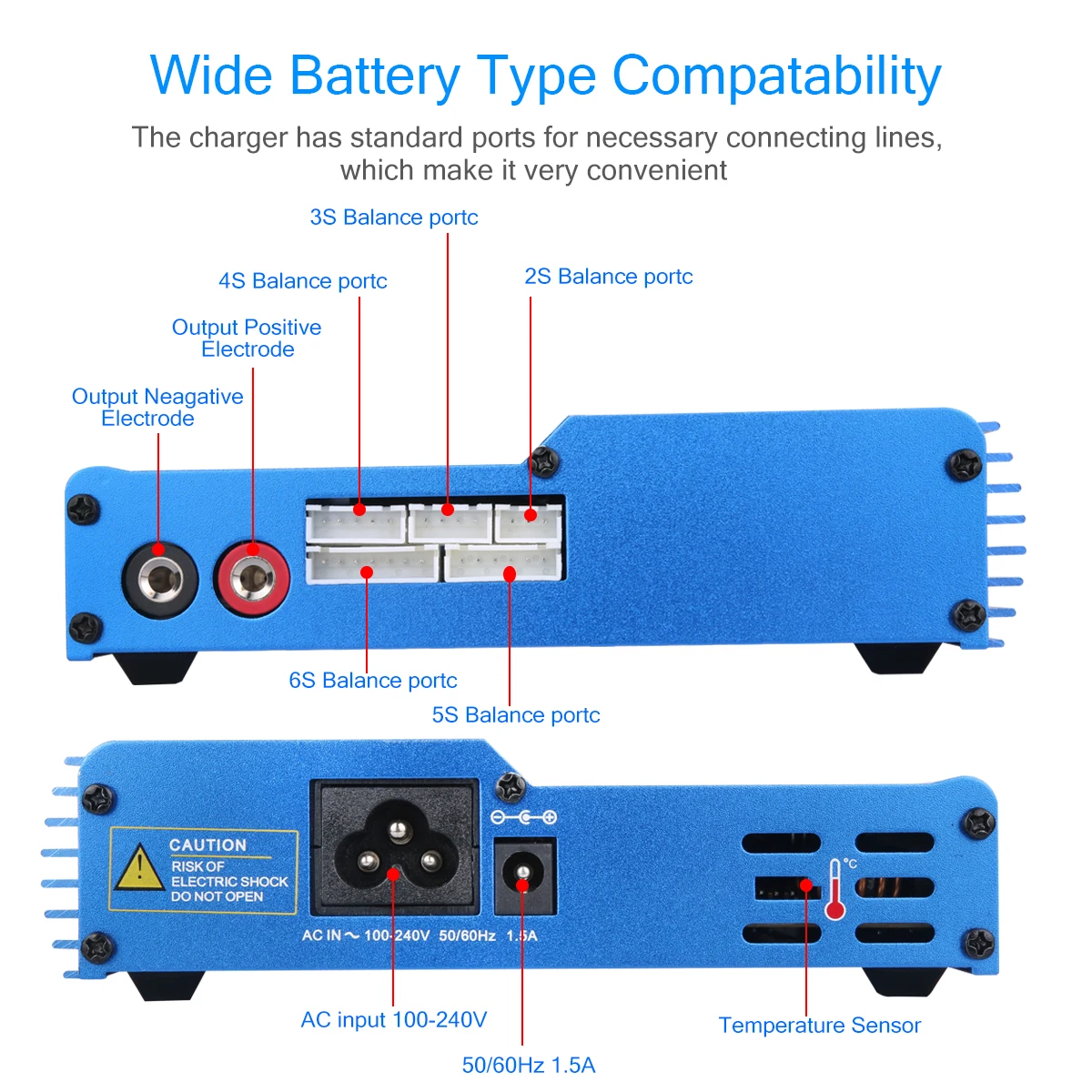

1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.
2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.
3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger
4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .

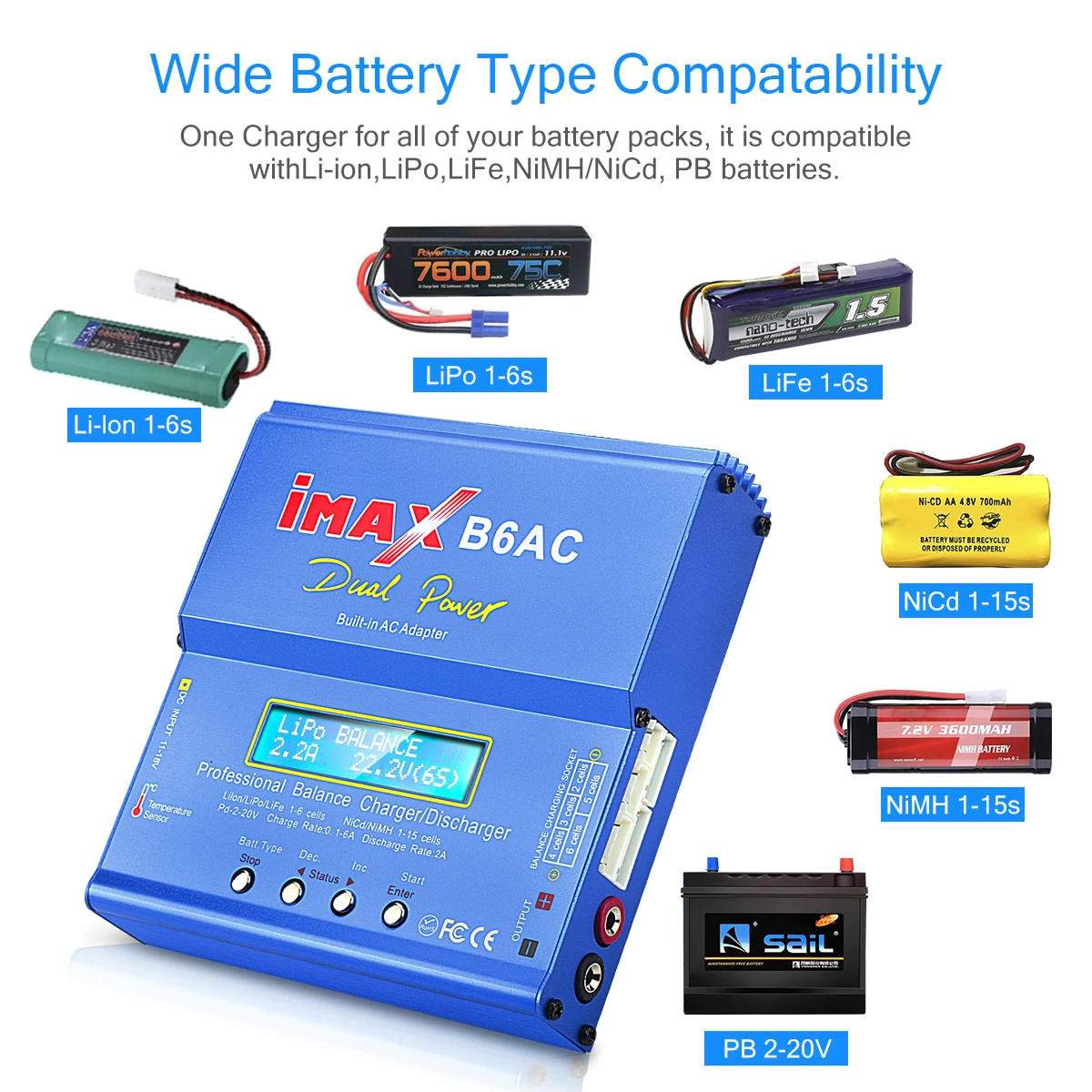

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries
2.USER SET PROGRAM: to set the parameter of charge batteries which you need .
3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries
4.PROGRAM SELECT SAVE DATA : save setting data
5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid )batteries .

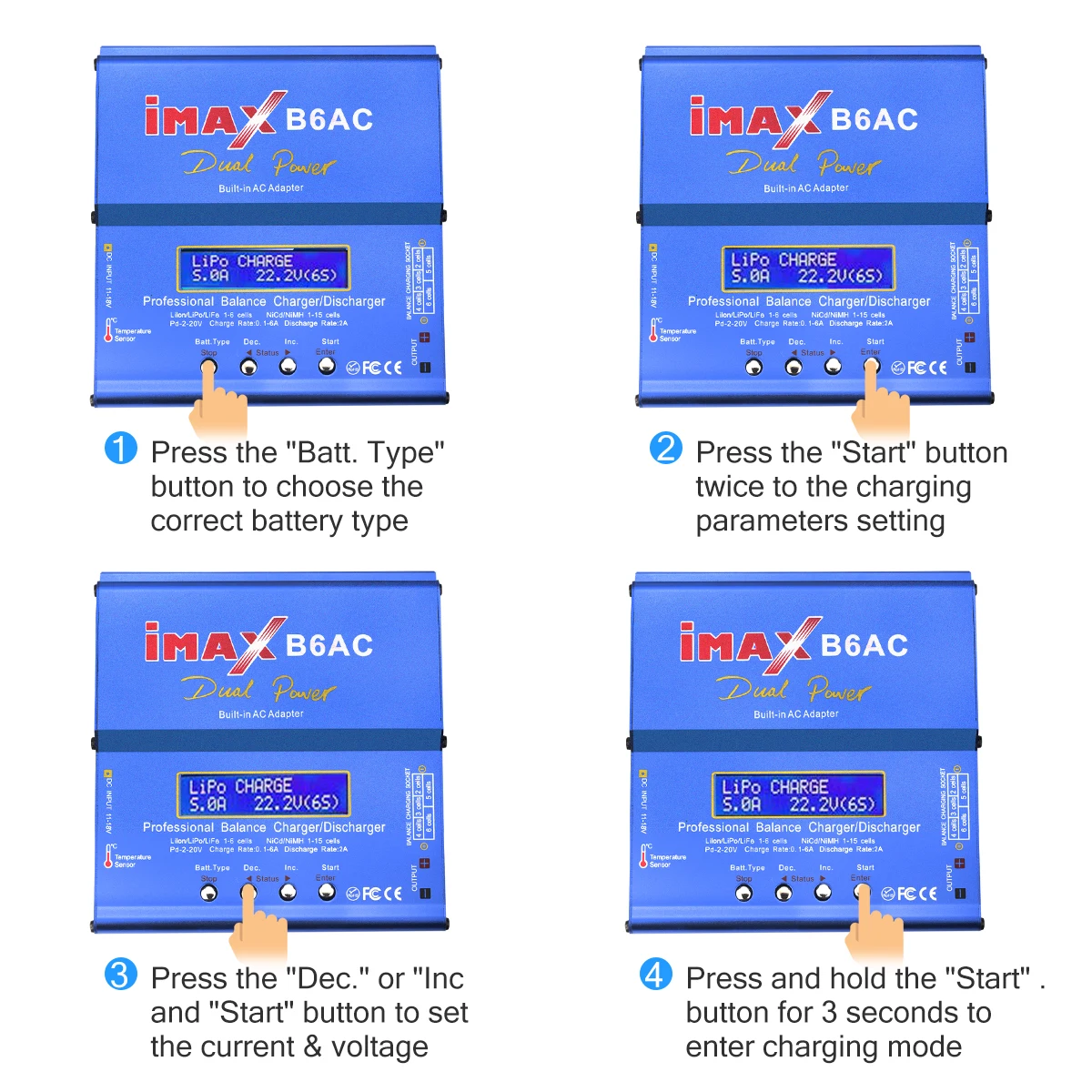

1.press the "battery type"button to choose the correct battery type
2.press the "start"button twice to the charging parameters setting
3.press the "dec."or "inc" and "start"button to set the current & voltage .
4.press and hold the "start"button for 3 seconds to entrt charging mode .
