Name: Hotsale UPA-USB Serial Programmer V1.3 UPA USB Programmer UPA USB Prog Full Adapters With NEC Function USB Device Programmer motorcycle oil temperature gauge
Brand: MMO Dropship
SKU: 2255800662588304
Price: 71.02 VND
Availability: InStock
Rating: 4.9 (96 reviews)

Code: TD-2255800662588304 1 order

Free Shipping

$ 71.02 $ 77.37

Color:

Note

Quantity:

Other people want this. 15 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	BXOBD
Origin:	CN(Origin)
External Testing Certification:	ce
Item Type:	Gas Analyzers
PRODUCT Name:	Newest UPA USB Serial
model id:	ECTT007-A
weight:	0.5kg
package:	567cm
Newest UPA USB Serial:	Hardware Version: V2014
Newest UPA:	Support Nec Function
UPA USB 1.3:	Software Vesion: V1.3
Newest UPA USB:	Language: English

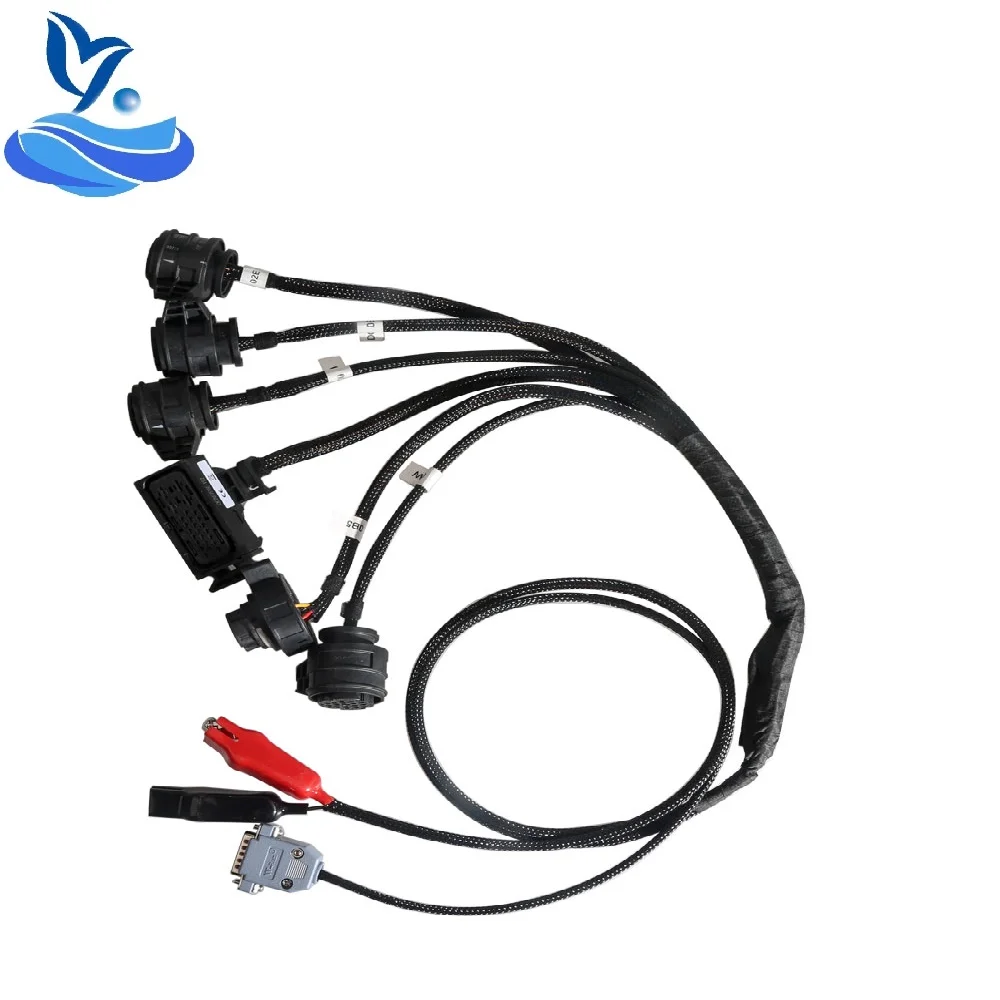

VAG Gearbox Adapter Cables for DQ250 DQ200 VL381 VL300 DQ500 DL501 Read/Write work ECU FLASH Power Upgrade Tool ECU Programmer

USD 105.00/piece

Openport2.0 OBD V1.20 with USB Dongle Read&Write ECU Data without ECU Disassemble Read the Chip Data Read Transmission Via OBD

USD 7.00-239.00/piece

New Arrival Best Price FLASH 67 IN 1 ECU Programmer Tool Read/Write ECUs Via Boot/OBD Bench 67in1 ECU Programming Tool EU Stocks

USD 262.50-304.50/piece

V1.95 ECU Power Box F-L-A-S-H Transmission Power Upgrade Tool Box ECU Chip Tuning Tool V-A-G Gearbox Adapters ECU Programmer

USD 37.96-335.66/piece

ECU Programmer Tool 67IN1 Bench ECU Tool to Read Write ECU and GearBox supports Flash and EEPROM through Boot 32IN1 Bench Tool

USD 14.80-318.00/piece

GPT Adapter F32GN037C Diagnostic Cable 14P 600KT02 DB15 MED17-EDC17 GPT Cable for KTAG/Powerbox/Bench/Flash 67IN1 ECU Programmer

USD 5.92-20.35/piece

Newest Power Box for J-T-A-G Works For ECU Programmer for Openport 2.0 J2534 Device Box Transmission Power Upgrade Tool Box

USD 8.00-53.50/piece

BENCH Flash 67in1 V1.20 Auto ECU Programmer Tool Via Boot Bench 1.20 BENCH EEPROM ECU Read/Write multiECUscan

USD 87.69-240.95/piece

New UPA USB Programmer V1.3 ECU Chip Tuning Programmer with Full Adaptors

Top 4 Reasons to Get the UPA USB Programmer

1. Language: English.

2. Hardware Version: V2014

3. Software Vesion: V1.3

Support Nec Function, but Has No NEC Adapter in the Package

UPA USB Programmer Description:

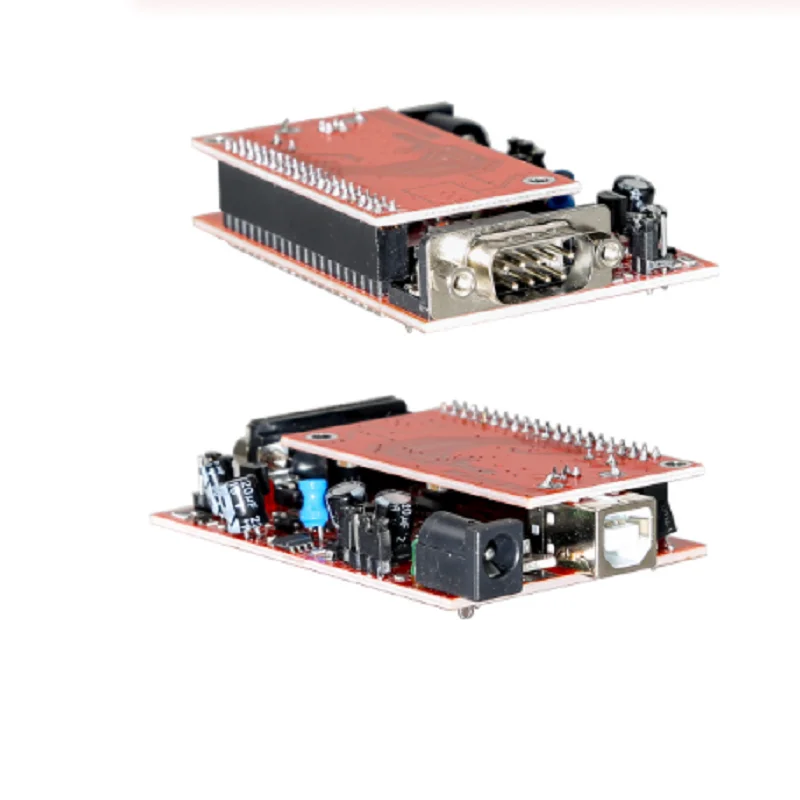

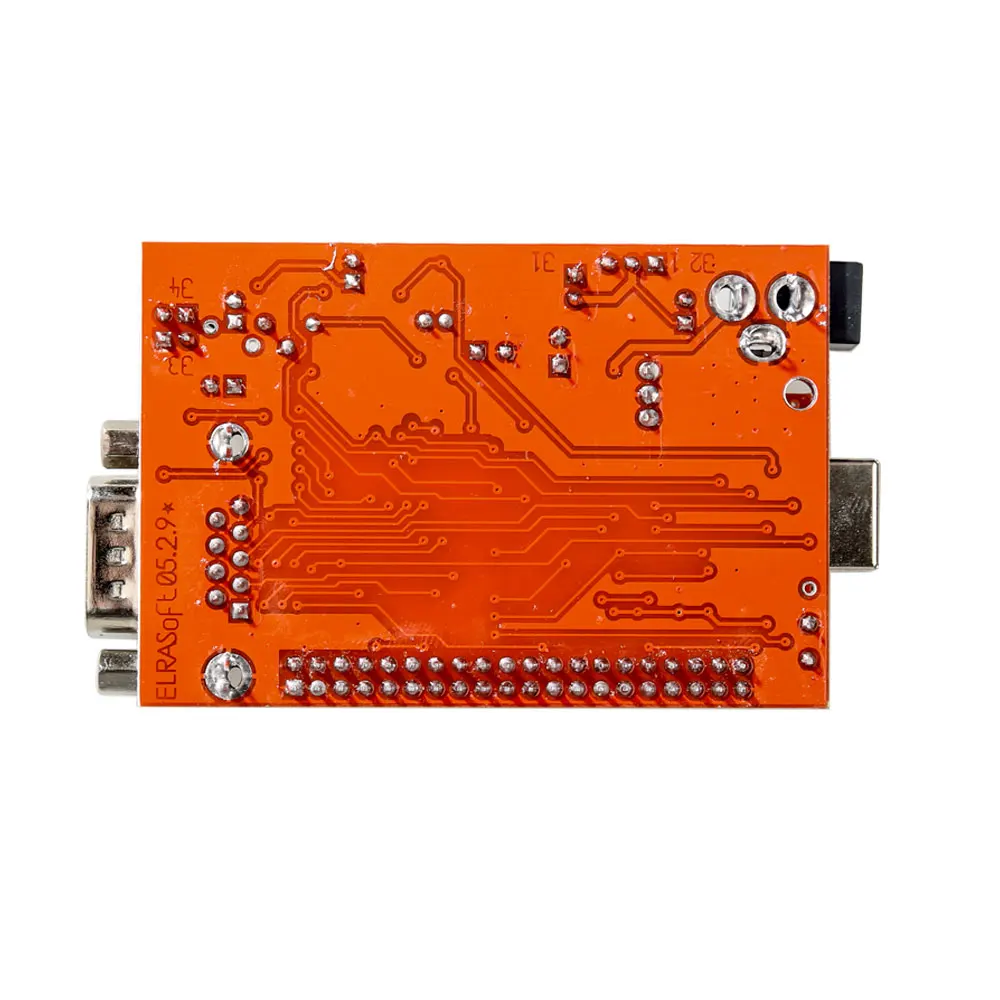

New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.

Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

UPA-USB Device Programmer V1.3 Update Info:

Added MC9S12HY64/HA32 support

Added Serial Flash memory support: A25L512/010/020/040/080/016/032, SST25VF512A/010A/020B/040B/080B/016B/032B, S25FL004A/008A/016A/032A/064A

Added 24C1024, 24C1025 support

Added Bulk erase data memory to PICs 16F913-7/946, 12F629/675

Added script function GetPage

Added script function AutoBaudRateDevice (hc08 devices only)

Added script function GetProgrammerFrameChildCtrl( AChildCtrlName: string): TControl

Added script function EnablePicMemoryAreas ( AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ): boolean;

Fixed bug with script functions ProgramDevice, ReadDevice ... when used with PICs

Fixed bug with SetHC08SecurityBytes (SecBytes: string) function

Fixed bug with 68hc11 reading if Oscillator is not set to Auto

Updated script example files

The software is digitally signed

USB driver upausb.sys is digitally signed

EEproms

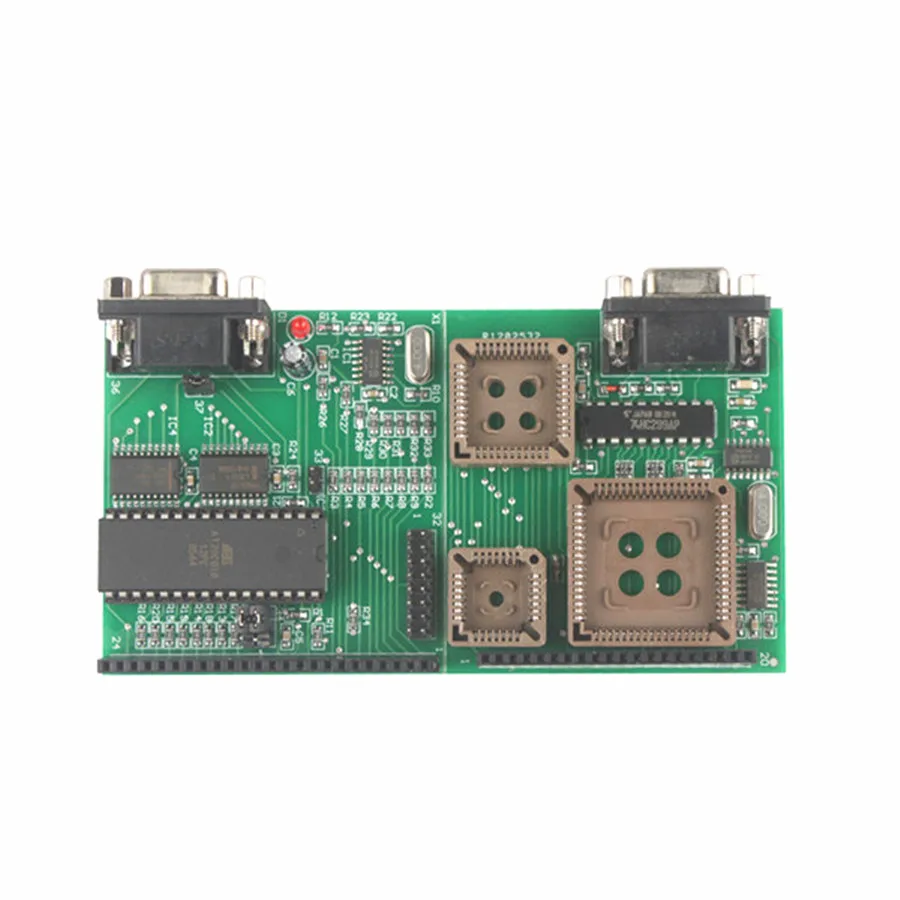

Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.

Motorola MCU's

Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main board's 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let's you make your job faster, precise and easier)

Once your workshop is equipped with our Adapter Set you will have a all new UPA Experience.

STMicroelectronics ST62*:

ST6240, ST6245, ST6249

NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9

Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*, MC68HC05X16, MC68HC05X32

Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A

Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8

Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313

Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102

*EEPROM Only

NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974

TMS...TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912

TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006

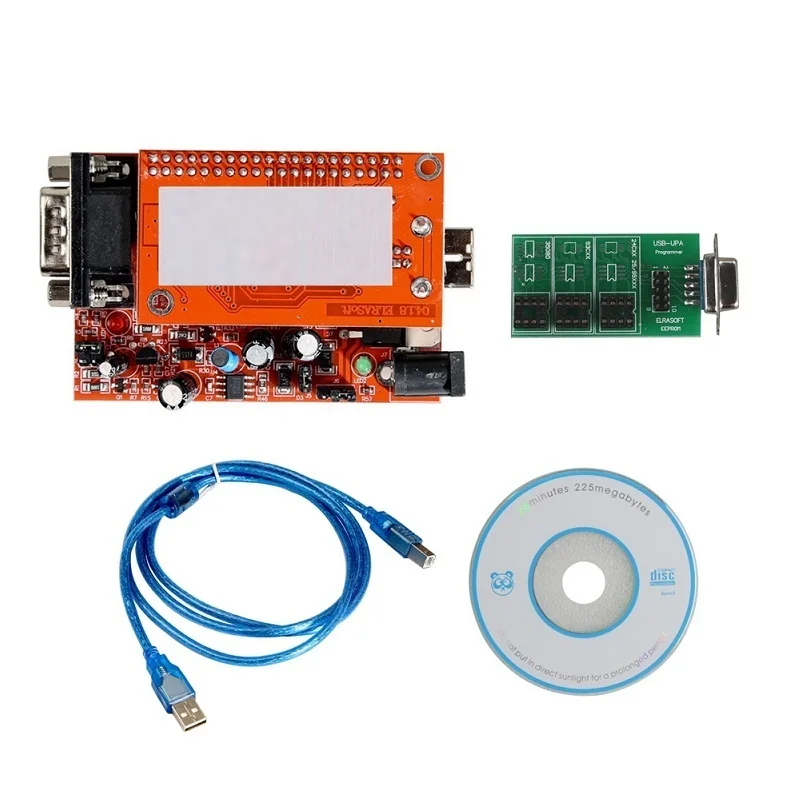

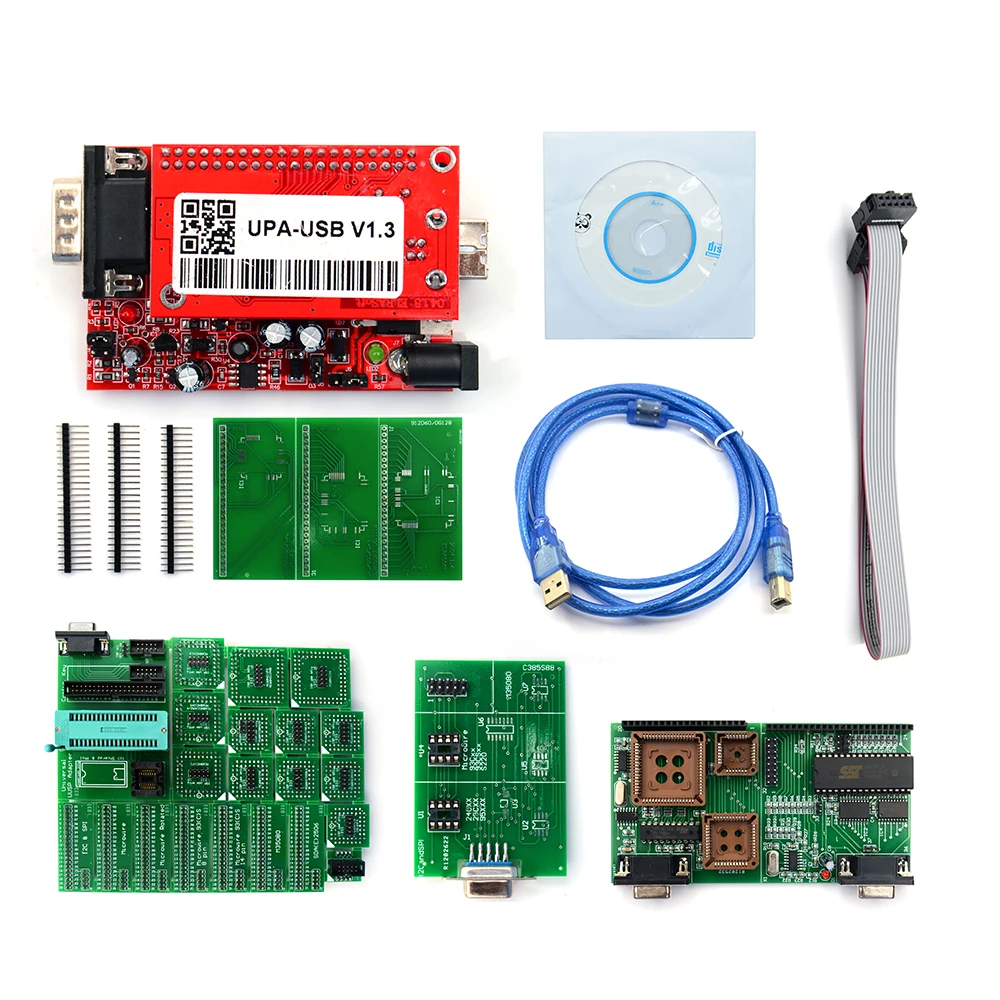

Package List:

1pc X Main unit

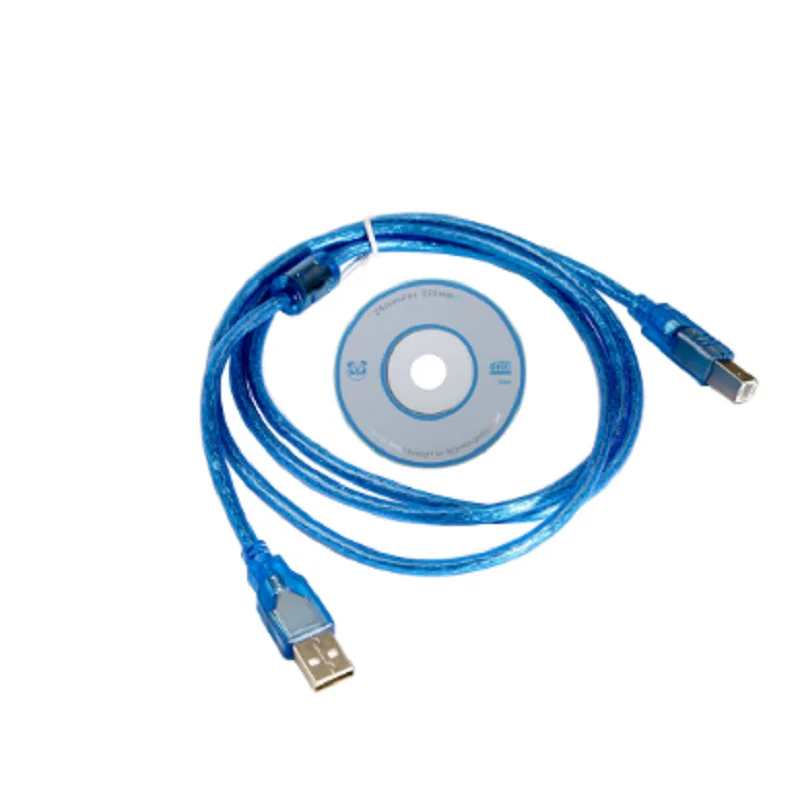

1pc X USB cable

1pc X CD

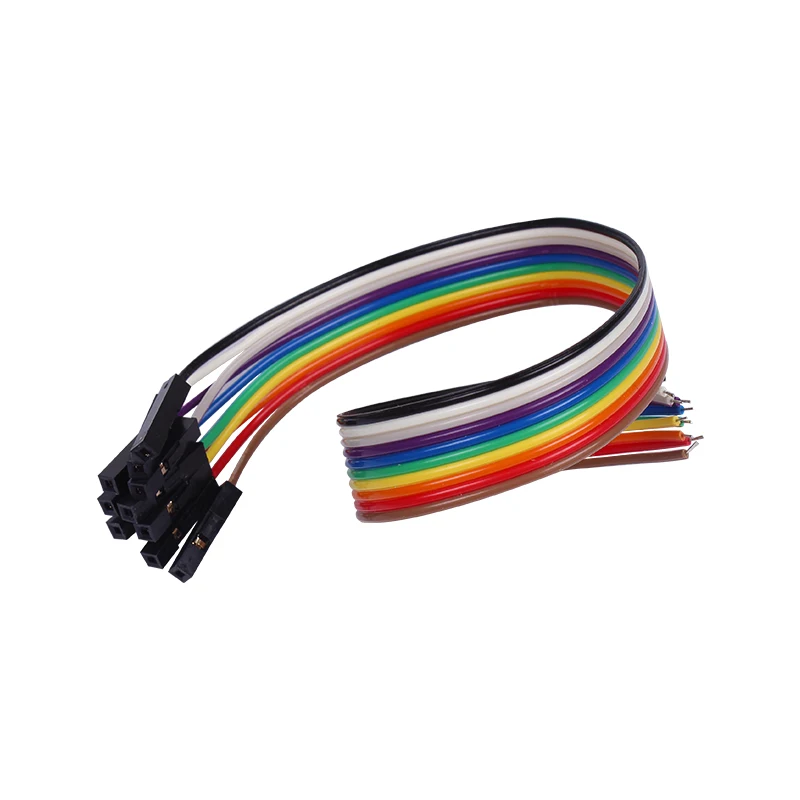

1pc X 5pin cable

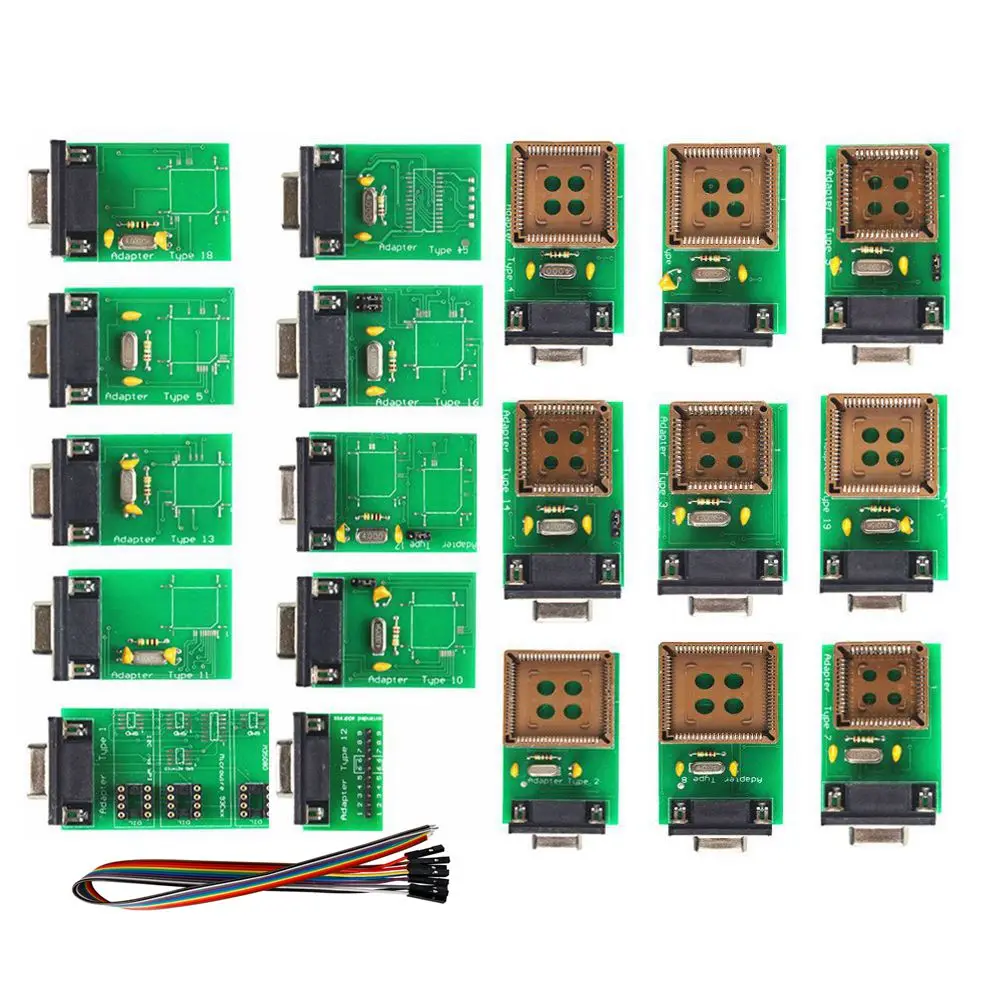

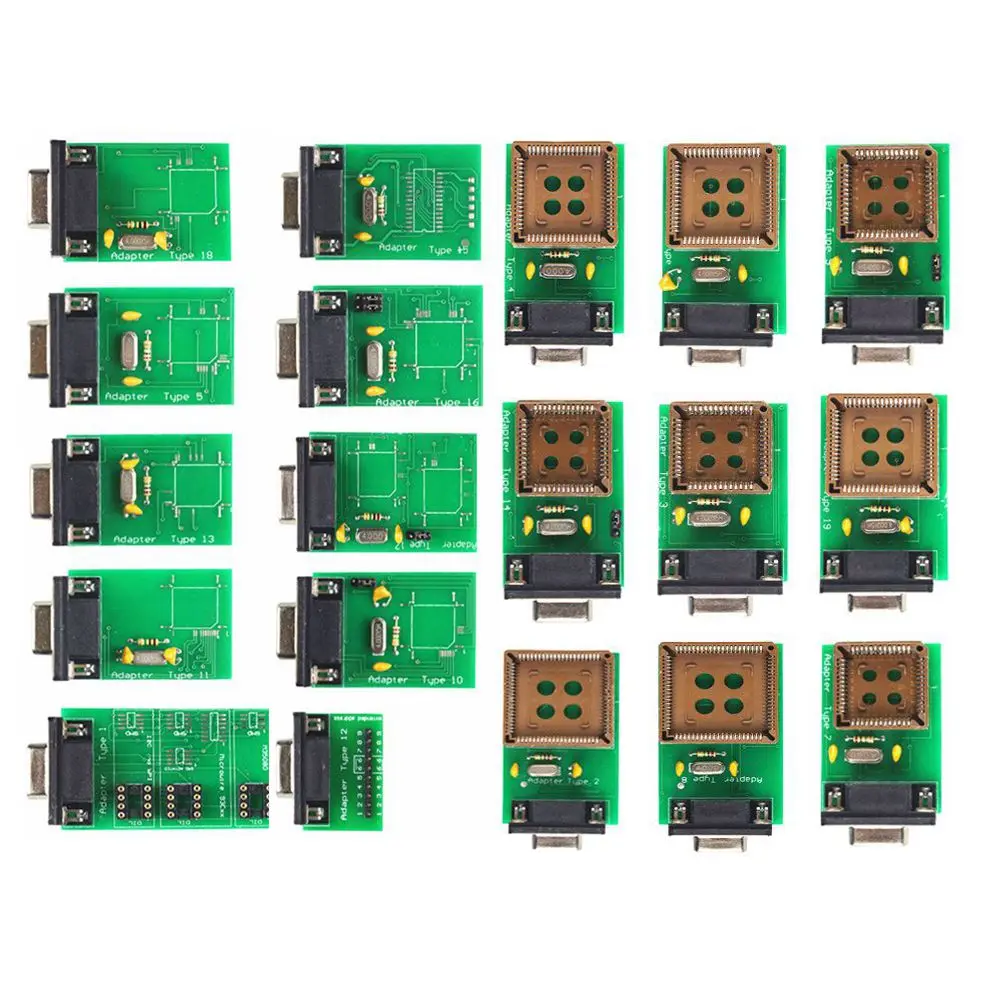

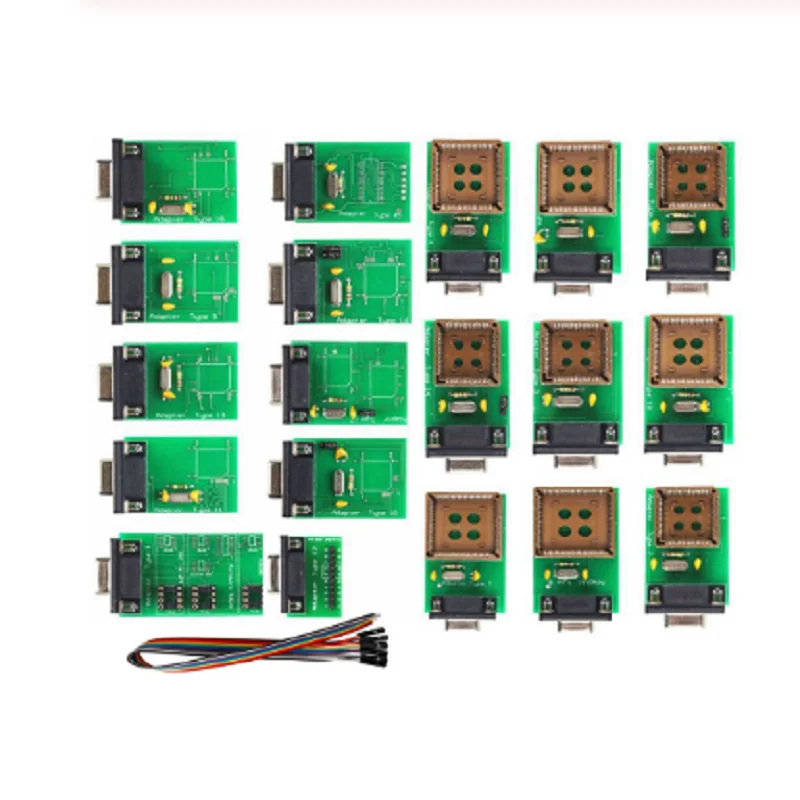

1pc X Adapter Type1 Per eprom I2C,SPI, Microware e M35080

1pc X Adapter Type2 Motorola MC68HC11P2+MC68HC11PH8-PLCC84

1pc X Adapter Type3 Motorola MC68HC08AS-PLCC52

1pc X Adapter Type4 Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68

1pc X Adapter Type5 Motorola MC68HC(9)08-QFP64

1pc X Adapter Type6 Motorola MC68HC11F1-PLCC68

1pc X Adapter Type7 Motorola MC68HC05H12-PLCC52

1pc X Adapter Type8 Motorola MC68HC11K-PLCC84

1pc X Adapter Type9 Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52

1pc X Adapter Type10 Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64

1pc X Adapter Type11 Motorola MC68HC11K-QFP80

1pc X Adapter Type12 Extended address

1pc X Adapter Type13 Motorola MC68HC11A8/E1/E9/E20-QFP64

1pc X Adapter Type14 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52

1pc X Adapter Type15 Motorola MC68HC(7)05E6-SOIC28

1pc X Adapter Type16 Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64

1pc X Adapter Type17 Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80

1pc X Adapter Type18 Motorola MC68HC11F1-QFP80

1pc X Adapter Type19 Motorola MC68HC11L6-PLCC68

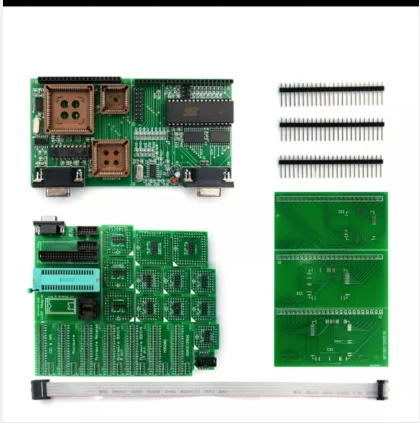

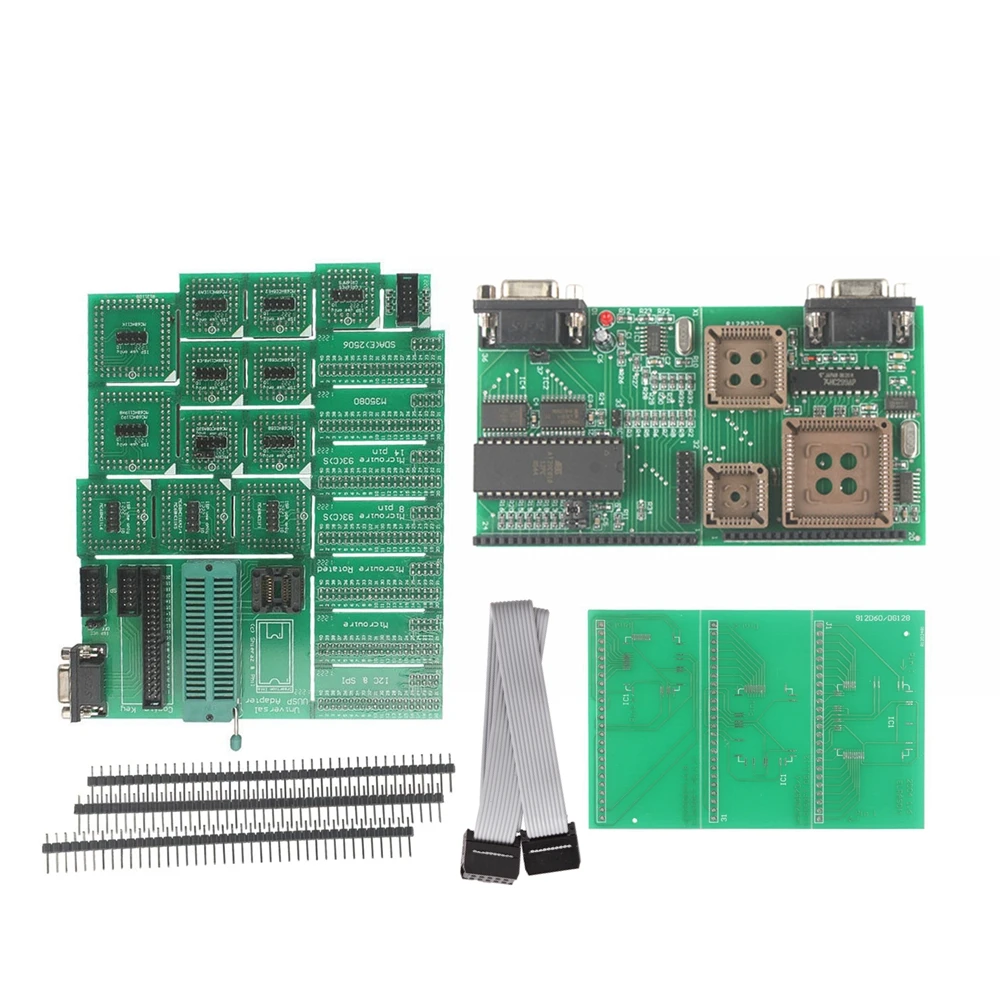

UPA Big Green Adapters:
