hot air station Spot Welder Set Portable Battery Spot Welding 12V Spot Welding Machine 5MOS For 18650 26650 32650 Battery Spot Welder hot stapler plastic welder Welding Equipment

Code: TD-3256803333480734 10 orders
Free Shipping
$ 39.57 $ 43.63
Quantity:
Other people want this. 25 people have this in their carts right now.
Origin:  CN(Origin)
Certification:  NONE
Usage:  Lithium battery
Is Smart Device:  No
Model Number:  5MOS Spot Welder
Weight:  120g
Feature 1:  Spot Welding Machine
Feature 2:  Spot Welder
Feature 3:  Soldering Pen Welding
Feature 4:  Nickel Sheet
Feature 5:  Battery Spot Welder

Spot Welder Set Portable Battery Spot Welding 12V Spot Welding Machine 5MOS For 18650 26650 32650 Battery Spot Welder

Description:

The circuit board of this spot welding machine can be used for welding 18650/26650/32650 lithium batteries. Advantages: portable, stable, reliable, and durable. Low cost,

I have a car starter battery or a high-power battery pack, which can be used after connecting it! It saves production costs!

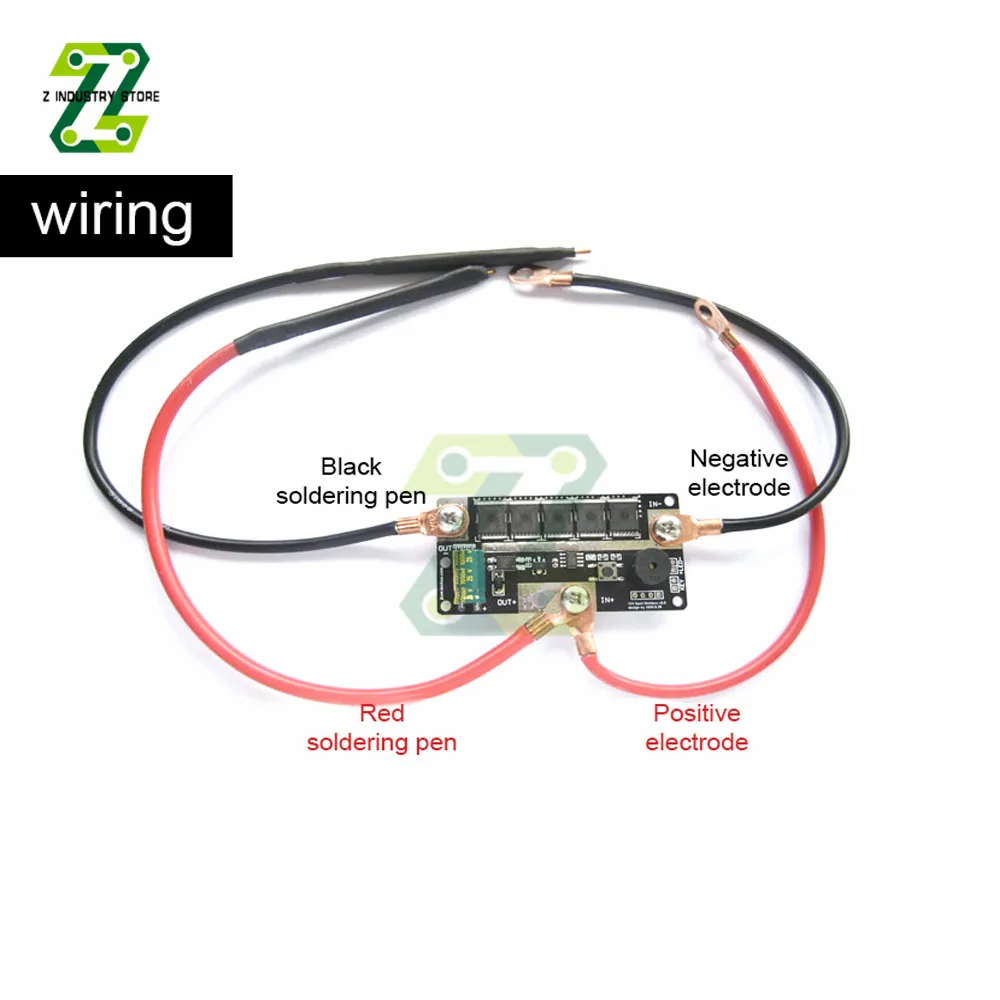

Function keys:

1, used to switch the machine, 2 used to switch gears!

When the power is turned on, the default is the first gear. Press and hold the button for 2 seconds to release it.

The gear is increased by one gear, and the buzzer sounds and the LED flashes corresponding to the number of gears.

For example: 3rd gear, the buzzer beeps three times, and the LED flashes three times

There are 5 gears in total. From gear 1 to gear 5, the spot welding strength is gradually strengthened, and gear 5 is the strongest!

After the 5th gear, press and hold the button again. It will power off, and when the power is off, press and hold the button to power on, and the gear will return to the first gear at the same time.

Users need to bring their own 12V battery for power supply, the welding current is about 100A~200A, and it is easy to weld the common 0.1mm~0.15mm nickel plated sheet.

Please make sure that your battery can have a current greater than 100A, otherwise you will not be able to weld!

Power supply voltage: 11.5V-14.8V

Working current: 100-200A (the best current: 150A is less than 100A discharge, it will not work)

A battery with a large discharge current will directly affect the welding effect. The following batteries are recommended:

36-45ah battery with good performance and small internal resistance (internal resistance is less than 10 milliohms, discharge current is greater than 100A), such as a new car starter battery!

4000mah35C-8000mah30C 3S model airplane lithium battery pack

30-35ah capacity 18650 battery pack

Power requirements:

Spot welding is welded by the principle of rapid local heating and cooling by high current, and requires sufficient current supply. Generally, 0.1-0.15 nickel-plated sheets are commonly used.

When welding, the current is about 90-150A, so the working power of the circuit board must be greater than or equal to 150A.

The following battery packs can be used as a working power source

12V car starter power, 3S high-rate battery pack for model airplane, three-string high-rate lithium battery pack, Hitachi 409003 string battery pack,

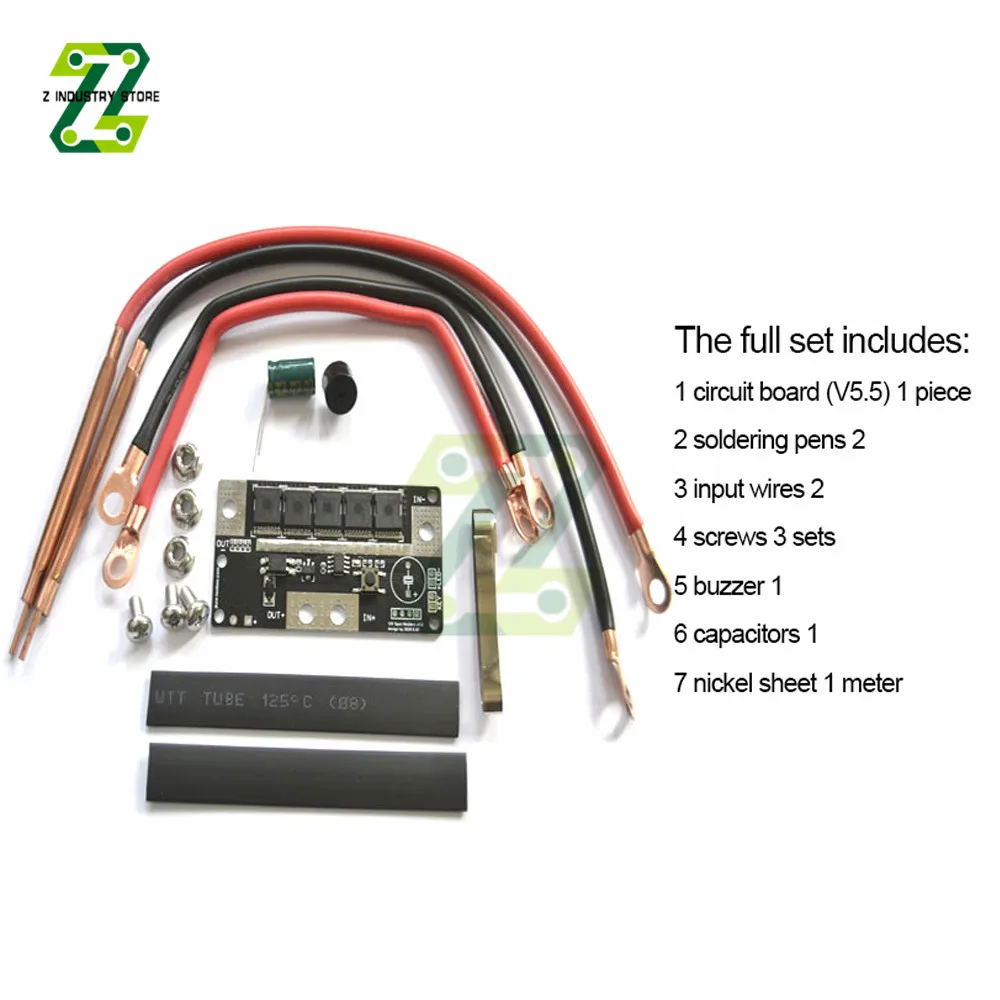

Package includes:

1 circuit board (V5) 1 piece

2 soldering pens 2

3 input wires 2

4 screws 3 sets

5 buzzer 1

6 capacitors 1

7 nickel sheet 1 meter
