Dental Casting Machine Centrifugal Casting Machine Laboratory Tools Dental Laboratory Equipment YZ

Technical specifications:

Name: Centrifugal Casting Machine
Applicable scenarios: Commercial
Model: JT-08
Dimensions: 370* 370*270mm
Gross weight: 6kg
Packing size: 400*230*230mm
Maximum rotating diameter: 360 mm
Maximum torque of mainspring: 150N
Maximum eccentric weight: 1.25 kg
Maximum mold diameter: 78mm

Product List:

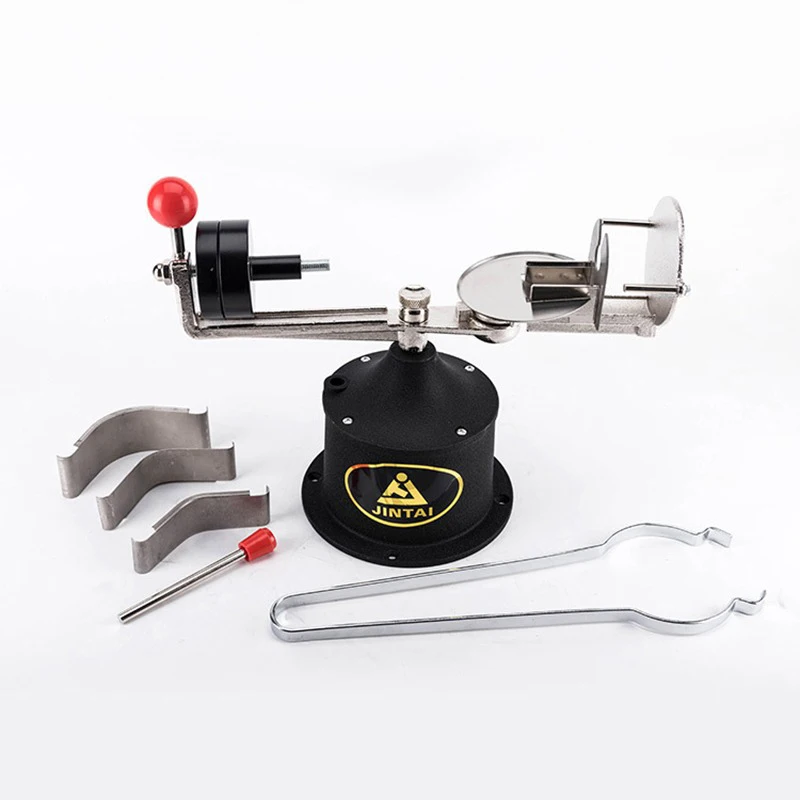

Machine*1, manual*1, long handle clamp*1, V-shaped frame*3 (large, medium, small)

Instructions:

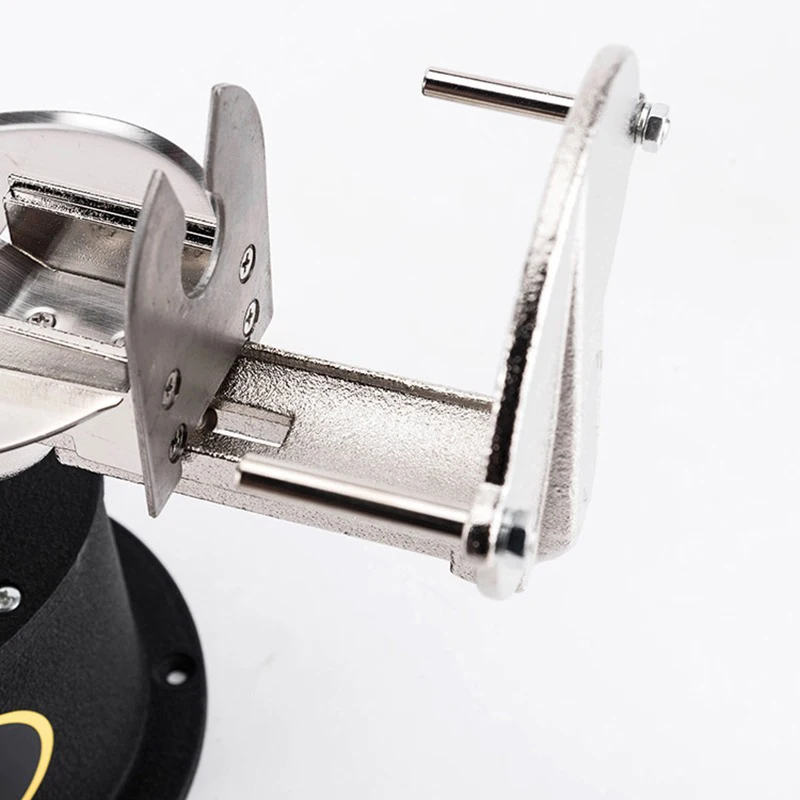

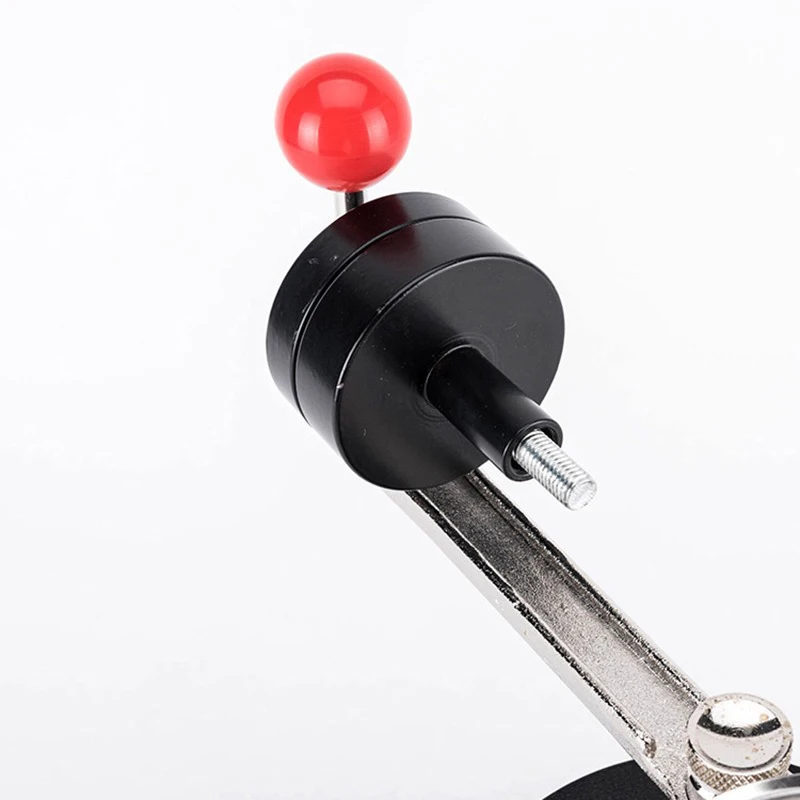

●The centrifuge uses the elastic force of the metal spring to drive the horizontal rod to rotate through the central axis to generate centrifugal force. One end of the horizontal rod has a crucible and a support for fixing the cast film, and the other end is equipped with a metal mound for balance. Loosen the central screw on the horizontal rod before casting, fix a cast film on the bracket, adjust the balance, tighten the screw, and remove the cast film. Then rotate the horizontal rod clockwise about 3-5 times to tighten the spring, and then lift the jack to temporarily fix the horizontal rod.
●When casting, put the cast alloy in the crucible first, and then fix the grilled cast film on the support. Pay attention to make the sprue of the cast film face the hole of the crucible, and use a flame device to heat the gold to make the alloy Fully melted. At this time, the left hand holds the metal mound of the horizontal rod, and gently moves the horizontal rod to drop the jack and at the same time evacuate the flame. Due to the spring force of the horizontal rod, it rotates rapidly in the counterclockwise direction to remove the molten cast gold in the crucible. Under the action of centrifugal force, it is thrown into the casting film cavity to complete the casting.

Precautions:

●Pay attention that the table is firmly fixed and the crucible is placed correctly.
●The workbench must have better protection devices to prevent molten metal from splashing out during operation and harming the human body.
●When operating, pay attention to the inertia of the tightening of the spring to prevent hitting your hands.
●Keep the equipment clean and dry. After the casting is completed, the equipment must be cleaned and residues removed.

installation:

●The installed countertop must be level and should be wooden countertop.
●The centrifuge base has four retention holes, which should be fixed on the wooden table with screws. Pay attention to fixing the corners, otherwise the base will be damaged due to uneven force.
●In order to ensure the safety of operators, a metal protective cover must be placed on the periphery of the centrifuge during work, and the height of the crucible should be 20-30CM higher than that of the centrifuge. Professional crucible tongs must be used.
●Storage should be in a well-ventilated environment, not damp, not corrosive
