Name: Hollow Shaft CNC 4th Axis Rotary Axis Base+K12 100mm 4-Jaw Chuck harbor freight woodworking bench
Brand: MMO Dropship
SKU: 2251832521575396
Price: 397.04 VND
Availability: InStock
Rating: 4.9 (72 reviews)

Code: TD-2251832521575396 1 order

Free Shipping

$ 397.04

Quantity:

Other people want this. 28 people have this in their carts right now.

Description
Shipping & Returns

CNC or Not:	CNC
Condition:	New
Model Number:	CNC 4th Axis Hollow Shaft Rotary Axis Base with 100mm 4-Jaw Chuck
Applied for:	cnc3040 6040 6090 Router/Engraver/Milling Machine
Type:	Hollow Shaft Rotary Axis Base with 100mm Chuck
Center Height:	65mm
Hole Diameter:	21mm
Chuck:	K12 100mm 4-Jaw Chuck

CNC Rotary Axis 4th Axis ER32 Collet Chuck Reduction Ratio 6:1 Dividing Head for 3040/4060/6090 Mini CNC Router

USD 118.99/piece

Hollow Rotary Axis 4th Axis K11 100mm 3-Jaw Chuck Headstock+Live Center Tailstock Kits for Desktop Mini CNC3040/4060/6090 Router

USD 219.95/piece

Tailstock Live Center with Locked Span for cnc router engraver milling machine Rotary Axis Extend Axis

USD 51.99/piece

CNC 4th Axis 100mm 4-Jaw Chuck NEMA23 Motor Rotary Axis Dividing Head+Live Center Tailstock Kits for Woodworking CNC3040 Router

USD 237.95/piece

Hollow Shaft Rotary Axis 100mm 4-Jaw Chuck 4th Axis Reduction Ratio 4:1+Live Center Tailstock Kits for CNC Woodworking Machine

USD 257.95/piece

CNC 4th Axis Hollow Shaft Rotary Axis Base

USD 117.59/piece

Hollow Shaft 4th Axis100mm Dia.4-Jaw Chuck Reduction Ratio 3:1+Live Center Tailstock Kits for CNC Woodworking/Milling Machine

USD 258.95/piece

Hollow Shaft 100mm 4-Jaw Chuck NEMA23 Motor Rotary Axis CNC 4th Axis Headstock for Woodworking CNC3040 Router

USD 186.99/piece

The length pf extend shaft of sterpper motor should be not more than 34mm.

>>>>

Requires for Stepper Motor

If you use NEMA23 stepper motor, the reduction ratio of the pulleys are 6:1.

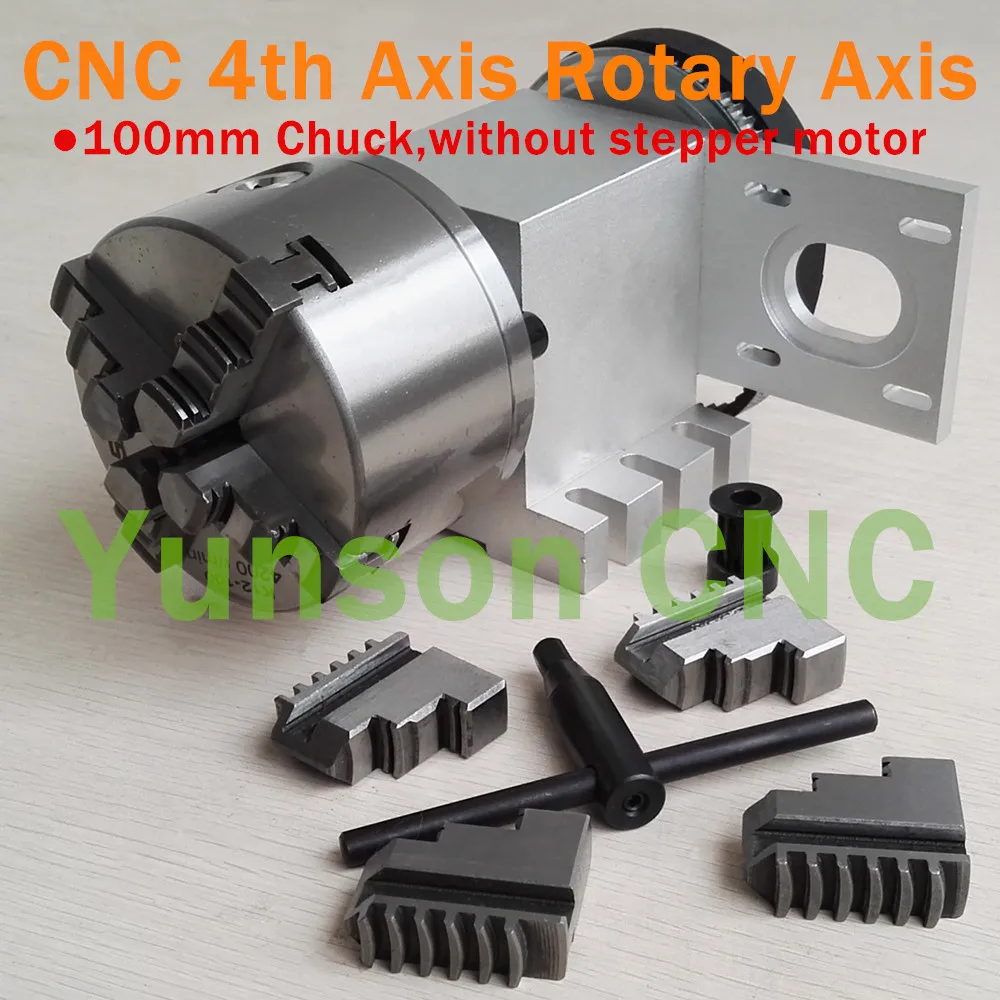

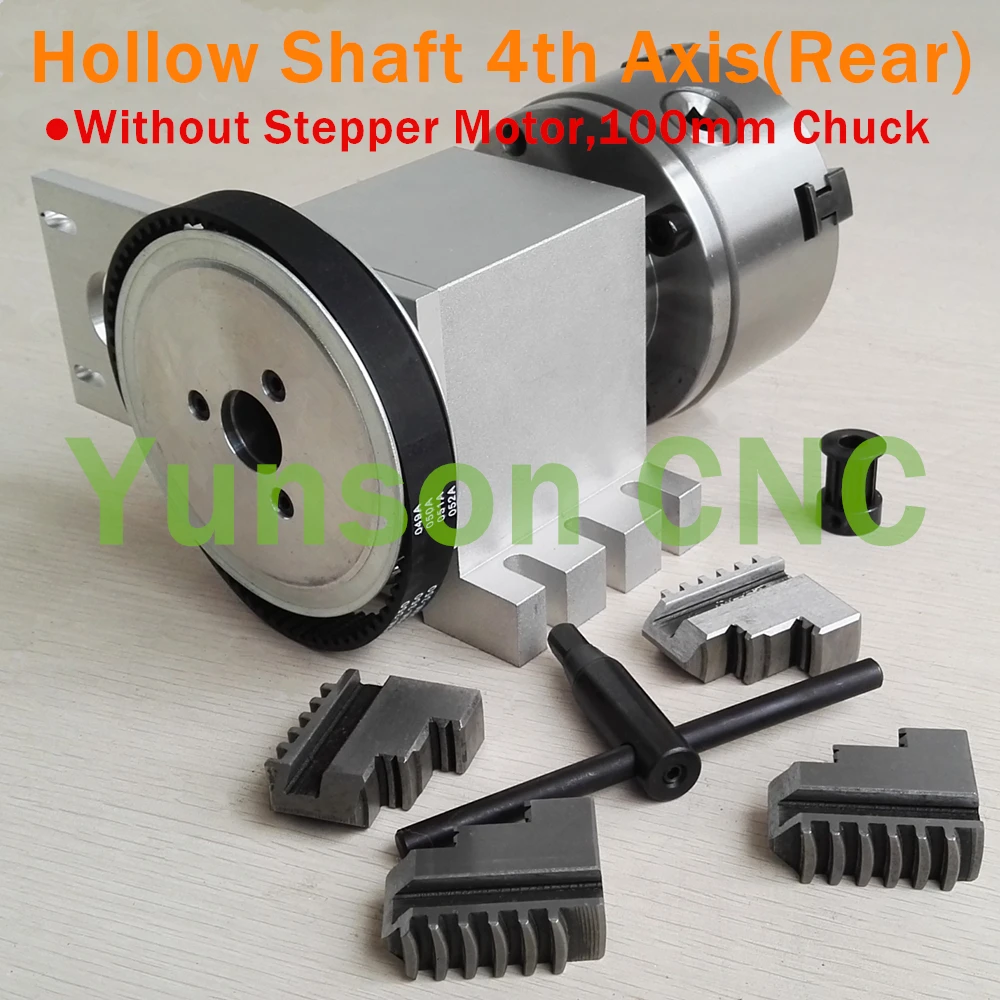

Feature

Chuck: K12 100mm diameter 4-jaw centering chuck

Center Height: 65mm

Output shaft diameter: 30mm

Hollow diameter:21mm

Angle: 0.3 degrees / step

Reduction ratio: 6:1 (belt deceleration mode)

How to setting the pluse equivalent value in Mach3?

For 1 degree,the required value should be calculated in this way:

(the step number of stepper motor*the micro step number of motor driver*Reduction Ratio)/360 degree.

I,e:A NEMA23 stepper motor is 1.8degree,motor driver is 16 micro steps and the reduction ration is 6:1,so the required value should be:(200*16*6)/360=19200/360=53.3333.

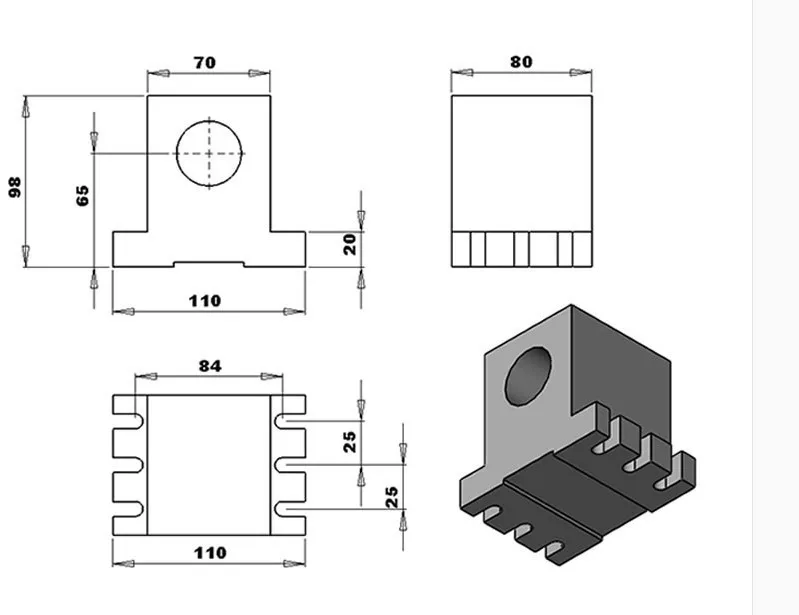

The install diagram

bottom base install
