Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle FOR 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool small hot glue gun Power Tools

Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle FOR 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool small hot glue gun Power Tools

Name: Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle FOR 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool small hot glue gun
Brand: MMO Dropship
SKU: 2251832699365353
Price: 40.37 VND
Availability: InStock
Rating: 4.9 (98 reviews)

Code: TD-2251832699365353 147 orders

Free Shipping

$ 40.37 $ 41.97

Color:

Note

Quantity:

Other people want this. 7 people have this in their carts right now.

Description
Shipping & Returns

function 1:	hot gun soldering
function 2:	heat gun 858
function 3:	hot air soldering station
function 4:	hot gun soldering 8858
function 5:	heat gun nozzle
function 6:	Soldering Station 8586
function 7:	hot air blower heat gun
function 8:	SMT SMD Repair Solder Station
Rated Voltage:	220V
Brand Name:	Yarboly
Certification:	NONE
Usage:	Home DIY
Feature:	Temperature Adjustable
is_customized:	Yes
Air Volume:	120L/min(max)
Rated Output Power:	700W
Weight:	0.3kg
Origin:	CN(Origin)
No-Load Speed:	1200rpm
Model Number:	858

Heat Gun Hot Air Hair Dryer Soldering Hairdryer Gun Handle FOR 858 858D 8858 8586 878 BGA Rework Solder Station Desoldering Tool

Yellow: Ground wire

Green: magnetic control line

Brown: fan +

Blue: fan -

Orange: sensor +

White: sensor -

Black: heater (no positive and negative)

Red: heater (no positive and negative)

The wiring diagram

858-001 858-003 858-004 858-005 858-002

Features:

100% brand new and high quality

Built-in position sensor, suitable for Hakko850 hot air station or other derived series of products made in China, which has similar appearance and structure with it and no worry about its brand, such as 858 858D 868 878 898.

Handy and portable, it is a space saver on the test bench and portable enough to carry in your bag.

Suitable for products with supply voltage of 200-240V

Specifications:

Thermal fuse resistance: Nickel alloy thermal fuse resistance ≈60Ohm

Sensor type: K type thermocouple (Characteristic resistance ≈3Ohm)

Built-in fan voltage: DC24V OR 12V , the voltage is variational during air regulation.

Plug diameter: Approx. 0.49inch/12.5mm

Plug pin quantity: 8 female pins.

If the plug of your hot air station is different from it but shares the parameters, you can connect the cable again according to the detailed instructions by yourself.

Note:

Package included:

1 x Hot Air Gun Handle

5 X

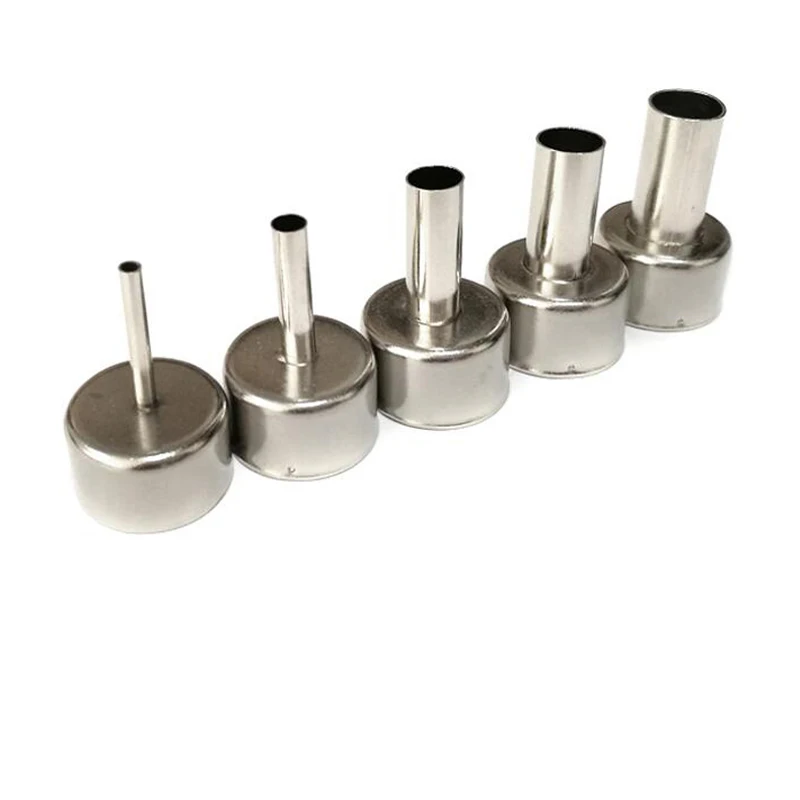

Hot Air Gun Nozzle

1 X

Hot Air Gun Stand
