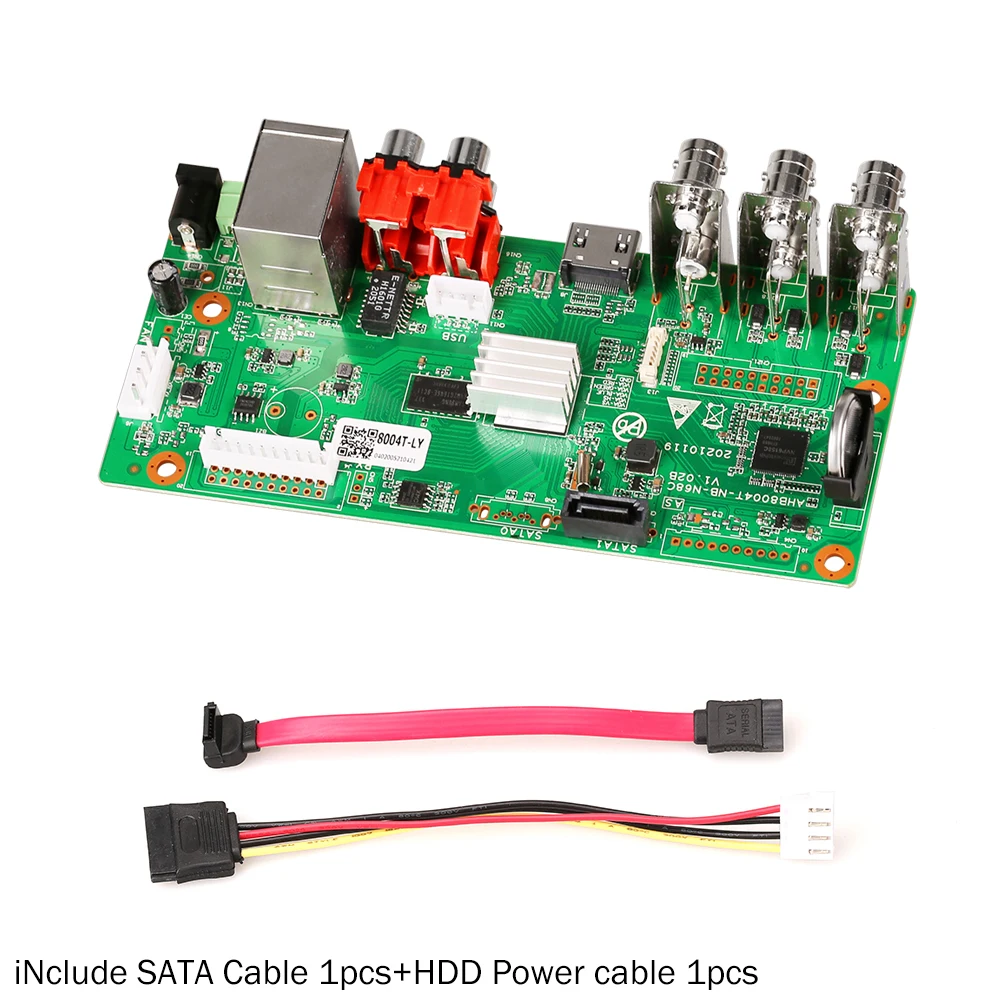

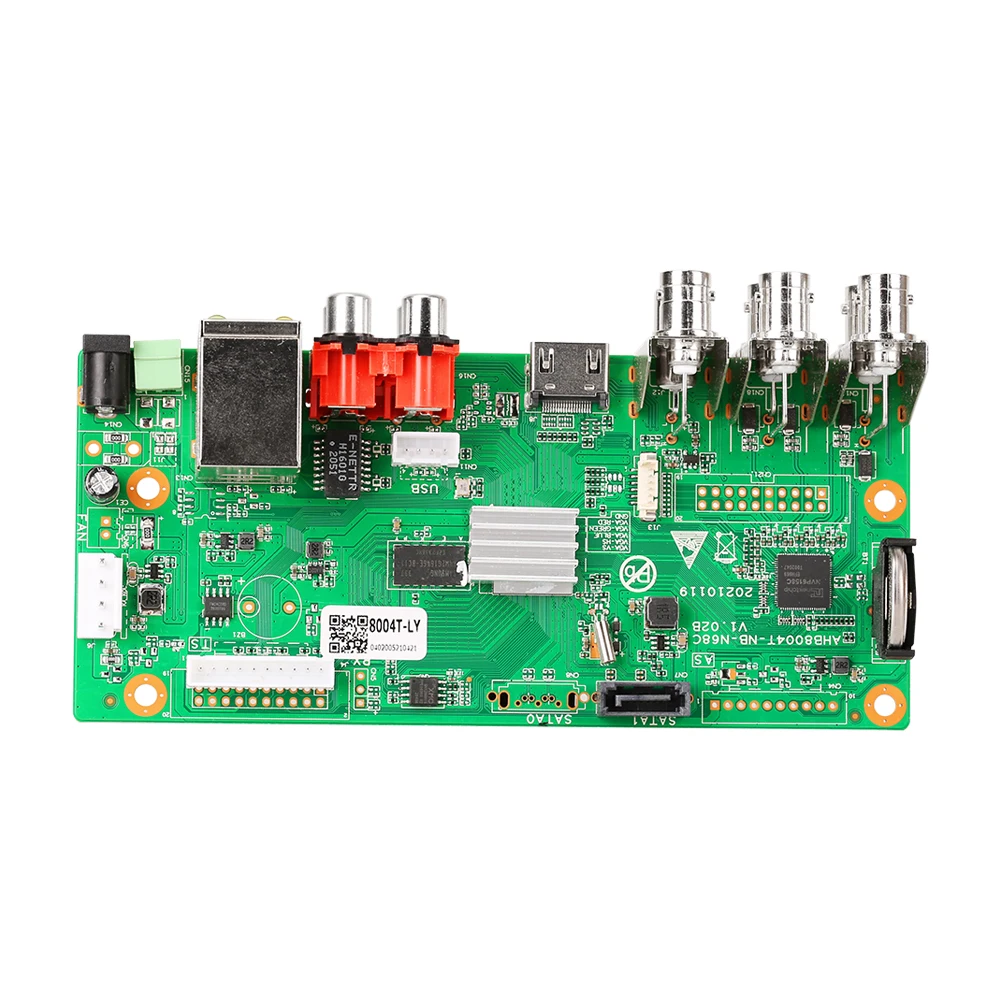

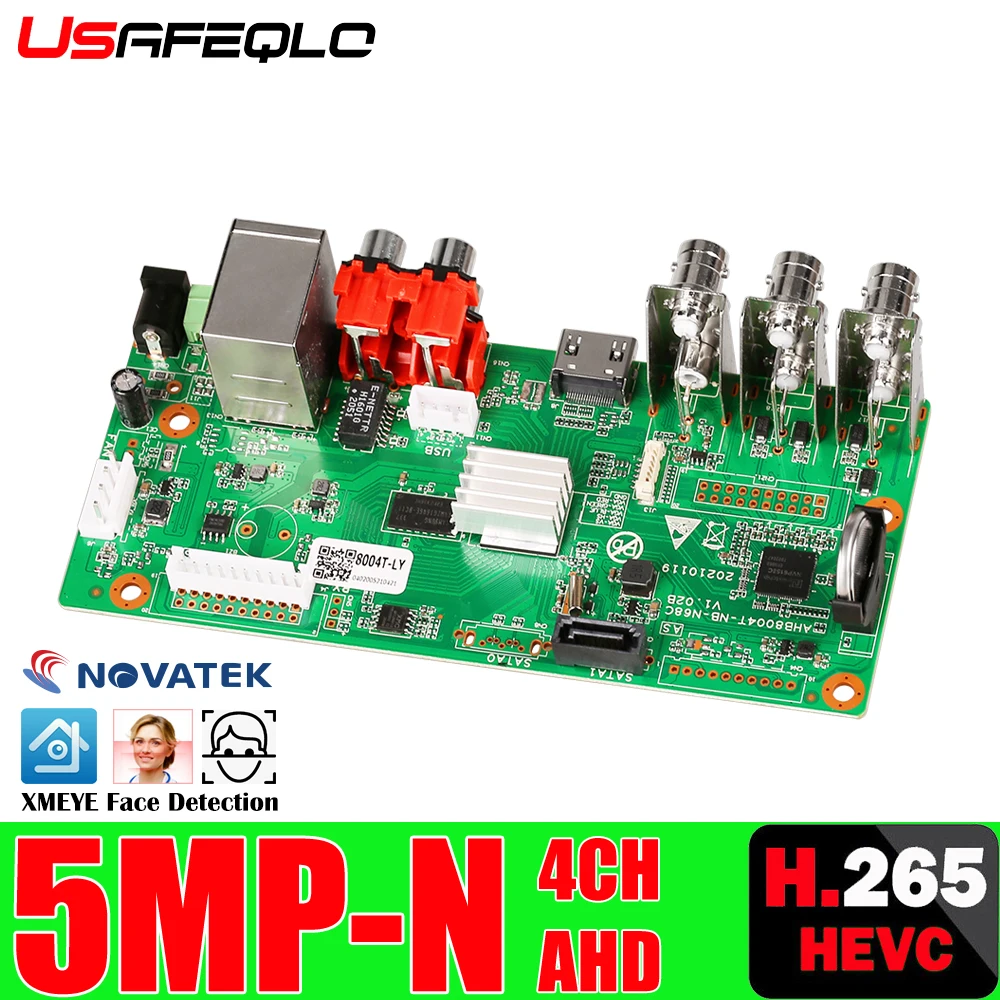

H.265 Main PCB AHD 5MP-N 4 Channel AHD DVR Recorder Video Recorder 4 Channel AHD DVR 1080P AHDH For 1080P/5MP AHD Camera indoor wireless security camera Surveillance Items

Brand Name:	USAFEQLO
Certification:	CE
Origin:	CN(Origin)
Smart home platform:	Xmeye
Two-way Audio:	No
Compression Format:	H.265
Compression Format:	H.264
Supported Mobile Systems:	Windows Mobile
Supported Mobile Systems:	iPhone OS
Supported Mobile Systems:	Android
Video Resolution:	5MP
HDD Capacity:	None
Wireless Security:	WEP
Audio Compression Format:	G711A
Hard drive Interface Type:	SATA
Model Number:	AHB8004T-Y
Communication Interface:	NONE
Alarm Action:	Email Photo
Alarm Action:	Local Alarm
Video Adjustment:	Auto White Balance
Audio Input:	1 RCA
Supported Operating Systems:	Microsoft Windows 2000
Supported Operating Systems:	Microsoft Windows XP
Supported Operating Systems:	Mac OS
Supported Operating Systems:	Microsoft Windows 98
Supported Operating Systems:	Microsoft Windows 7
Video Output:	1VGA + 1HDMI-compatible
e-Cloud(P2P):	Yes
Technology:	HDTVI
Technology:	ANALOG
Technology:	HDCVI
Technology:	AHD
IP Mode:	Static IP address
Video Standard:	PAL
Network Protocol:	SMTP
Hard Drive Size:	3.5''
Network Interface:	RJ45 10/100M
Backup Type:	Hard Drive
Audio Output:	1CH RCA
DVR Power Supply:	DC12V
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Encode capacity:	5MP-N
Video output:	1ch VGA, 1ch HDMI-Compatible
HDD Connector:	1 SATA ports(each max to 8TB)
USB:	2* USB 2.0
Power supply:	12V2A(not include)
CMS:	Support
Support Camera:	AHD/Analog camera
Email photo:	Send message to email, not photo
HVR:	AHD/CVI/TVI/CVBS/IP/XVI

Note:

This item is not support all the monitors, your monitor must compatible the item.

If dvr can open but your monitor can not show image, please know first to change VGA or HDMI-Compatible Cable,then change one

new monitor to check again. Old monitor and some of the TV can not work will be normal.

We will not accept any dispute for the monitor.

If the item can not work, you have obligation to send it back to our warehouse or china to us to test.

If we tested it real have problem, we will pay all the cost(After confirm then to pay).Or send you one new parts to change

at the first time.

About the HDD:

The security DVR must work with the security HDD, if you use the PC HDD, most will be not work.

Your HDD must be brand new, we will not accept any dispute based on the old HDD.

Seagate,TOSHIBA,WD all have security HDD, normal we recommend the WD purple HDD.

If get other compatibility issues, we will not note again, if you have use other sellers items contact with our item, please ask us and confirm first, then order.

About the item case and inside.

The electronic products is in update everyday, some times will have place changed,This will not influences to use.

We will not notify you separately.

New Function Support Face detection

This function need your camera must be XM face detection AHD camera

The below items can match with this DVR face detection function

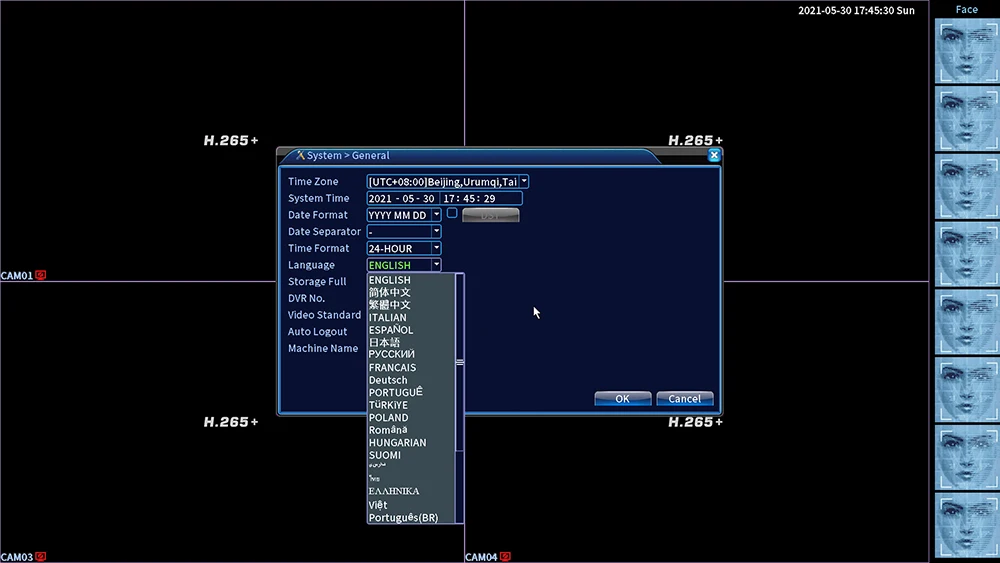

Many languages support

Please make sure include your country language, we will not update firmware to other language

Support PAL and NTSC Mode

High Resulution Display

Your monitor must have the same display mode as below, or it will no image

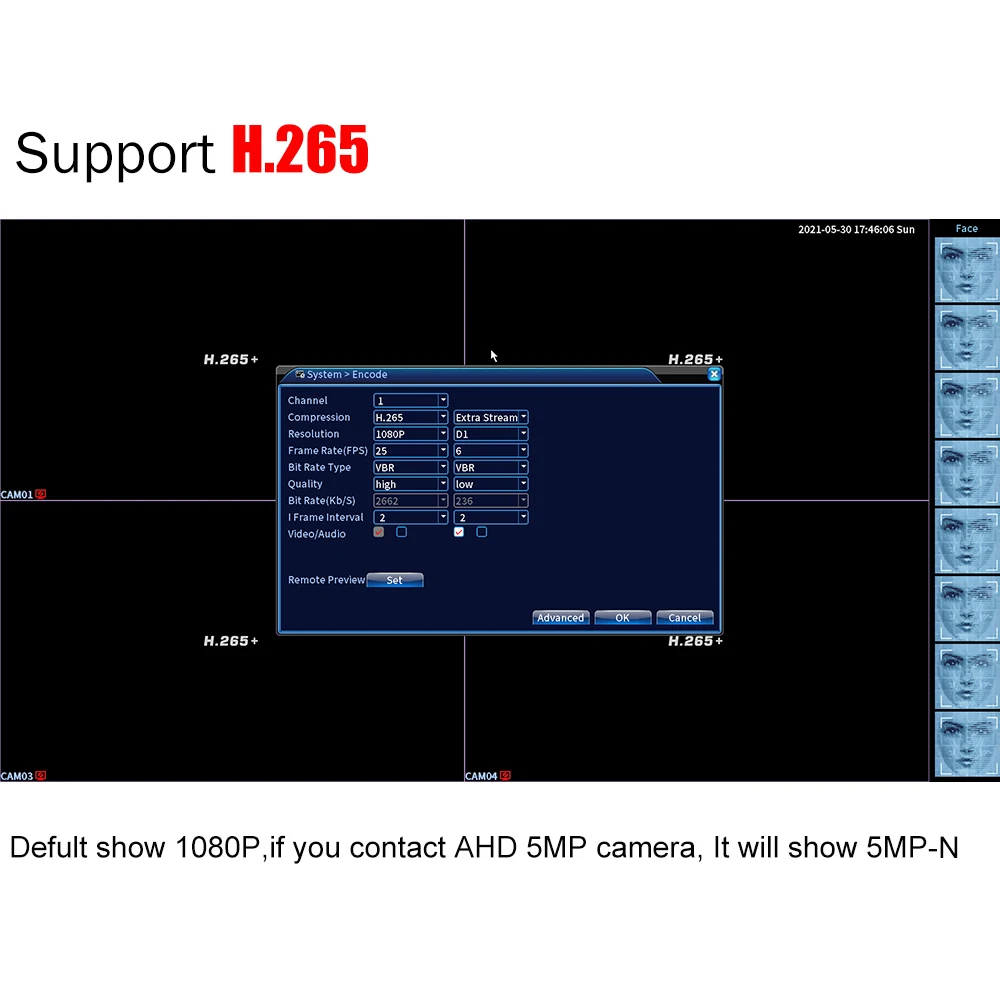

Newest H.265 AHD Mode

This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 20% RAM than normal ahd dvr

The Encode menu will show only 1080P for defult, you must contact your AHD camera then will have the right information of this camera, for example,if you contact AHD 4mp camera, it will show 4MP, not 1080P.

Version Information

When you want the firmware,You can send this photo to us.Normally one update firmware need 3-4 mouthes update one time, so please don't ask us again in this time. When you send the photo, please add your email address, we will send firmware to your address.

Different Models optional

1: 4CH 5MP-N XVI/AHD/CVI/TVI

2: 4CH 5MP-N XVI/AHD/CVI/TVI+2CH IP 1080P

3: 16CH IP 1080P

4: 8CH IP 5MP

Item description:

Feature:

Oslash Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;

Oslash Support VGA, HDMI-Compatible full HD output simultaneously;

Oslash Support ONVIF; access third party;

Oslash Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Oslash Support web, CMS, center platform management software MYEYE, provide SDK development;

Oslash Support various mobile monitoring (iPhone, Android);

Oslash Remote Access, With DNS (ARSP),easy to monitor remotely

Oslash Support UTC, control signal& video stream transmit through one single coaxial

Oslash Support XVI/AHD/TVI/CVI/CVBS/IP six signals;

Oslash Support intelligent analysis: functions like Perimeter alert,item retention,Video diagnosis,intelligent fast play and intelligent retrieval

Model

8004T-Y

This PCB Have 485 Connector, but have no 485 Function, if you want RS485 function, should make OEM order to us, 100 pcs or more can add this function.

System

Main

NOVA

Video

Codec

H.265+

Monitor

VGA;HDMI-Compatible

Preview

ability

4*5M-N@20fps（6 in 1）/4*4M-N@30fps（6 in 1）/4*1080P（6 in 1）default:5M-N

Encode ability

4*5M-N@12fps(5 in 1);4*4M-N@15fps(5 in 1)/4*1080P@15fps(5 in 1)

Decode ability

2*5M-N@20fps（6in1）/2*4M-N@30fps（6in1）/4*1080P（6in1）default:5M-N

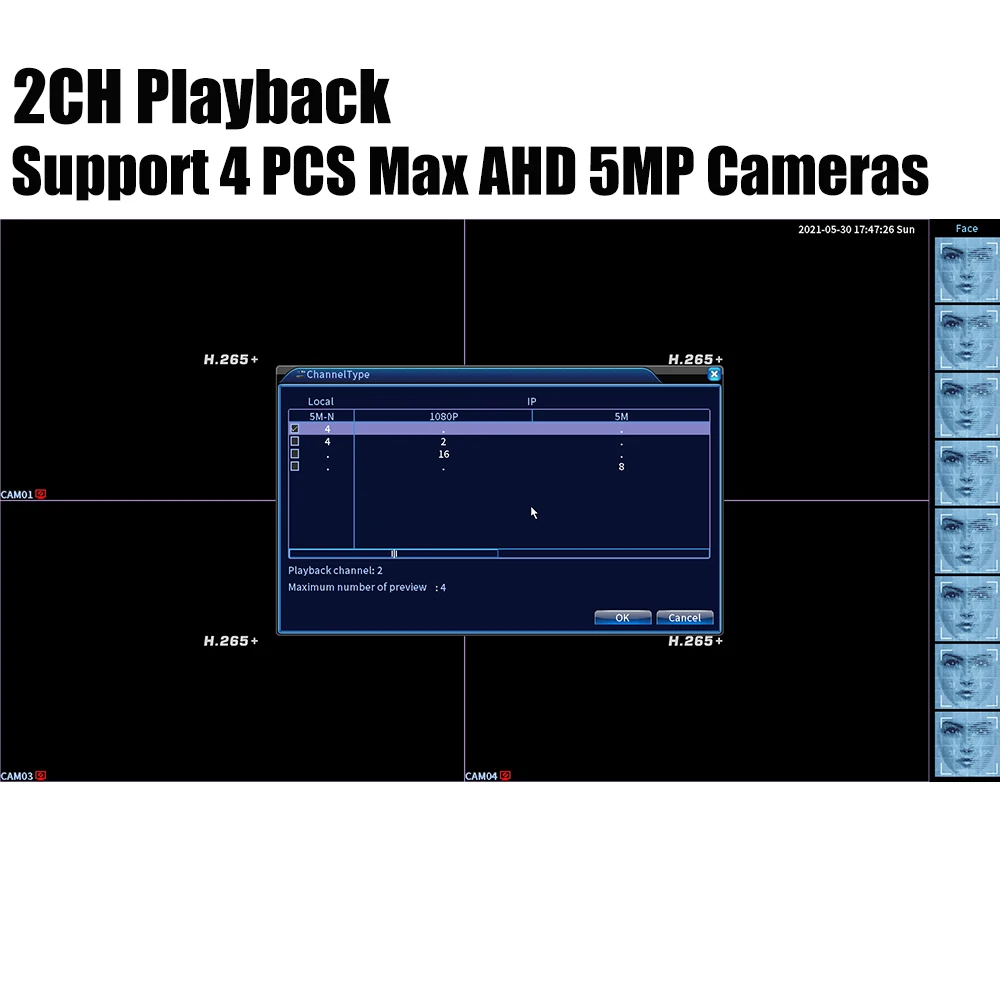

Multi-mode input

Analog：4*5M-N;

HVR: 4*5M-N+2CH 1080P;

Network：16*1080P, 8*5M

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)

Audio

Audio

G.711A

Intercom

support

Record

Record mode

manual>alarm>motion detection>timing

Search mode

Search by time, calendar, event, channel

Video

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External Interface

Video input

4ch BNC

Video

1ch VGA, 1ch HDMI-compatible

Audio I/O

1/1

Alarm I/O

0/0

Network

RJ45 10M/100M self-adaption

Extension interface

2* USB 2.0 ports

HDD

1*SATA ports (Max 8TB/per)

General

Power

12V/4A(Not include)

Working environment

Temperature:0℃mdash+55℃,Humidity:10%mdash90%,Atm:86kpamdash

106kpa

Dimension

135mm*82mm

NOTE

If you find anywhere not the same as description, please contact us before you buy it.

We will not accept any dispute just because some where not write clear.

Neutral menu
