GPS Vehicle Trakcer GPS/TK103A Real-time tracking device with ACC working/Geo-fence/Fuel alarm Cut off the Oil and Power tracking device GPS Trackers

Code: TD-2255799922943647
Free Shipping
$ 73.79 $ 88.14
Color:
GPS Vehicle Trakcer GPS/TK103A  Real-time tracking device with ACC working/Geo-fence/Fuel alarm Cut off the Oil and Power tracking device
GPS Vehicle Trakcer GPS/TK103A  Real-time tracking device with ACC working/Geo-fence/Fuel alarm Cut off the Oil and Power tracking device
Note

Quantity:
Other people want this. 17 people have this in their carts right now.
Brand Name:  Haoday
Model Name:  GPS103-A
DIM:  83*54*26mm
Weight:  120g
Network:  GSM/GPRS
Band:  850/900/1800/1900Mhz
GPS Accuracy:  5m
GPS Start time:  Cold status 45s Warm status 35s Hot status 1s
Voltage:  12 V -24V
Backup battery:  Chargeable 3.7V 350mAh Polymer Li-Battery
Humidity:  5%--95% non-condensing

GPS Vehicle Trakcer GPS/TK103A  Real-time tracking device with ACC working/Geo-fence/Fuel alarm Cut off the Oil and Power

3G 4G GPS TRACKER IN OUR STORE

Used widely for vehicle and other moving objects tracking.
Support both GPS & LBS (Location based service).
Support SMS/GPRS/Internet Network data transmission
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of security, positioning, monitoring
surveillance,emergency alarms and tracking in its entirety.
Wiring Diagram:

Find the 10 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original

car circuit showing below:





Specifications

3

1.Single Locating

2.Auto track continuously

   a. Track with limited times upon time interval

   b. Track with unlimited times upon time interval

   c. Smart track upon time and distance interval

3.Turning points update automatically

4.GPS drift suppression

5.Exact street address

6.Location based service (LBS)/Cell-ID Locating

7.Monitor

8.Data logging

9.Data Load

10.Forward the third parties' message

11.SIM card Balance Inquiry

12.ACC working alarm

13.Cut off the Oil and Power System



14.Arm:



Set up arm by SMS

15.



Disarm by SMS

16.Silent Mode:



Set up silent mode by SMS

17.Low Battery alarm

18.Power Off alarm

19.GPS Blind Spot alert

20.SOS

21.Geo-fence

22.Multi-area management

23.Movement  alarm

24.Over speed alarm

25.Fuel alarm

26.Alarms under Arm State

a.Door open alarm

b.ACC alarm

c.External Shock Sensor alarm(Optional)

27.Alarm without GSM network service

28. Calibration of fuel sensor

29.Accident sensor(Optional)

     When tracker detects accident occurred  (severe impact), it will send " Accident! + latitude & longitude " to all  authorized  phone numbers.

30.Sleep Mode

31.Check the Vehicle State.

32.Check IMEI

32.Terminal (local) Time Setting

34.Reset Hardware

35.Configure parameters by USB

36.GPRS Setting

37.TCP/UDP switch

38.Less GPRS traffic

Note: You can use the platform lifetime for free.

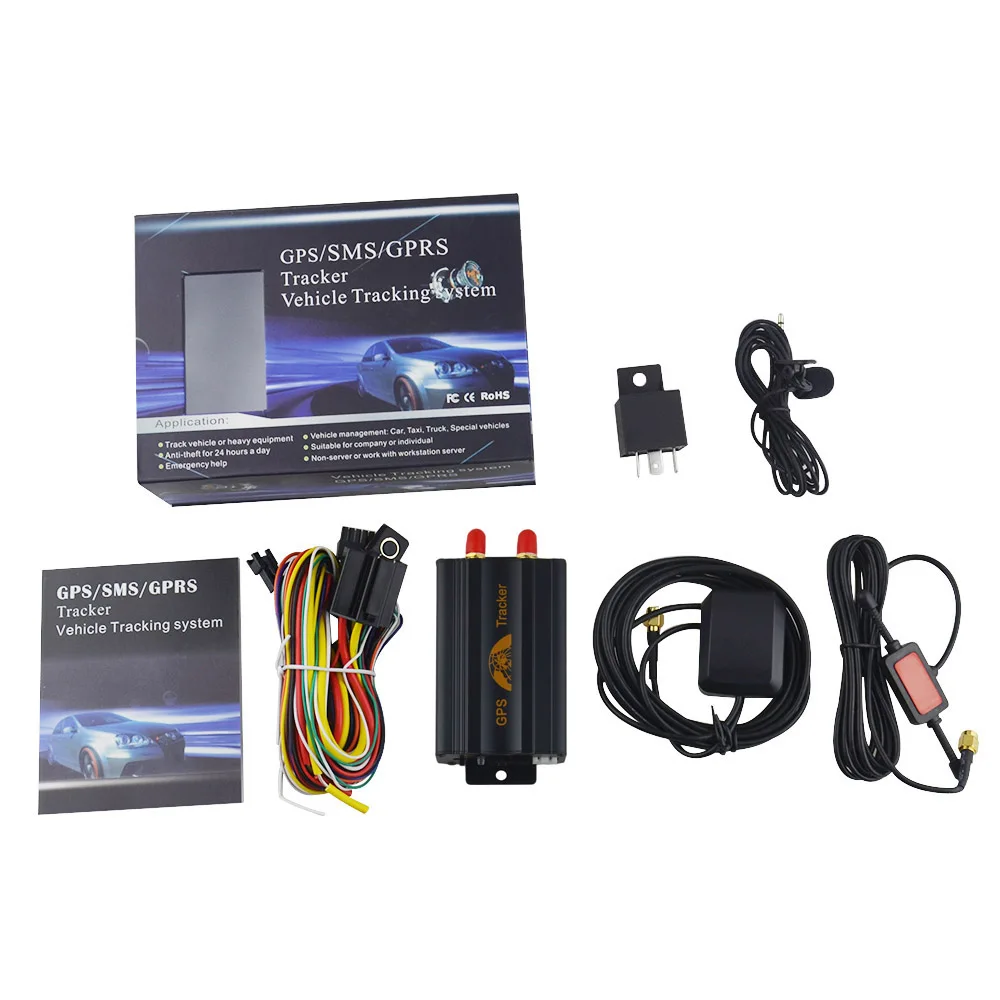

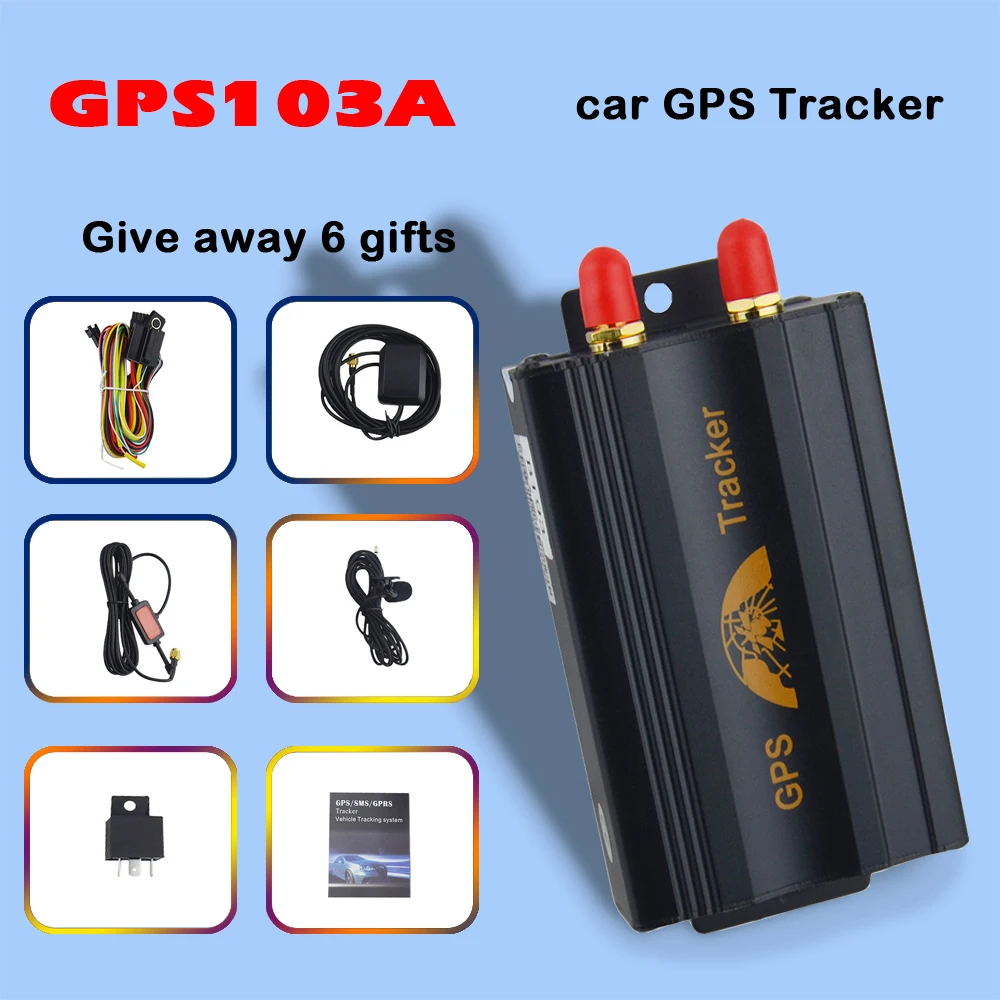

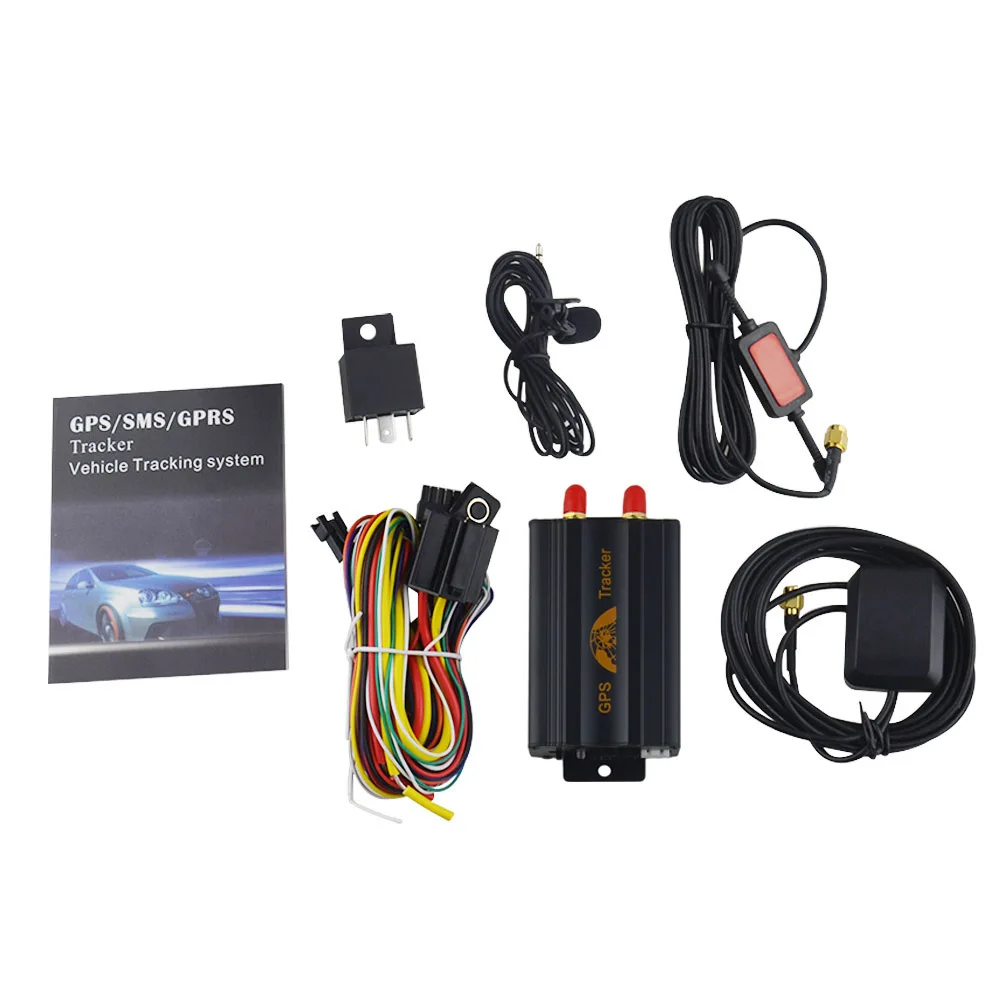

1pc* GPS Tracker  GPS103A/TK103A

1pc* GPS Antenna  2 meters long

1pc* GSM Antenna  2 meters long

1pc* Plug 10 pin Harness

1pc* Relay

1pc* MIC

1pc* User Manuals
1pc*Box(Optional)
