GPS Vehicle Tracker GPS103B TK103B Low Battery/Power Off alarm No box mini gps tracker GPS Trackers

Code: TD-2251832648558936 1 order
Free Shipping
$ 74.55 $ 86.35
Quantity:
Other people want this. 27 people have this in their carts right now.
GPS type:  GPS Tracker
Voltage:  24V
Model Name:  GPS103B/TK103B
Screen Size:  Under 2 Inches
Gps Module:  Yes
Item Size:  83*54*26mm
Special Feature:  Remote Control
Battery Life:  30 Hours & Up
Brand Name:  YANHUI

GPS Vehicle Tracker GPS103B TK103B Low Battery/Power Off alarm No box

Support :

Used widely for vehicle and other moving objects tracking.

Support both GPS & LBS (Location based service).

Support SMS/GPRS/Internet Network data transmission

Support GPRS on-line and GPRS re-connected automatically if GPRS drops

Support SMS / GPRS dual-mode switching

Support configuration by remote terminal.

Support for point-to-point, point to group, group-to-group monitoring.

Set multiple functions of security, positioning, monitoring

surveillance,emergency alarms and tracking in its entirety.

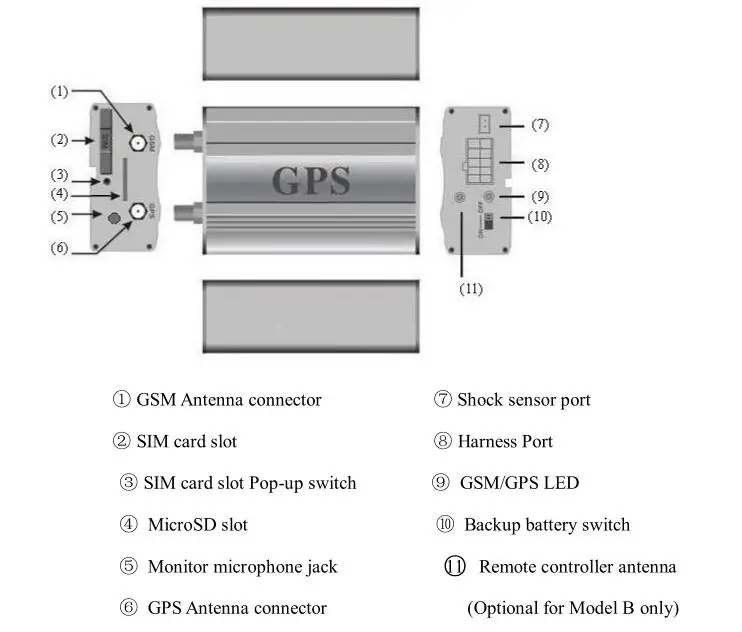

Hardware Description

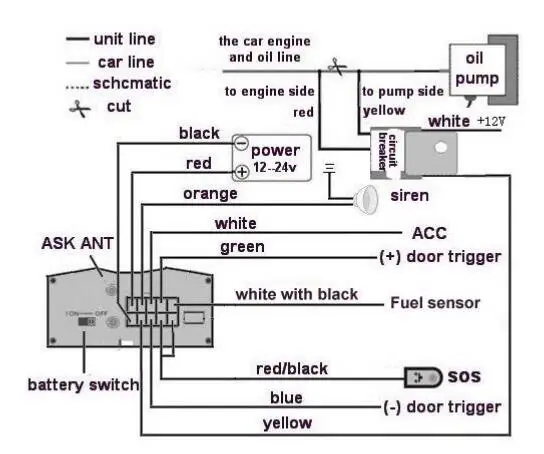

Wiring Diagram:

Find the 10 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original

car circuit showing below:

2

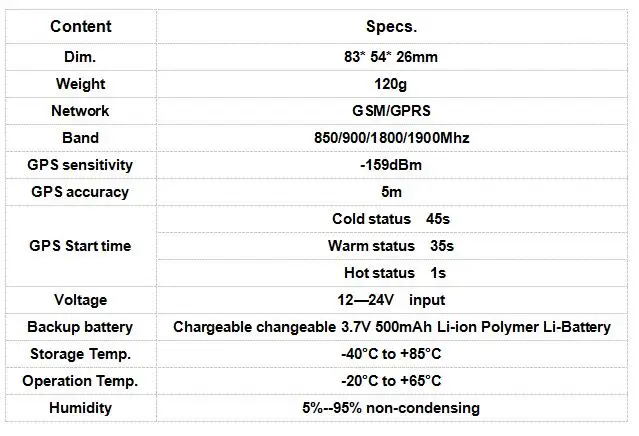

Specifications

Main Functions:

1.Single Locating



2.Auto track continuously

   a. Track with limited times upon time interval

   b. Track with unlimited times upon time interval

   c. Smart track upon time and distance interval

3.Turning points update automatically

4.GPS drift suppression

5.Exact street address

6.Location based service (LBS)/Cell-ID Locating

7.Monitor

8.Data logging

9.Data Load

10.Forward the third parties' message

11.SIM card Balance Inquiry

12.ACC working alarm

13.Cut off the Oil and Power System

14.Function of Remote controller(Only for GPS103B)



15.Arm

      a. Set up arm by SMS

     b. Set up arm by remote controller (only for GPS103B)

16.Disarm

      a. Disarm by SMS

      b. Disarm by remote controller (only for GPS103B)

17.Silent Mode

      a. Set up silent mode by SMS

      b. Set up silent mode by remote controller(only for GPS103B)

18.Low Battery alarm

19.Power Off alarm

20.GPS Blind Spot alert

21.SOS

22.Geo-fence

23.Multi-area management

24.Movement  alarm

25.Over speed alarm

26.Fuel alarm

27.Alarms under Arm State

a.Door open alarm

b.ACC alarm

c.External Shock Sensor alarm(Optional)

28.Alarm without GSM network service

29. Calibration of fuel sensor

30.Accident sensor(Optional)

     When tracker detects accident occurred  (severe impact), it will send " Accident! + latitude & longitude " to all

authorized  phone numbers.

31.Sleep Mode

32.Check the Vehicle State.

33.Check IMEI

34.Terminal (local) Time Setting

35.Reset Hardware

36.TCP/UDP switch

37.Configure parameters by USB

38.GPRS Setting

39.Less GPRS traffic

Web platform  ( 10 years free!! )

Package Include:

1pc* GPS Tracker  GPS103B/TK103B

1pc* GPS Antenna  3 meters long

1pc* GSM Antenna  2 meters long

1pc* Plug 10 pin Harness

1pc* Relay

1pc* Microphone

1pc* Remote controller

1pc* User Manuals

GPS Vehicle Tracker GPS103B TK103B Low Battery/Power Off alarm No box mini gps tracker
GPS Vehicle Tracker GPS103B TK103B Low Battery/Power Off alarm No box mini gps tracker
GPS Vehicle Tracker GPS103B TK103B Low Battery/Power Off alarm No box mini gps tracker
