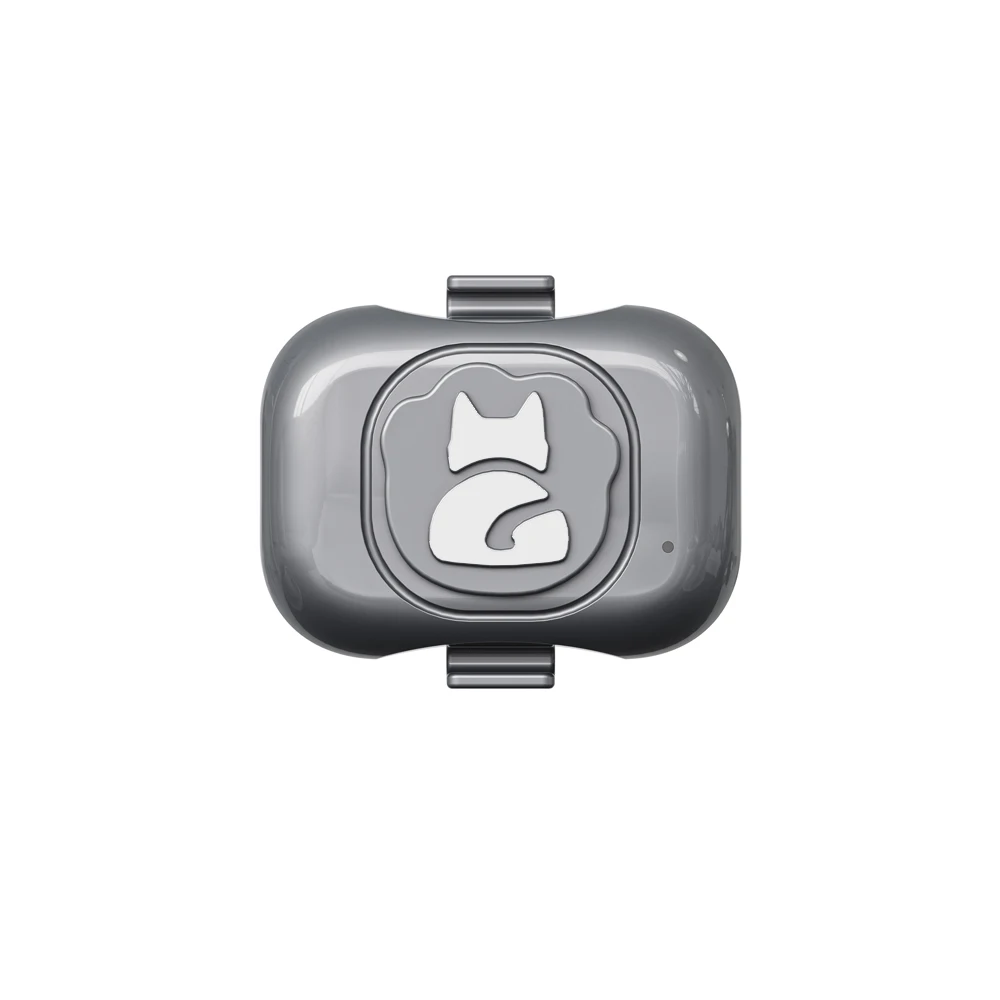

gps locator New Arrival G16 Pets GPS Tracker IP67 Waterproof Smart Collar Anti-lost Real Time Tracking for Dog Cat Locator Hot Selling car tracker GPS Trackers

Brand Name:	Topin
Origin:	CN(Origin)
GPS Geographic Location:	europe
Voltage:	5V
Battery Life:	30 Hours & Up
Item Size:	45*33*20mm
Special Feature:	waterproof
GPS type:	GPS Tracker
Model Name:	G16
Screen Size:	No Screen
Gps Module:	Yes
Out Power:	0.8W
Certification:	CE
Certification:	RoHS
Positioning Mode:	GPS+AGPS+Wifi+LBS+BDS
GPS Geographic Location2:	Asia, Europe, Africa, South America, North America, Oceania
Waterproof level:	IP67 waterproof
Highlight:	Remote Control Restart Power Off Power On
Feature:	Find Device
Use for:	Cat Dog Pets and other animals

Main specification:

Function

Realtime GPS/AGPS/LBS/Wifi Positioning, Geo Fence Alarm Reminder, historical track, Class Mode, Power Save

CPU

Main Chip: MT6261, Assisted Chip: AT6558R + MT5931

ROM

32MB

RFPA

6625E

Size

45*33*19.7mm

Working Temperature

-20

℃

- +70

℃

Network

GSM850/900/1800/1900MHz, working with GPRS
12

GSM Antenna

PIFA Antenna

SIM slot

Support NANO sim card

TF Slot

Optional

GPS Antenna

12X12 High performance ceramic antenna

GPS Positioning Accuracy

Within 10Metres

GPS Motion Accuracy

0.1metre/second

GPS Positioning Time

Cold Boot-38s(Open field), Warm Boot2s(Open
field),The specific time is affected by the environment

WIFI Positioning Accuracy

Within 50 Metres

GSM Positioning Accuracy

50-200Metres (Depending on the network)

Battery

Rechargeable 5V 3.7V

500MAh

 Li-polymer battery(optional different capacity batteries upon
different struction design)

Charging port

Android Micro-USB port

Charging Current:

DC 5V/0.5A-1A(depend on your battery
capacity)

MIC/speaker

Integrated silicone microphone, come without speaker

Sensor

Build-in 3D G-sensor

Attention:

1: This model can only work with 2G GSM
network(GSM 850/900/1800/1900,support Nano sim card), make sure the GPRS
network is available,please confirm your network with your local telecom
operators.

2.The tracking service
platform: www.365gps.net

Android
application: 365gps

iOS
application: 365gps

Login ID:

IMEI number,

Default Password:
last 6digits of imei

3. QR code
scanning access

The client
for the Android and iOS phones can be downloaded after the QR code has been
scanned.

Click " Demo" to login the APP

Feature:

Multiple Positioning Mode: GPS+ AGPS+LBS+WIFI

Worldwide GSM+GPRS 4-frequency System: 850/900/1800/1900MHz

Automatic Time Update: Precise GPS time service and no manual time adjustment is needed

Track: The user's specific location can be inquired through the cell phone APP or the computer

Fence: Designate an area on the map by setting the device as the center point and the alarm will
be triggered off immediately once the user of the device goes into or out of this area

PlayBack: Inquire the moving routes of the device in the past 3 months anytime and anywhere

SOS: In case of emergency, press the SOS button and the device will send out the call and
message for help to the guardian (long press power button 4 seconds)

Voice: With the highly sensitive microphone, the sound around the device can be heard in real time in
case the emergency happens to the user

Remote Power-off: The device can be turned off through the APP on the guardian's cell phone

Remote Restart: The device can be restarted through the APP on the guardian's cell phone

Intelligent Power Saving: The device turns off/on the GPS and data upload in the time range
specified through the APP on the guardian's cell phone.

Map: Baidu map and Google map.

SMS comands :

1 - Reset to default password: “pwrst”

2 - Restore factory settings: “1122”

3 - Inquire IMEI: “imei#”

4 - Modify IMEI: “imei#+no.ofimei" ( for example: IMEI#200000000000001 )

5 - LED light on/off: “led#on/led#off”

6 - Modify upload time interval:

“time#+No. (for example: time#1, time interval 1minutes, from 1-60minutes )

"MD#+number"( for example: MD#10 , time interval 10seconds, available set to 10-60 seconds)

8 - APN setting: “APN#parameter#account#password#”  ( if there is no account
password, don't need to fill in. )

(For example,China Mobile APN is: CMNET, text message: APN#CMNET#)

9 - Restart the device: “SYSRST#”

10 - Vibration Alarm:  6666#on# / 6666#off# ( open / close vibration alarm )

11 - Remote Pickup Call: monitor#Number# ( set the monitor number) , monitor## ( cancel
monitor )

12- Power on/off by Alarm:

pwonoff#0,0,10#0,0,2
( day,hour,minute -- this command mean 10minutes later power off and then
2minutes on again )

SMS operations:

000 # number #
number # number # (binding three phone numbers, the numbers call the device
will make voice  monitoring, binding only one number also available)

111 (SMS
recording 10 minutes pause )

222 (voice
recording 10 minutes pause, auto recording , 10minutes again if any voice,
every time 10minutes,  cancel send SMS 555 )

333
(voice-activated dial-back call to binding numbers )

444 (delete all
contents of memory)

555 (turn off
all features)

666 (vibration
alarm SMS to binding numbers, cancel send SMS 555)

777 (vibration
alarm call to binding numbers,  cancel send SMS 555)

888 (play the
memory recording --- such as the next play then pause after the broadcast ---
this require a speaker )

999 ( SMS
Coordinate Positioning )

123#1/0 (
Open/Close auto upload location data )

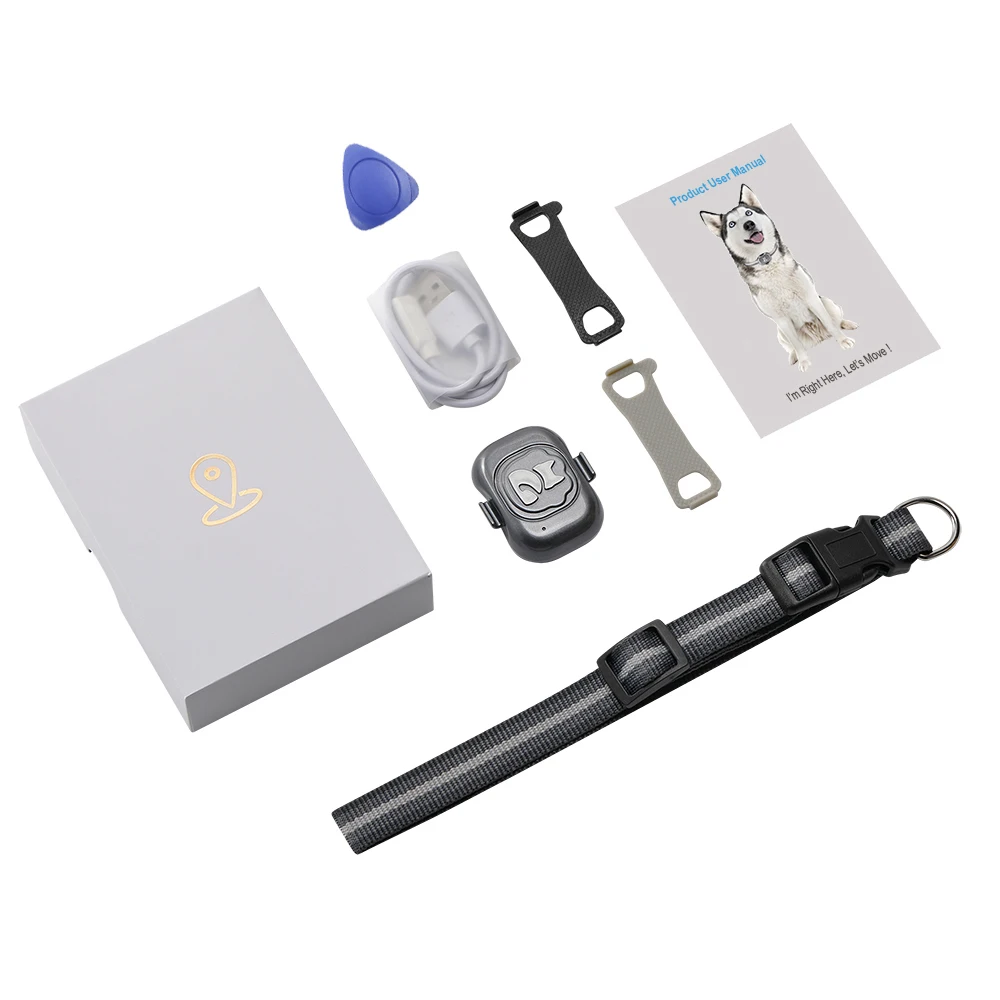

Package includes:

1 X GPS Tracker

1 X Cable for charge

1 X Use manual

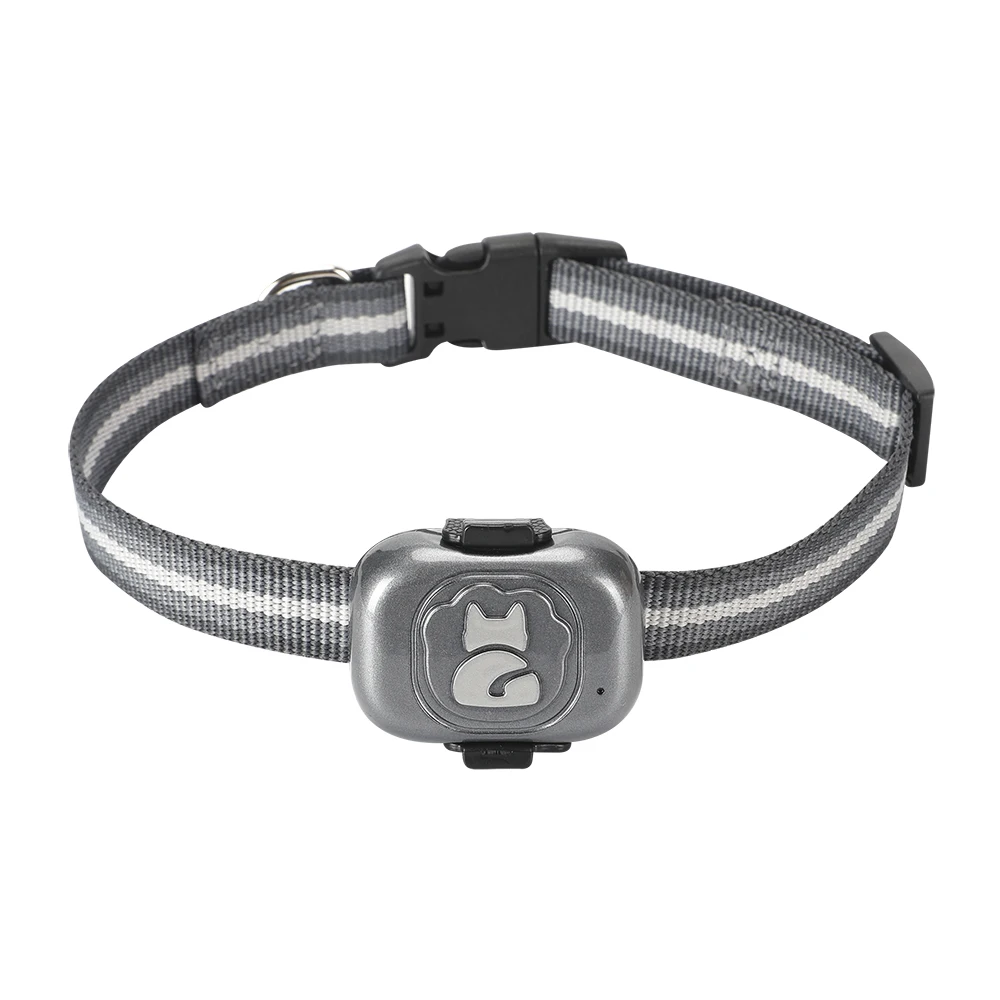

1 X Collar for pets

2 X Silicone hanging belts
