Gadinan 8MP H.265+ Max 4K Output CCTV NVR 9CH 16CH 32CH Security Video Recorder Motion Detect P2P For IP Camera System best home camera system Surveillance Items

Brand Name:	Gadinan
Origin:	CN(Origin)
Smart home platform:	Other
Certification:	CE
Technology:	Network
Supported Operating Systems:	Microsoft Windows 2000
Supported Operating Systems:	Microsoft Windows XP
Supported Operating Systems:	Microsoft Windows Vista
Supported Operating Systems:	Microsoft Windows 7
Supported Operating Systems:	Mac OS
e-Cloud(P2P):	Yes
Video Output:	1VGA + 1HDMI-compatible
IP Mode:	Dynamic IP address
IP Mode:	Static IP address
Video Standard:	NTSC
Video Standard:	PAL
Hard Drive Size:	3.5''
Network Protocol:	TCP/IP
Network Protocol:	DHCP
Network Protocol:	SMTP
Network Protocol:	DDNS
Network Protocol:	PPPoE
Network Protocol:	FTP
Network Interface:	RJ45 10/100M
Backup Type:	Hard Drive
Backup Type:	Recorder
Audio Output:	None
Video Input Interface:	HDMI
Supported Mobile Systems:	iPhone OS
Supported Mobile Systems:	Android
Two-way Audio:	No
Video Resolution:	960P
Video Resolution:	720P
Video Resolution:	1080P
Video Resolution:	5MP
Video Resolution:	3MP
Video Resolution:	4MP
Compression Format:	H.265
Compression Format:	H.264
Wireless Security:	WEP
Audio Compression Format:	G711A
Hard drive Interface Type:	SATA
Communication Interface:	None
Model Number:	N8632R-PL
Alarm Action:	FTP Photo
Alarm Action:	Email Photo
POE:	None
Audio Input:	No
Third-party protocol:	Support

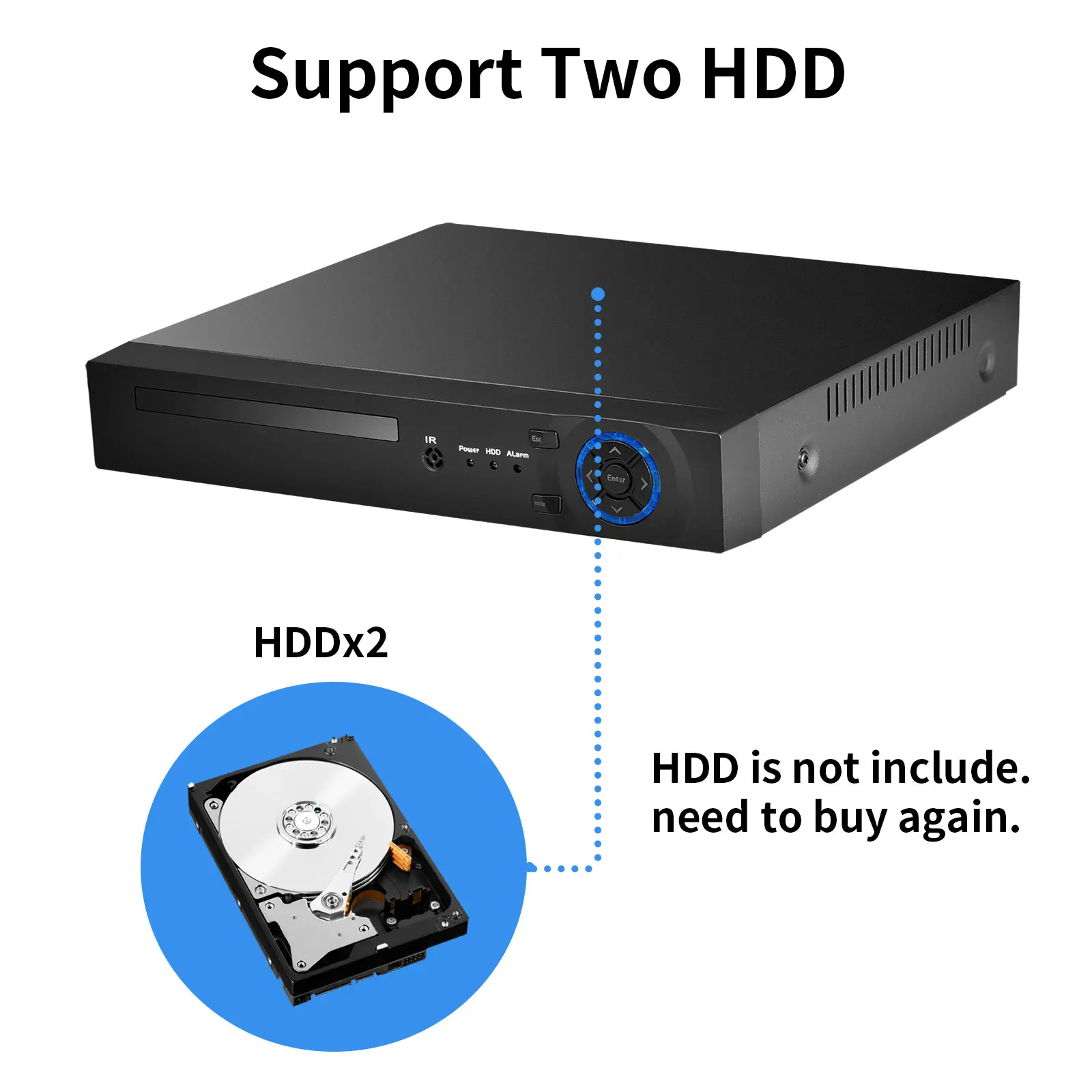

Note:32CH NVR support 2 HDD,9CH/16CH support 1 HDD

1.MAIN FEATURES:

Support HDMI output;

Support web, CMS, center platform management software MYEYE .

Support multiple cloud technology, network penetration, alarm information

pushed to your phone and other functions;

Supports up to 32CH/16CH/9CH 4K (optional) H.265/H.264 IP Cameras

Visit remotely by cloud or APP XMEye

Easy Setup & Connection

2.TECH PARAMETERS:

Main processor : Hi3536D

Operating System : Embedded Linux

System Resources : Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface :16-bit true color graphic menu operation interface, support mouse operation

Preview :  1/4/8/9/16

Video input (IP) :9CH : 9*4K

16CH : 16*4K

32CH : 32*4K

Video standards : PAL(625TVL,50f/s);NTSC(525TVL,60f/s)

Video compression H.265/H.264

Motion detection : Depend on camera

Audio compression :G.711A

intercom :Unsupport

Recording mode :Manual>Alarm>Video Detection>Continuous

Search mode search by Time/calendar/event/channel

Record Storage :HDD ,network

Backup mode : Network backup, USB hard disk, USB burner, SATA burner

Video output : 1ch HDMI HD output(can be extended to support VGA)

Network interface : 1* 10M/100M Adaptive Ethernet port

USB interface :2*USB2.0 port

Hard disk Port: 1*SATA(Up to 8TB )

PTZ control :Control PTZ device by network

ONIVF : Support

Power supply : DC 12V 2A

Netweight : 0.75kg

PACKAGE CONTENTS:

1* H.265 NVR ( 32CH/16CH/9CH Optional ) 8MP(4K)

1* DC 12V Power Adapter

1* USB Mouse

1* User Manual

8* Screws

9 Channel H.265 NVR

Support 9pcs 4K(5MP/4MP/3MP/1080P) IP Cameras

16CH NVR:Support 16pcs 5MP IP Camera
