Gadinan 5MP Wifi Camera 1.7mm Fisheye Lens Panoramic 180 degree Motion Detection Home CCTV Security Audio IP Camera iCSee surveillance cameras Surveillance Items

Brand Name:	Gadinan
Type:	ip camera
Supported Operating Systems:	Windows 10
Supported Operating Systems:	Windows 2008
Supported Operating Systems:	Windows 2000
Supported Operating Systems:	Windows Vista
Supported Operating Systems:	Windows 8
Supported Operating Systems:	Windows 7
Supported Operating Systems:	windows xp
Supported Operating Systems:	Windows 2003
High Definition:	5.0 Megapixels
Lens (mm):	1.7mm
Style:	Dome Camera
Certification:	CE
Connectivity:	IP/Network Wireless
Smart home platform:	Other
Origin:	CN(Origin)
Installation:	Normal
Wall Bracket:	Ceiling
Power Consumption(W):	3W
Color:	white
Minimum Illumination(Lux):	0.1LUX
Sensor:	CMOS
Megapixels:	5MP
Special Features:	Waterproof / Weatherproof
Storage:	None
Alarm Action:	FTP Photo
Alarm Action:	Email Photo
Video Compression Format:	H.264
Power Supply:	Normal
TF Card:	None
IR Distance(m):	5-20M
is_customized:	No
Power Supply(V):	DC 12V
Model Number:	GD-IP5MW-05A
Viewing Angle :	180°
Technology:	Infrared
Dimensions (L x W x D)(mm):	160*64mm
Supported Mobile Systems:	iOS
Supported Mobile Systems:	Android
Network Interface:	Wi-Fi/802.11/b/g
Audio Output:	Yes
Viewing Angle (Degree):	80-90degree
Wifi network:	support 2.4g wifi network (don't support 5g wifi network)
Housing material:	Metal shell Waterproof
Audio Output:	audio recording
Connectivity:	wifi and wired network
Resolution:	5MP
Technology:	P2P & WiFi &Wired
APP:	iCSee for ios and android
IR-led:	6PCS array IR CUT leds
Camera Features:	Motion Detectio&alarm alert&APP Push
Storage:	support to 128GB Max(option)

Built-in microphone

Remote real-time video, real-time sound

Support recording sound

Monitor Day&Night

Motion Detection & Alarm Alert

When detect motion,the camera can push alarm message to APP or send photo to your email.Then you can check the details timely

Supports work with NVR

Can be connected with the nvr (network video recorder), such as HIKVISION,DAHUA,etc.

They are compatible with Hikvision and Dahua NVR by protocol.

Support Micro SD card(Built-in SD card slot), up to 128GB

To install the Micro SD card,need to open the camera, find out the SD card slot on back of the camera board

Camera Features:

-Support AP connection

- Supports Both Wi-Fi and wired connectivity

- Supports micro SD cards up to

128GB

(not included)

- Supports works with third-party NVR

- Supports mobile video surveillance (iOS, Android) via iCSee

- Motion Detection & Email Alert functions

Specifications:

Video Compression : H.265X, H.264

Sensor :

5MP:XM550AI+1/2.5" SC335E cmos

3MP:XM530AI+1/2.7" Q03 cmos

2MP:XM530AI+1/2.9" F37 cmos

Video Resolution :

5MP 2592*1944@12fps; sub-stream: 640*360@12fps;

3MP 2288*1288@12fps; sub-stream: 640*360@12fps;

2MP 1920*1080@12fps;sub-stream: 640*360@12fps;

Lens :Panoramic1.7mm

IR Cut Filter : Yes

Wireless : wifi 802.11b/g/n

Motion Detect & Email Alert : Supports

Connector :1PCS LAN Port,1PCS Power Connector,1PCS Reset Button

Mobile Monitoring : Support IOS & Android With APP iCSee

IR LED : 6pcs array IR LED With 15Meters IR Distance

Woring Temperature : -20 to 50 degree

Power : 12V  1A

TF Card Slot : Support (

Max 128Gb TF Card

)

Housing material:Metal

Package contents:

1 x WIFI camera

1 x Use Manual

1 x Waterproof Lid

1 x Screws Cap

Warm Tips: 12V 1A power and SD Card for Optional.

Important notices:

1 .SD Card NOT included

2. To install a Micro SD card, open the camera and look for the SD card slot on back of the camera board

3. If repairs are required, contact the seller for instructions

3. This camera does not support website browsers such as IE, Chrome

4. This camera does not cloud viewing and saving information

5. Recording time depends on the SD Card being used. Check the recording times below for reference :

16Gb: 4-5days

32Gb :8-10days

64Gb:18-20days

128Gb:28-30days

6. 5G Network WIFI not supported

Warm tips: Before setting the camera, please press the "reset button" 7 seconds to factory reset.

*Use a 12V 1A-2A power supply (not included) to connect the camera,

no need to connect RJ45 network cable!!

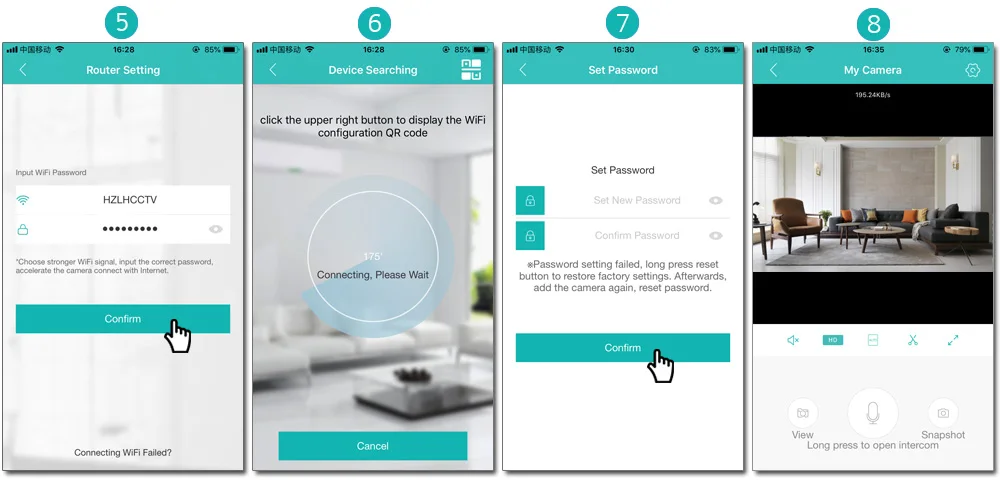

Getting the "iCSee" app

1) Register and Login

2) Click "+"

3) Click "Add My Camera(recommended)"

4) Click "Next step"

5) Input wifi name and password

6) Automatic search and connect

7) Set IP camera password

8) Pick a name and save, complete

View via PC / Web

1,View via PC

Install the CMS(CMS for Windows,VMS for Mac)

( Software in the CD ,or can download online,need contact us )

You can select the language(

18 languages

)

How to watch via CMS:

2,View via web:

Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)
