FB-U09H Dual Way Transmitter Digital UHF Wireless Microphone with handheld + Lapel + Headset microphone for Karaoke mic gaming microphone Microphones

Brand Name:	LOMEHO
Style:	Handheld Microphone
Transducer:	Dynamic Microphone
Use:	Karaoke Microphone
Set Type:	Transmitter Sets
Origin:	CN(Origin)
Certification:	NONE
Package:	Yes
Communication:	wireless
Model Number:	FB-U09H
Place of Origin:	Guangdong China (Mainland)
Type:	Wireless Microphone
Carrier frequency:	UHF 653.50MHz, 643.50MHz
Modulation mode:	FM
Channel number:	2 Channels
Working temperature range:	-10~40 degree
Working range:	50M (Without obstacle)
Warranty:	1 year
is_customized:	Yes
Use:	KTV,speeking stage ,performance ,entertainment

FB-U09H

FREEBOSS FB-U09H Dual Way Transmitter Digital UHF Wireless Microphone with handheld + Lapel + Headset microphone for Karaoke Mic

1. Key Point:

    1)

UHF Band Fixed Frequency(653.50MHz,643.50MHz)

    2)

Transmitter: 1pc Handheld + 1pc

 Bodypack + 1pc Lapel + 1pc Headset

    3)

Receiver: Metal Box,ON/OFF Knob,Individual Volume Knob, AF/RF Indicator

    4)

Special digital launch receiving circuit, strongly improve S/N ratio, high fidelity reduction pick up sound.

    5)

Digital transmit receive encryption,stop all external signal interference.

    6)

Set special arbitrary selection of

8 kinds effect sound output

,suitable for all kinds occasions and performance activities.

             (0: standard  1: Boost  2: Treble  3: Pop  4: Rock  5: Classic  6: Jazz  7: Dance  8: R&B)

    7)

Two XLR individual outputs and one 1/4"" Mixed output.

    8)

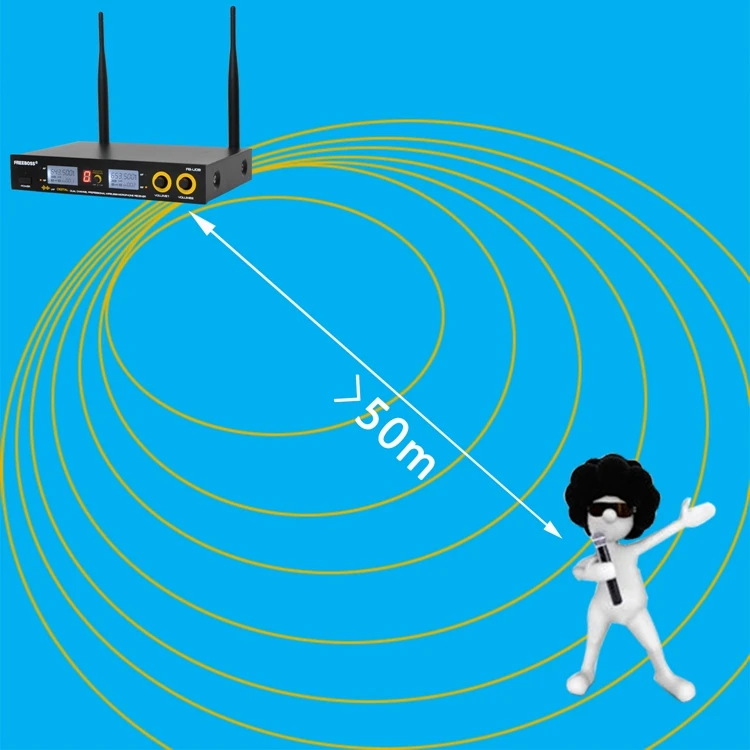

Range: up to 160 Feet ( over 50 meters ),

 Suit for karaoke, speaking, party, etc.

    9)

battery: 4*AA

8 Kinds effect:

Packing List:

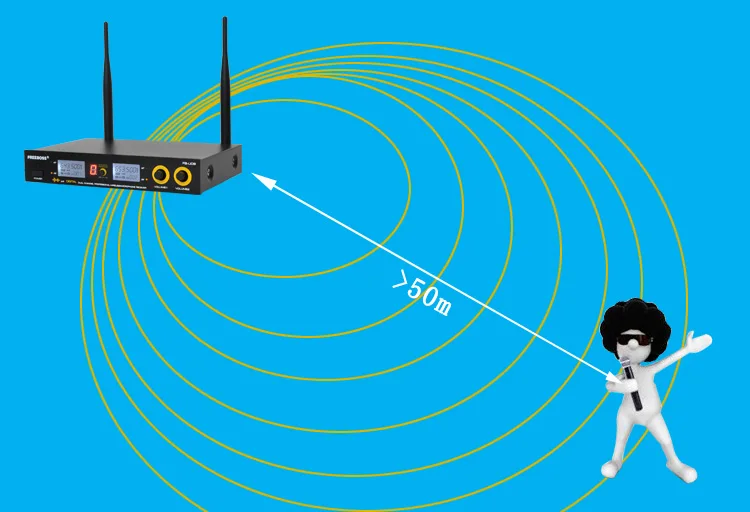

Working Range:

2.Product Description:

Stability: 0.005% (-10-50)

Deviation: 40KHz

S/N: 96db

Distortion:0.5%@1KHz

Frequency Response: 30Hz-20KHz

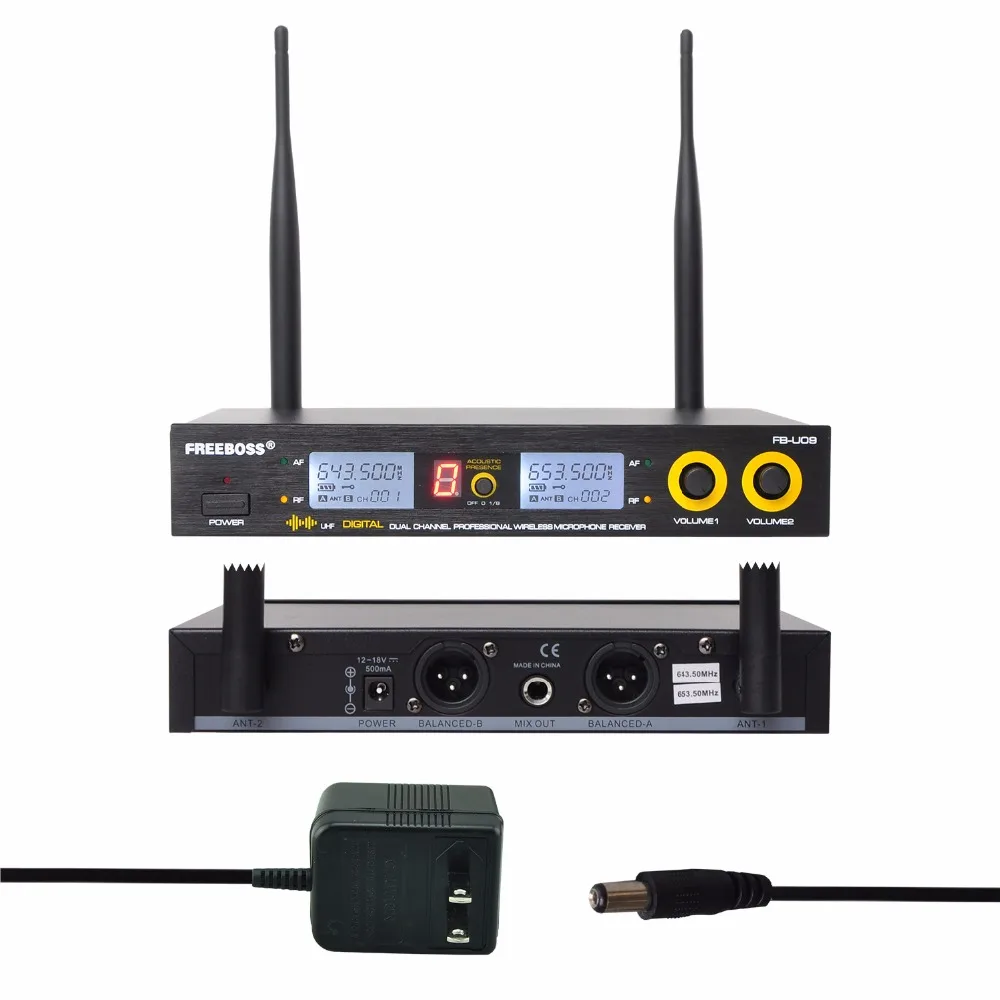

3. Receiver :

Receiver front panel function:

1.) Power Switch:

   A)  Link the power adapter to receiver power socket,then link the power adapter to 220V power.

   B)  Press the receiver power button,power indicator is on,the receiver is on "working" status.

2.9) AF Led Indictaor

when RF indicator is on, microphone A/B power is on

   A) Microphone A/B pick up the sound, the AF light is on

   B) no sound is picked up, the AF light is off.

3.8) RF Led Indictaor

when the receiver is on "working" status,

   A) Microphone A/B no power, left/right RF light is off

   B) Microphone A/B is on, left/right RF light is on

4.7) Backlit Screen:

 the screen will not change.

5.) Effect Screen:

     Display the number of the present effect.

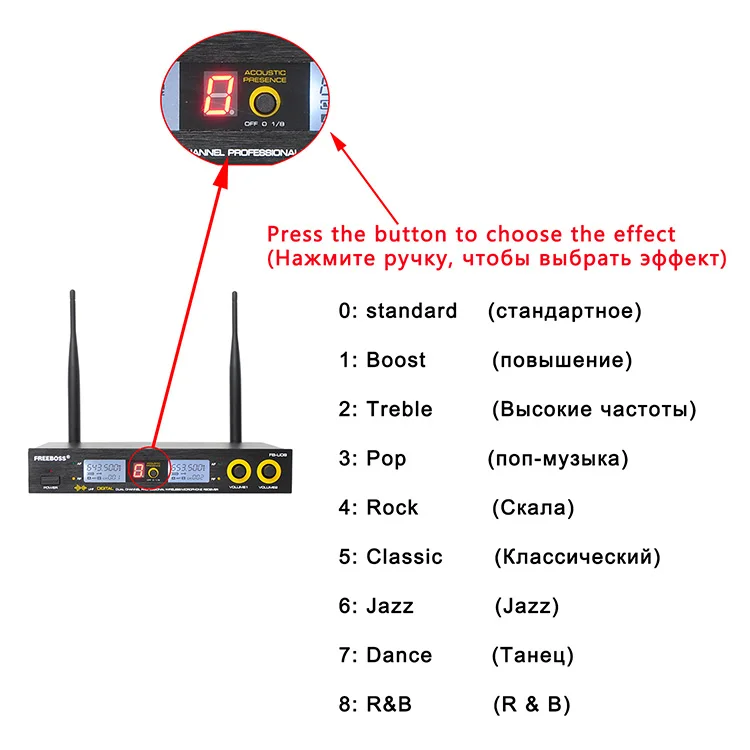

6.) Effect Choose Button:

     Press the button, the number will change from 0 to 8. You can choose the effect according to the number. (0: standard  1: Boost 2: Treble 3: Pop 4: Rock 5: Classic 6: Jazz 7: Dance 8: R&B)

10.11.) Volume Knob:

     clockwise: volumn from low to high

     anticlockwise: volumn from high to low.

Receiver back panel function:

1) Mic A and Mic B XLR socket:

A.) Need XLR cable:(not included in the package)

B.) From the socket,

a) you can link the receiver to audio mixer

b) then you can controld the microphone A  or microphone B separately.

2) Mix out socket:

A.) Need 6.35mm plug cable.

(included in the package)

B.) From the socket,

a) you can link the receiver to amplifer/speaker,etc.

b) you only can control the microphone A and B together.

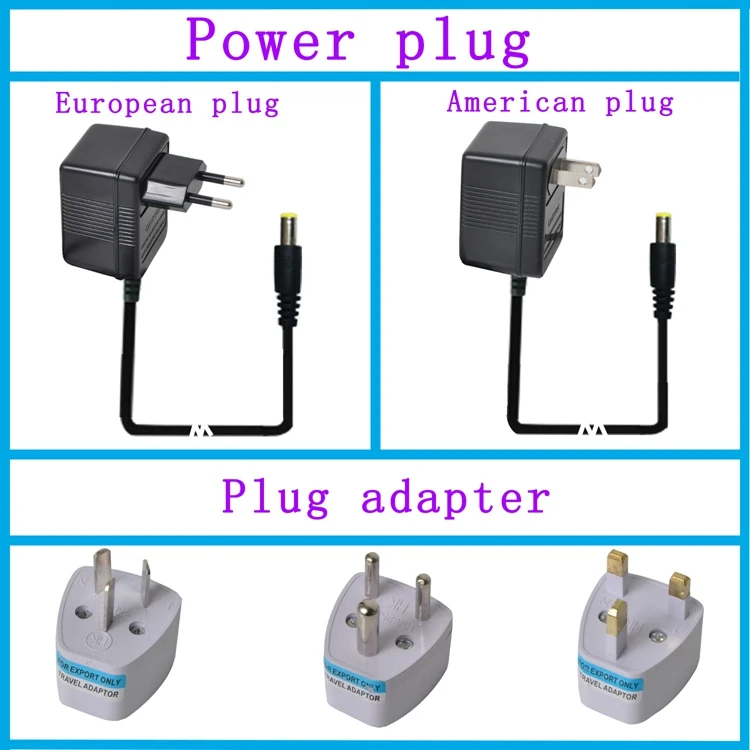

Power adapter:

1) EU PLUG

2) US PLUG

3) PLUG adapter

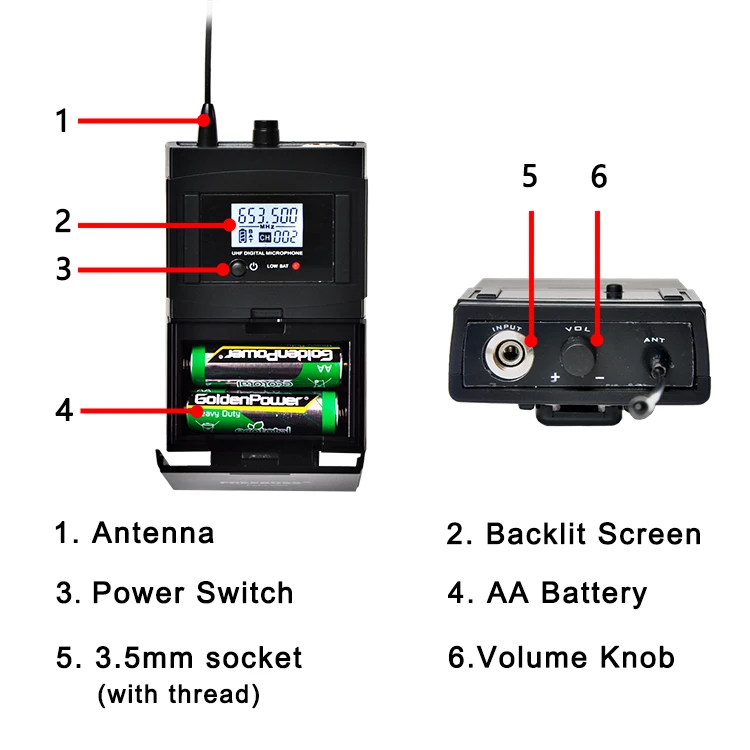

4. Transmitter:

Capsule: Professional Audio Dynamic Capsul

Transmitting power:<=10dbm

Frequency stabilization:+-0.005%

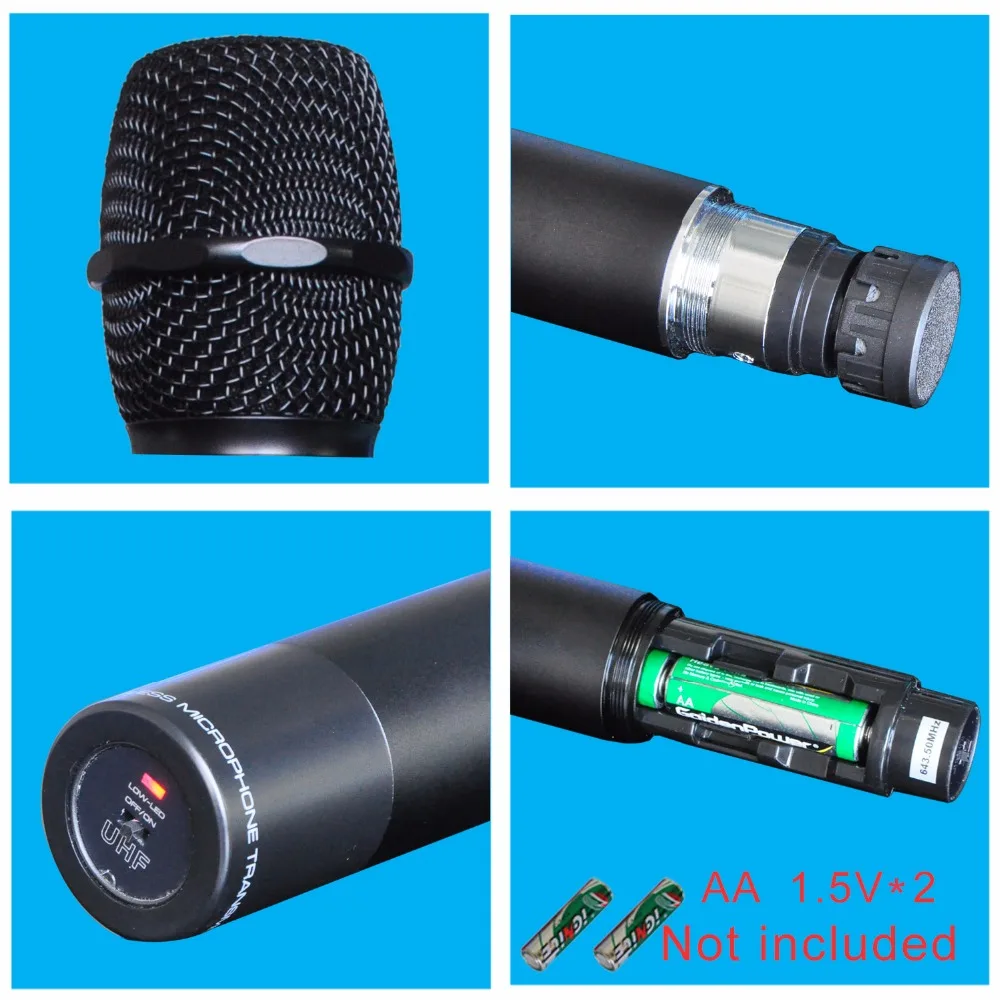

Battery Two-pieces battery of 1.5V

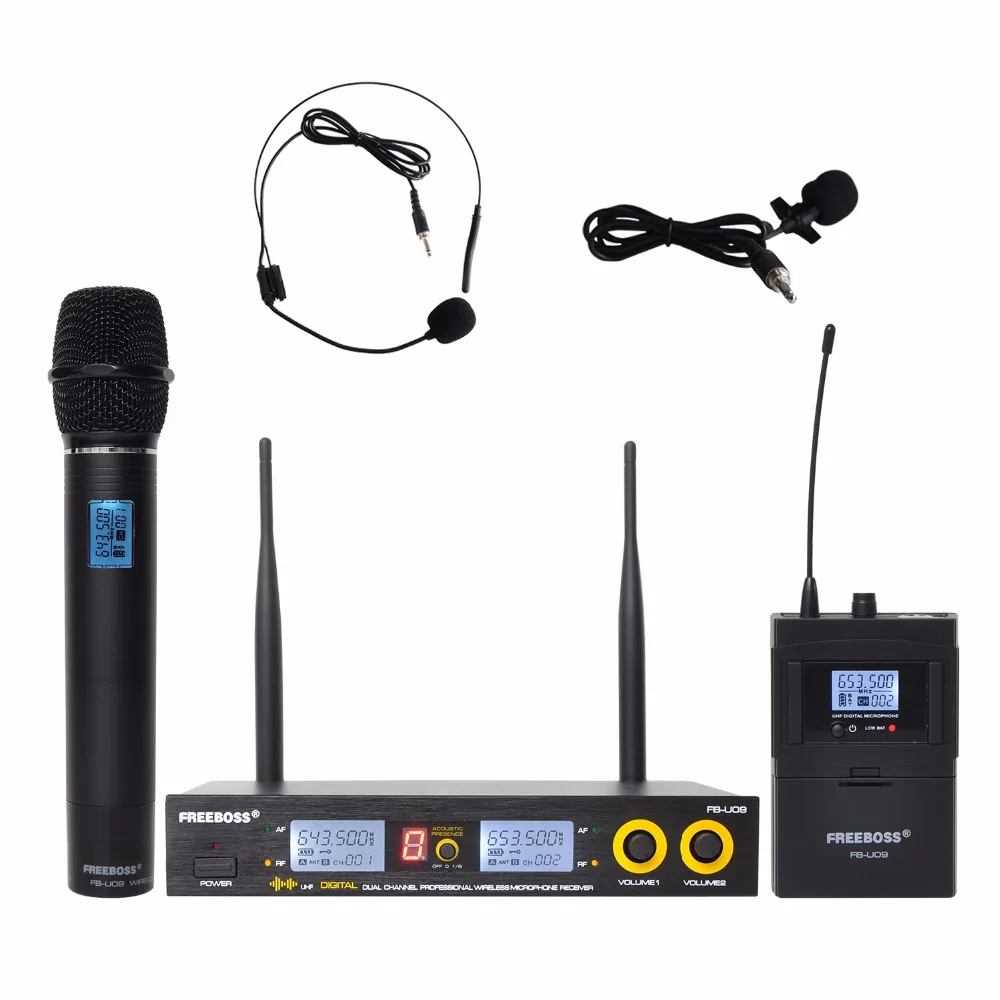

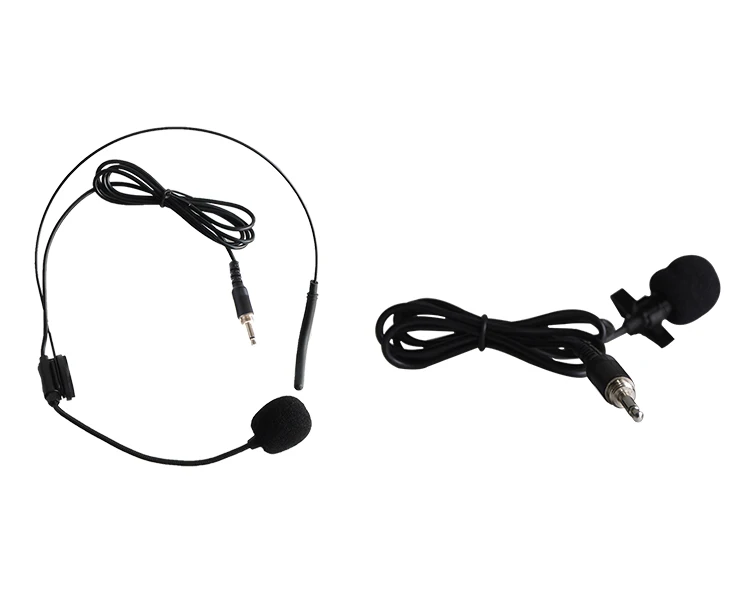

Include:

1 pc handheld microphone

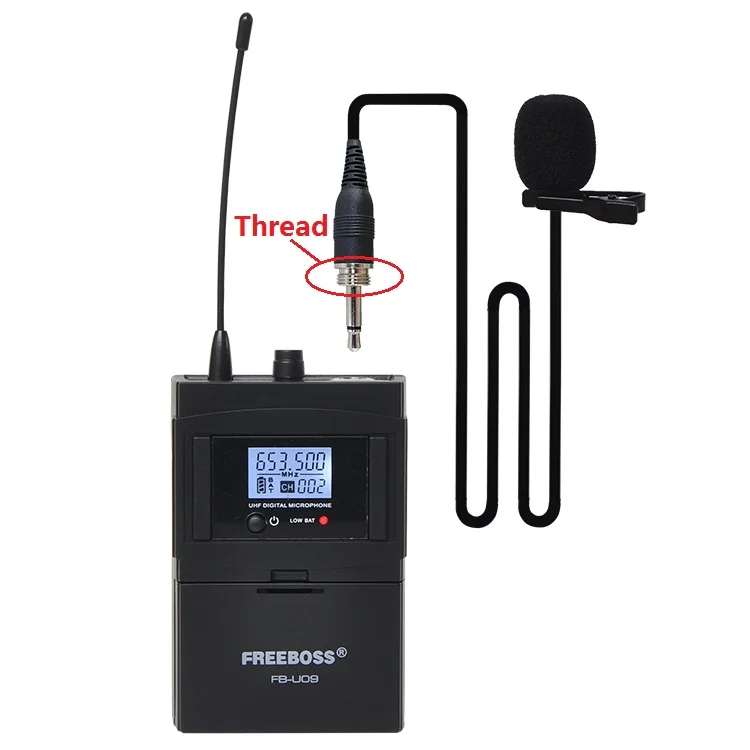

1 pc body-pack

1 pc headset microphone

1 pc lavalier microphone

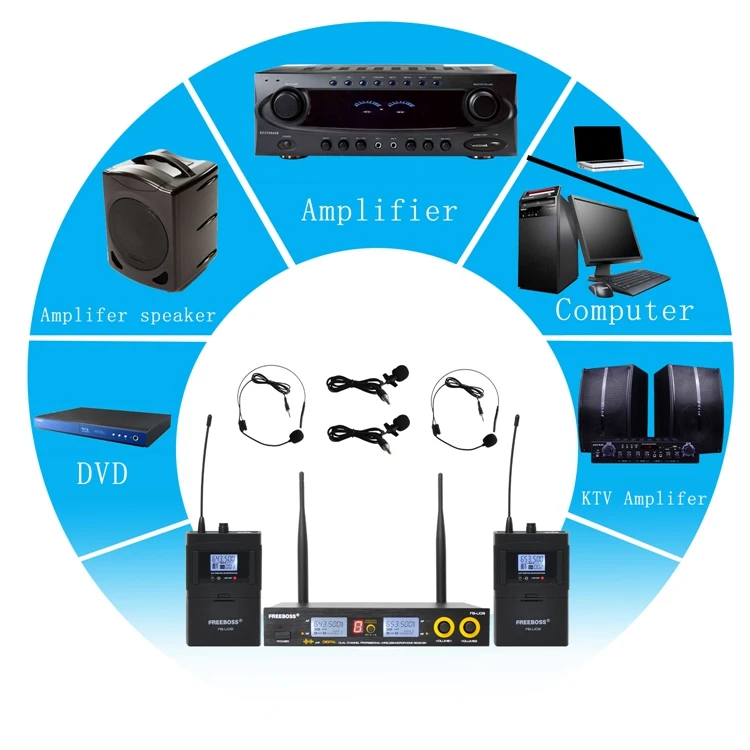

5. Application:

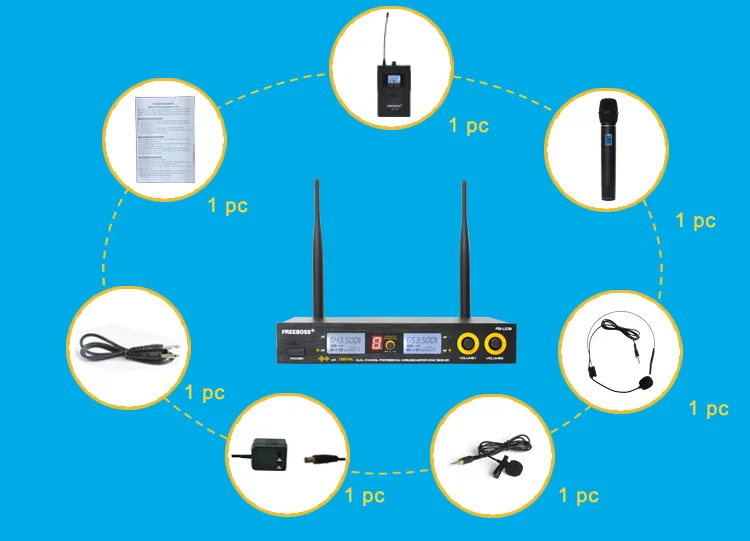

6. Packing Pictures:

1) Handheld Microphone     1 pc

2)

Lapel Microphone            1 pc

3) Headset Microphone       1 pc

4) Bodypack transmiter  1 pc

5) Receiver                          1pc

6) Audio cable                     1pc

7) Power adapter               1pc

8

) Owner's manual            1pc

9) 1.5V Battery    4pcs

(Pls note: Due to transportation reasons, the battery is not issued with the goods, please purchase by yourself, thanks!)

Please Note:

          Please confirm the frequency is ok for you.

          If you need other frequency, please tell us before you order.

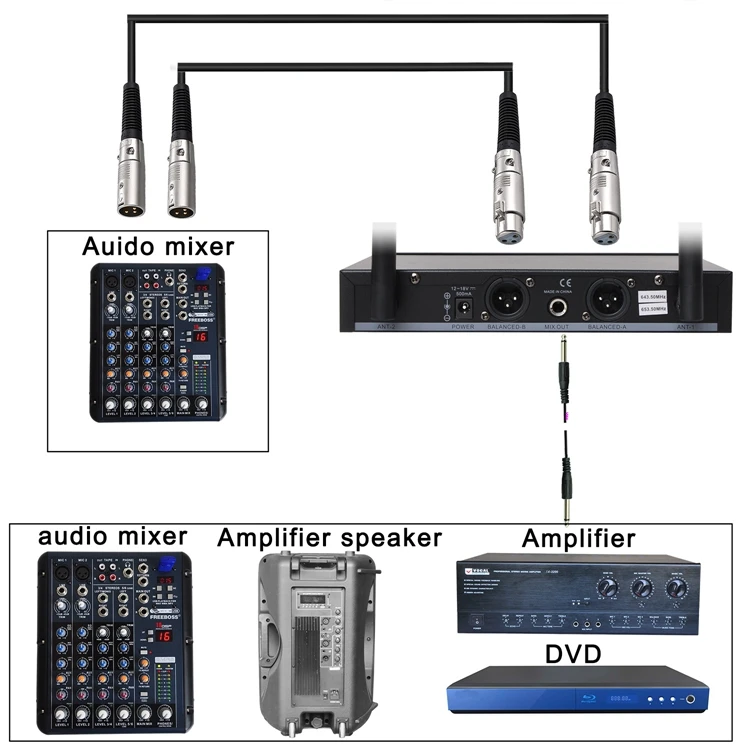

HOW TO USE Wireless Microphone:

  1) 6.35 plug cable to audio mixer (there is one piece cable in the package)

 2) 6.35 plug cable to audio mixer (there is one piece cable in the package)

 3) 6.35 plug cable to amplifier (there is one piece cable in the package)

4) 6.35 plug cable to amplifier (there is one piece cable in the package)

5) 6.35 plug cable to amplifier speaker (there is one piece cable in the package)
