ethernet tracer Passive PoE Injector Splitter Module Wall Mount (4,5+/7,8-) w/ 5.5*2.1mm DC port cable tester tracer Networking Tools

Code: TD-32268224019 1 order
Free Shipping
$ 28.75 $ 28.99
Quantity:
Other people want this. 25 people have this in their carts right now.
Type:  PoE Splitter
Model Number:  PSI-348
Package:  Yes
Brand Name:  Dslrkit
Model:  PSI-348
dimension:  75mm*28mm*21mm

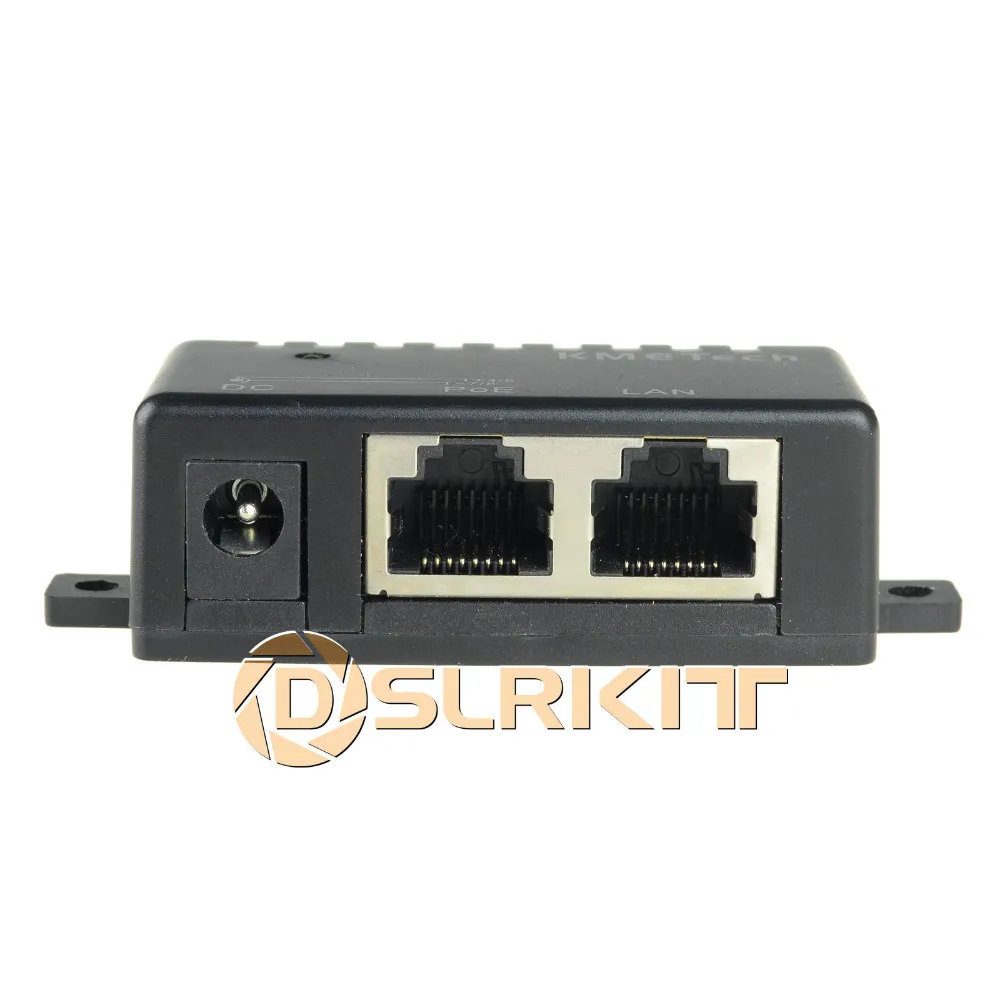

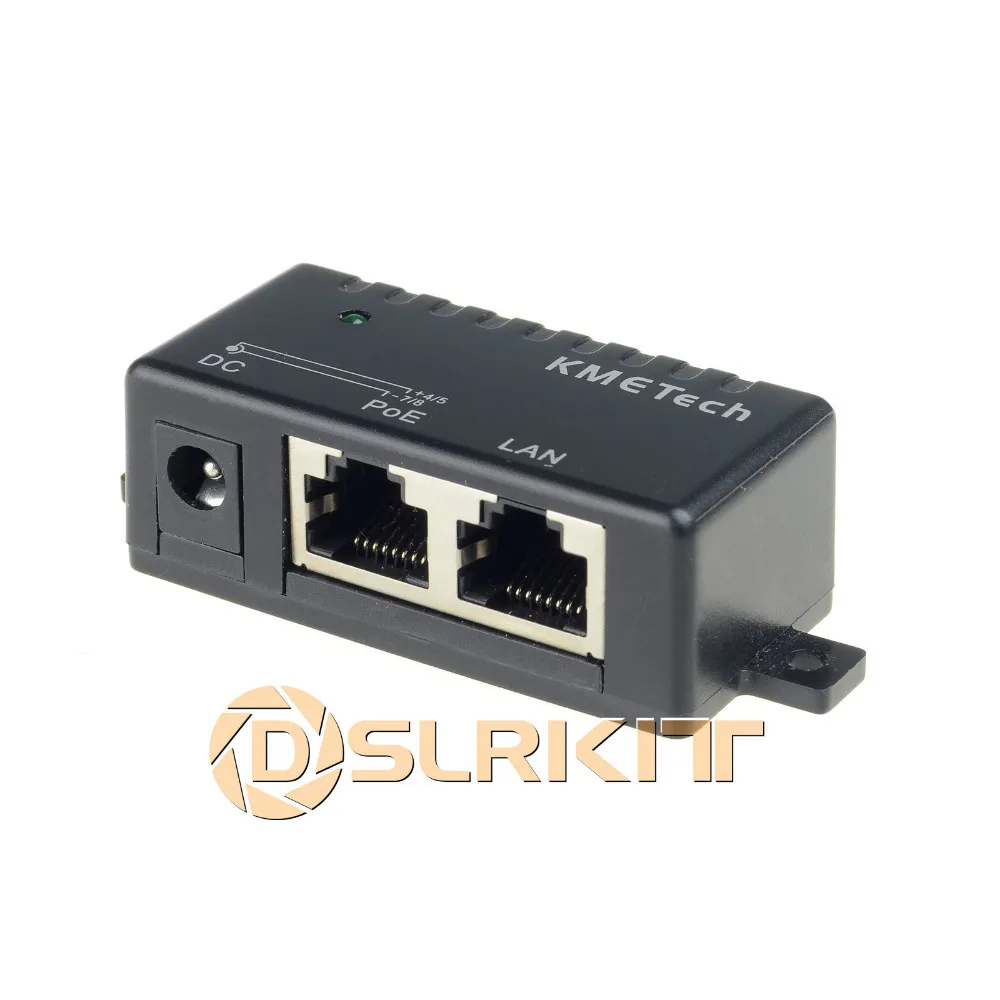

Passive PoE Injector/ Splitter

IEEE 802.3af Mode-B(4,5+/7,8-) 9-48V/1A

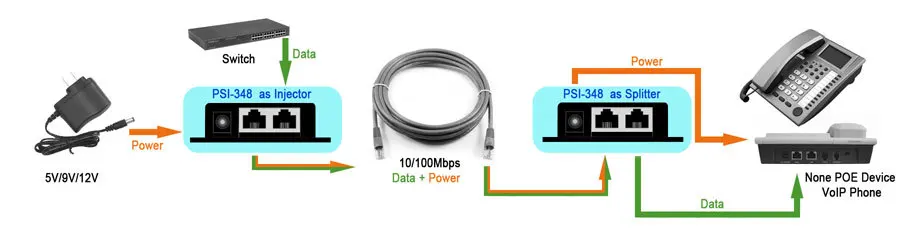

This is a Passive PoE Injector (or Splitter), you need an extra 5.5*2.1mm DC port Power adapter if you work it as a Injector. While if it works as a Splitter, you need another male to male DC cable, the port is 5.5*2.1mm (the DC cable is available in our store)



This Adapter only supports 10/100M connection, does not support gigabit ethernet connection, because "PoE" port use 4,5,7,8 pin as power transfer. Please do not connect any gigabit ethernet device on "PoE" port, orelse it will damage your device.

As a Injector, the "PoE" out port is an 802.3af, but it does NOT include the 802.3af compliant detection feature.  It supplies power NO MATTER WHAT, so don't plug the "PoE" side into anything that isn't ready for it.

When works as Injector,this"PoE" out port is compatible with all 802.3af devices as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....

Specification:

Model

PSI-348

Product Name

Simple POE Injector / Splitter

Data

PIN 1/2 & 3/6

Power

PIN 4/5+ & 7/8

Data in

Connects PC/HUB/Switch

Weight

60

Dimensions

75mm*28mm*21mm

Case of material

ABS 94V-0

Ethernet Data rate

10/100 Mbp

Ethernet Cable

TIA/EIA 568 Cat.5

Ethernet Cable Connector

RJ-45

Operating Temperature

0 - 40 Degree

Storage Temperature

-40 - 70 Degree

Operating Humidity

10% to 80% RH

Storage Humidity

5% to 90% RH

Package Included:

Passive PoE Injector Adapter x1
