ESP32 Development Board Wireless WiFi +Bluetooth-compatible ESP32 serial port to WiFi/dual antenna module/ESP32-S module

Code: TD-3256802912089213 71 orders
Free Shipping
$ 28.28 $ 29.5
Color: AS show
ESP32 Development Board Wireless WiFi +Bluetooth-compatible ESP32 serial port to WiFi/dual antenna module/ESP32-S module
Note

Quantity:
Other people want this. 17 people have this in their carts right now.
Brand Name:  Aubess
Certification:  CE
Origin:  CN(Origin)
Compatibility:  All Compatible

Description:

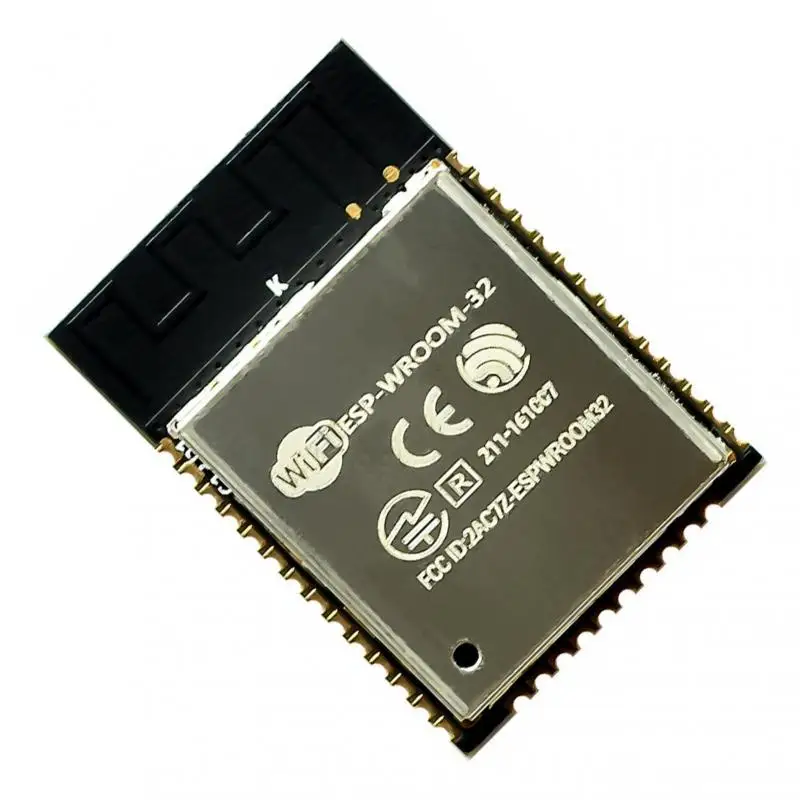

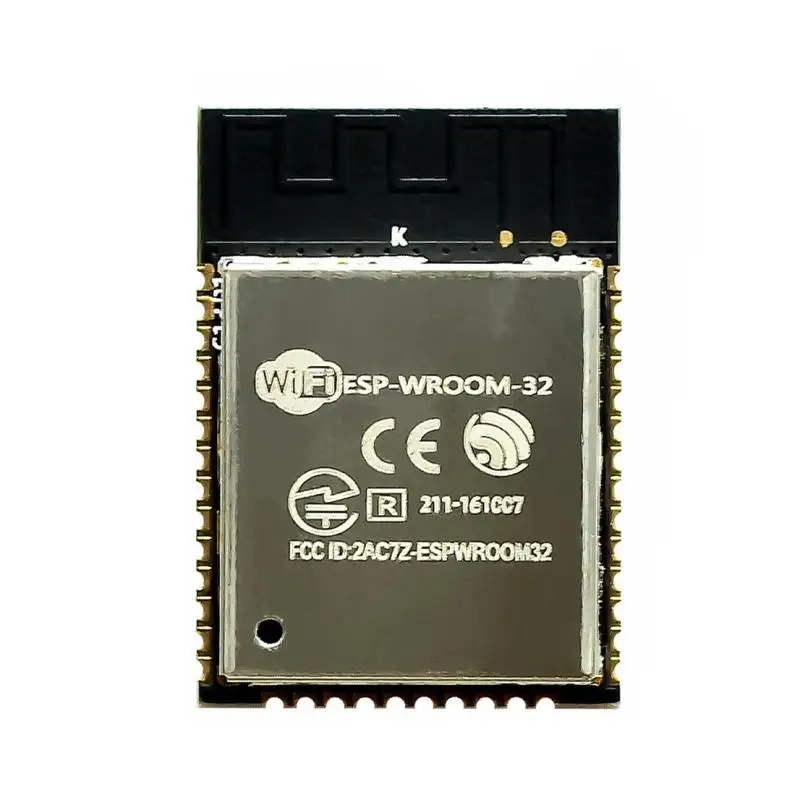

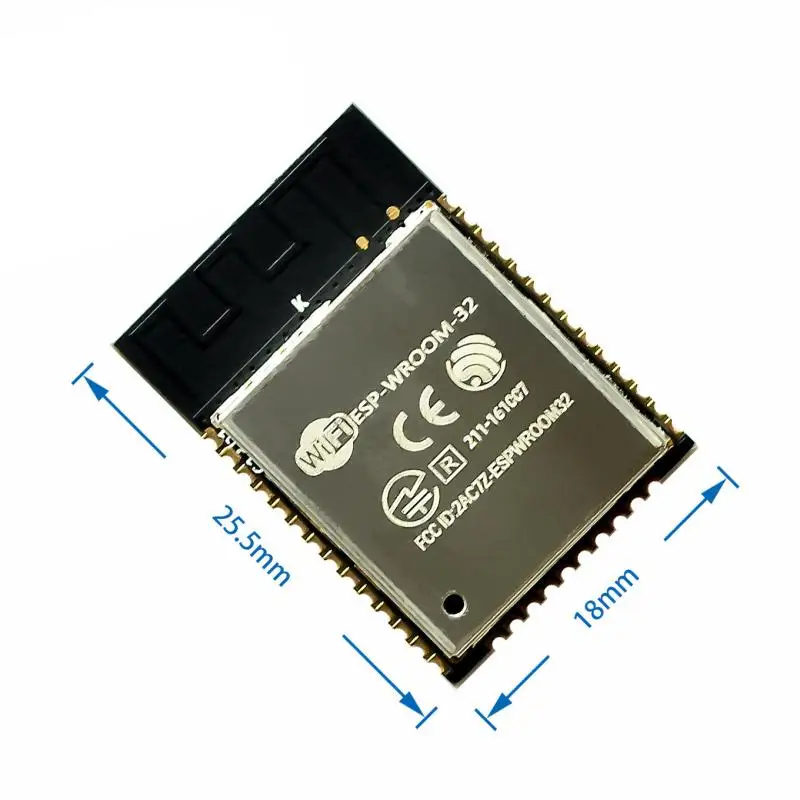

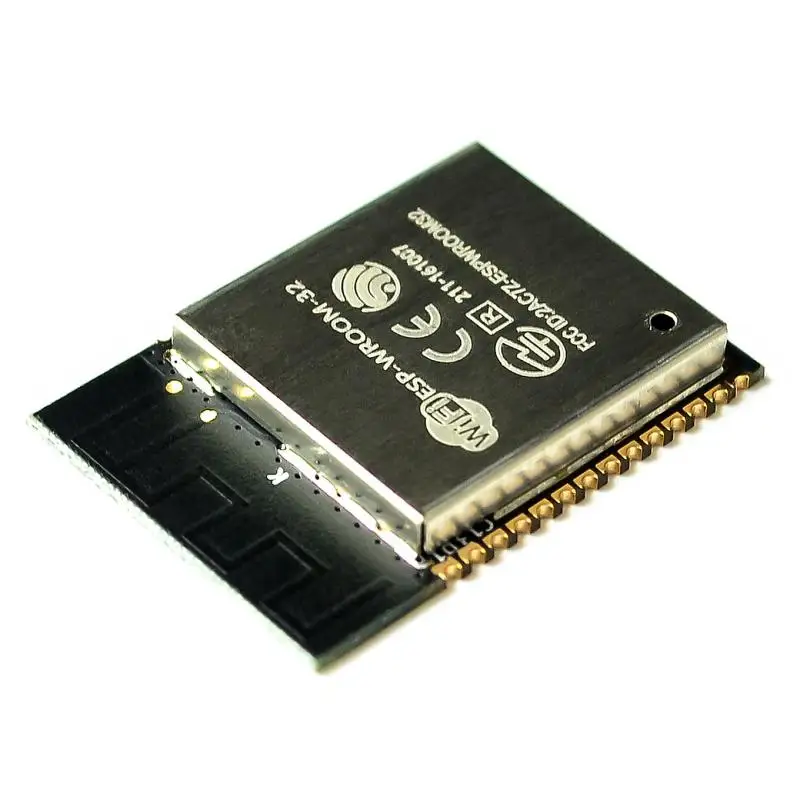

ESP32-WROOM-32 is a general-purpose Wi-Fi BT BLE MCU module with powerful functions and a wide range of uses. It can be used for low-power sensor networks and demanding tasks, such as voice coding, audio streaming, and MP3 Decoding etc.

The core of this module is the ESP32-D0WDQ6 chip*, which is scalable and adaptive. The two CPU cores can be controlled separately. clock

The frequency adjustment range is from 80 MHz to 240 MHz. The user can cut off the power of the CPU and use the low-power co-processor to continuously monitor the peripherals

The status change or whether some analog quantity exceeds the threshold. ESP32 also integrates a wealth of peripherals, including capacitive touch sensors, Hall sensors,

Low noise sensor amplifier, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S and I2C, etc.

The module integrates traditional Bluetooth, low-power Bluetooth and Wi-Fi, and has a wide range of uses: Wi-Fi supports a wide range of communication connections, and also supports

The router is directly connected to the Internet; while Bluetooth allows users to connect to mobile phones or broadcast BLE Beacon to facilitate signal detection. Sleep of the ESP32 chip

The current is less than 5 µA, making it suitable for battery-powered wearable electronic devices. The data transmission rate supported by the module is up to 150 Mbps, antenna output

The power reaches 20 dBm, which can achieve the widest range of wireless communication. Therefore, this module has industry-leading technical specifications,

Excellent performance in terms of transmission distance, power consumption, and network connectivity.

The operating system of ESP32 is freeRTOS with LwIP, and TLS 1.2 with hardware acceleration is built-in. The chip also supports OTA encryption

Upgrade, it is convenient for users to continue to upgrade after the product is released.

Specifications:

Test reliability: HTOL/HTSL/uHAST/TCT/ESD

Wi-Fi protocol: 802.11 b/g/n (802.11n, speed up to 150 Mbps)

A-MPDU and A-MSDU aggregation, support 0.4 µs guard interval

Frequency range 2.4 GHz ~ 2.5 GHz

Bluetooth protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards

Bluetooth radio: NZIF receiver with -97 dBm sensitivity, Class-1, Class-2 and Class-3 transmitters, AFH

Bluetooth audio: CVSD and SBC audio

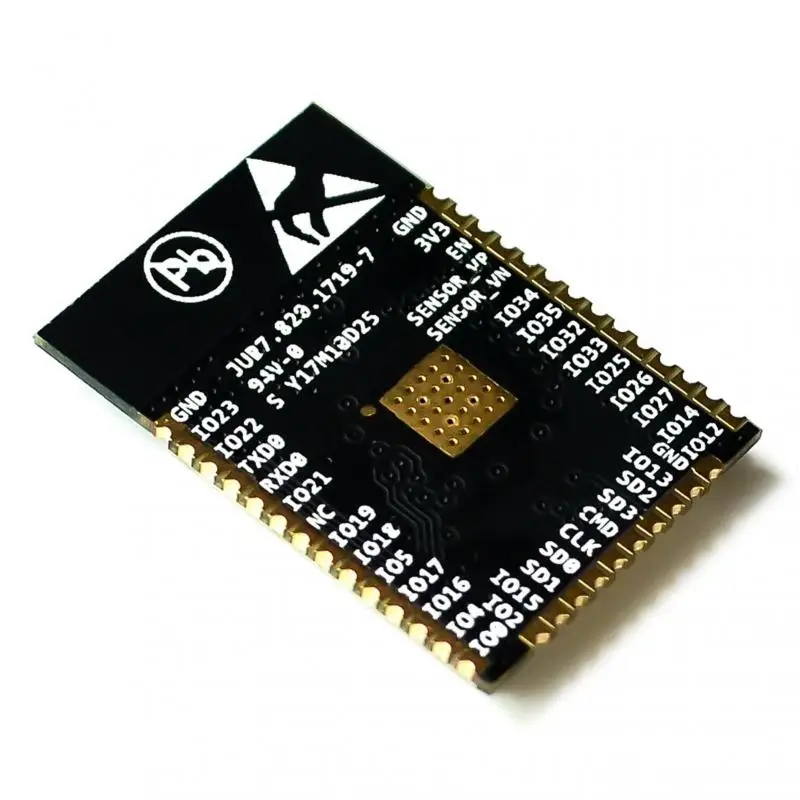

Module interface: SD card, UART, SPI, SDIO, I2C, LED PWM, motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, two-wire automotive interface (TWAI®, compatible with ISO11898- 1)

On-chip sensor: Hall sensor

Integrated SPI flash: 4 MB

Working voltage/supply voltage: 3.0 V ~ 3.6 V

Package Included:

1*module
