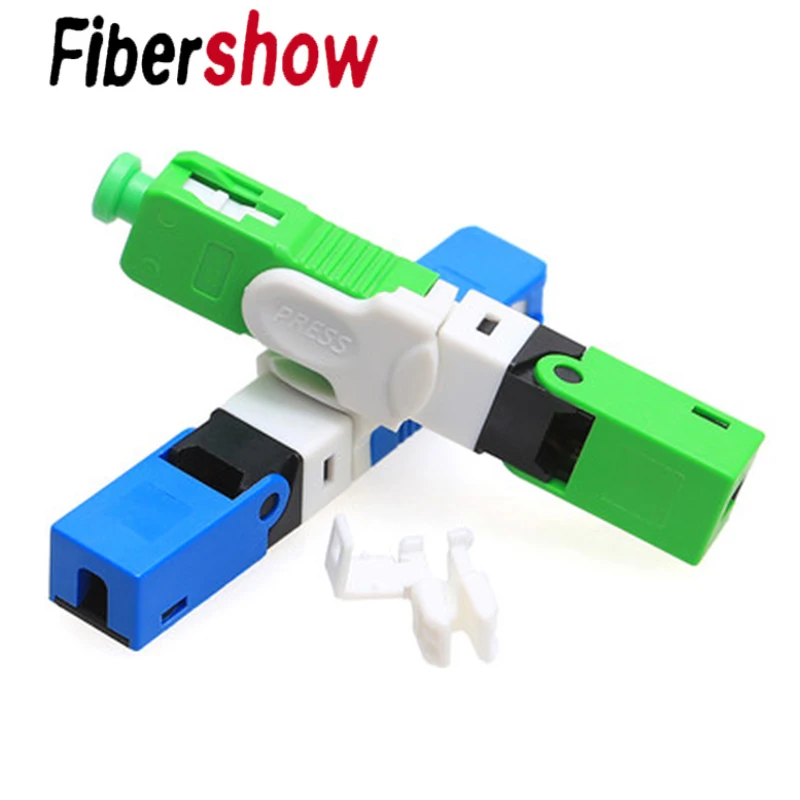

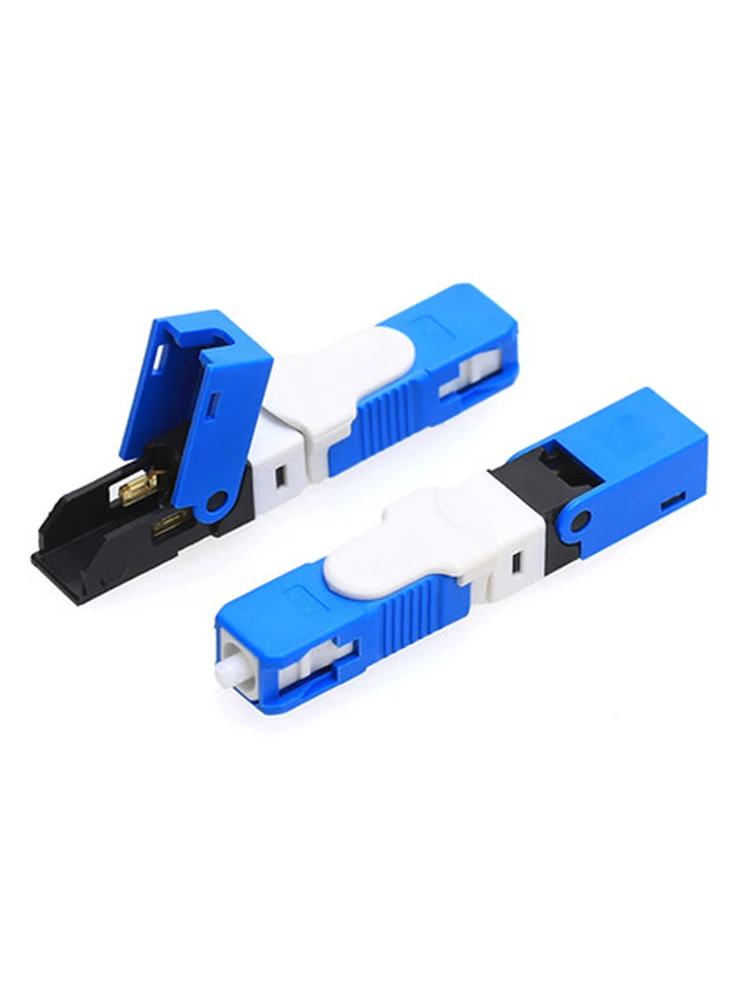

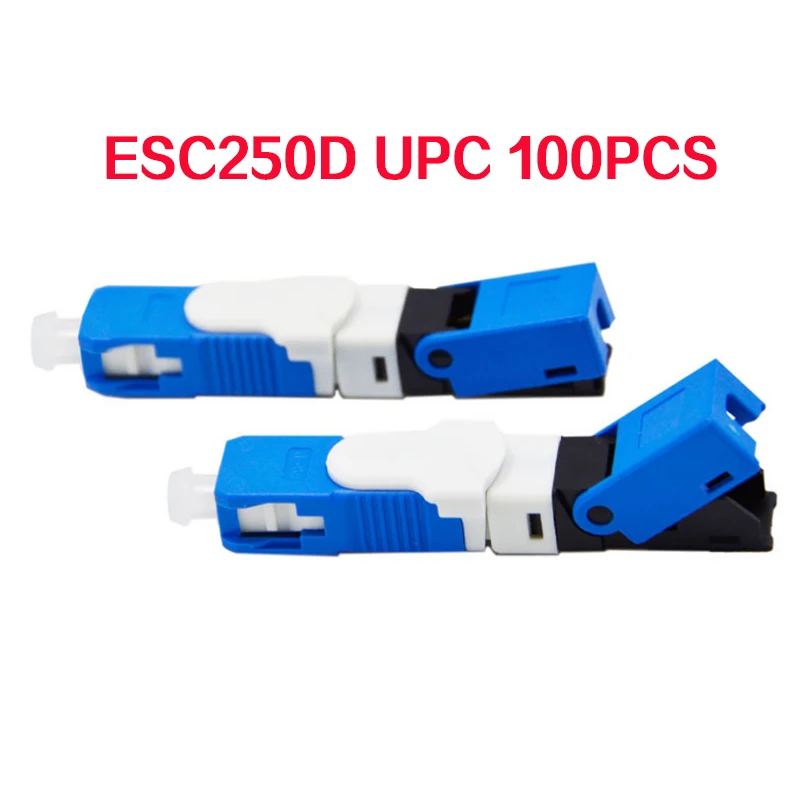

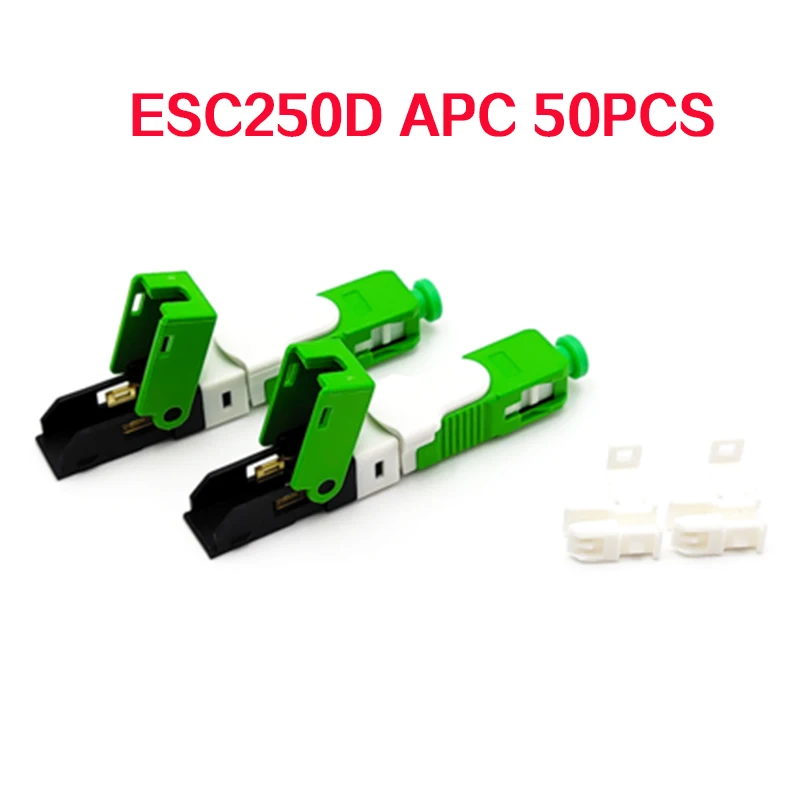

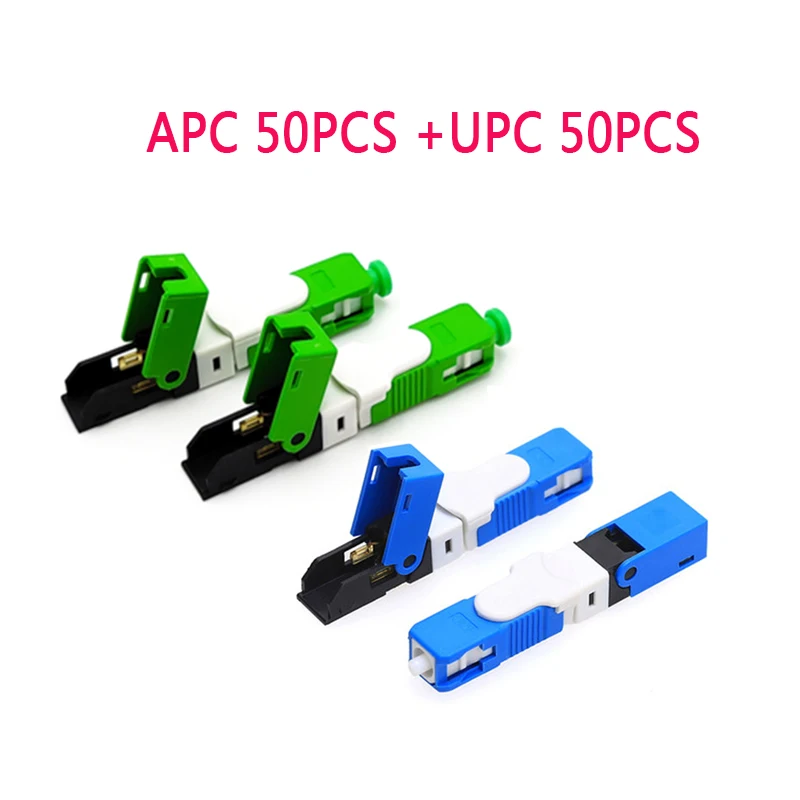

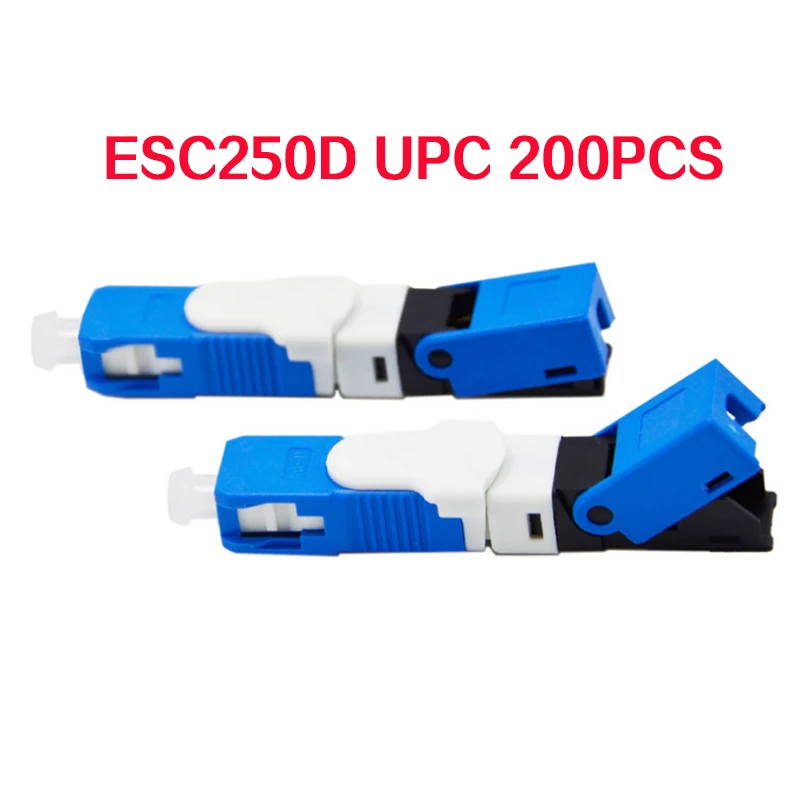

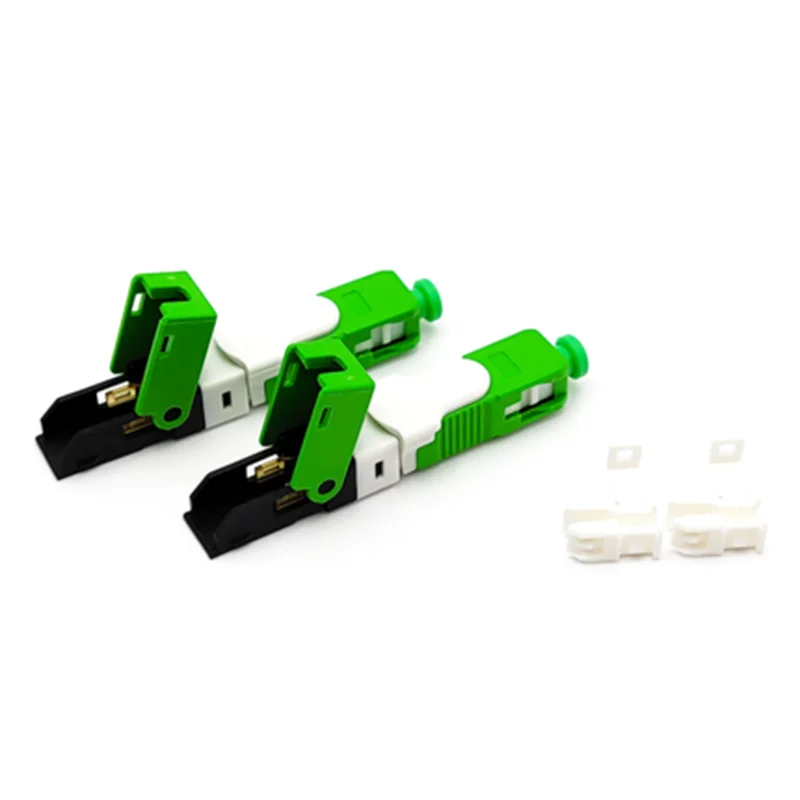

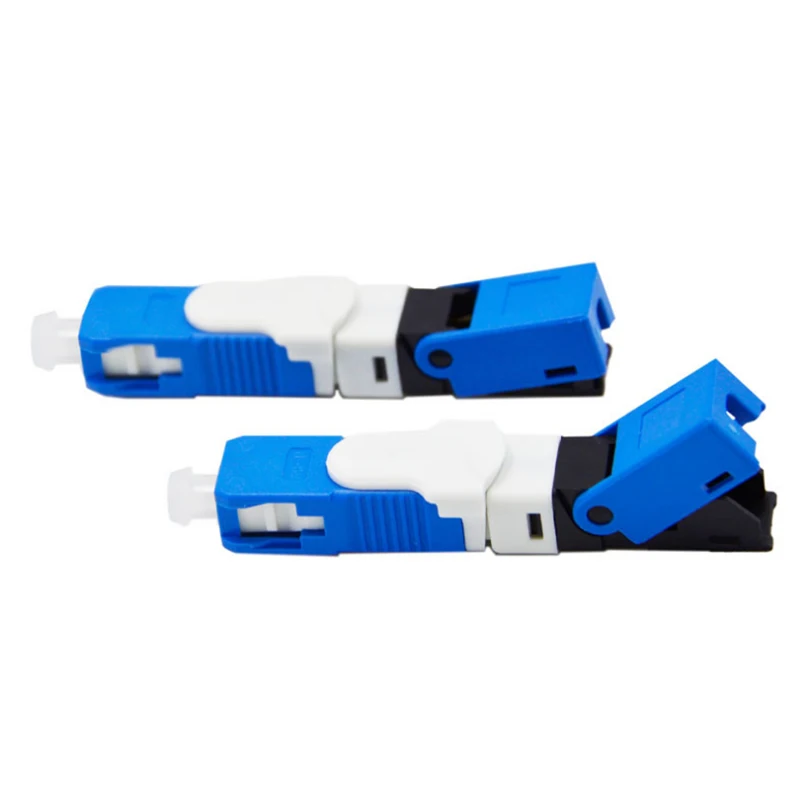

ESC250D FTTH SC UPC Optical fibe quick connector SC FTTH Fiber Optic Fast Connector Embedded ESC250P
Code: TD-3256802263616140
61 orders
Free Shipping
$ 188.25
$ 266.54
Other people want this. 7 people have this in their carts right now.
| Brand Name: | tapirapeco |
|---|---|
| Certification: | CE |
| Origin: | CN(Origin) |
| Item Length: | 30m |
| Compatible: | Dell Force10 |
| Compatible: | HP |
| Compatible: | IBM |
| Compatible: | H3C |
| Compatible: | Huawei |
| Fiber Type: | Single Mode |
| Connector Type: | Hybrid |
| Size: | 3*5*3 |
| Model Number: | JYD-LJ12 |
| Product Name: | SC Fiber Connector |
| Connector Type: | SC/UPC |
| Fiber Diameter: | 125um |
| Coating Diameter: | 250um |
| Insertion Loss: | 0.2dB (max. 0.5dB) |
| Return Loss: | Over 50dB |
| Service Time: | 10 years |
| Tensile Strength: | Over 30N |
| Assembly Repeatability: | 5 times |
| Installation Durability: | Over 500 times |
| Atmospheric Pressure: | 60kpa~160kpa |
| Operating Temperature: | -40 to 85 degree Celsius |
| Storage Temperature: | -40 to 85 degree Celsius |
Product Attributes
Field Assembly S
C/PC fast connectorfor FTTH
can provide a
quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
FEATURES
1.Low insertion loss, 0.2dB, 0.3dB, customer optional
2.High return loss, 40dB, 45dB, 50dB, customer optional
3.Reliable, durability over 500 times mating
4.Low environmental sensitivity, adopt to complex environment
5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .

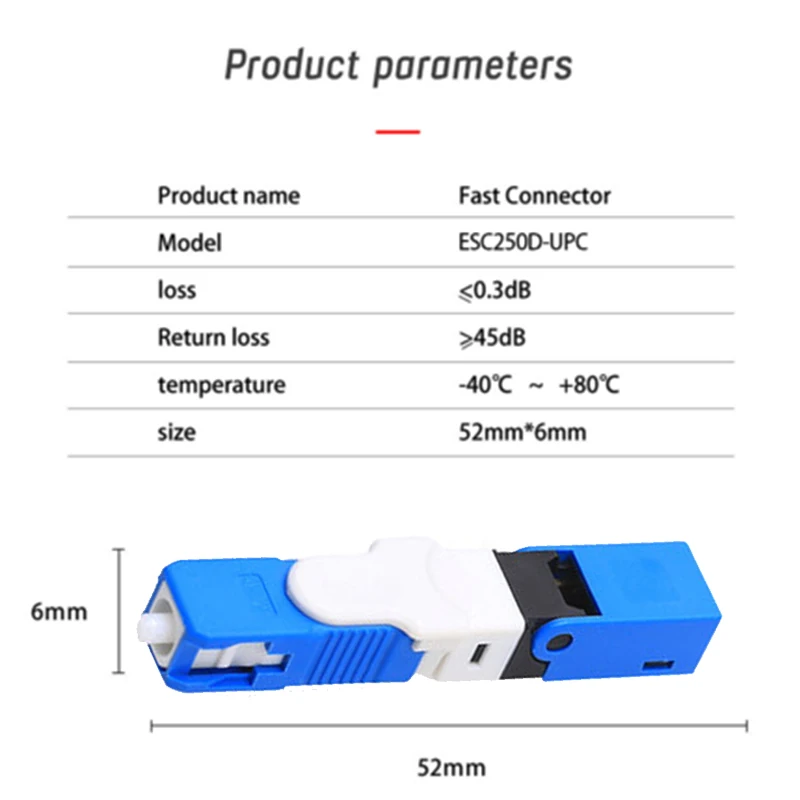

SPECIFICATION
Item
Paramete
Cable Scope
3.0 x 2.0 mm Bow-type Drop Cable
2.0/3.0 indoor cable
Fiber Diameter
125μm ( 652 & 657 )
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB
(
1310nm & 1550nm
)
Return Loss
≤ -40dB
Success Rate
>98%
Reusable Times
>10 times
Tighten Strength of Naked Fiber
>5 N
Tensile Strength
>50 N
Teperature
-40~+85℃
On-line Tensile Strength Test (20 N)
IL ≤ 0.3dB
Durabiltiy (500 times mating)
IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)
IL ≤ 0.3dB
