Elm-327 Obd2 Scanner Elm327 V1.5 Wifi OBD 2 Diagnostic-Scanner For Car iOS OBDII ELM 327 V 1.5 Code Readers Diagnostic Tools Cylinder Stethoscope Code Readers & Scanning Tools

Brand Name:	ylsfc
Origin:	CN(Origin)
Hardware Version:	ELM327 wifi V1.5 obd2
Special Features:	Wifi
Software Version:	elm 327 wi fi V2.1
Item Type:	Code Readers & Scan Tools
Certification:	CE
Language:	English
Language:	French
Language:	German
Language:	Russian
Language:	Spanish
Software Update:	No

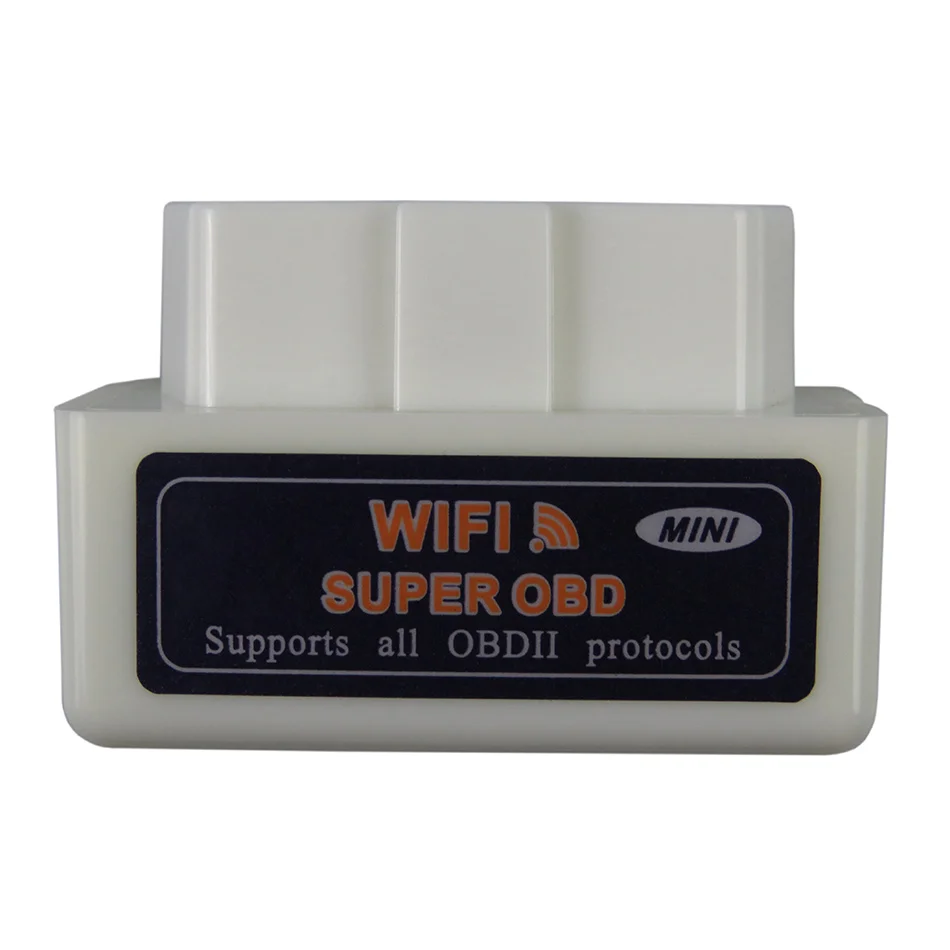

Name:	ELM327 Wifi Obd 2 Adapter
ELM327 VERSION:	ELM 327 V 1.5 Wi-fi
Version:	Elm327 V1.5 Wifi
HardWare Version:	Hardware V1.5 Wifi With PIC18F25K80 Chips
Features:	Cer Diagnostic Tools
Features:	OBDII Obd2 Scanner
Features1:	Obd2, Obdii, Obd 2
Elm327 wifi chip:	PIC1825K80 Chip

REAL PIC1825K80 Chip ELM 327 V1.5 OBD2 ELM327 WIFI OBDII Car Diagnostic Scanner for IOS

iPhone ELM-327 WI-FI  OBD 2 Adapter Auto Diagnostic Tools

Warm prompt:

1.

This one can't support for Diesel or Trucks

.

2.This device work on

Windows XP/Win7 32bits /Android And iOS.

3.Please close anti-virus programmer when install software, Otherwise the file will be attacked or delete.

About order if you have any problem ,please don't hesitate to contact us firstly, we will try best to solve for you. DO NOT Leave Negative feedback ,it can't be revised after you submit!

REAL PIC1825K80 Chip

ELM327 Wifi V1.5 Obd2 Adapter Description:

Works with most OBD-II compliant vehicles.

Works on most 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.

Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).

Clear trouble codes and turn off the MIL ("Check Engine" light).

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

How to see if your vehicle is comliant with OBD II?

Please pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION".

WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following

Wifi OBD VGATE Technical Specifications

SSID:CLKDevices

IP:192.168.0.10,

192.168.0.11,

192.168.0.12, 192.168.0.20

Subnet:255.255.255.0

Port:35000

Range:50 ft (Line of sight)

Antenna:Internal

Power Consumption:0.75 Watts (With Power Switch)

Wifi Standard:802.11a/b/g

Operating Temperature:-15 to 100 Deg Celsius

Plastic:Automotive Grade

Physical Dimensions:2.75 x 1.25 x 1.2 inches

ELM327 WIFI Operating Instructions:

Use iPhone, iPod, iPad connection:

Selected Wi-Fi

Check CLKDevices

Please set the iPhone, iPod, iPad to a fixed IP address: 192.168.0.12, 192.168.0.20 and so on.

Sub-domain network: 255.255.255.0

Transmission: 35000

Use computer connection:

Go to Console > Network Connections > Wireless Network Connections

Click [Content]

Internet Protocol (TCP / IP Protocol)

Check [Use the following IP address]

IP address: 192.168.0.12?

Sub-domain network: 255.255.255.0

Press [OK]

Check the status of the base station by [Computer Wireless] next to the time in the lower right corner of the screen.

Double click [CLKDevices]

Show [Connected]

Elm327 Wifi Obdii Car Diagnostic Scanner Features:

CLK is capable of communicating with vehicles which adopt following protocols:

ISO9141

ISO11898(aka. CAN)ISO11898(aka. CAN)ISO11898(aka. CAN)ISO11898(aka. CAN)

ISO14230(aka. KWP2000)

ISO15765(aka. CAN)

SAE J1939SAE J1939

Super Mini Elm327 Wi-fi Car Diagnostic-Tool Function:

Vehicle Speed

RPMRPMRPMRPM

Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*Fuel Consumption*

Engine Coolant TempEngine Coolant TempEngine Coolant TempEngine Coolant Temp

Fuel PressureFuel PressureFuel PressureFuel PressureFuel PressureFuel PressureFuel PressureFuel Pressure

Calculated Engine LoadCalculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor PressureEVAP System Vapor Pressure

Fuel Trim

Elm327 Wi-fi Compatible Software:

Window version:ScanMaster-ELM,ScanTool.net,PCMSCAN;

Android version:Torque,DashCommand, EOBD;

IOS version:OBD car Doctor,EOBD;IOS version:OBD car Doctor,EOBD;

Symbian version:OBDScope.

MINI Elm327 Wifi Auto Scan Tool Package:

1 x ELM327 WiFi Wireless OBD2 Interface

Note:Your car may not support all of the above parameters. How many parameters you can get depends on

the vehicle manufacturer's implementation.
