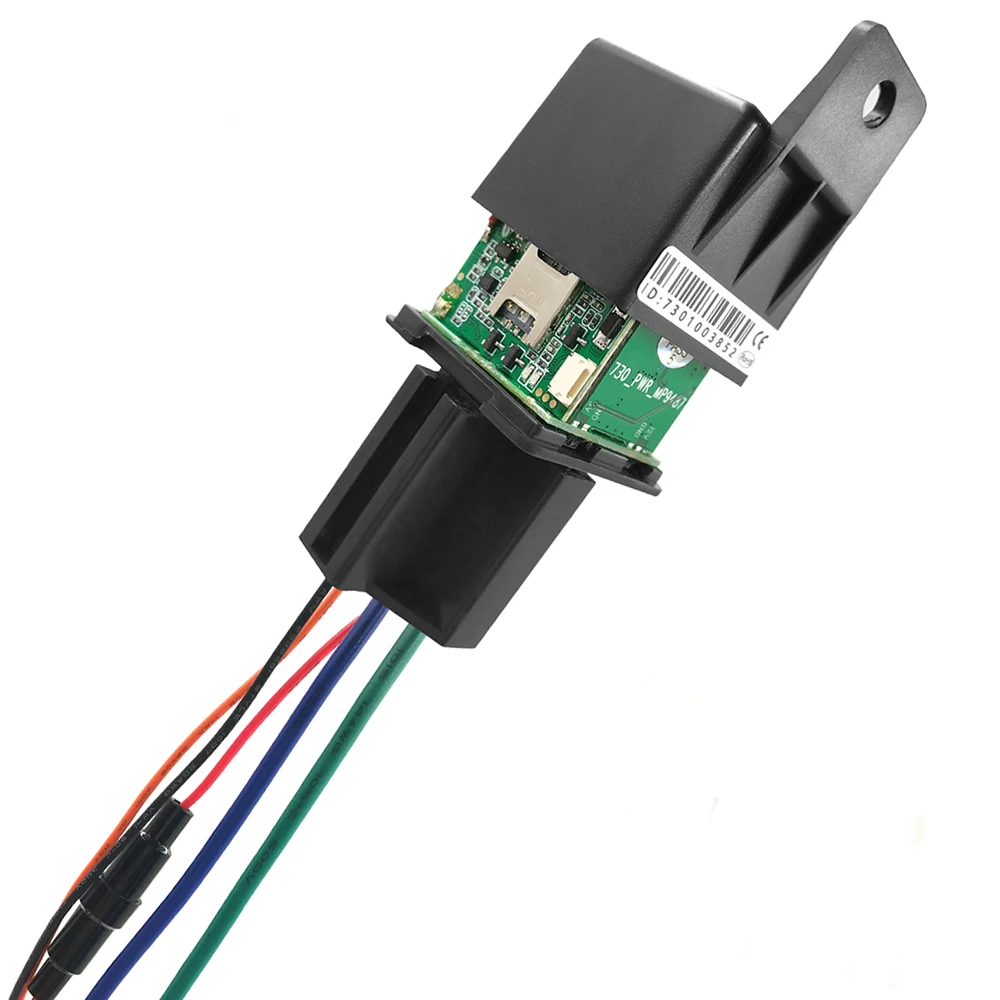

Electric Vehicle Moto Car Relay GPS Tracker Cut Oil Towed Away ACC SMS Call Alarm 4G 95V Security Protection Locator CJ730 Plus gps location tracker GPS Trackers

Brand Name:	Universal Hawk
Origin:	CN(Origin)
Voltage:	12V
Battery Life:	1 To 4 Hours
Item Size:	36*36*16 mm
Special Feature:	waterproof
GPS type:	GPS Tracker
Model Name:	CJ720 CJ730 CJ740 CJ730Plus
Screen Size:	No Screen
Gps Module:	Yes
Out Power:	n/a
Certification:	CE
Certification:	RoHS
4G Band:	1, 3, 5, 7,8, 20,66,38,39,40,41
Battery:	Support 30 minutes, power off alarm
2G Band:	850/900/1800/1900Mhz
Satellite:	GPS GLONASS BDS GALILEO QZSS
Application:	Car, taxi, van, school bus, police car, ship, large animal, cow
Accuracy:	5m
Cut off oil:	Control fuel pump line

          CJ730 Plus New version April 2022

      Voltage range upgrade:

9V-95V

 Increased applicable vehicle range

       Fuel pump power line voltage:5V-30V ,

       Fuel pump power line Current: Max 60 amps (normally 20 amps).

4G band selection:

FDD-LTE Bands

1, 3, 5, 7,8, 20,66,38,39,40,41

Quad-Band GSM: 900, 1800

Dual IP/Dual Protocol

GPS multi-mode positioning:

Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite)

navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan

And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously.

Receive GNSS signals from six satellite navigation systems and realize joint positioning.

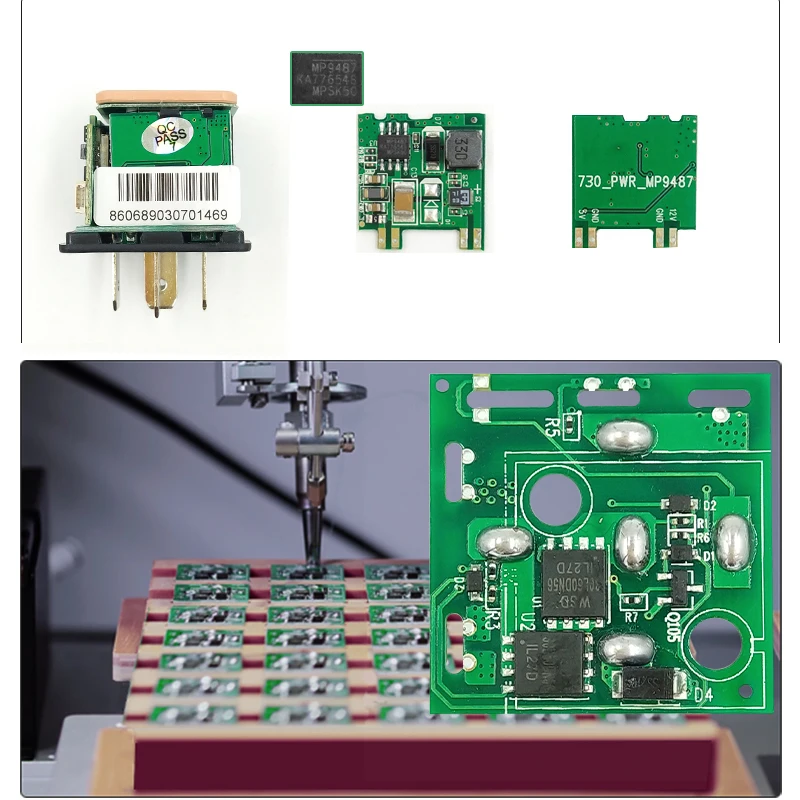

Robotic arm automatic welding

Patented manufacturer updates standard products

without LOGO

Easy to distinguish from other brand dealers

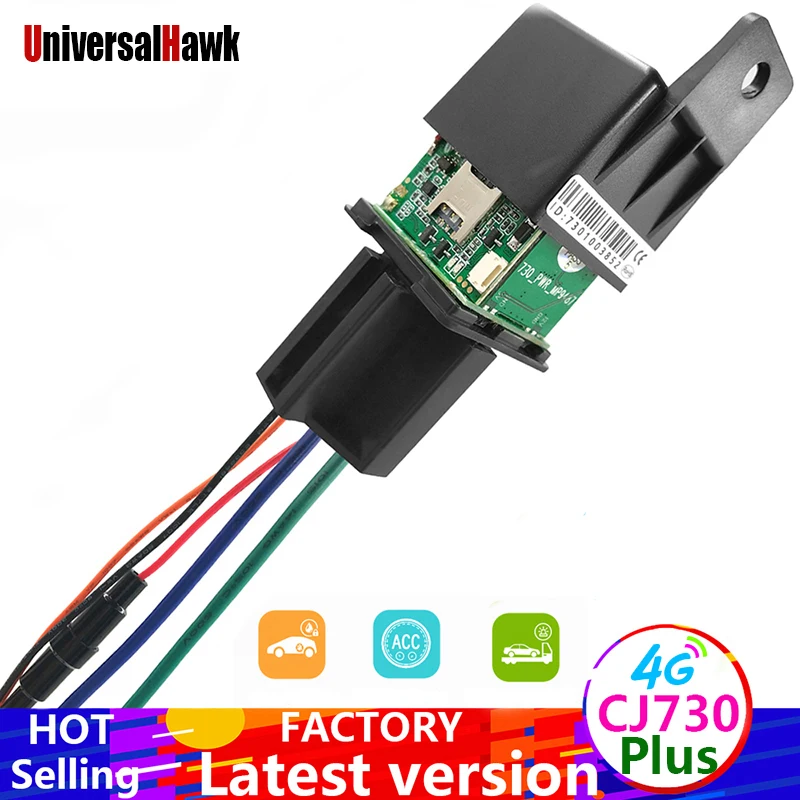

CJ730 Plus

Fuel cut function installation method 2: Link fuel relay

Intelligent anti-theft system

Car start, automaticallycancel the anti-theft mode; stop the fire, the positioner

automatically enters the anti-t

heft mode

Multiple location tracking—

24 hour upload

Beidou+GPS+LBS multi-mode positioning system makes the acquired position

information more accurate and reliable, and rejects all errors;

Electric fence

Set the security zone. When the car enters or leaves the security zone, the mobile

phone will receive the reminder at the first time. You can keep track of the car dynamics

without opening the app.

Historical track—

180 days

Free storage of the cloud, recording the car's 180-day driving trajectory throughout the

day, in case of special circumstances, do not worry, the phone can be seen

anytime, anywhere, it is so capricious.

Vehicle vibration alarm

When the car is stationary, the positioner automatically enters the fortified state. When the car is moved or bumped, the positioner will immediately send an alarm message to the owner (sms, phone, APP, multiple alarm prompts)

Equipment removal alarm

The device is equipped with a sensitive sensor, and when the device is removed

or destroyed, the owner will immediately receive an alarm message.

How to use

CJ720 uses video introduction

https://www.youtube.com/watch?v=AhrsDzZnNiQ&feature=youtu.be

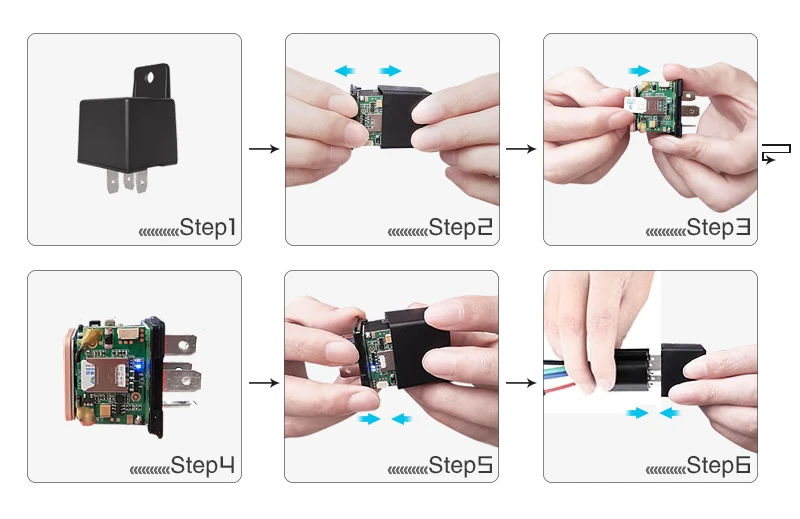

1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up、(blue light flashes, green light flashes,)

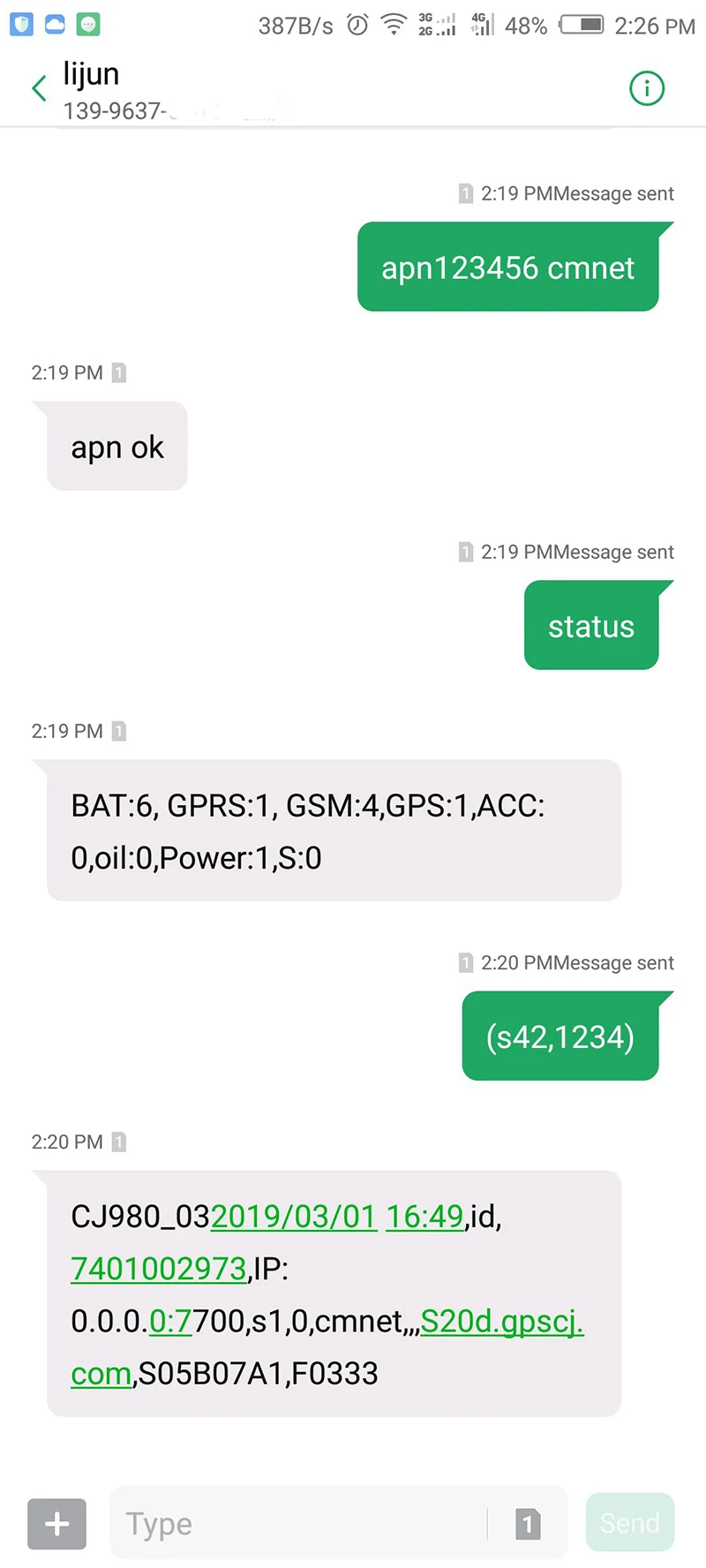

2.Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）

3. Set admin number by sending a SMS command to the SIM card inside device

For example: admin123456+86186******(+86186*****should be youe phone number)

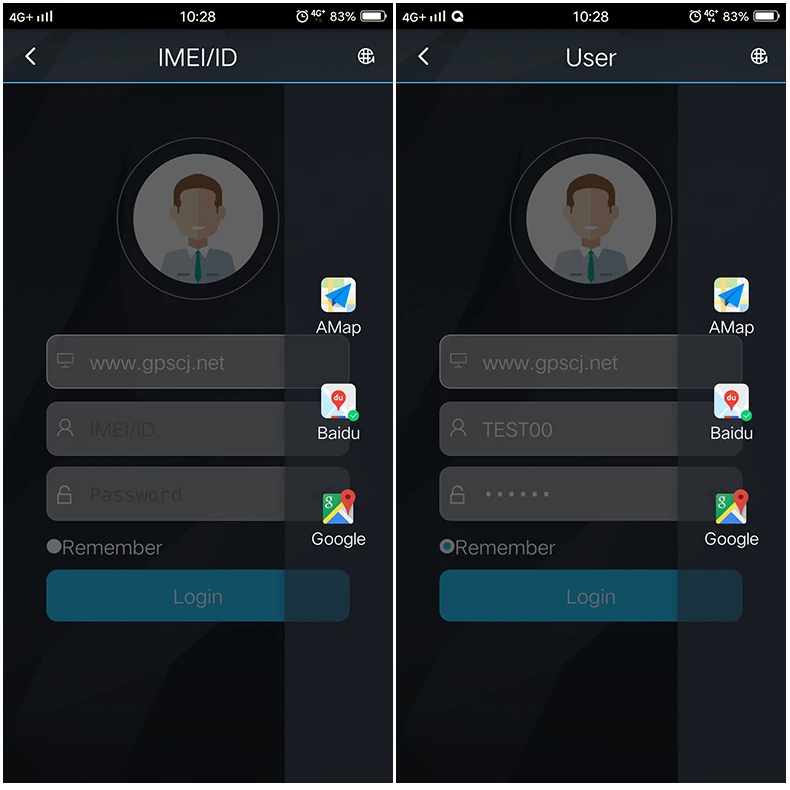

APP

Google store （

Yuntrack

）

APP

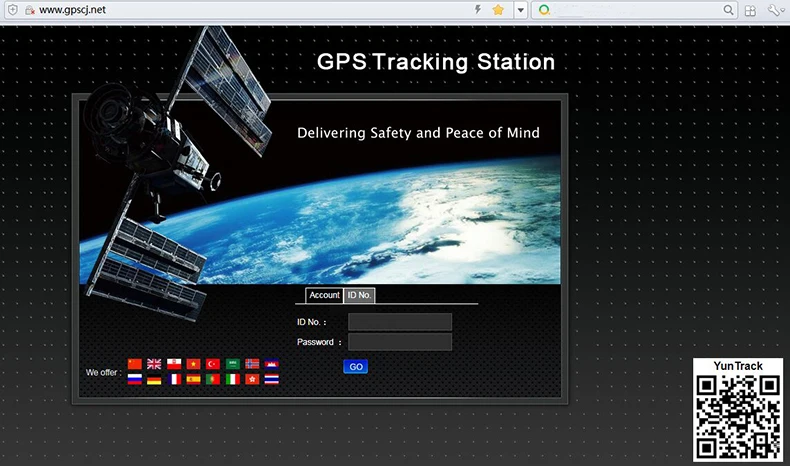

PC website login

Dealer account

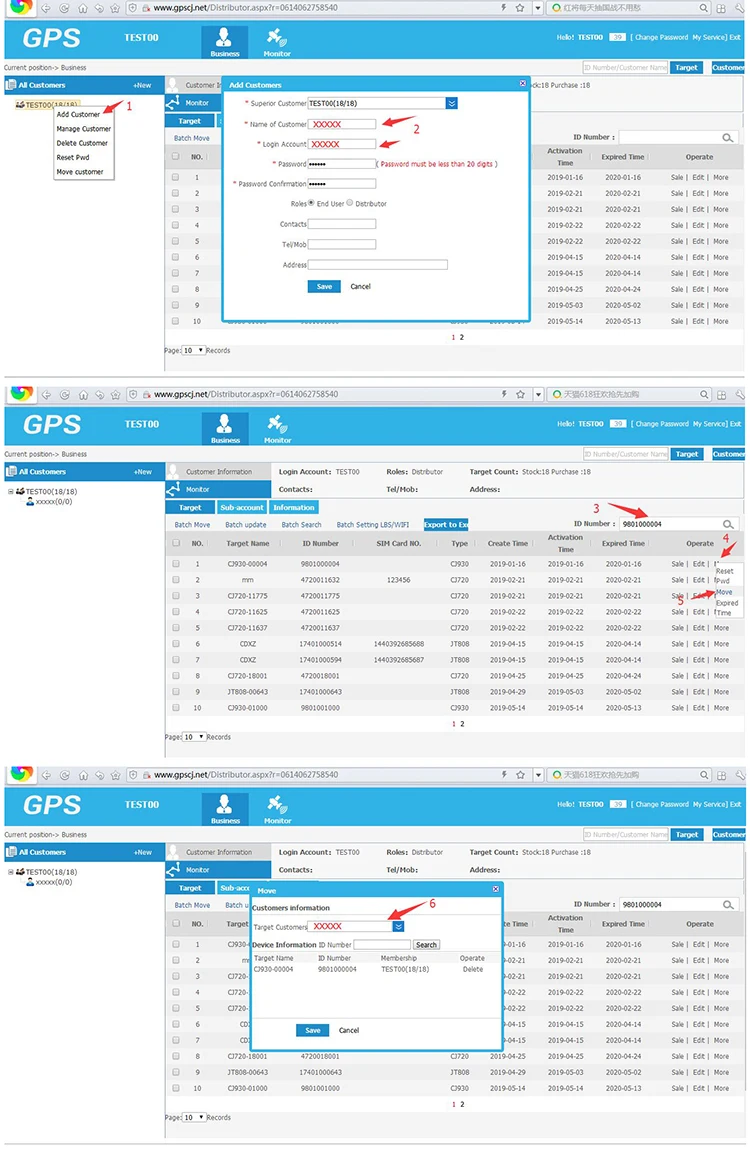

Add new user guidance:

APP

Cut off oil

instruction：

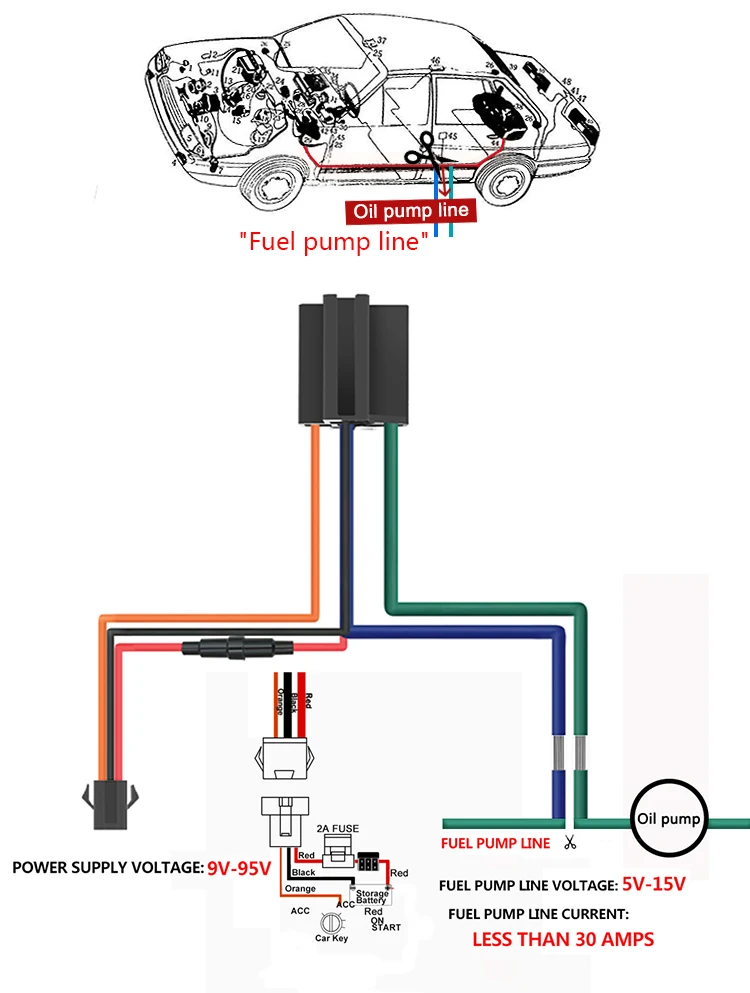

Wiring method 1:

Special Note:

Oil pump(

fuel pump

) line search

Need professionals.

Or auto mechanic repair shop to help find.

Power supply, fuel cut control line

(1) The standard power supply of this equipment is 9V-95VDC, the red line is the positive pole of the power supply, and the yellow (black) is the negative pole of the power supply; when installing the negative pole of the power supply, please select the grounding or grounding separately, and do not share with other ground lines;

(2) The oil cutoff control line (green/blue line) is connected to the oil pump(

fuel pump

) line.

3. The voltage of the fuel pump line is: 5-15V. The current range is less than 30A.

Wiring method 2:

This method requires professionals to install and operate:

1. Locate the fuel relay.

2. Inside the fuel relay socket:

Fuel relay coil:

(The current range is generally 100-200 mA, which is safer, more applicable models, and safer equipment)

3. Cut: (

fuel relay coil

) voltage input line

The blue and green lines of the GPS device are respectively connected to the extension line of the (

fuel relay coil

) voltage input line.

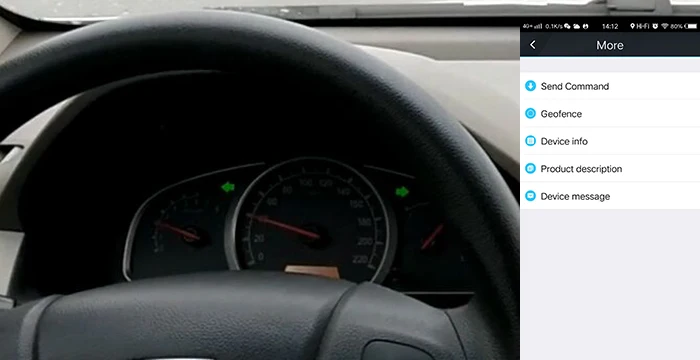

Send Command

Cut off Oil

(The car can't be started, it can only start normally after it needs Restore Oil, and the speed is 60KM/H Cut off Oil - it can go out normally after about 2 minutes.)

GPS and Russian GLONASS dual-mode positioning

◆ Real-time tracking  ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert  ◆ Geo-fence
◆ History Route ◆

Cut and resume

Fuel Pump

remotely

◆ AGPS locating

Functions and Product parameters （

Relay GPS Tracker

CJ720/Off petrol and electricity）

Terminal size : 31x 31x 57mm

Weight:50g

Backup Battery：3.7V 100mAh

Network: GSM/GPRS

Network Band:

850/900/1800/1900Mhz

GPS module: MTK2503

GPS sensitivity: -159dBm

GPS position accuracy: 10m

First positioning time: Cold start 45-120 seconds

Warm start: 35 seconds

Hot start : 1 second

Operating voltage: 10-50V input

Battery : Built-in lithium battery 3.7V 110mAh

Storage temperature: -40°C to +85°C

Operating temperature: -20°C to +55°C

Humidity :5% - 95% Non-solidified

LED Indicator Definition

Green Indicator：GPRS

Status of indicator

Meaning

Flash

GSM/GPRS conversation start

Continuously in bright status

No GPRS signal

Green Led off

Power off or in sleep mode

Status of indicator

Meaning

Flash

GPS location successful

Continuously in bright status

GPS signal searching

Blue led off

Power off or in sleep mode

Status of indicator

Meaning

Continuously in bright status

charging

Red led off

Power off or charged full

More Commands

Function

Command Format

Reply

Delete

for example

APN

apn+123456+space+content

apn ok

apn123456 cmnet

apnuser+123456+space+content

apnuser ok

apnpasswd+123456+space+content

apnpasswd ok

admin number

admin123456+space+admin phone number

admin ok

noadmin123456

admin123456 186********

time zone

timezone+123456+space+GMT No.

timezone ok

timezone123456 +1

Power save(default)

sleep123456 time

sleep time ok

shock sleep

sleep123456 shock

sleep shock ok

no sleep

sleep123456 off

sleep off ok

upload frequency

upload123456+space+time

upload ok

upload123456 10

Cut and resume oil

555

Cut oil OK

666

Arm&Disarm

111 or SF

Arm delay in 0s

000 or CF

Position

G123456# or where

Google map

Restart

rst

restart ok

Back to factory

format

No reply

Faults & The solutions

Q：Start up Fail?

A：Check the cable connect right or not.

Q：The device can not obtain location information?

A：Place the unit at the open area to test.

Q：How to choose SIM card?

A: the SIM card must support GSM&GPRS，and ensure that the

card has enough currency and credit.

Q: How to use in the foreign countries?

A：please set the APN before use，please edit the text “APN123456

CMNET “ and send it to the SIM card of the device，CMNET is

Chinese operator’s APN, Replace the corresponding APN when

use in other countries, APN details, please consult your local SIM

card carrier.

Cautions

Please comply with the instructions to extend the unit life:

1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or

damage the inside circuitry.

2. Don’t use & store the unit in dusty places.

3. Don’t put the unit in overheated or over cooled places.

4. Handle carefully. Don’t vibrate or shake it violently.

5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals,

detergent.

6. Don’t paint the unit, this may cause some foreign materials left in

between the parts.

7. Don’t disassemble or refit the unit.

8. Please use the battery and charger provided by manufacturer.

Using other batteries and chargers will cause unwanted situation
