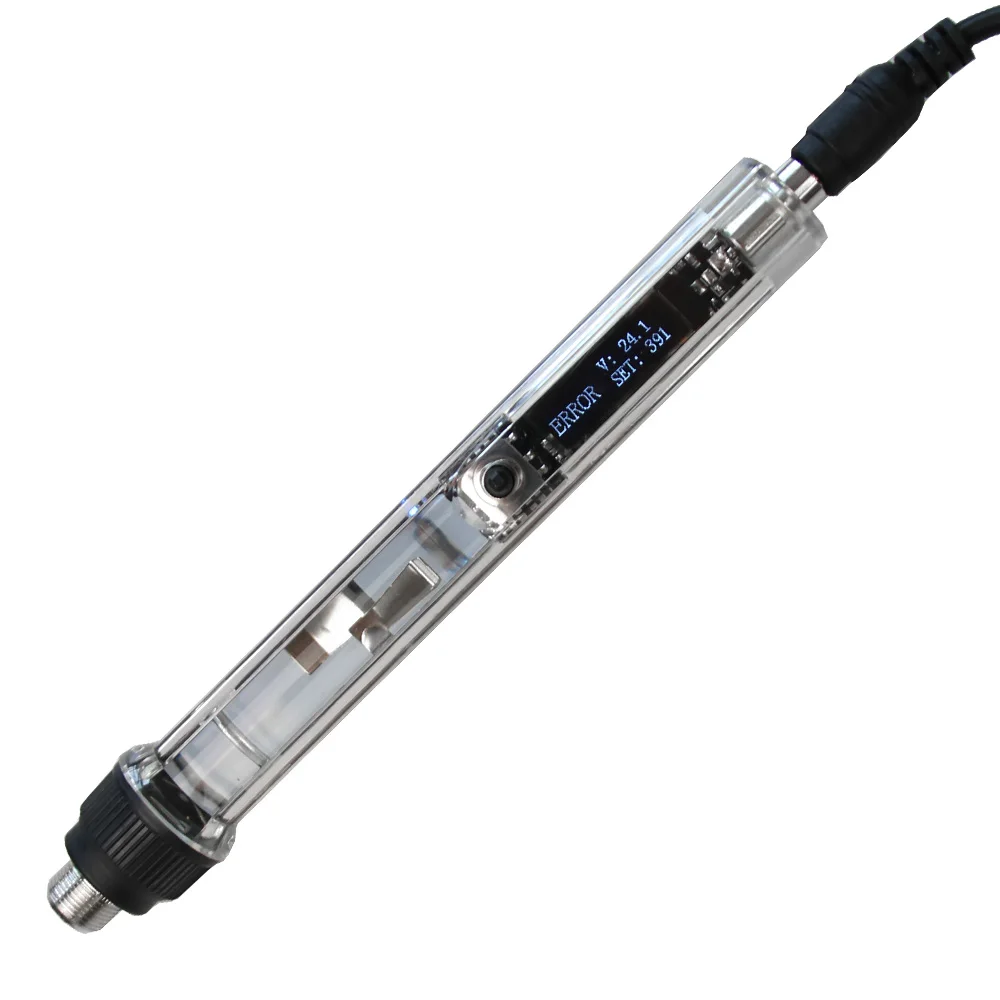

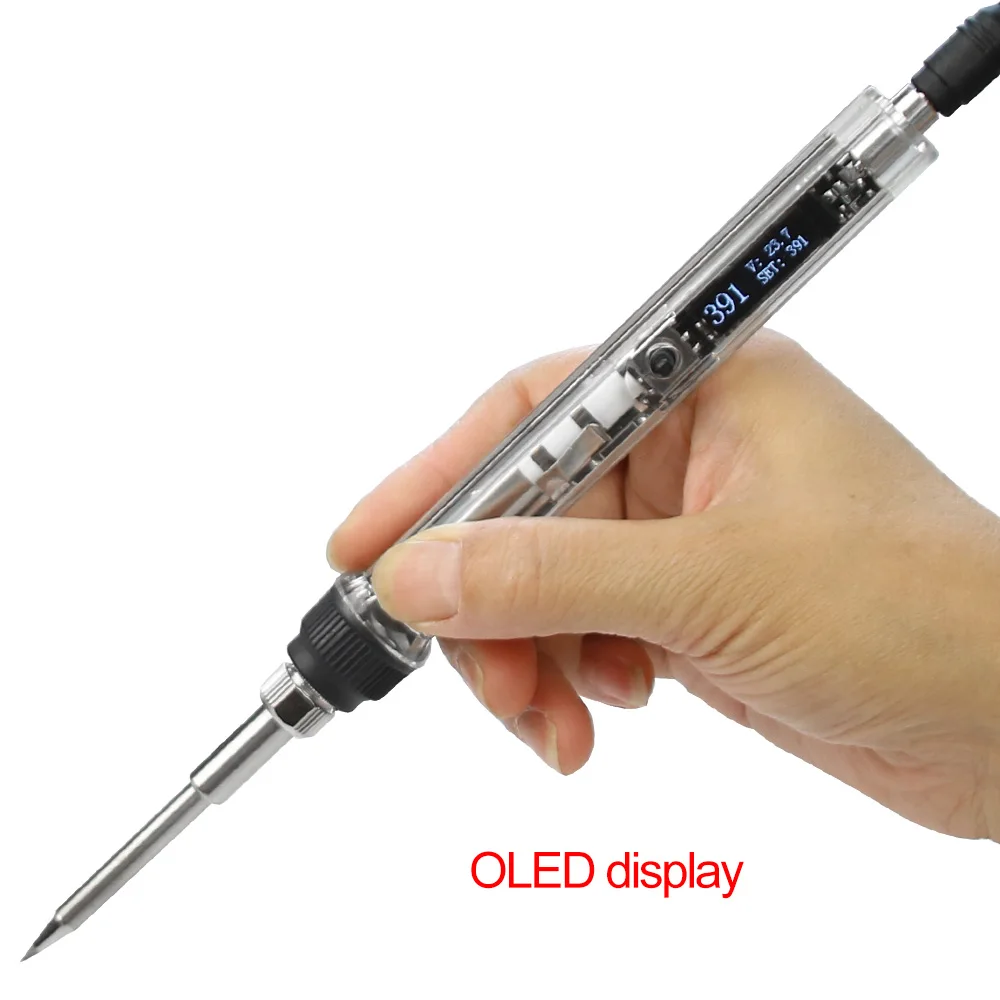

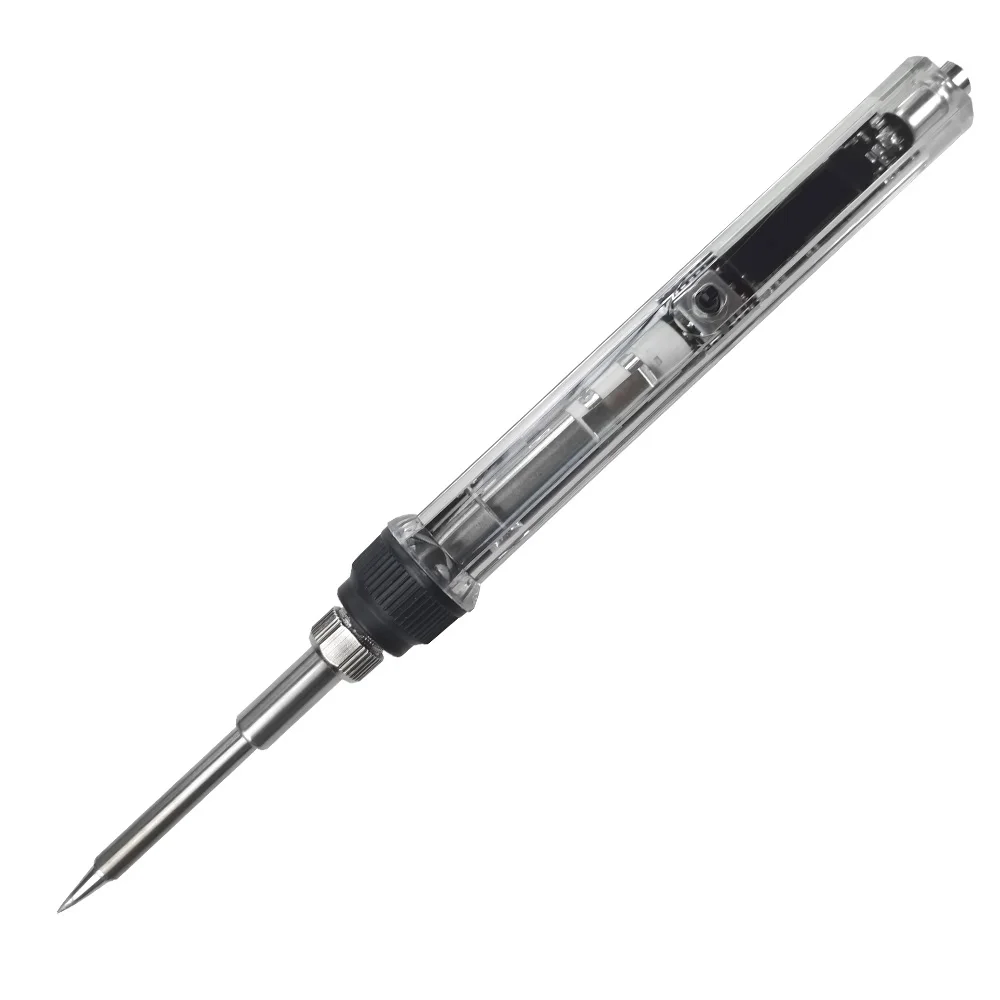

electric soldering iron kit DC 12-24V 72W T12 Mini electric soldering iron adjustable temperature With OLED digital display Transparent plastic shell handle electric solder Welding Equipment

This solder iron doesn't included DC power adpater

.pls prepare power supply by yourself or buy one adpater from my store .

if your want power supply you can order below link:

https://www.aliexpress.com/item/32857516798.html

If chose:

If you choose with BC2 tip,The standard tip is T12-BC2 tip,you can also left message for me if you want to change other T12 tip!

if you want other tip in the following photo,you can left the message for me!We will change that to send that for you

If you want more extratips,you can click into the following photo!

The types are below(Total 31pcs choose):

T12-K,T12-B,T12-B2,T12-BL,T12-BC1,T12-BC1.5,T12-BC2,T12-BC3,T12-C1,T12-C4,T12-CF4,T12-D12,T12-D16,T12-D24,T12-D4,T12-D52,T12-DL32,T12-J02,T12-JL02,T12-KU,T12-KR,T12-KL,T12-I,T12-IL,T12-ILS,T12-BCF1,T12-BCF2,T12-BCF3,T12-D08,T12-JS02,

Temperature range 150-450, non-accurate range

This product has tool attributes, low price and high cost performance

The product can be fuzzy temperature adjustment, constant temperature, support sleep function (inverted and immediately enter sleep)

This product does not support precision temperature adjustment, and the tool attributes have full marks, which is fully qualified for daily work needs.

Support 12-24v interval power supply, recommend 24v3A power supply, or battery power supply.

Reverse connection protection is not supported,

Menu instructions:

Press the knob to enter menu, it will shows 7 options:

ACT: calibration

(

Note: Before calibration, the value after calibration must be set to 0

)

HSL: brightness

brightness adjustable range is 2-100 , 2 is darkest, 100 is the brightest

DMH: sleep

when screen is "DMH ON 5" ,

It means that if the operator does not use the soldering iron for 5 seconds(

automatically detect the use status of the soldering iron

), the soldering iron will stop heating, and it will start heating again after picking it up.

It means that the soldering iron will always be in working condition, and the automatic detection function is turned off.

LED: always on display

It means that after 5 seconds of no key operation, the screen will be off, and when the key is operated again, the screen will light up again.

when screen is "LED OFF", It means the screen will stay on

LVF: power

This option indicates whether the power supply is stable. If the power supply is unstable, you can adjust the value appropriately. If the main menu shows insufficient power, it is recommended to replace the power supply

LAG: language

RTN: return

Return to main interface

if you want other tip in the following photo,you can left the message for me!We will change that to send that for you.

The types are below(Total 31 pcs choose):

T12-K,T12-B,T12-B2,T12-BL,T12-BC1,T12-BC1.5,T12-BC2,T12-BC3,T12-C1,T12-C4,T12-CF4,T12-D12,T12-D16,T12-D24,T12-D4,T12-D52,T12-DL32,T12-J02,T12-JL02,T12-KU,T12-KR,T12-KL,T12-I,T12-IL,T12-ILS,T12-BCF1,T12-BCF2,T12-BCF3,T12-D08,T12-JS02
