EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna

Code: TD-3256801884087300 93 orders
Free Shipping
$ 124.94
Color:
EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna
EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna
EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna
EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna
EDUP 8W 2.4GHz WiFi Power Amplifier 5GHz 5W Signal Booster Wireless Range Repeater for Wi-Fi Router Accessories Antenna
Note

Quantity:
Other people want this. 11 people have this in their carts right now.
Brand Name:  EDUP
With Modem Function:  No
Origin:  CN(Origin)
Type:  wireless
WAN Ports:  1 x10/100/1000Mbps
Wi-Fi Supported Frequency:  2.4G
5G Wi-Fi Transmission Rate:  None
2.4G Wi-Fi Transmission Rate:  300 Mbps
Function:  Firewall
Certification:  NONE
Number of USB Interfaces:  None
Max. LAN Data Rate:  300Mbps
Standards And Protocols:  Wi-Fi 802.11b
Standards And Protocols:  Wi-Fi 802.11n
Standards And Protocols:  Wi-Fi 802.11g
Wi-Fi Transmission Standard:  802.11n
Wired Transfer Rate:  None
Package:  Yes
Model Number:  EP-AB001/3/7/11
Supports WDS:  No
LAN Ports:  0
Supports WPS:  No
Application:  home
Antenna:  6dbi
Connect line:  20cm
Input power range:  3-20dBm
Max. LAN Data Rate:  300Mbs
Output power:  8W
Power:  8W
Receive gain:  10-12dBi
Transmit gain:  16-18dBi

Note:

Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router

Please comfirm that you device output power range is between 3dBm and 20dBm,only that the wifi signal booster could work well.

1.NO Power 2.4Ghz:

Frequency:2.4Ghz

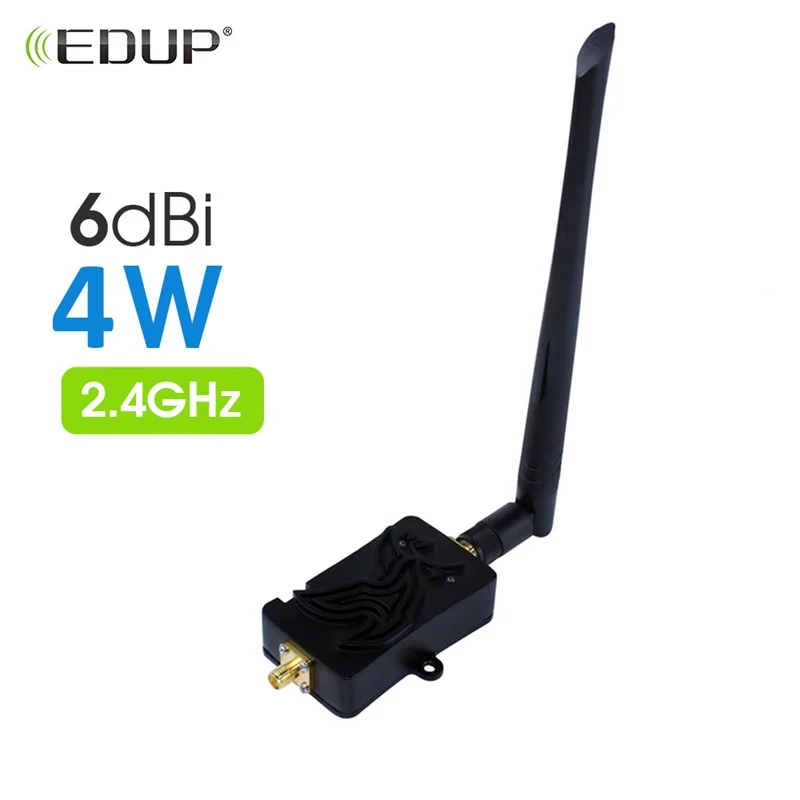

2. Wifi 4W 2.4Hz:

Frequency Range: 2400-2500 MHz

Receiver Gain: 9-11dBm

Transmit Gain: 12-14dBm nominal

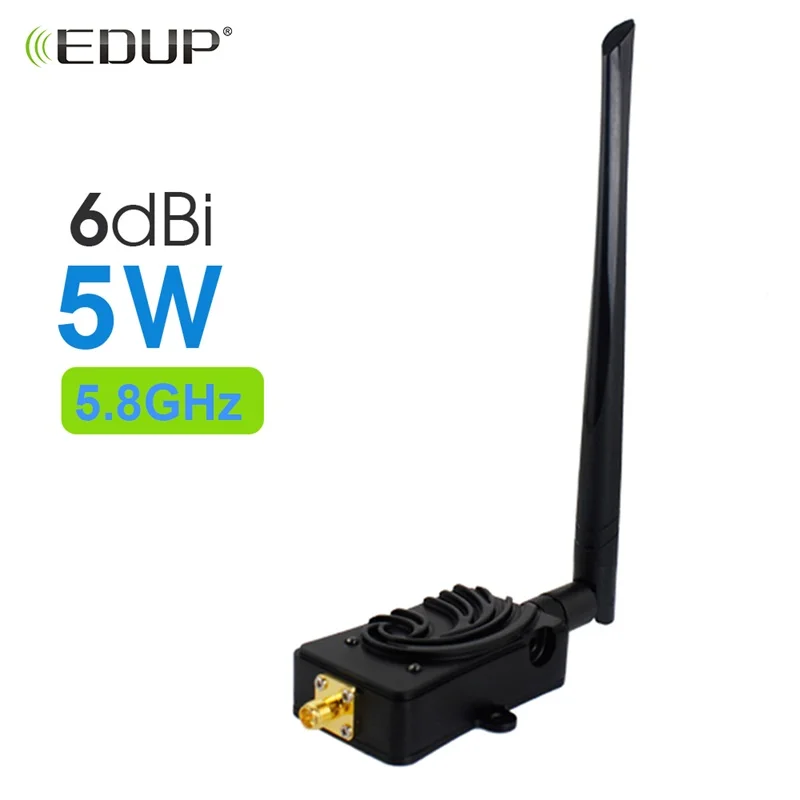

3.Wifi 5W 5.8Ghz:

Frequency Range: 5.725~5.85GHz

Receiving Gain: 15dB±1

Transmission Gain: 20dB±1

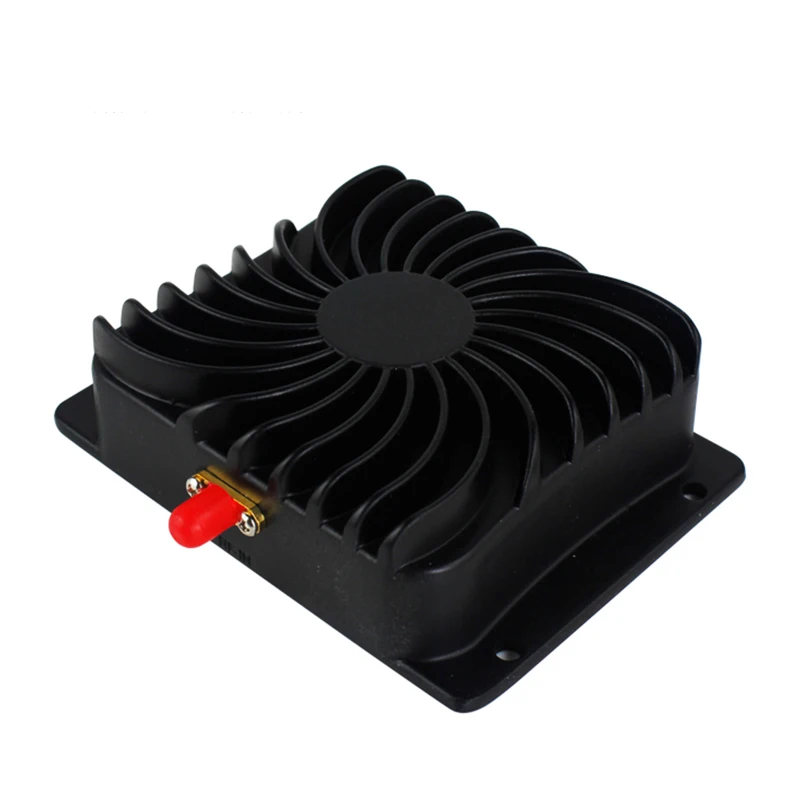

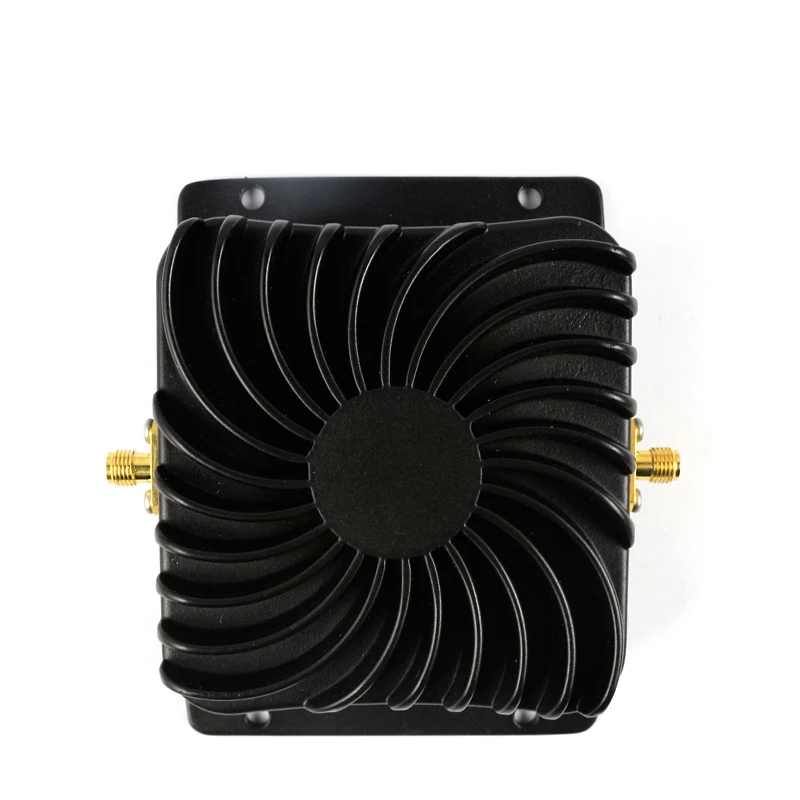

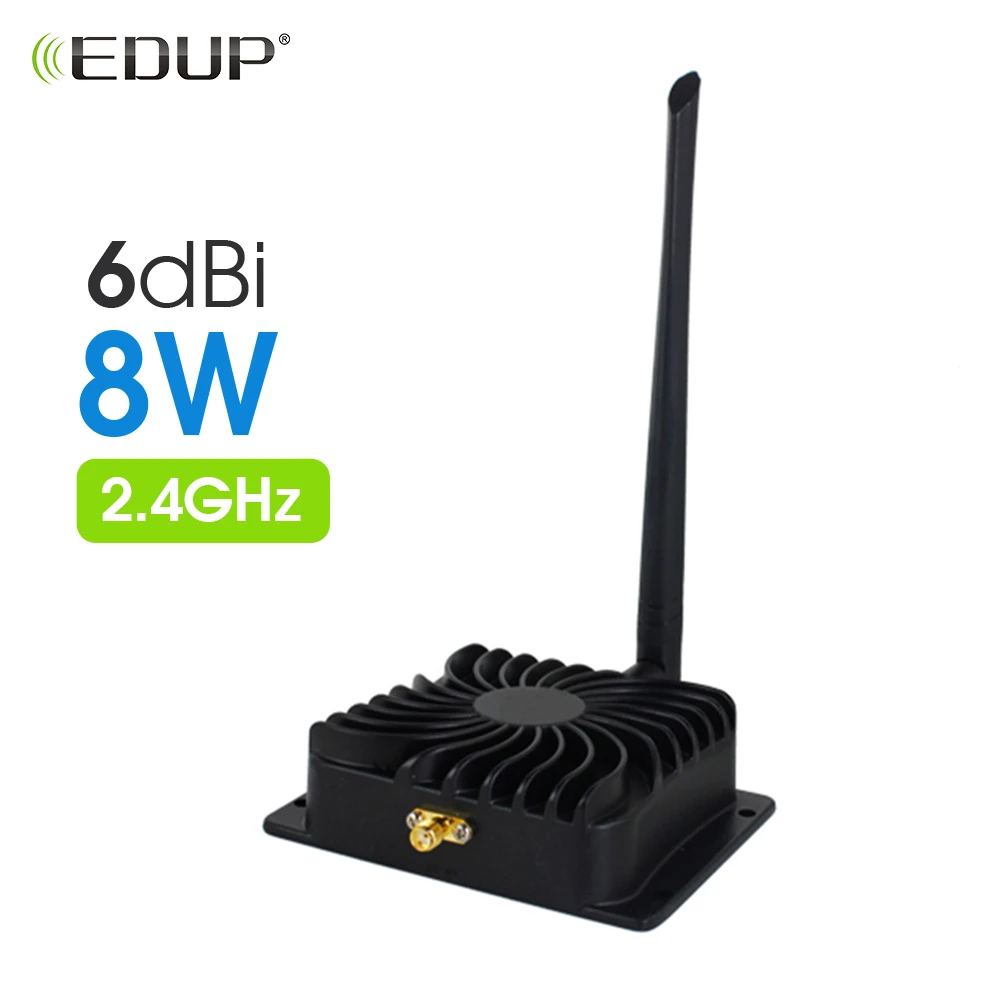

4.Wifi 8W 2.4Ghz:

Frequency Range:2400-2500 MHz

Receiver Gain: 10-12dBm

Transmit Gain: 16-18dBm nominal

8W Features:

Low-noise receive gain

Signal activity LED indicates

High Gain, High Value, High Performance

Maximum output power of 8000mW by the Booster

Plug-and-play, Easy installation, no driver needed

Ideal for increase the 2400-2500Mhz frequency devices

Increase the effective range and coverage area of your Wi-Fi network

Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow

The amplified wireless signal may even penetrate complex environments with many walls and obstacles

Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only)

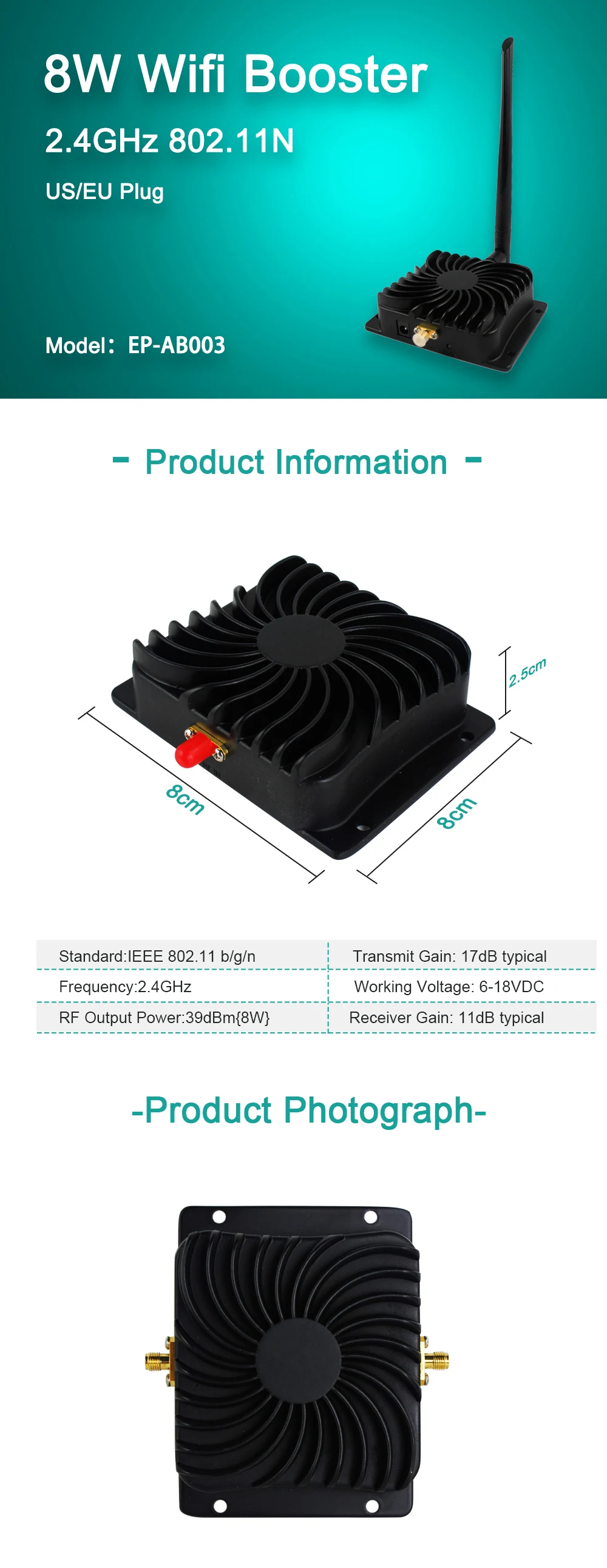

Specification:

Operation Range: 2400-2500 MHz.

Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.

Frequency Response: ± 1dB over operation range.

Input Power: 3dBm (Min.)-20dBm (Max.).

Output Power: 8000mW/39dBm nominal

Connector: SMA Receptacle, 50 ohm.

Transmit Gain: 16-18dBm nominal.

Receiver Gain: 10-12dBm.

Receive Noise Figure: 3.0dBm nominal.

Operating Temperature: -40 to 70 degree.

Operating Humidity: Up to 95% relative humidity.

Material: Cast Aluminum

INPUT:100-240V 0.3A  50/60HZ

OUTPUT:12V  1.5A

Package included:

1 x WiFi Amplifier

1 x Connector cable

1 x Power supply

1 x Manual
