EDGEV Round Solid CBN Inserts RNMN 0603 1203 RNMN0903 RNMN0904 RNMN1203 RNMN1204 RNGN1207 Roller Brake Disk SupperHard Cutter mini pipe bender Machine Tools & Accessories

Brand Name:	EDGEV
Certification:	NONE
Origin:	CN(Origin)
Coating:	Other
Model Number:	turning tools
Hardness:	high
Usage:	External Turning Tool
Material:	Boron Nitride
Place of Origin:	China

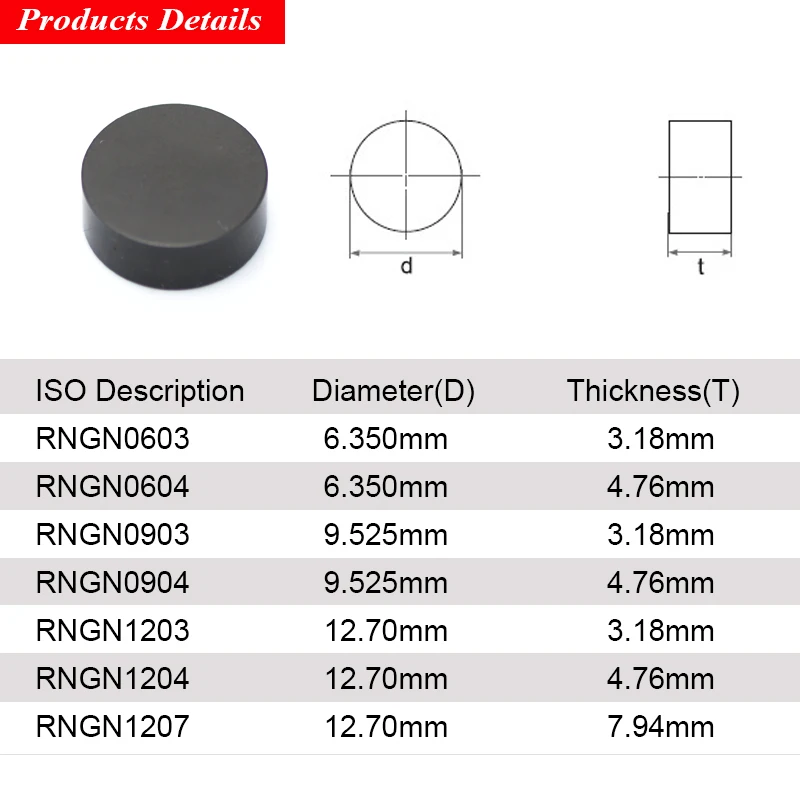

RNGN0603:	D6.35mm*T3.18
RNGN0903:	D9.525mm*T3.18
RNGN1204:	D12.7mm*T4.76
Grade:ESBN200:	For H Machining hardened steel
Grade:ESBN500:	For K Machining Cast iron
Type:	Solid CBN Inserts
Color:	Black
Application Range:	Finishing to Semi-finishing
Work Piece:	HRC55~65

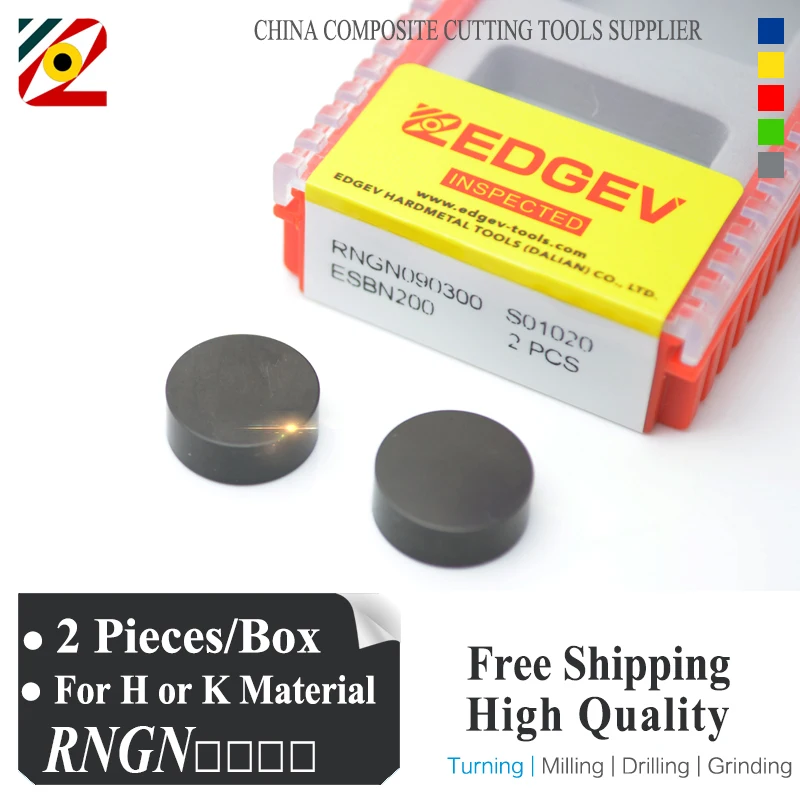

Package:	2 Pieces/Box
Chamfered Land:	F/T01020/S01020
is_customized:	Yes

Products Parameters:

01. Brand Name: EDGEV

02. Description: Round Negative CNC Solid CBN Inserts

03.

ISO

 Specification:

04. Chamfer land Symbol:

F

used for finishing

T

:From Finishing to semi-finishing

S

:From semi-finishing to roughing

05. Material: Cubic Boron Nitride

06. Grade:

ESBN500 For machining Cast Iron(K Material)

07. Features: Excellent

wear resistance

 and excellent impact and

shock resistance

08. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel,

hardened steel

 and bearing steel and

cast iron

.

09. Work Piece Hardness:

HRC45~65

10. Suitable

Work Piece:

 Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry

11. Color: Black

12. Usage: External Turning Tools

13. Application Range: From Finishing to Semi-finishing

14. Suitable Tool Holder:

15. Place of Origin: China

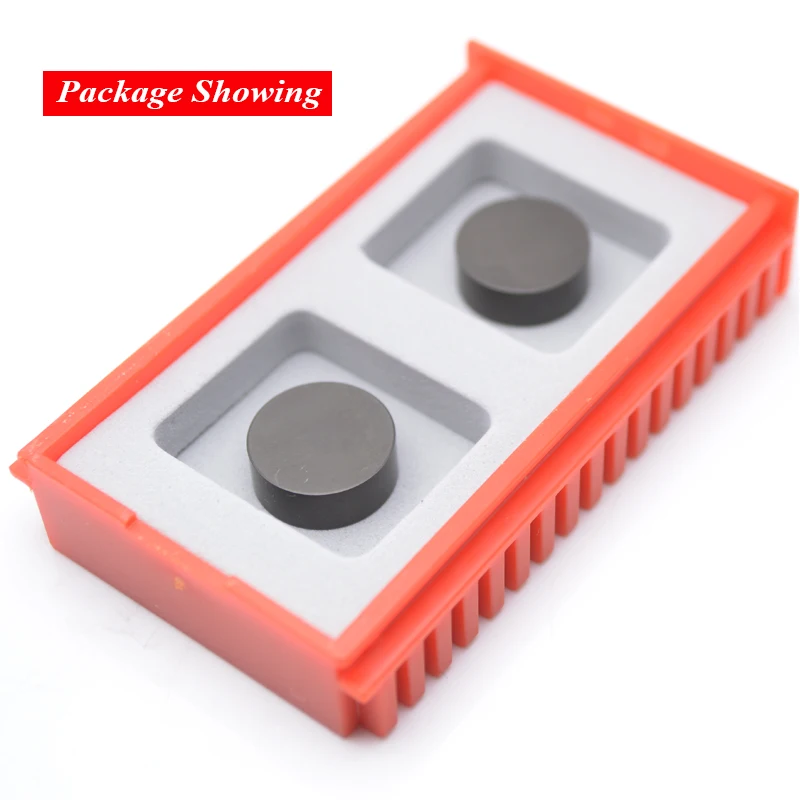

16. Package

: 2Pieces packed in 1 Box

17. Net Weight: 8g/Piece

18. Packing: Plastic Box

EDGEV CBN Inserts:

EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.

Advantages

1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.

2. Achieves superior economic efficiency in the machining of hardened materials.

Application

1. Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC 65),Used be for Mould, Rolls and Auto Industries

2. Longer Tool Life and High Speed Machining

Our CBN Grades:

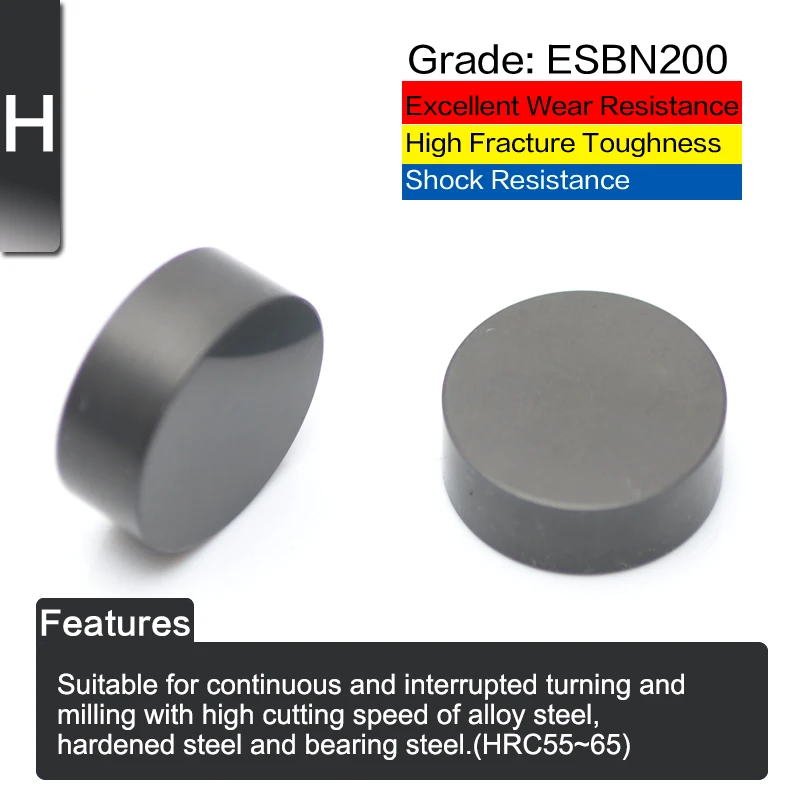

ESBN200:

 60% CBN Content, Power quality, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings

ESBN350:

 80% CBN Content, Economic Type tools, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel,high speed cutting of gray cast iron, kinds of Rolls, low-speed cutting of the carbide tungsten roll ring.

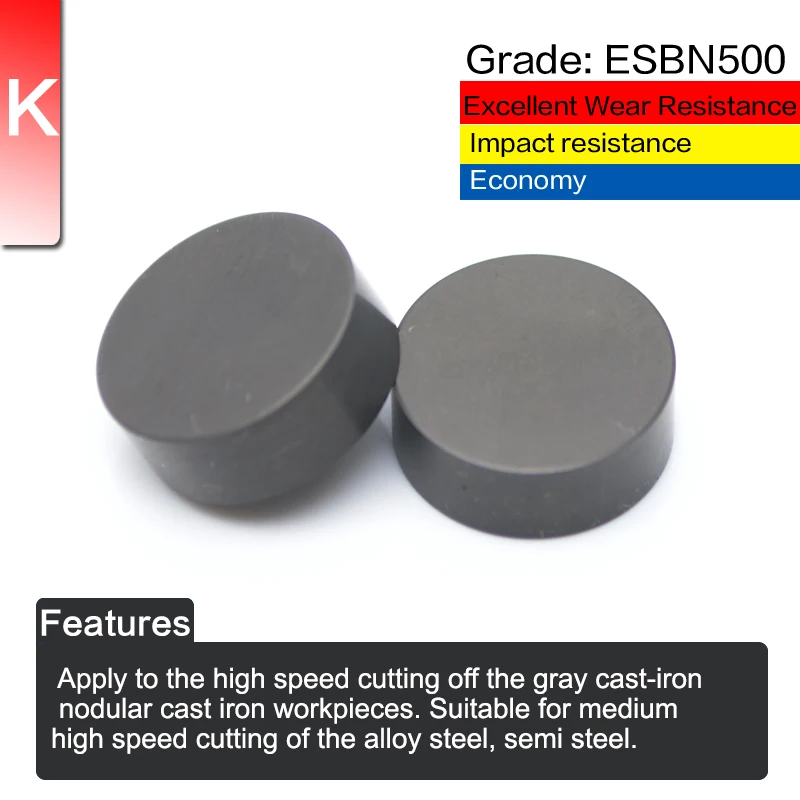

ESBN500:

 90% CBN Content,Power Quality, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron work pieces.
