DX10 Portable Spot Welder OLED Adjustable Battery Spot Welding Machine Welder Tools 0.2/0.3mm Nickel For 18650 8awg Spot Pens rework station Welding Equipment

DX10 Portable Spot Welder OLED Adjustable Battery Spot Welding Machine Welder Tools 0.2/0.3mm Nickel For 18650 8awg Spot Pens rework station Welding Equipment

Name: DX10 Portable Spot Welder OLED Adjustable Battery Spot Welding Machine Welder Tools 0.2/0.3mm Nickel For 18650 8awg Spot Pens rework station
Brand: MMO Dropship
SKU: 3256803170497829
Price: 87.29 VND
Availability: InStock
Rating: 4.9 (78 reviews)

Code: TD-3256803170497829 81 orders

Free Shipping

$ 87.29 $ 99.11

Quantity:

Other people want this. 10 people have this in their carts right now.

Description
Shipping & Returns

Origin:	CN(Origin)
Certification:	NONE
Usage:	Spot Welding Machine
Spot Welding Current:	600A~800A
Dimensions:	1488227mm
Max. Welding Thickness:	0.2mm/0.3mm
Item Size:	Approx. 148 x 82 x 27mm / 5.83 x 3.23 x 1.06in
Rated Capacity:	10600mah

Option interpretation

The 10600mah version uses 2 pieces of 5300mah batteries, which can be charged more than 1000 times, the internal resistance of the battery pack is 0.5 milliohm, and the nickel plating can be less than 0.25mm, and the weight is only 430g

product information

1: Built-in 6*300A high-power MOS tube, with large margin and low failure rate

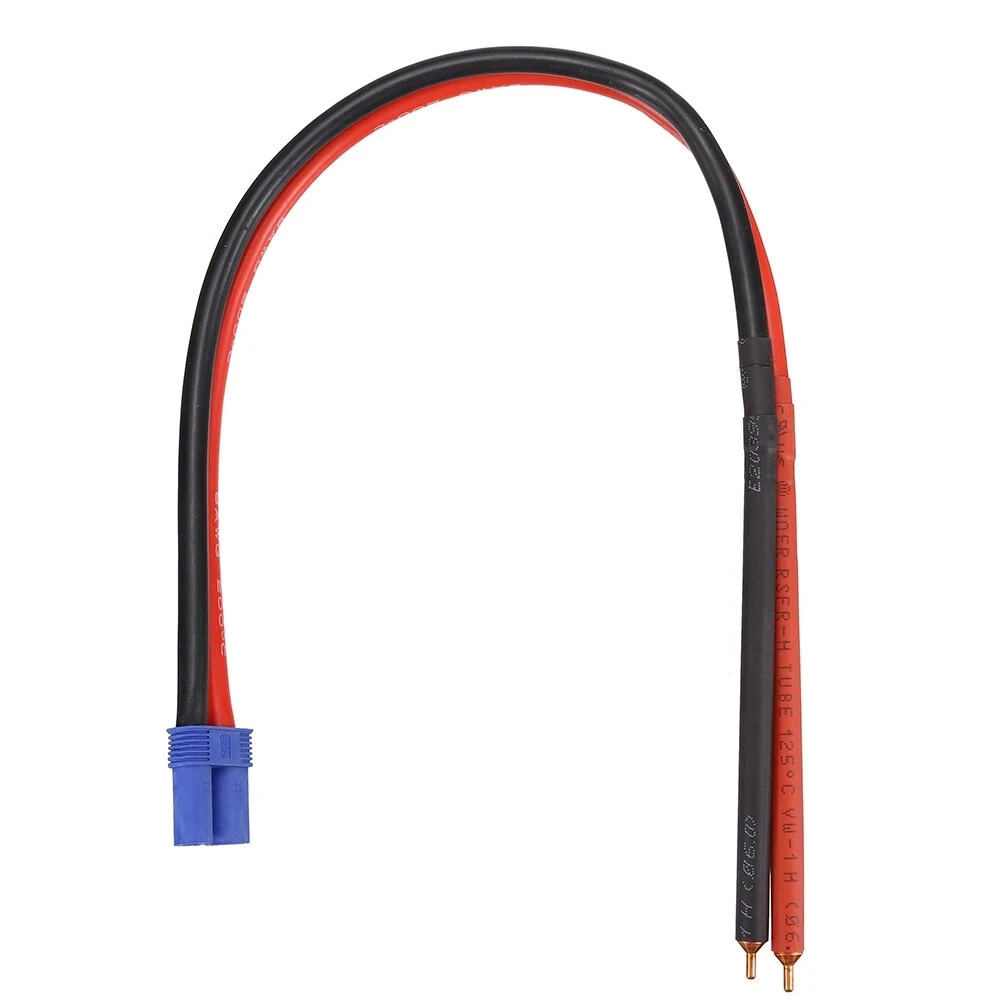

2: Spot welding pen adopts ec5 plug, 30cm 8awg wire, 6mm diameter solid aluminum oxide copper rod length 10cm, the whole welding is non-pressing, and the internal resistance is lower than other hand-held spot welding machine pens on the market, so the support current is larger. Spot welding with thick nickel bars is stronger

3: 20-speed delay time adjustment, 0.5s-2.5s; 20-speed power adjustment, with memory, automatic shutdown in 5 minutes.

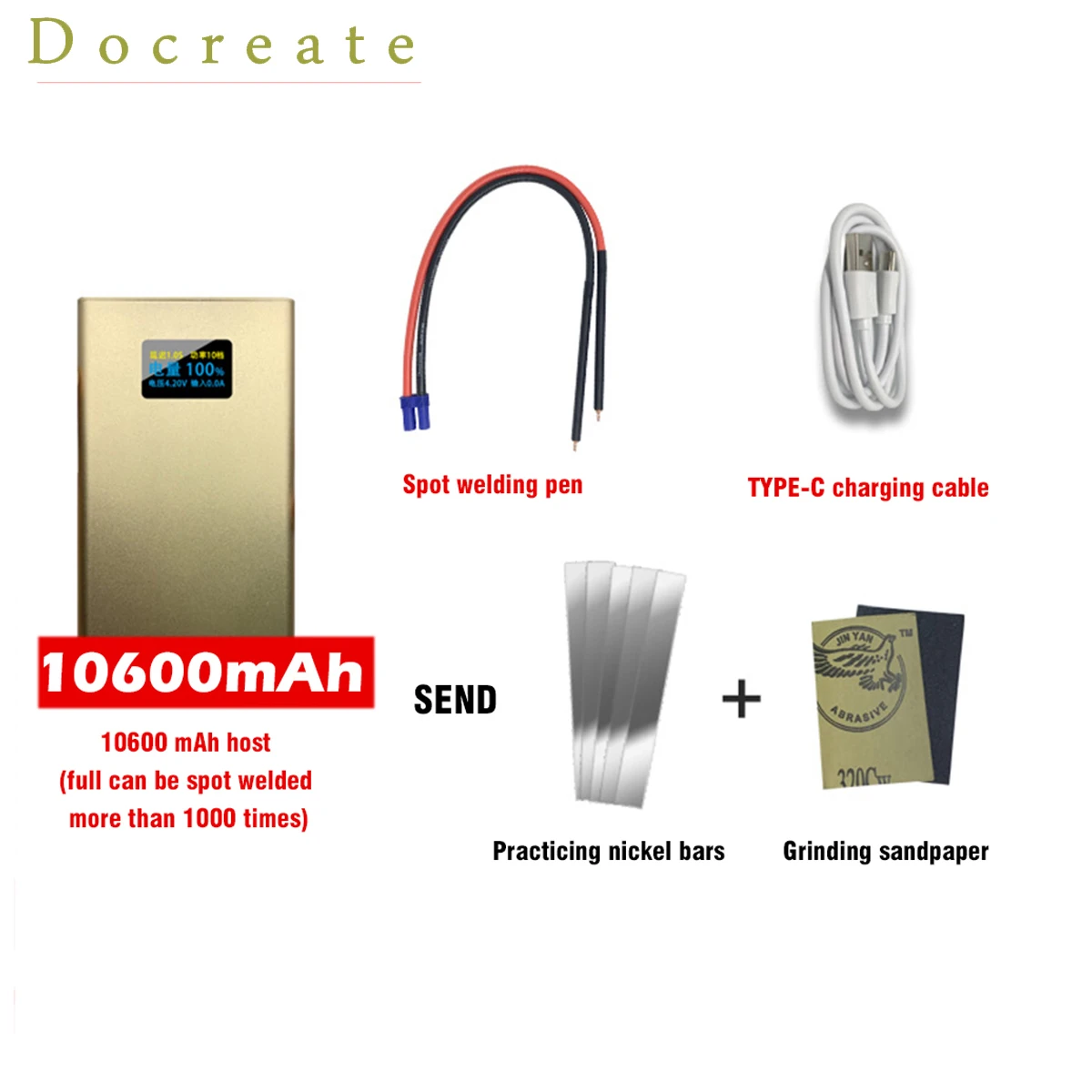

We have already equipped the type-c charging cable, please prepare an ordinary 5v2a charger for charging by yourself, you can check the charging current on the screen

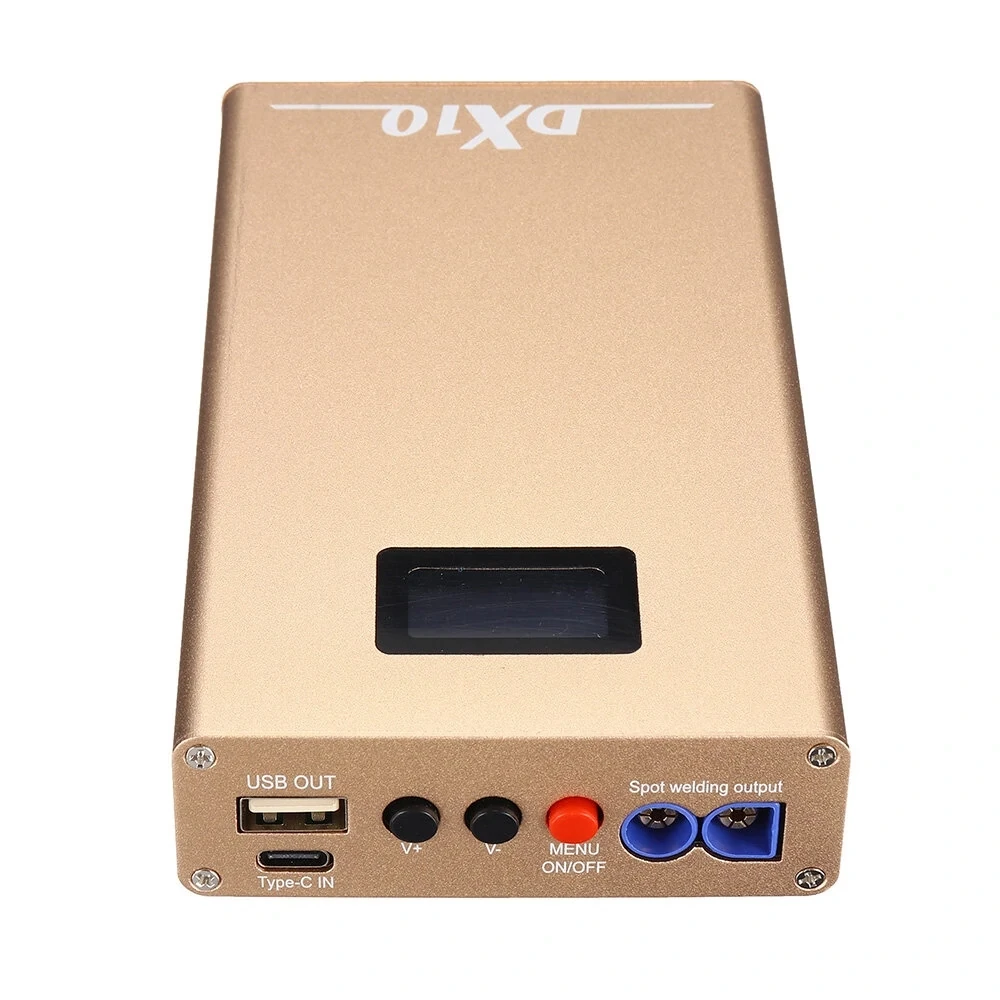

Button function

Boot:

In the shutdown state, short press 0N/0FF (red button) to turn on and use the spot welder function

Shut down:

In the power-on state, press and hold the 0N/0FF (red button) to turn off the machine, and the machine also has the automatic shutdown function of 5 minutes without operation

Adjust the delay:

In the power-on state, press MENU (red button) until the delay number is highlighted, and then press V+/V- (black button) to adjust the delay time. The range is 0.5 seconds-2.5 seconds. This time determines the contact of the soldering pen to be welded Automatic spot welding of metal starts to delay for a period of time

Adjust spot welding power:

In the power-on state, press MENU (red button) until the power number is highlighted, and then press V+/V- (black button) to adjust the power range. The range is 1-20. The larger the number, the higher the spot welding power. Large, please adjust appropriately
