dual bay hdd docking station clone function sata 2 hd case 3.5 2.5inch usb3.0 5 gbps 4TB hard disk box HDD SSD read data device external hard disk case 3.5 HDD Box Enclosures

Brand Name:	Blueendless
Origin:	CN(Origin)
Supporting Hard Drive Capacity:	6TB
Internal Interface:	SATA
Size:	3.5"
Size:	2.5"
Case Material:	Plastic
Plug Type:	AU Plug
Plug Type:	US plug
Plug Type:	EU plug
Plug Type:	UK Plug
Model Number:	HD2905-1
Package:	Yes
External Interface:	USB
Size:	2.5"+ 3.5" compatible
Place of Origin:	Guangdong, China
Certification:	CE FCC ROHS
Color:	black&white
Weight:	about 0.6kg
Feature 1:	docking hdd 2.5 sata data
Feature 2:	case hd 3.5
Feature 3:	hdd box 3.5
Feature 4:	case hdd ssd 3.5 2.5''
Feature 5:	hdd docking station dual

dual bay hdd docking station clone function sata 2 hd case 3.5 2.5 inch usb 3.0 5gbps 4TB hard disk box HDD SSD reading device

Hard Drive Duplicator Function

The device Standalone Duplicator Dock lets you duplicate/clone an existing hard drive without the use of a host computer system, or can be connected to a computer system for use as an external hard drive dock.

Features

* On/Off power switch.
* LED light indicates Power and Activity status.
* Hot-swappable, plug and play, no drivers needed.
* Transfer Rates Up to 5 Gbps w/USB 3.0
* Transfer Rates Up to 480 Mbps w/USB 2.0

* S

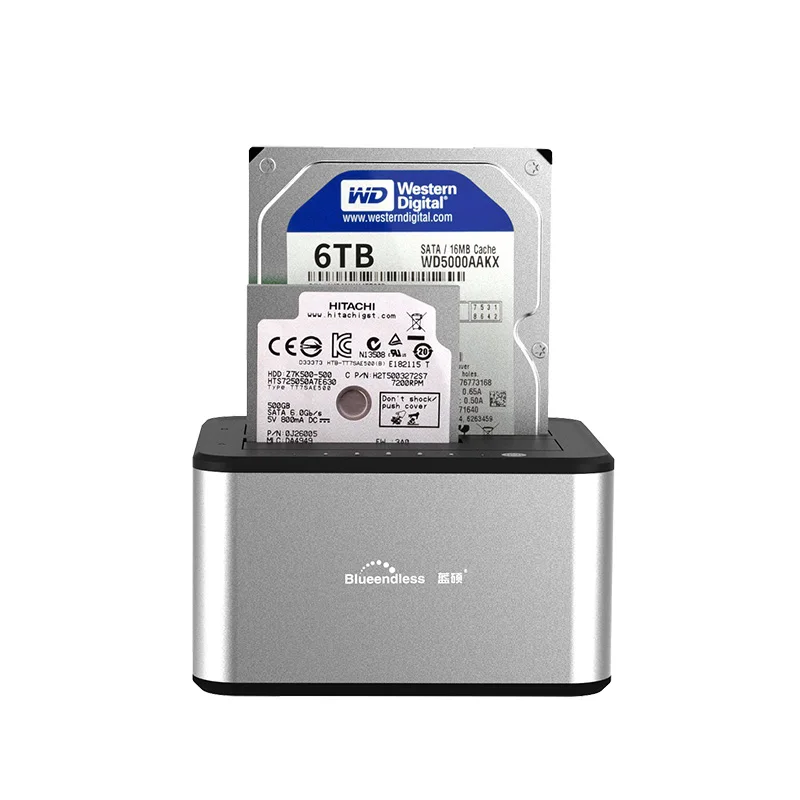

upports direct insert 2.5"/3.5" SATA III II I Hard Drives

* Available USB 3.0 for high speed data transfer

* Reverse compatible with USB 1.1 & USB 2.0

* Computer systerm:for MAC OS X/

Windows 2000/XP/Vista/7/8 (Both 32-bit & 64-bit versions)

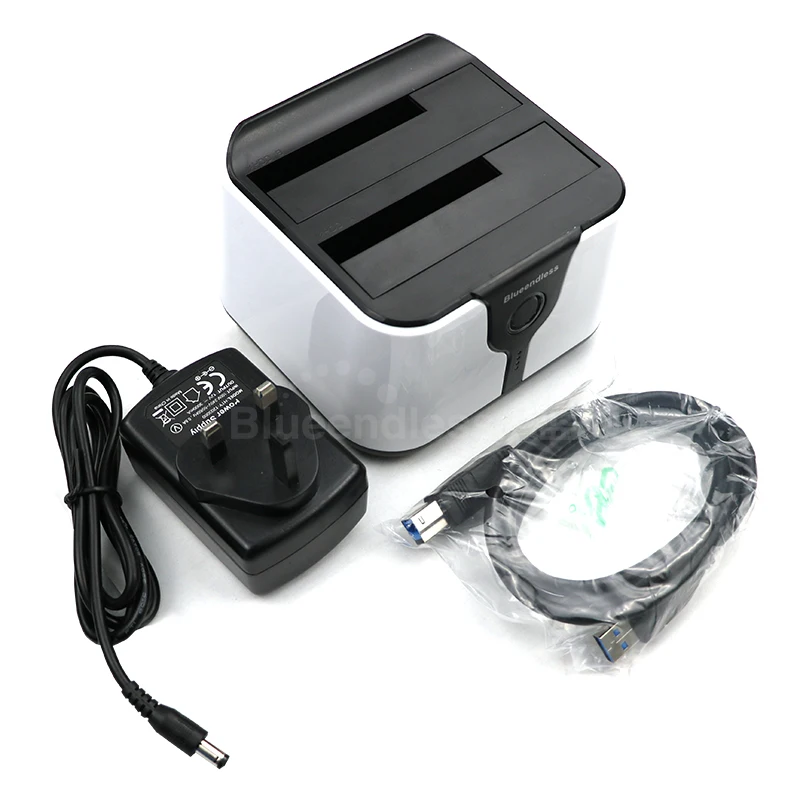

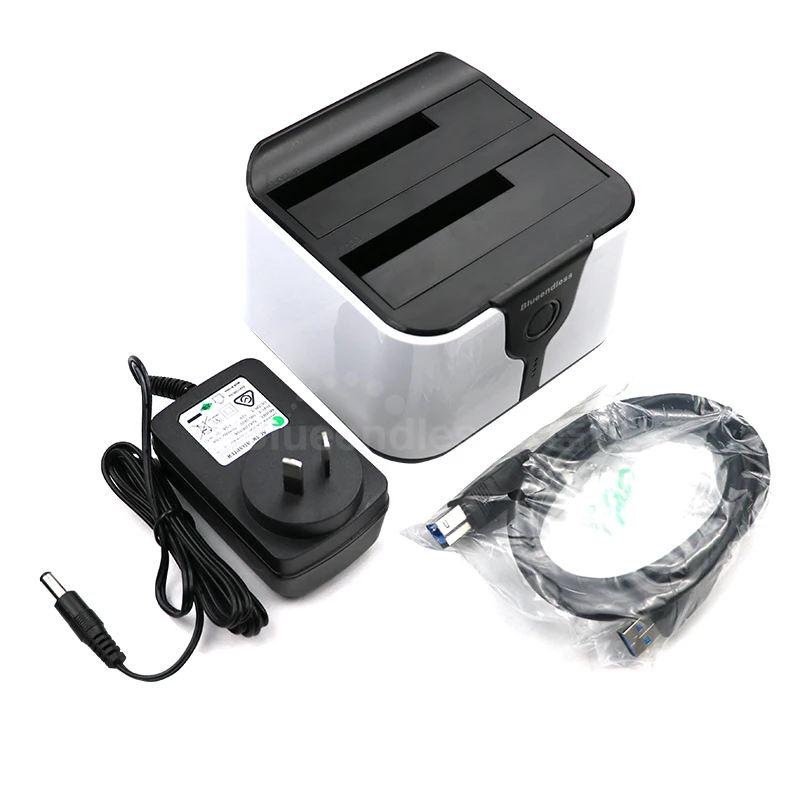

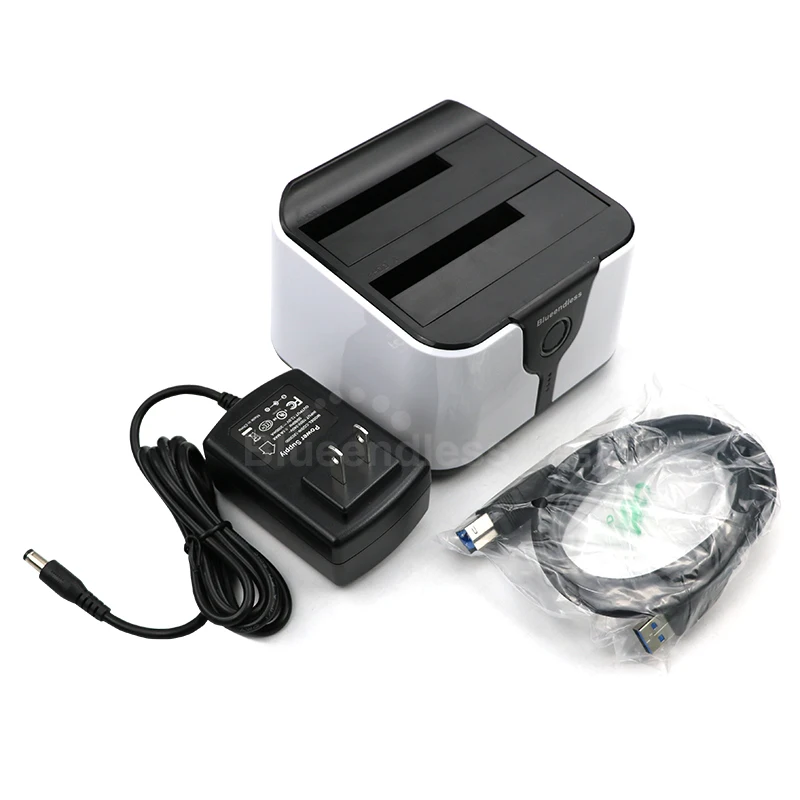

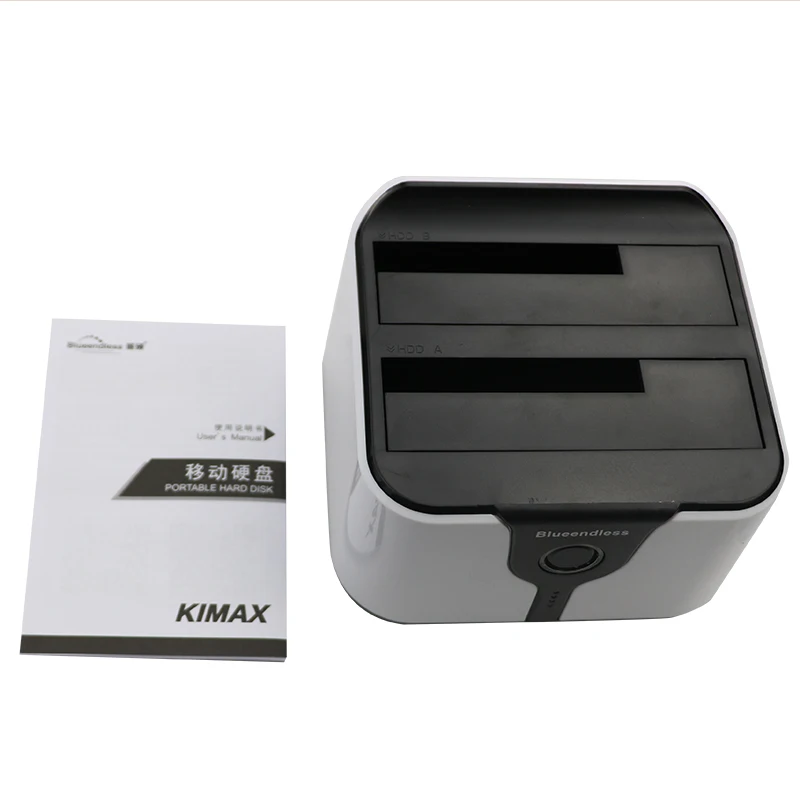

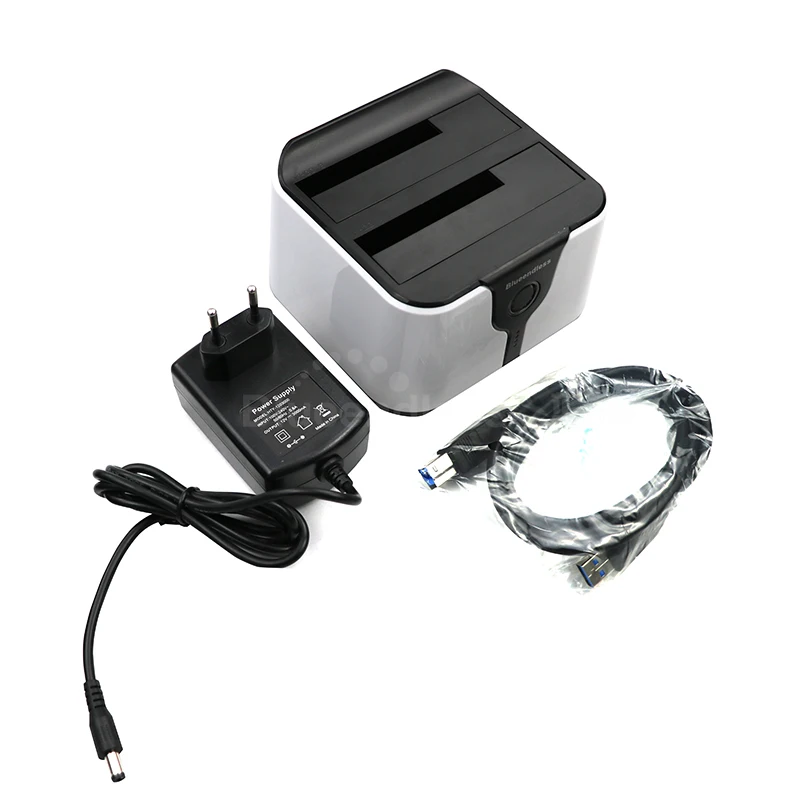

Package contents

* Hard Drive Dock
* Power Supply

(1 piece US or EU or UK or AU for different country used)

* USB 3.0 cable
* User Manual

Please note :

1.This is only a hdd case and don’t contains the hard disk

2.Pls leave your email address,we will send electronic English user manual to you soon.

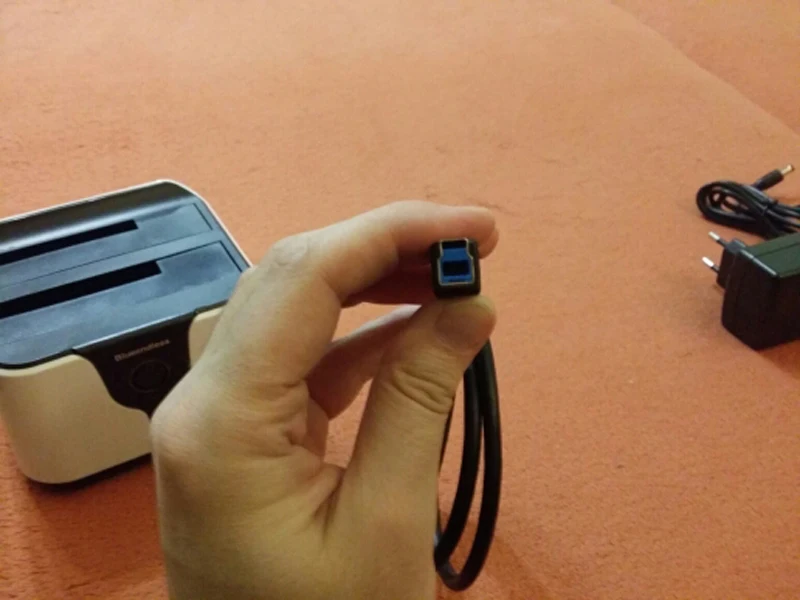

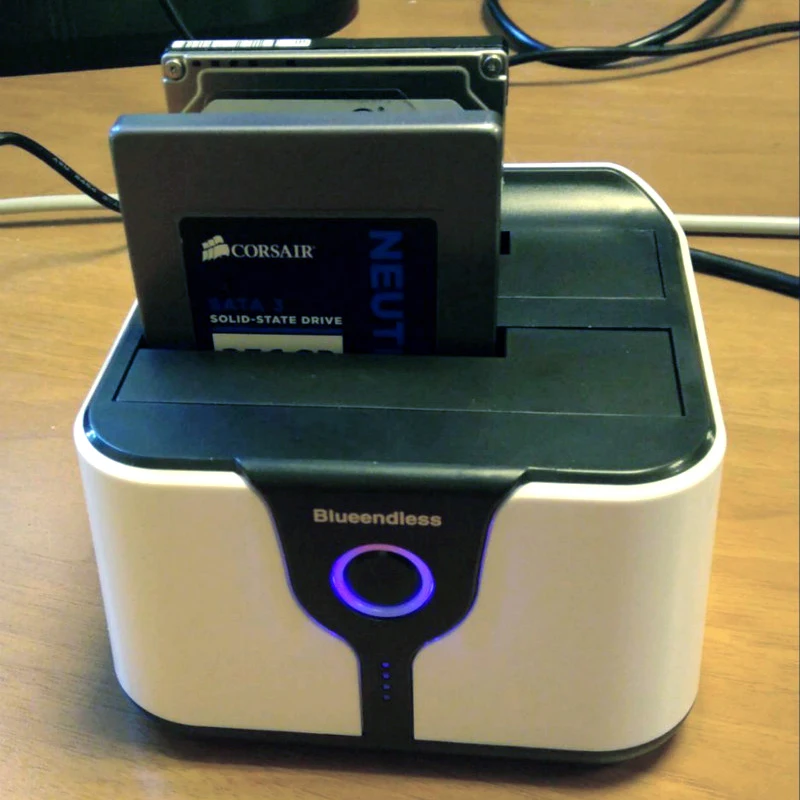

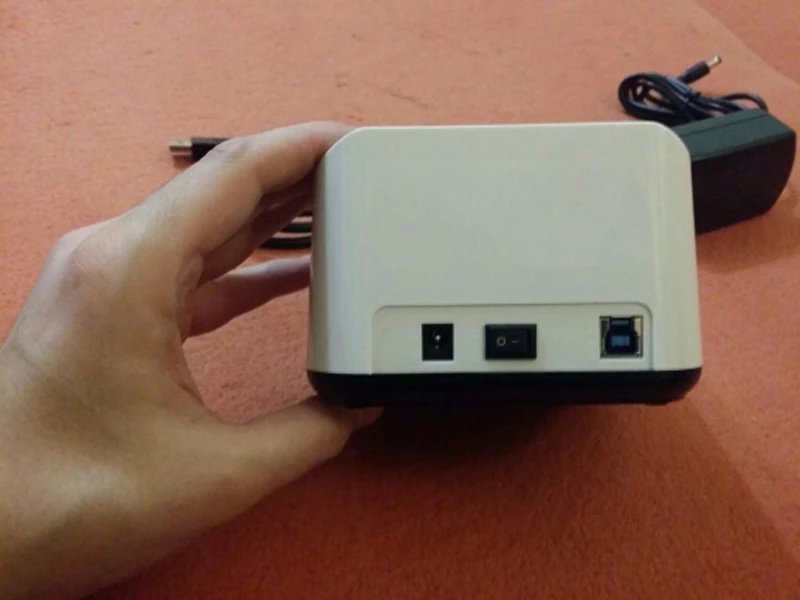

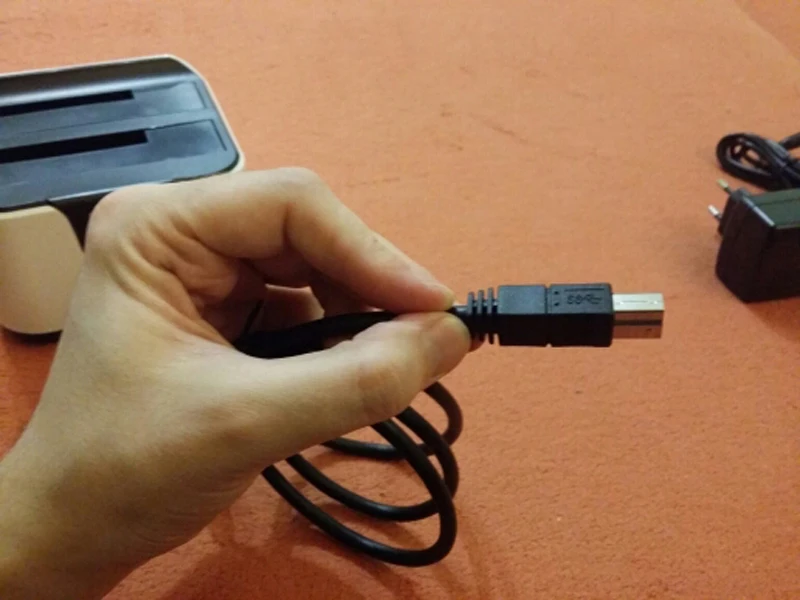

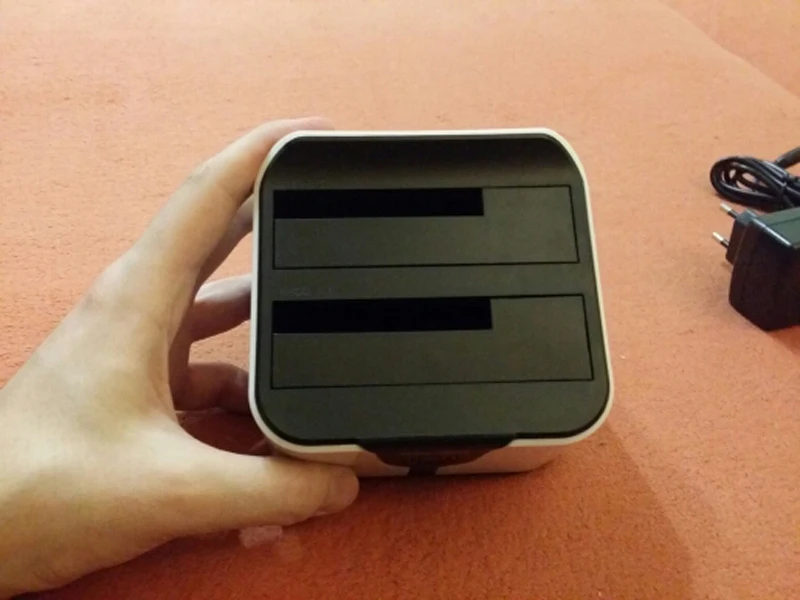

Picture offer by customer

How to use HDD clone function

(Duplicator Function)

1.Plug in identify Source Disk

(front bay)

 and Target Disk

(back bay)

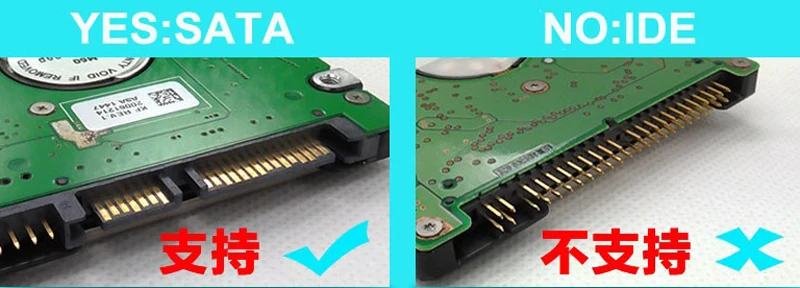

(1)Make sure your disk is sata port

(IDE is not support)

before insert

(

2).Back disk must be larger capacity

(eliminate space loss)

 than front disk

2.Connect power supply and switch on power.

 (make sure that the usb cable isn't connect with computer)

3.

Kindly notice:

To improve device capability,we have try to use new circuit board,and now we send both

“new one”

 and

“old one”

 randomly,In future we will send

“new one”

 instead.The appearance has no change,but

“clone function”

 is different,detail see as follow



For “old one”

Press

 "Clone"

 button for about 3 seconds(or more) until the LED will start flashing and the cloning process will begin.

For “new one”

1).Press

"Clone"

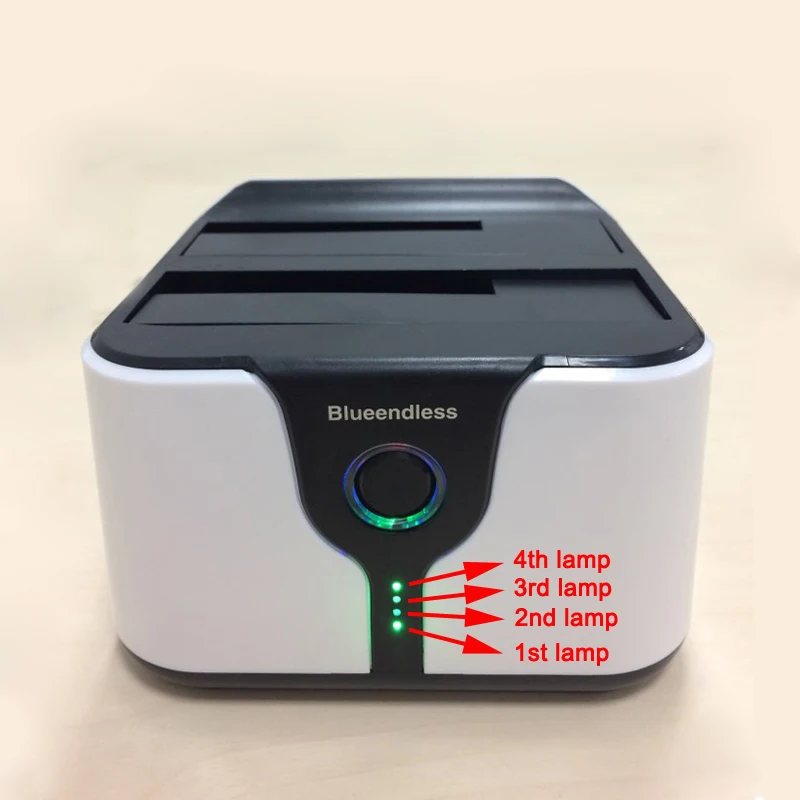

button about 3 seconds(or more) until the 4 LED light turns green and start flashing,then cloning process will begin.

2).Short Press

"Clone"

 again,the file will be start running,but light will not running,and keep invisible blue color,light color will change when operation finished detail

see follow:

.When operation complete 25%,the 1st lamp turns visible blue color.

.When operation complete 50%,the 2nd lamp turns visible blue color.

.When operation complete 75%,the 3rd lamp turns visible blue color.

.When operation complete 100%,the 3rd lamp turns visible blue color.

(1)To avoid your disk file damaged,pls don't stop the device when it's under clone function.

(2)When clone the disk,pls don't connect the computer,if connect the computer,disk will be under reading,can not support copy

(device heating is normally,as big hard disk operate will be hot).

(3)Pls

make sure black disk is empty

,or the former file in back disk will be loss.if back disk has file before,and want to clone from back disk too,pls don't use clone function,just copy and paste on computer.

(4)If your disk format is FAT,can not support copy single file more than 4GB

(included 4GB)

,but NTFS is ok,you can change disk format.
