door intercom with camera Hikvision IP Video Intercom Kit DS-KIS603-P(B) Include DS-KV6113-WPE1 + DS-KH6320-WTE1 POE Doorbell Door Station WIFI Monitor aiphone intercom Door Intercom Systems

door intercom with camera Hikvision IP Video Intercom Kit DS-KIS603-P(B) Include DS-KV6113-WPE1 + DS-KH6320-WTE1 POE Doorbell Door Station WIFI Monitor aiphone intercom Door Intercom Systems

Name: door intercom with camera Hikvision IP Video Intercom Kit DS-KIS603-P(B) Include DS-KV6113-WPE1 + DS-KH6320-WTE1 POE Doorbell Door Station WIFI Monitor aiphone intercom
Brand: MMO Dropship
SKU: 1005002553371928
Price: 276.71 VND
Availability: InStock
Rating: 4.9 (88 reviews)

Code: TD-1005002553371928 218 orders

Free Shipping

$ 276.71 $ 333.12

Color:

Note

Quantity:

Other people want this. 27 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	HIKVISION
Certification:	CE
Certification:	FCC
Certification:	RoHS
Certification:	WEEE
Smart home platform:	NONE
Origin:	CN(Origin)
Model Number:	DS-KIS603-P
Model:	DS-KV6113-WPE1 + DS-KH6320-WTE1

This

"Color: only extend monitor"

Only one indoor(DS-KH6320-WTE1)unit is included.

This

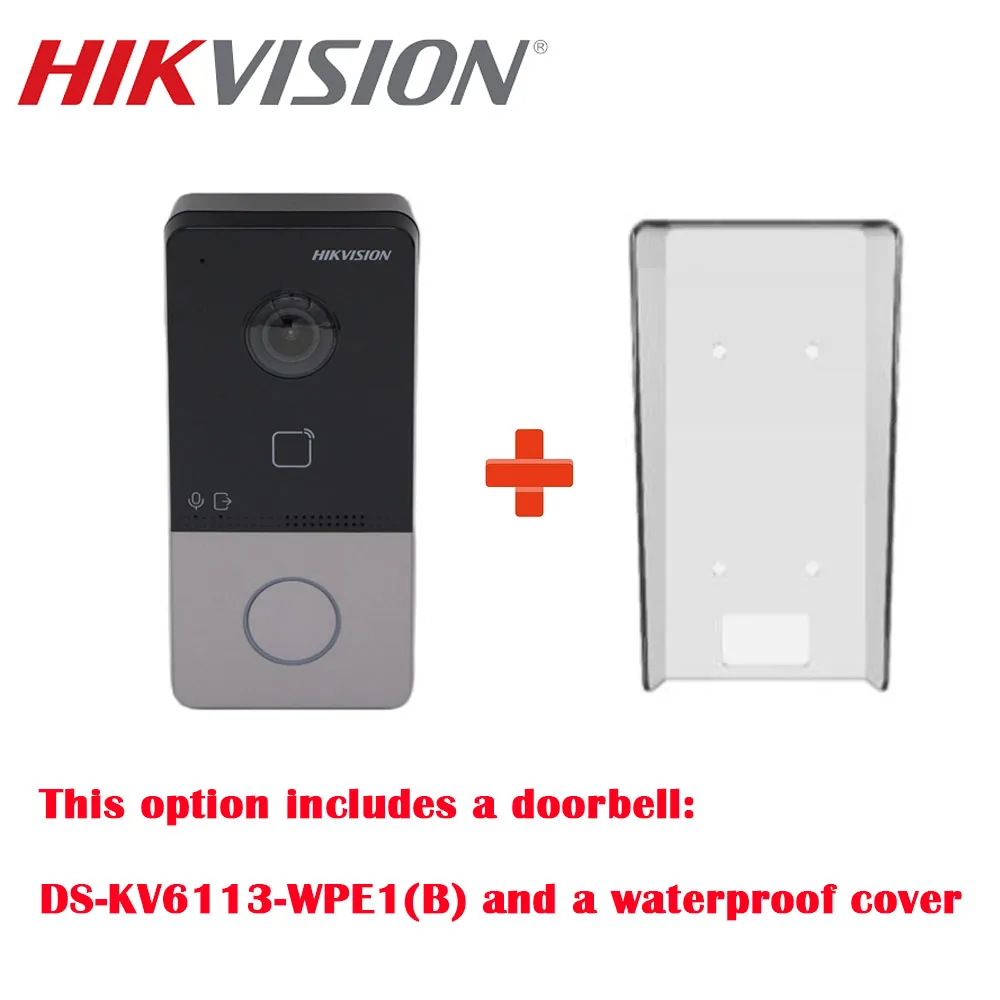

"Color: only doorbell“

Only one doorbell (DS-KV6113-WPE1(B)) unit is included.

This

“Color: KIS603-P(B)addWC”

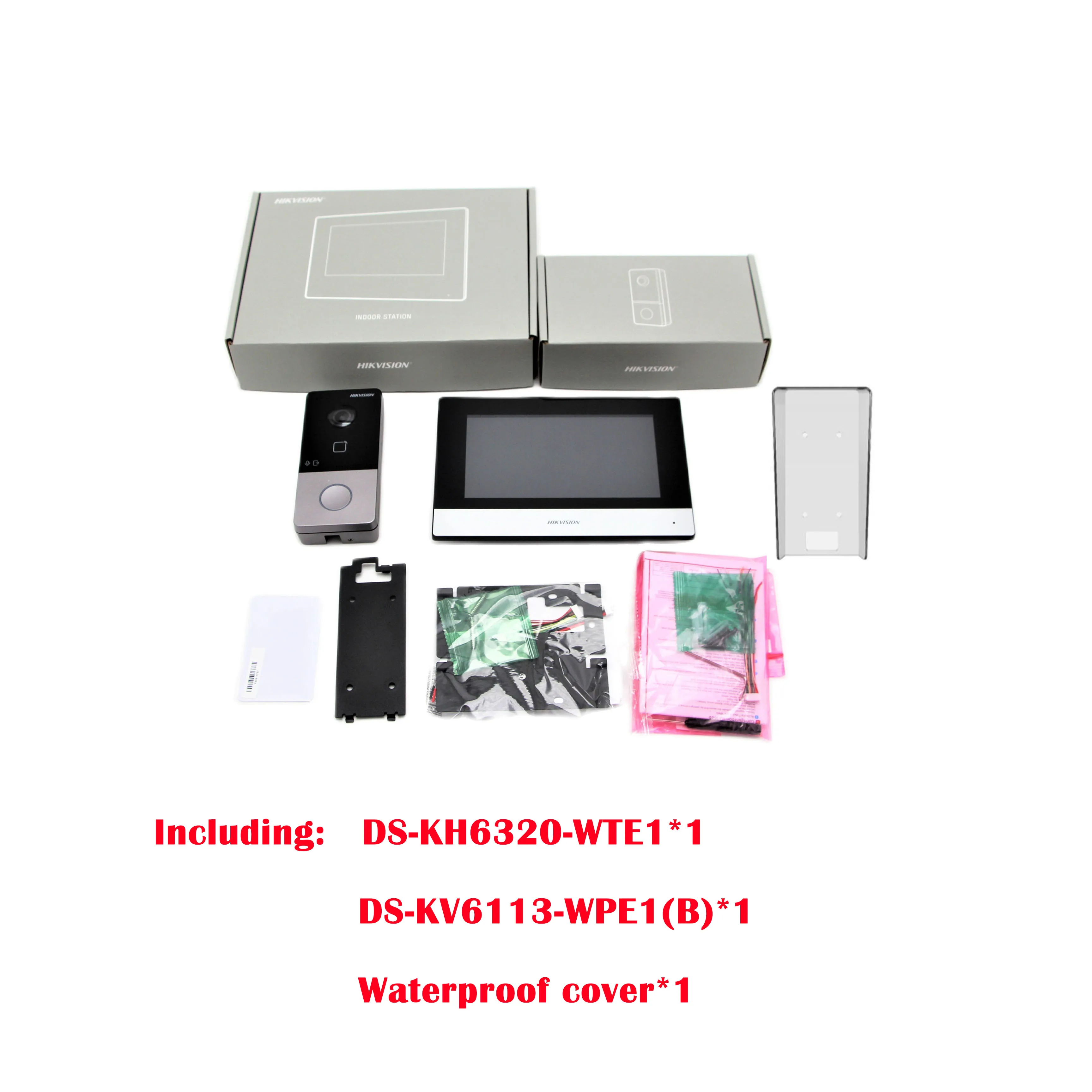

Kit includes an indoor unit DS-KH6320-WTE1*1, and a door phone DS-KV6113-WPE1(B)*1, and waterproof cover *1 which supports POE power supply and does not include a power adapter.

This

“Color: 6113add6320addWC”

Kit includes an indoor unit DS-KH6320-WTE1*1, and a door phone DS-KV6113-WPE1(B)*1, and waterproof cover *1 which supports POE power supply and does not include a power adapter.

This

“Color: DS-KIS603-P(B) ”

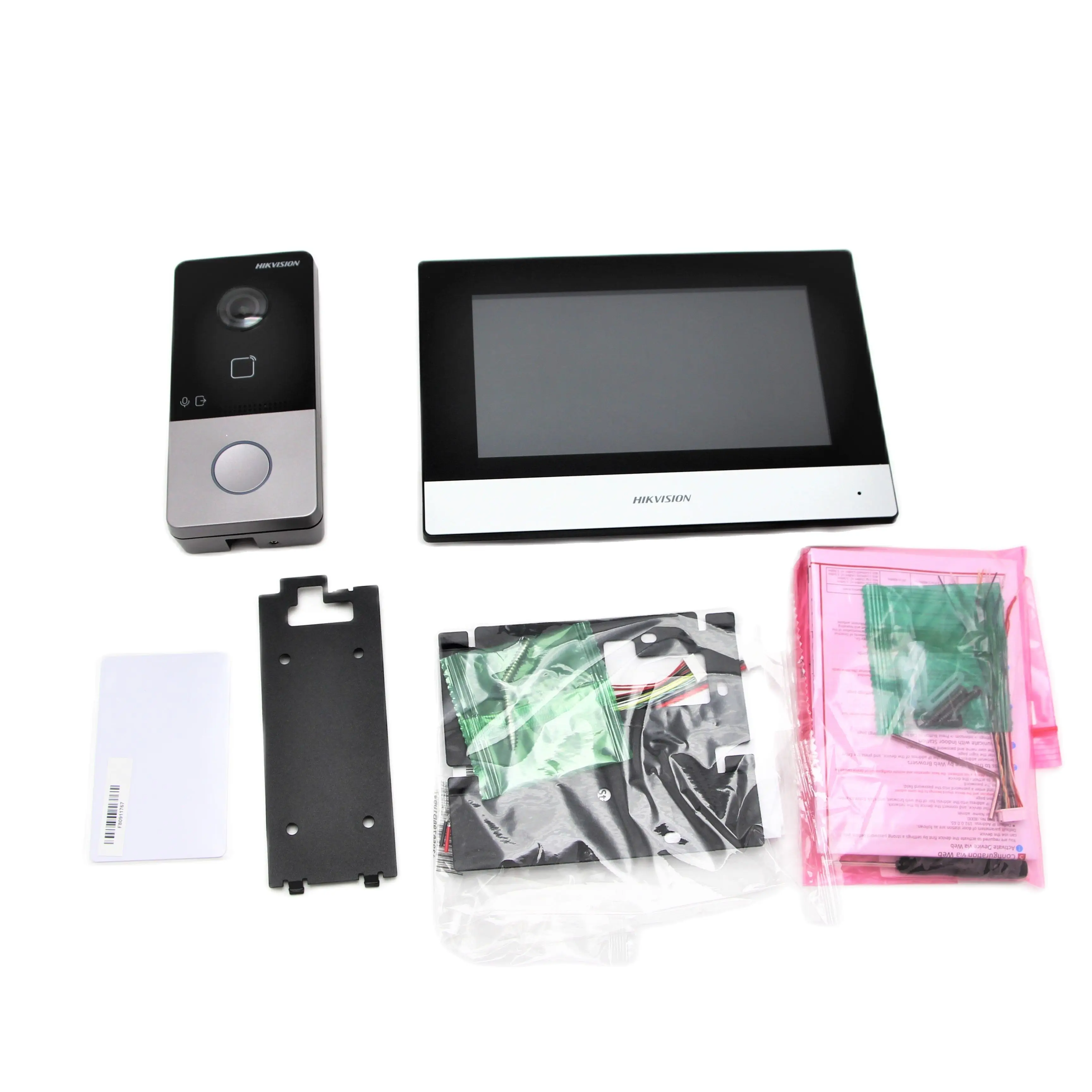

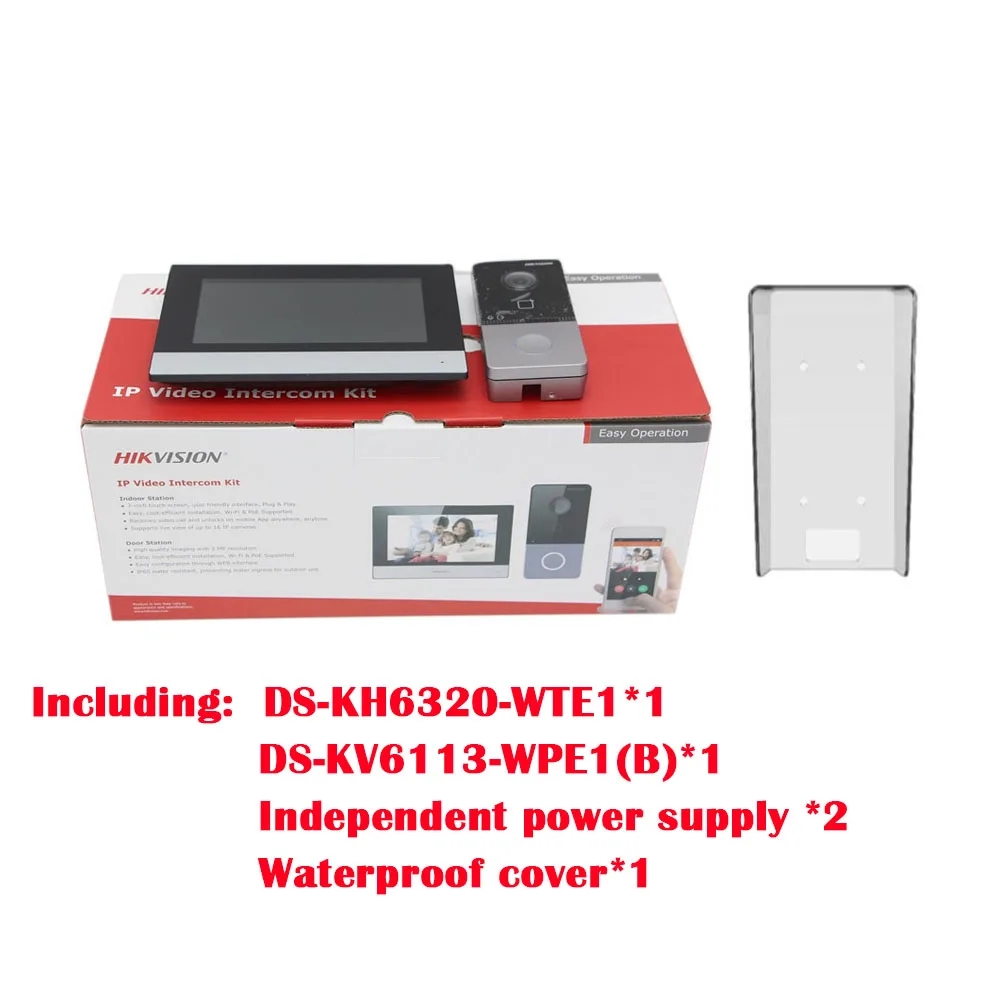

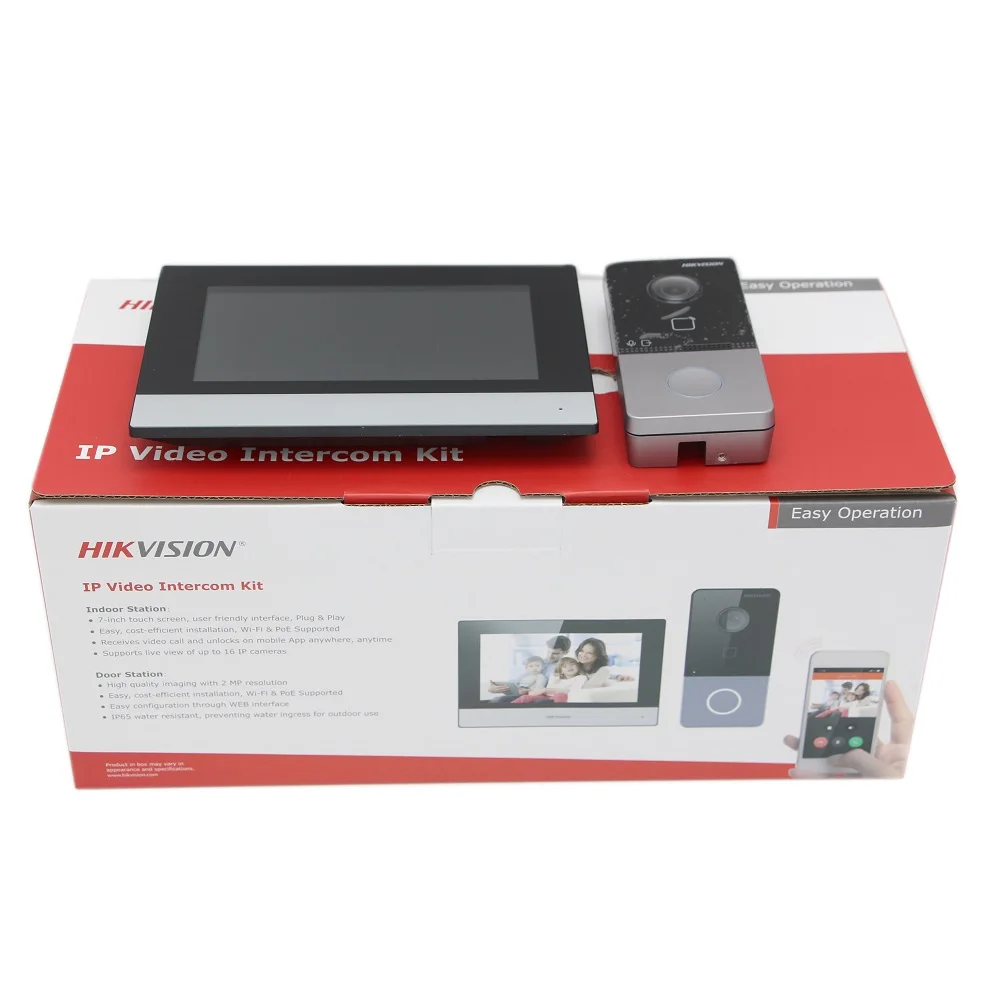

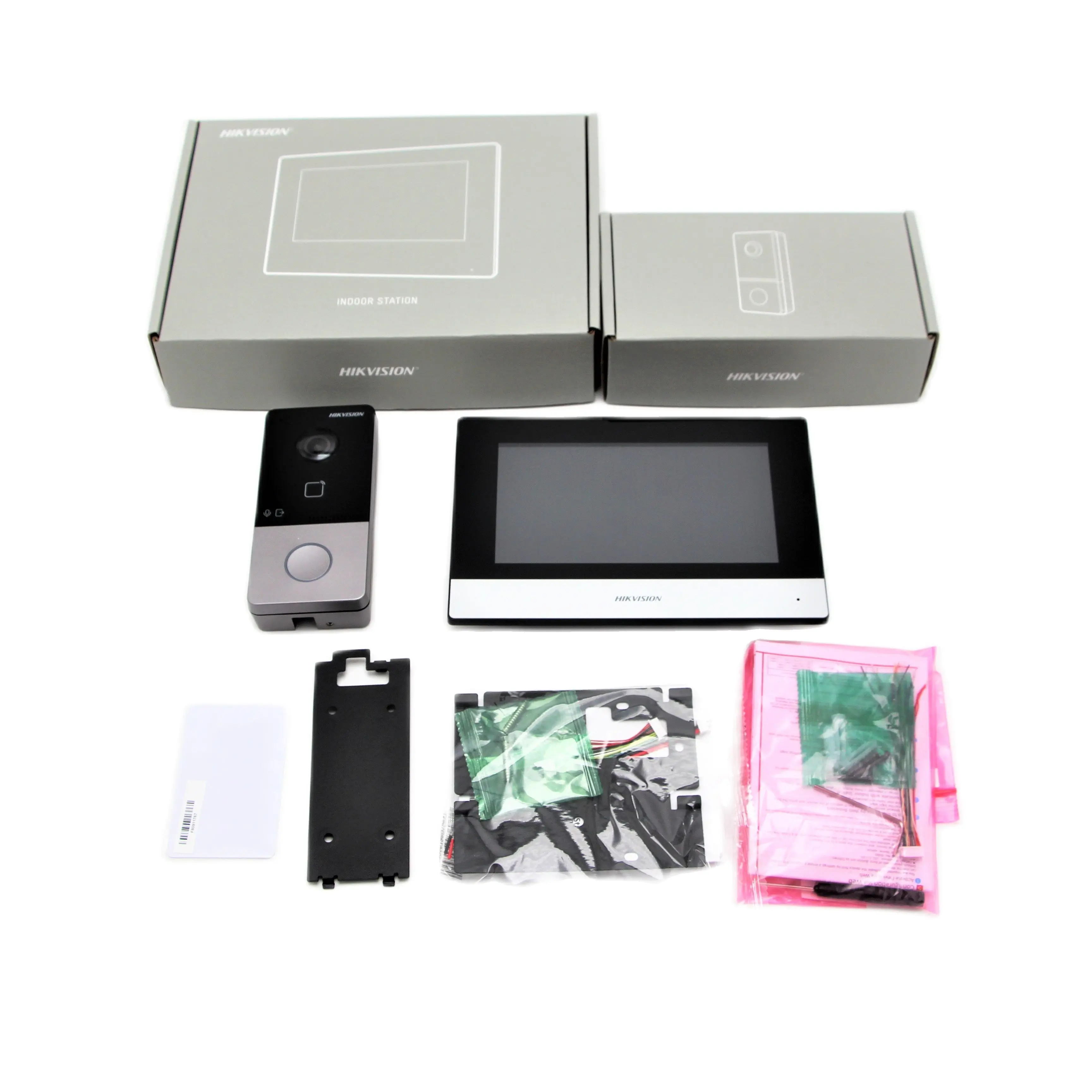

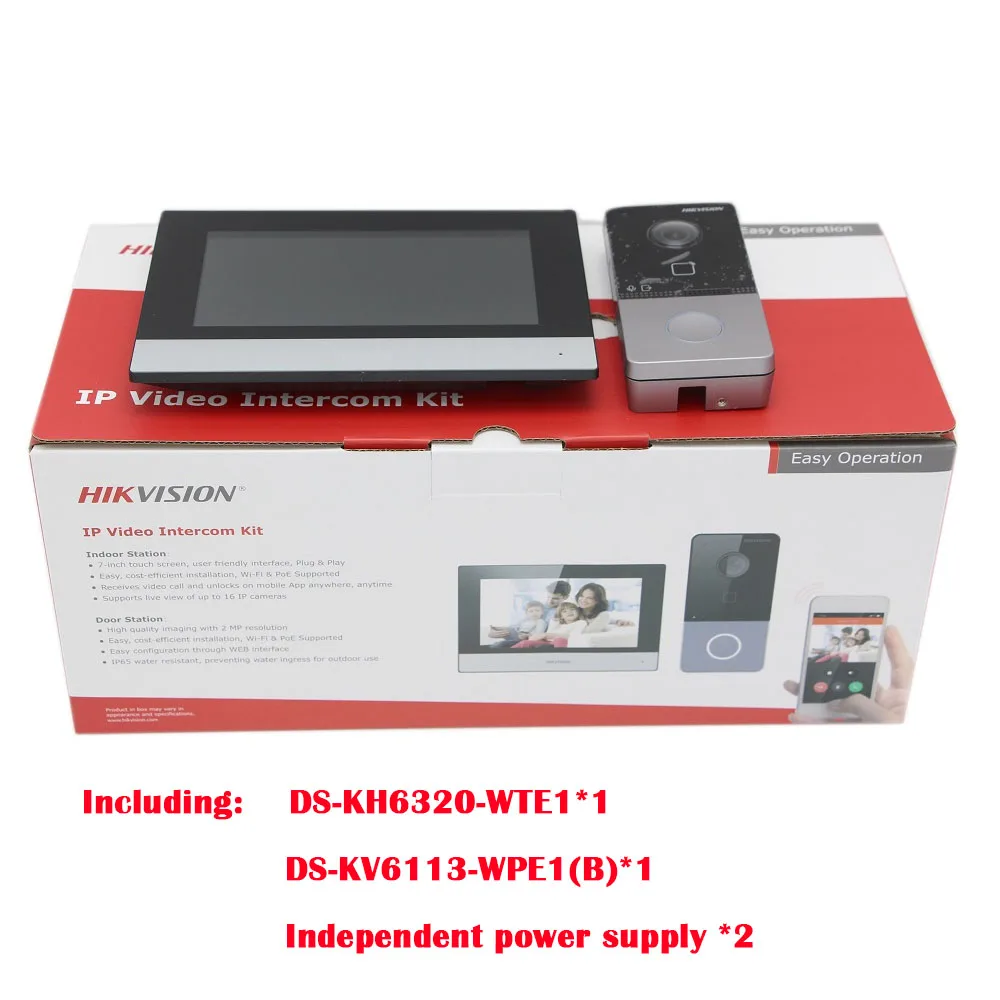

Kit includes an indoor unit DS-KH6320-WTE1, and a door phone DS-KV6113-WPE1(B), which supports POE power supply and include two power adapter.

If you don't need 12V power supply and use POE power supply, please choose 6113and6320 kit

Support language:

English, French, Portuguese (Brazil),Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch,Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian

Support official firmware upgrade.

DS-KV6113-WPE1 Key Feature

Support Wifi (Only available in DS-KV6113-WPE1 Model),convenient setting up and no wiringrequired

Support webconfiguration

Nice industry design, IP65, 2 indicatorintegrated

Internal Mifare cardreader,1-ch Indoor station access control

Noise suppression and echocancellation

2MP HD Camera with IR supplement

Standard PoE/ 12VDC

Specification

System Parameters

Operation system

Embedded Linux operation system

Flash

16 M, 32 M

RAM

256 M

CPU

Embedded MCU Processor

Display parameters

Size

Operation method

Type

Resolution

Video parameters

Video compression standard

H.264

Supplement light

IR supplement

Lens

FOV

Horizontal: 129

Vertical: 75

WDR

True WDR

Resolution

Main stream: 1920

1080p, 720p

Sub stream: 704

576

Audio parameters

Audio compression standard

G.711 U

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

Fingerprint capacity

User capacity

2000

Face capacity

Linkedindoor station

Event capacity

Network parameters

Communication protocol

CP/IP, RTSP

Wired network

10/100 Mbps self-adaptive Ethernet

Wi-Fi

Support

Bluetooth

3G/4G

Received frequency

2.4 to 2.4835GHz

Transmitted frequency

2.4 to 2.4835 GHz

Bandwidth

20 to 40 MHz

Frequency power

802.11b:16dBm +/-1.5dBm

802.11g:15dBm +/-1.5dBm

802.11n(ht20):14dBm +/-1.5dBm

802.11n(ht40):12dBm +/-1.5dBm

Device interfaces

Alarm input

Network interface

TAMPER

RS-485

Exit button

USB

Wiegand

TF card

Alarm output

Lock control

Doorcontact input

Power interface

General

Button

Indicator

Installation

Surface mounting

Working temperature

-40

C to +55

C(-40

F to 131

Working humidity

10% to 95%

Indicator

Weight

265g

Protective level

IP65

Powersupply method

IEEE802.3af, standard PoE; 12 VDC

Dimensions

138 mm

65 mm

27 mm

Battery

Application environment

Outdoor

Power consumption

＜

10 W

Dimension

Appearance and Interfaces

No.

Description

No.

Description

Microphone

Terminals

Camera

Debugging Port

Indicator

TAMPER

Button

Set Screw

Card Reading Area

TF Card Slot

Loudspeaker

Network Interface

DS-KH6320-WTE1 Key Feature

Key Feature

New UI V2.0: User friendlydesign

7-inch colorful touch screen with resolution 1024 ×600

Standard PoE

Stores messages and capture pictures in the TFcard

Remote unlocking via the client software or the mobile client

Views live videos of door stations and linkedcameras

Supports wireless network

Specification

System parameters

Memory

128 MB

Flash

32 MB

Operationsystem

Embedded Linux operation system

Display parameters

Display screen

7-inch colorful TFT screen

Display

resolution

1024

600

Operationmethod

Capacitive touch screen

Audio parameters

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio

compression

standard

G.711 U

Audio

compression

rate

64 Kbps

Audio quality

Noise suppression and echo

cancellation

Network parameters

Wired network

10/100 Mbps self-adaptive

Wireless network

Wi-Fi 802.11 b/g/n

Networkprotocol

TCP/IP, SIP, RTSP

Network

interface

1 RJ-45 10/100 Mbps self-adaptive

Alarm input

8-ch alarm inputs

Relay output

TF card

Max to 32 G, SD 2.0 or lower version

RS485

General

Power supply

IEEE802.3af, standard PoE

12 VDC/1 A

Power consumption

≤ 6 W

Working

temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimensions

200 mm × 140 mm × 15.1 mm
(7.9" × 5.5" × 0.6")

Weight

683 g (with packaging)

Typical Application

Appearance & Interfaces

No.

Description

No.

Description

Screen

TF Card Slot

Microphone

Alarm Terminal

Debug Port

Reserved

Network Interface

Power Supply

Loudspeaker

Accessory Included

Screw

Package

2. 2_KA4×22-SUS

Installation
