DIY 560mm Carbon Fiber DIY Drone Folded Frame Kit W/ 700KV Brushless Motor 40A ESC 1455 Props APM2.8 With compass RC Quadcopter syma x5c remote control quadcopter RC Quadcopter

DIY 560mm Carbon Fiber DIY Drone Folded Frame Kit W/ 700KV Brushless Motor 40A ESC 1455 Props APM2.8 With compass RC Quadcopter syma x5c remote control quadcopter RC Quadcopter

Name: DIY 560mm Carbon Fiber DIY Drone Folded Frame Kit W/ 700KV Brushless Motor 40A ESC 1455 Props APM2.8 With compass RC Quadcopter syma x5c remote control quadcopter
Brand: MMO Dropship
SKU: 3256801239568998
Price: 802.16 VND
Availability: InStock
Rating: 4.9 (78 reviews)

Code: TD-3256801239568998 1 order

Free Shipping

$ 802.16 $ 844.45

Color:

Note

Quantity:

Other people want this. 13 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	FEICHAO
Camera Mount Type:	2-axis Gimbal
Material:	Plastic,Metal
Controller Battery:	as the manual
Origin:	CN(Origin)
Indoor/Outdoor Use:	Outdoor
Video Capture Resolution:	Other
Remote Distance:	as the manual
Aerial Photography:	Yes
Controller Mode:	MODE2,MODE1
Control Channels:	6 Channel
Package Includes:	Operating Instructions,Original Box,Charger,Batteries,USB Cable,Remote Controller
Recommend Age:	12+y,18+
Remote Control:	No
Model Number:	as the manual
State of Assembly:	Almost Ready
Operator Skill Level:	Beginner
Flight Time:	as the manual
Type:	HELICOPTER
Features:	App-Controlled
Dimensions:	as the manual
Warning:	pls take care
Charging Voltage:	as the manual
Motor:	Brushless Motor
Charging Time:	About 60 mins
Plugs Type:	usb
Power Source:	Electric

Frame kit is unassembly,any quesions , pls contact us freely .

Set B package included

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

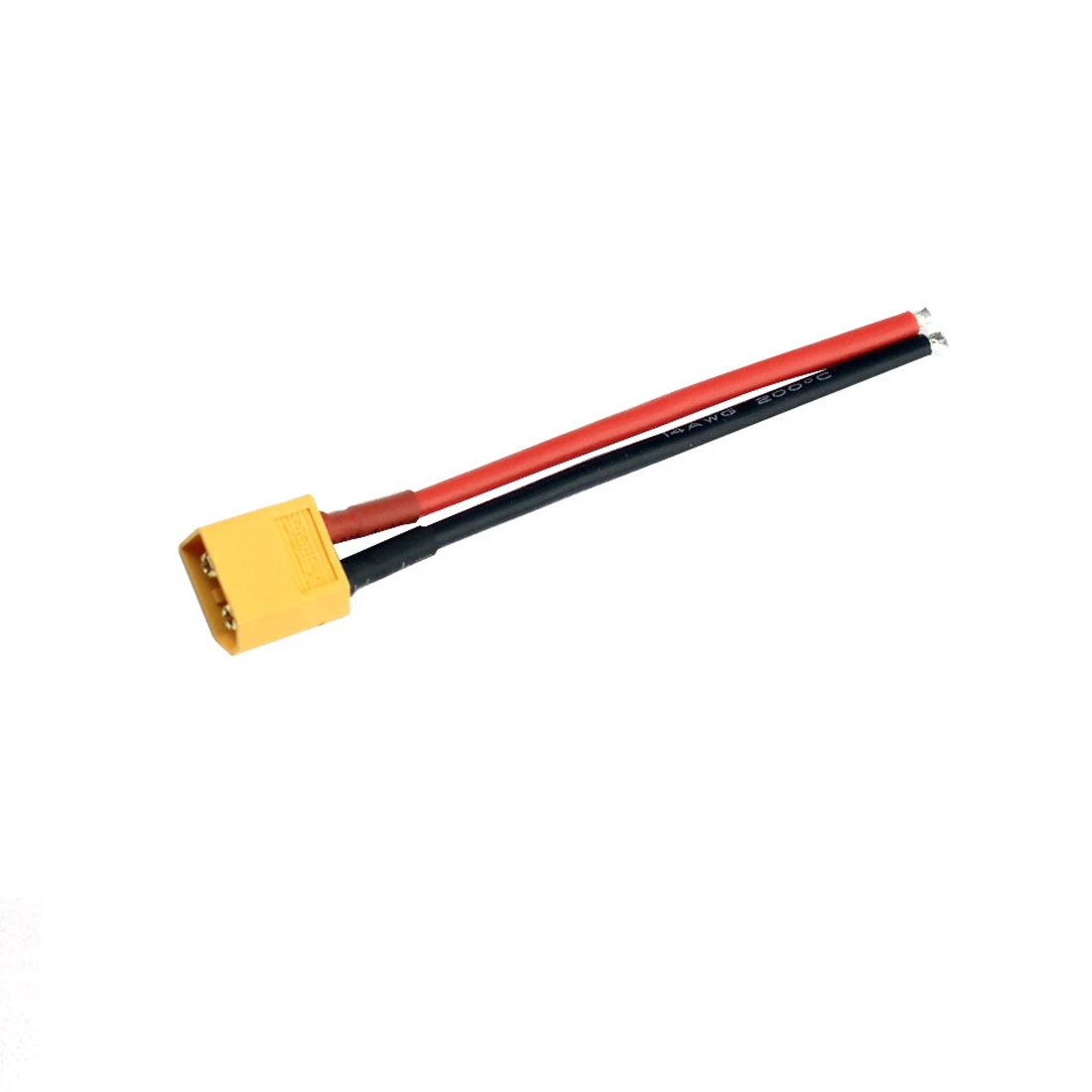

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

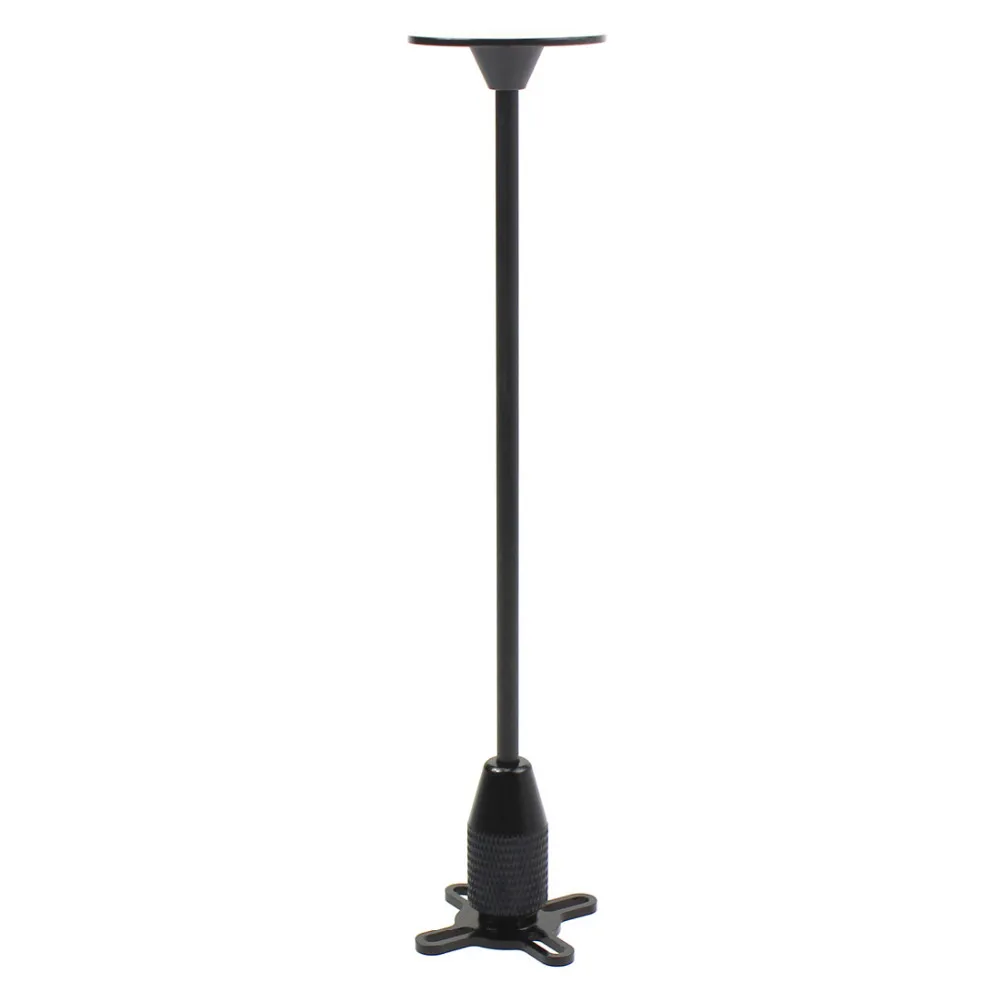

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Set C package included :

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

11.1V 4400MAH XT60 Battery x1

B3 pro Charger x1

Set D package included :

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver x1

Set E pacakge included :

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver x1

11.1V 4400MAH XT60 Battery x1

B3 pro Charger x1

Set F pacakge included :

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver x1

Gimbal x1

Set G pacakge included :

Carbon fiber folding frame kit x1

HYD3508 700kv brushless motor x4

1455 carbon fiber propeller x2

XT60 cable x1

black reverse buckle tie x1

Non-folding Landing gear x1

Antenna Holder x1

GPS X1

APM2.8 With compass X1

MWC connection cable X5

15cm Servo extention cable x1

Radiolink AT9S Radio with RD9S Receiver x1

Gimbal x1

More Details :

Frame kit:

Wheelbase: 560mm

Fit for Motor:2212-3508(920kv - 700kv)

Fit for ESC: 20A-40A

Height of the Landing Skid: 190mm

Fit for Propeller: 10-12 inch

Propeller:

High quality 100% 3K all carbon fiber board which imported from Japan improve material.

Each pair of propellers has perfect dynamic poise and static balancing which balance by manpower.

Especially improves the air-powered efficiency and aerofoil stability.

High quality ultra-light carbon fiber propellers especially designed for multicopters.

Carbon fiber forward propeller*1

Carbon fiber reverse propeller*1

Length:14inch,Pitch 5.5,Main Hole Dia 4mm,Side Holes Dia 3mm,Center distance 12mm

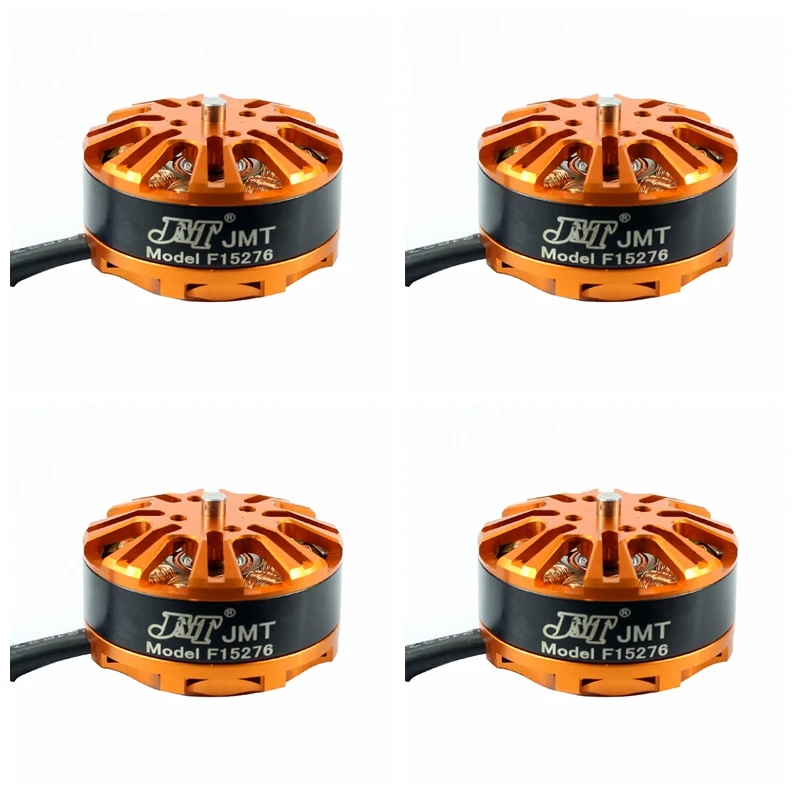

Motor:

Motor KV: 700KV

Shaft: 4.0mm

No-load Currency (A): 0.4A

Maximum Currency (A): 18.0A

Power: 198W

Weight: about 90g

Input Voltage: 2-4S LOPO

Suitable Propeller: 12"-15" Props

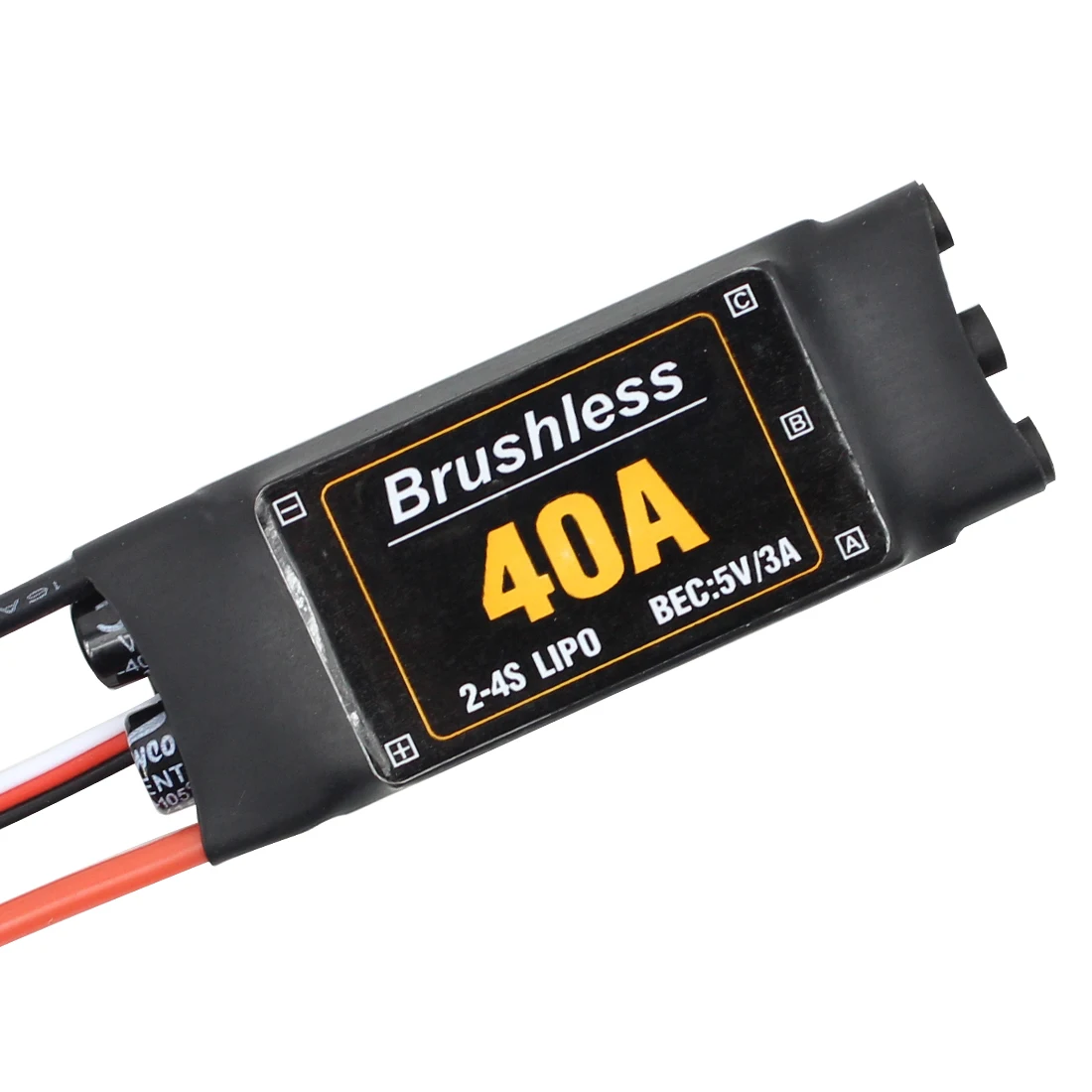

ESC:

Types: long, short
Current: 40A
Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm

APM2.8

- Arduino Compatible!

- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally

- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer

- Onboard 4 MegaByte Dataflash chip for automatic datalogging

- Optional off-board GPS, uBlox LEA-6H module with Compass.

- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.

- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.

- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

Charger :

Input Voltage : 100 - 240V AC50 / 60Hz

Output Current: 3*800mA

Suitable for 2 cell and 3 cell Li-Po Batteries

Led Indicator:

When power is on : Orange

Stand by mode : Green

Battery Charging : Red

Battery Full : Green

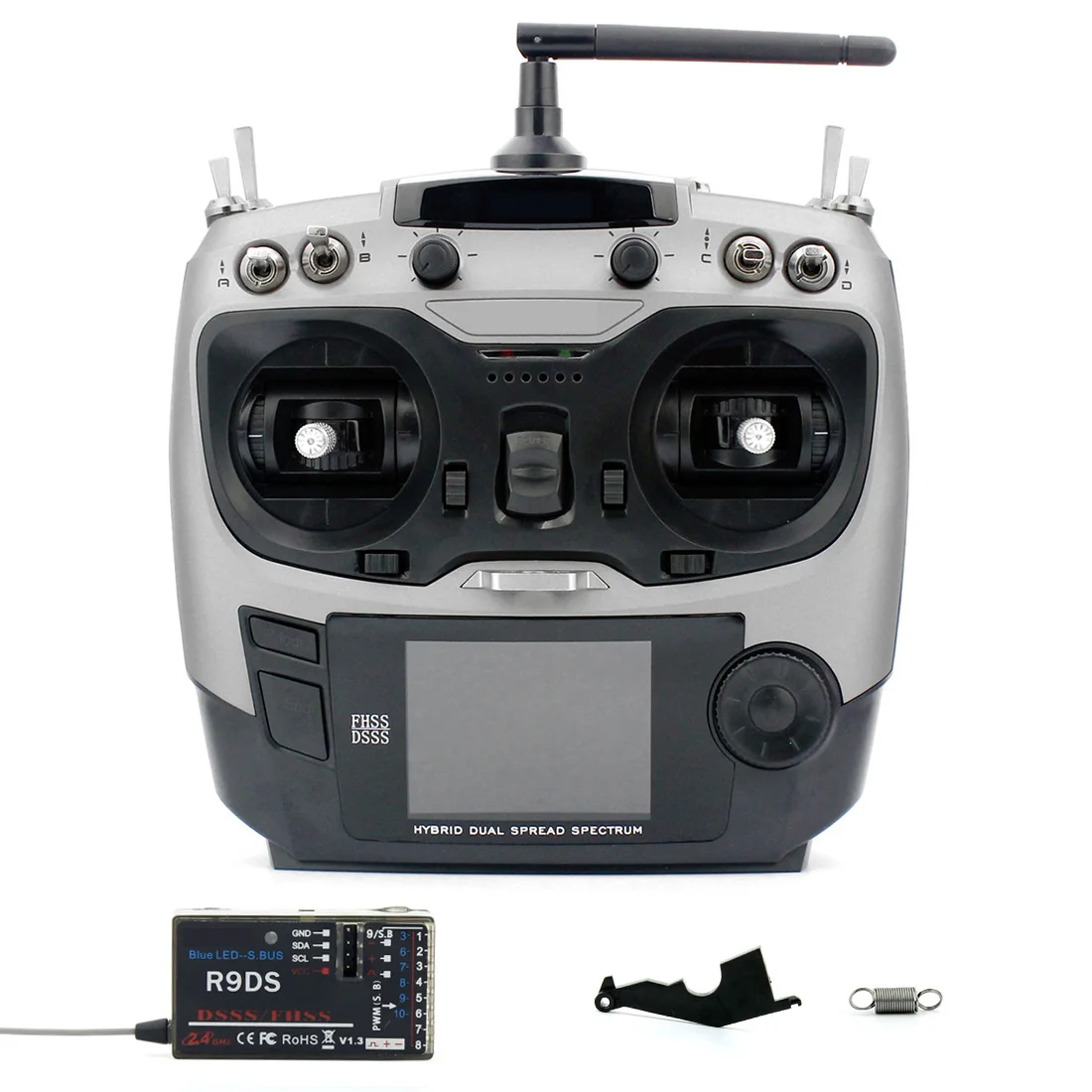

AT9S Transmitter :

Channels: 10ch/12ch

Mode: Mode 1 or Mode 2

Signal: SBUS/PWM/PPM/CRSF

Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

Channel Bandswidth: 5.0 MHz

Spread Spectrum: DSSS&FHSS/CRSF

Modulation Mode：QPSK

Adjacent Channel rejection: >38dbm

Transmission Power:

DSSS & FHSS <100mW(20dbm)

CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

Operating Current: DSSS&FHSS < 90mA@12V

CRSF Depends on the transmission power selecte

Operating Voltage: 7.4~18.0V

4096 Section Precision

Screen: 2.8 inches 16 colorful screen, 240*320 pixels

Channel: 10 channels , 5-10 channels are customized

Size: AT9S- 183*100*193mm

Weight: 0.88kg

Control Range: DSSS&FHSS - 4KM in the air (Maximum range is tested in an unobstructed area free of interference)

Compatible receivers:

12CH - R12DSM, R12DS,

10CH- R9DS, R6DS,R6DSM

CRSF: RX from BLACKSHEEP

R12DSM Receiver Specifications

Signal: SBUS/PPM

Channel: 12CH

Control Distance: 4000m on air

Working Voltage: 4.8-6V

Working Current: 40-180mA（input voltage: 5V）

Size: 30*15mm

Weight: 2.5g

Gimbal:

- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible with Gopro3+, 3,2,1
- with 2pcs 2208 motors and V3 gimbal controller,sensor
- with motor protector which can help heat dissipation
- gimbal weight: 400g

Note:
1.This gimbal is not include gopro 3.
2.Users need learn how to install the component and test its effects.
It's will get better results after a period of testing.

3.Assembled tuning good, no assembly instructions
