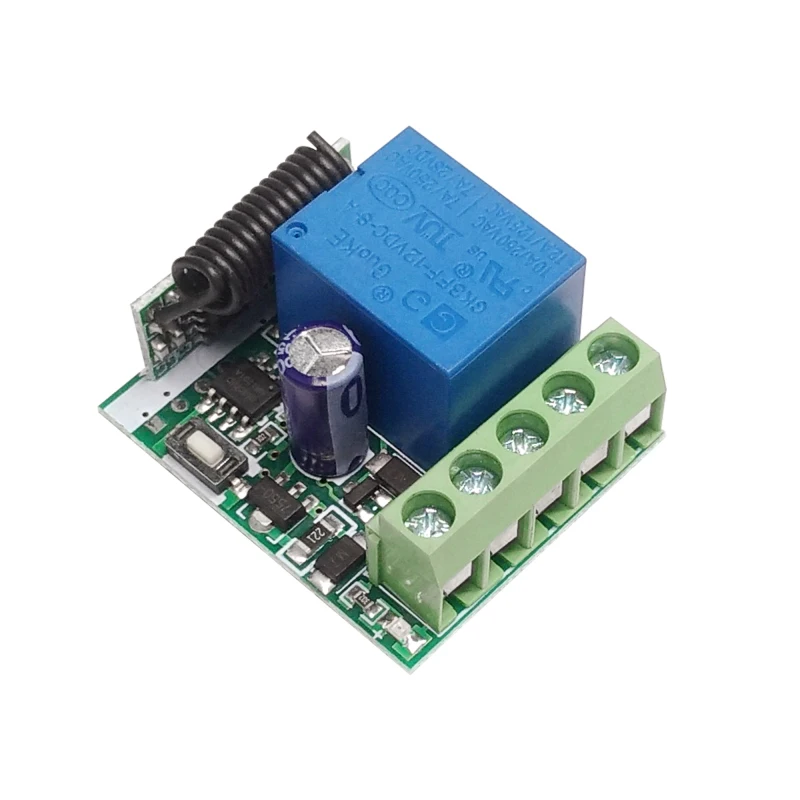

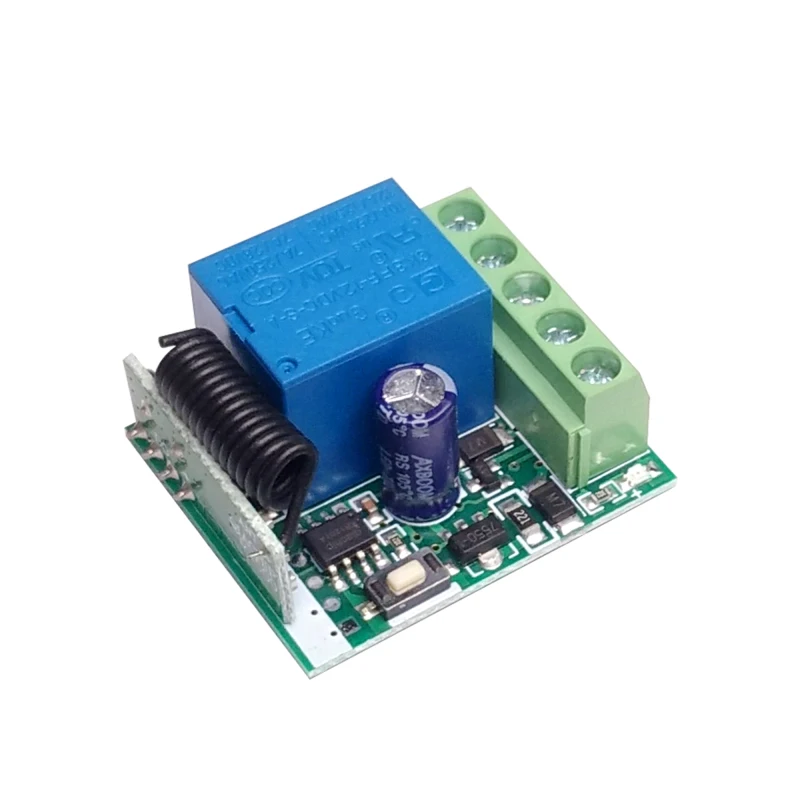

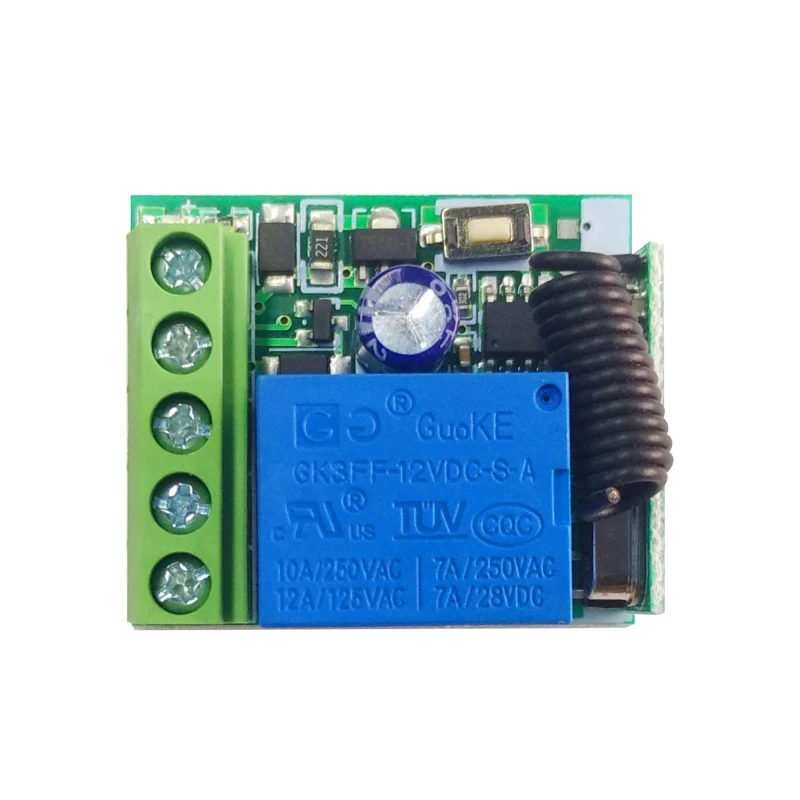

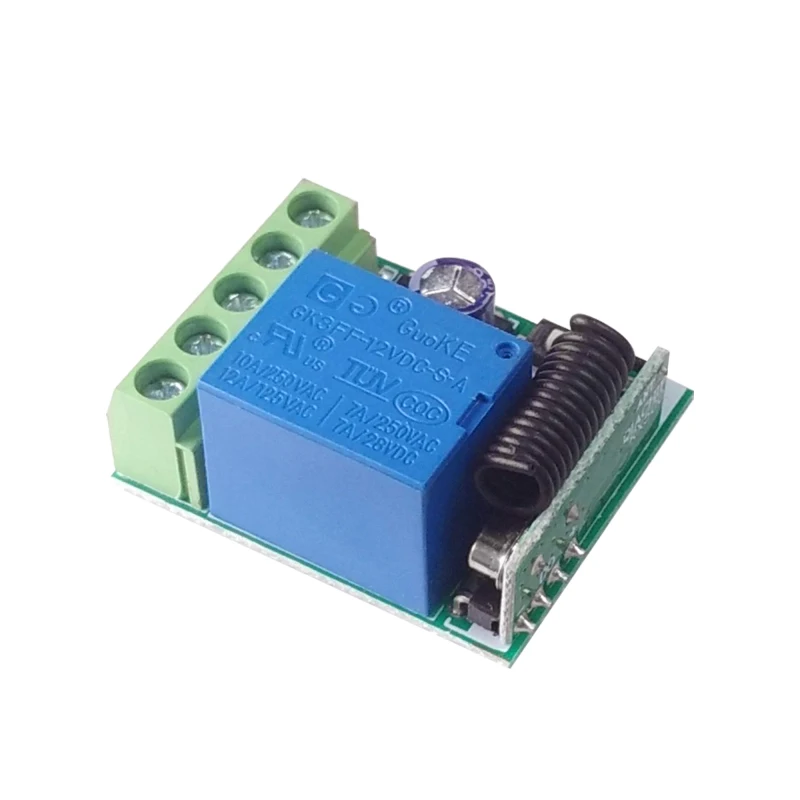

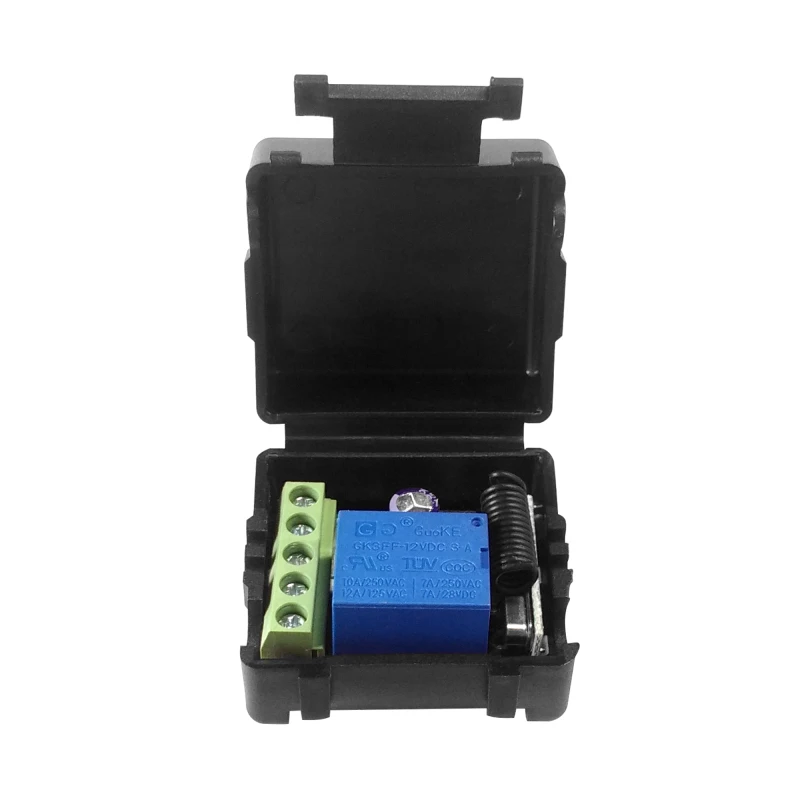

DC 12 V to 1 Channel 433mHz Wireless Single-Channel Relay Module RF Remote Control Switch Oscillator Receiver Control Lehr Board
Code: TD-3256802760544504
2 orders
Free Shipping
$ 29.14
Other people want this. 24 people have this in their carts right now.
| Brand Name: | centechia |
|---|---|
| Certification: | CE |
| Origin: | CN(Origin) |
| State of Assembly: | Ready-to-Go |
| Compatibility: | Others |
| Bundle: | - |
| Camera Equipped: | No |
| Model Number: | - |
| Input voltage: | DC10V-14V |
| Standby current: | <5MA |
| RF frequency: | 315M, 433M optional. |
| RF working mode: | superheterodyne receiving |
| receiving sensitivity: | >97dbm |
| Remote control distance: | Open area greater than 100 meters. |
| Multiple working modes: | self-locking, interlocking, and delayed closing. |
Description:
Technical index:
1. Input voltage: DC10V-14V
2. Standby current: <5MA
3. RF frequency: 315M, 433M optional.
4. RF working mode: superheterodyne receiving 5. Receiving sensitivity: >97dbm
6. Remote control distance: open area greater than 100 meters.
7. Decoding method: MCU software decoding 8. The number of remote controls that can be stored: 50 9. Support remote control types: learning code, fixed code (customizable rolling code).
10. Multiple working modes: inching, self-locking, interlocking, and delayed closing.

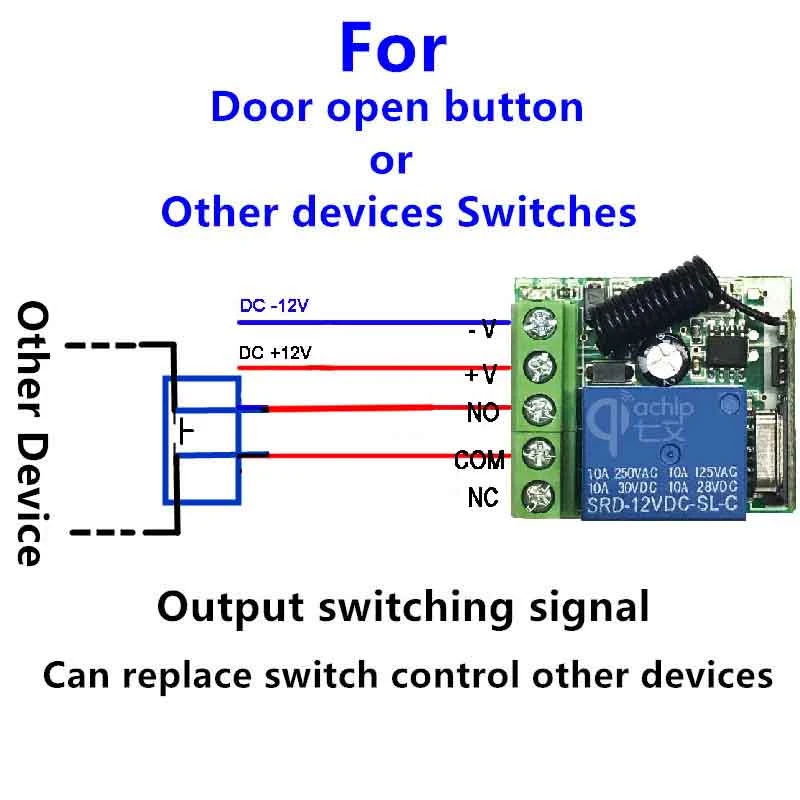

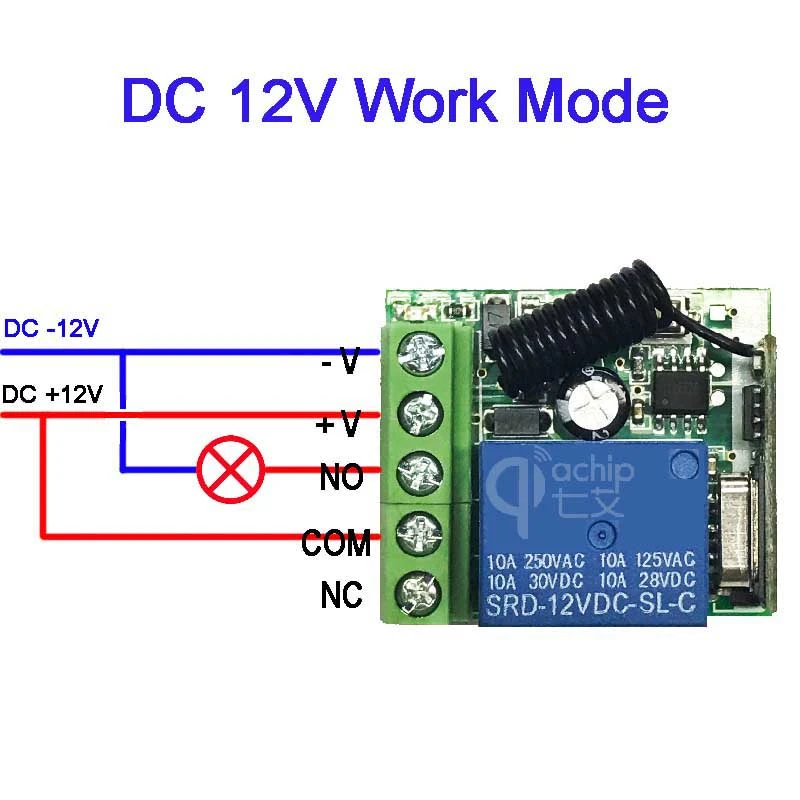

11. Wiring mode: fixed wiring post 12. Switch output: normally open, public, and normally closed.
13. Circuit board size: 35*30*18mm (length, width, height)
Specifications:
Working mode explanation:
1. Jog mode: press the remote control relay to pull in, release the remote control relay to disconnect.
2. Self-locking mode: Press the remote control relay to close, and press the remote control again to disconnect the relay.
3. Interlock mode: Press the remote control A button, the relay will be closed, and press the remote control B button to disconnect.
4. Delay mode: Press the remote control relay to close, release the remote control and start timing. After 5 seconds, 10 seconds, 15 seconds (3 gears), the relay will be automatically closed.
Package Included:
Control board*1
