Brand Name: | Dahua |
---|---|
Origin: | CN(Origin) |
Smart home platform: | NONE |
Certification: | CE |
Certification: | FCC |
Certification: | UL |
Technology: | Network |
Supported Operating Systems: | Microsoft Windows 2000 |
Supported Operating Systems: | Microsoft Windows XP |
Supported Operating Systems: | Microsoft Windows Vista |
Supported Operating Systems: | Microsoft Windows 7 |
e-Cloud(P2P): | Yes |
Video Output: | 1CH 4K HDMI-compatible 3840*2160 |
Video Output: | 1VGA + 1HDMI-compatible |
Video Output: | 1CH VGA 1280X1024 60Hz |
IP Mode: | Static IP address |
Video Standard: | NTSC |
Video Standard: | PAL |
Hard Drive Size: | 3.5'' |
Network Protocol: | TCP/IP |
Network Protocol: | DHCP |
Network Protocol: | SMTP |
Network Protocol: | HTTP |
Network Protocol: | DDNS |
Network Protocol: | UPNP |
Network Protocol: | PPPoE |
Network Protocol: | FTP |
Network Protocol: | DNS |
Network Interface: | RJ45 10/100M |
Backup Type: | Hard Drive |
Audio Output: | 1CH RCA |
Video Input Interface: | RJ45 |
Supported Mobile Systems: | iPhone OS |
Supported Mobile Systems: | Android |
Supported Mobile Systems: | Symbian |
Supported Mobile Systems: | Windows Mobile |
Two-way Audio: | Yes |
Video Resolution: | 6MP |
Video Resolution: | 1080P |
Video Resolution: | 5MP |
Video Resolution: | 3MP |
Video Resolution: | 4MP |
Compression Format: | H.265 |
Compression Format: | H.264 |
Audio Compression Format: | G711A |
Audio Compression Format: | AAC |
Hard drive Interface Type: | SATA |
Communication Interface: | None |
Model Number: | NVR4108-8P-4KS2/L & NVR4116-8P-4KS2/L |
Alarm Action: | Email Photo |
POE: | 8 Port |
Audio Input: | 1 RCA |

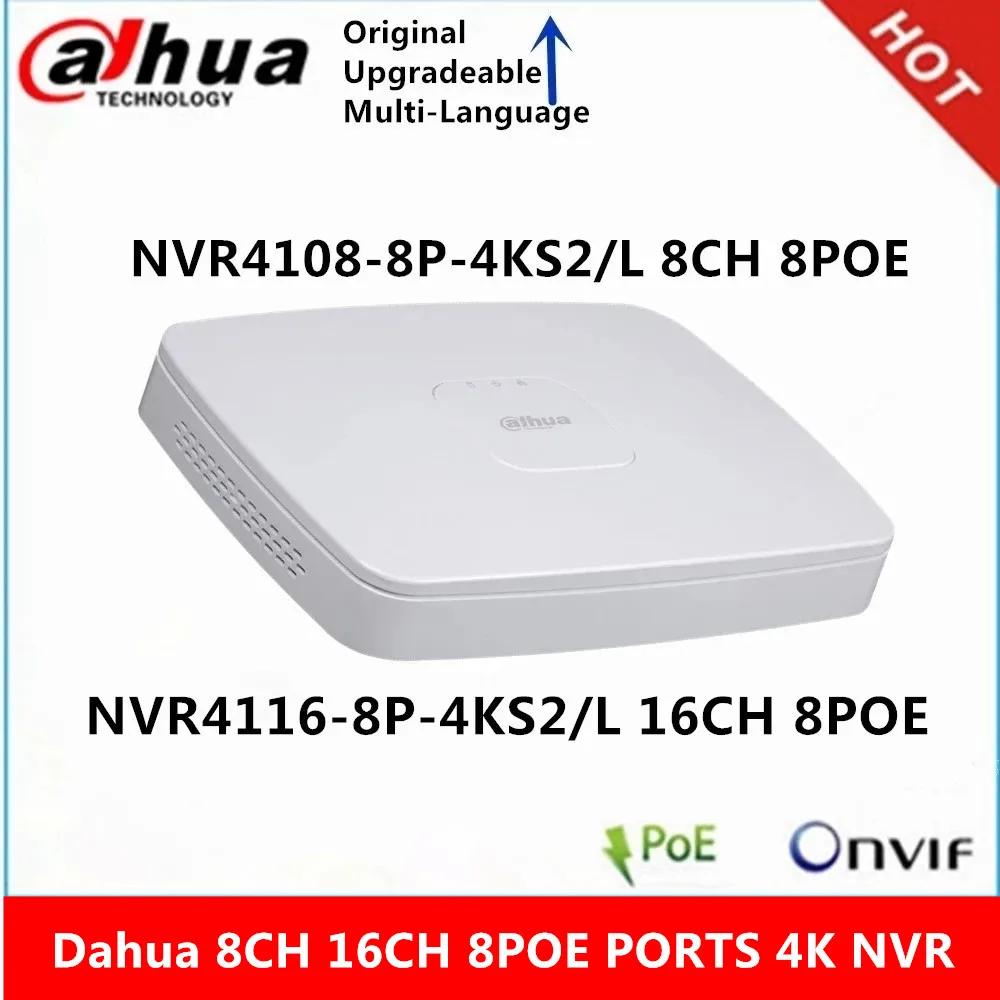

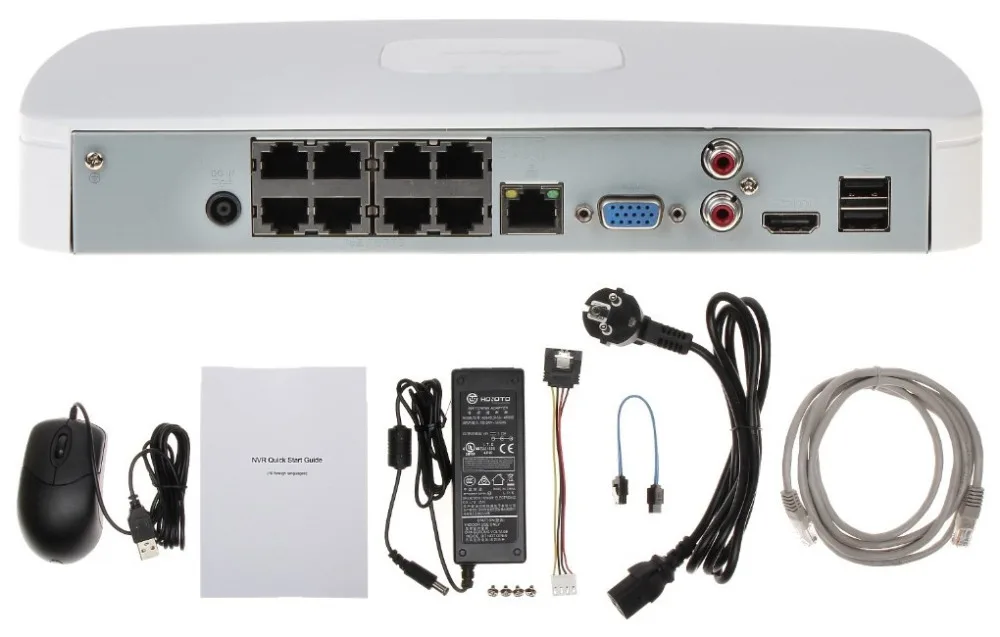

NVR4108-8P-4KS2/L & NVR4116-8P-4KS2/L
8/16 Channel Smart 1U 8PoE 4K&H.265 Lite Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264
> Max 80Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Up to 2ch@4K/8ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports
System
Main Processor
Quad-core embedded processor
Operating System
Embedded LINUX
Aduio and Video
IP Camera Input
8/16 Channel
Two-way Talk
1 Channel Input, 1 Channel Output, RCA
Display
Interface
1 HDMI, 1 VGA
Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity
2ch@4K(30fps)/8ch@1080P(30fps)
Multi-screen Display
8CH: 1/4/8/9
16CH: 1/4/8/9/16
OSD
Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression
Smart H.265+/H.265/Smart H.264+/H.264
Resolution
8Mp/ 6Mp/ 5MP
/
4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate
80Mbps
Bit Rate
16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Tampering
Alarm input
N/A
Alarm output
N/A
Playback and Backup
Playback
8CH: 1/4/9
16CH: 1/4/9/16
Search Mode
Time /Date, MD and Exact Search
(accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Third-party Support
Third-party Support
Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Network
Interface
1 RJ-45 Port (10/100Mbps)
Ethernet Port
1 Independent 100Mbps Ethernet Port
PoE
8 Ports(IEEE802.3at/af)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 2.4, SDK, CGI
Storage
Internal HDD
1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode
Single
Auxiliary Interface
USB
2 ports(1 Rear USB2.0, 1 Front USB2.0)
RS232
N/A
RS485
N/A
Electrical
Power Supply
DC48V/2A
Power Consumption
NVR: <8.3W (Without HDD)
PoE: Max 25.5w for single port, 80w in total
Environmental
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
Smart 1U, 270mm×204.7mm×45.7mm
(10.6" x 8.1" x 1.8")
Net Weight
0.65kg (1.43 lb) (without HDD)
Gross Weight
1.8kg(3.97 lb)(without HDD)
Certifications
CE
EN55032, EN55024, EN50130-4, EN60950-1
FCC
Part 15 Subpart B, ANSI C63.4-2014
UL
UL60950-1
