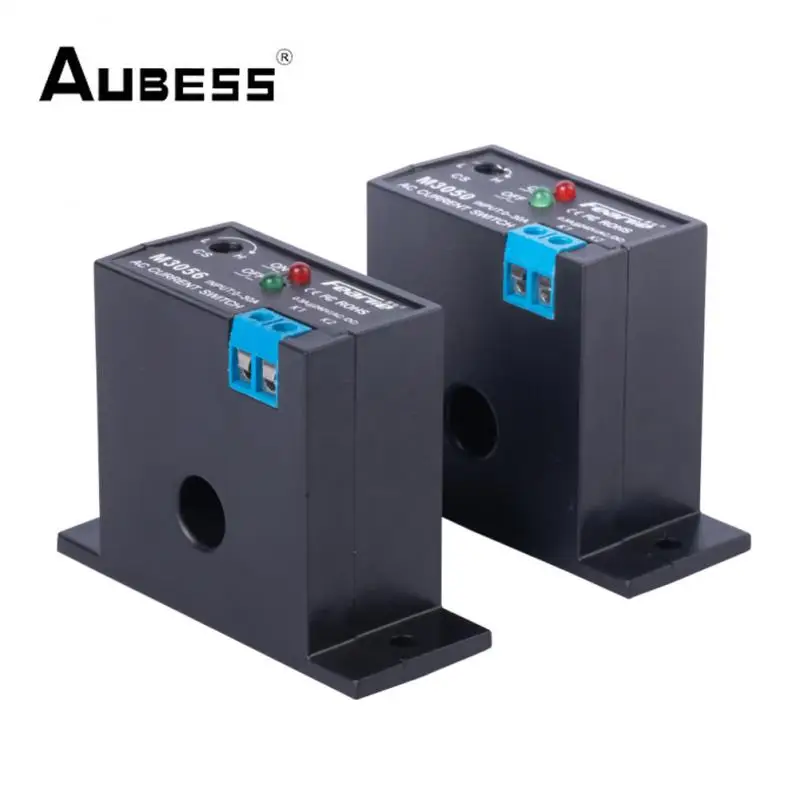

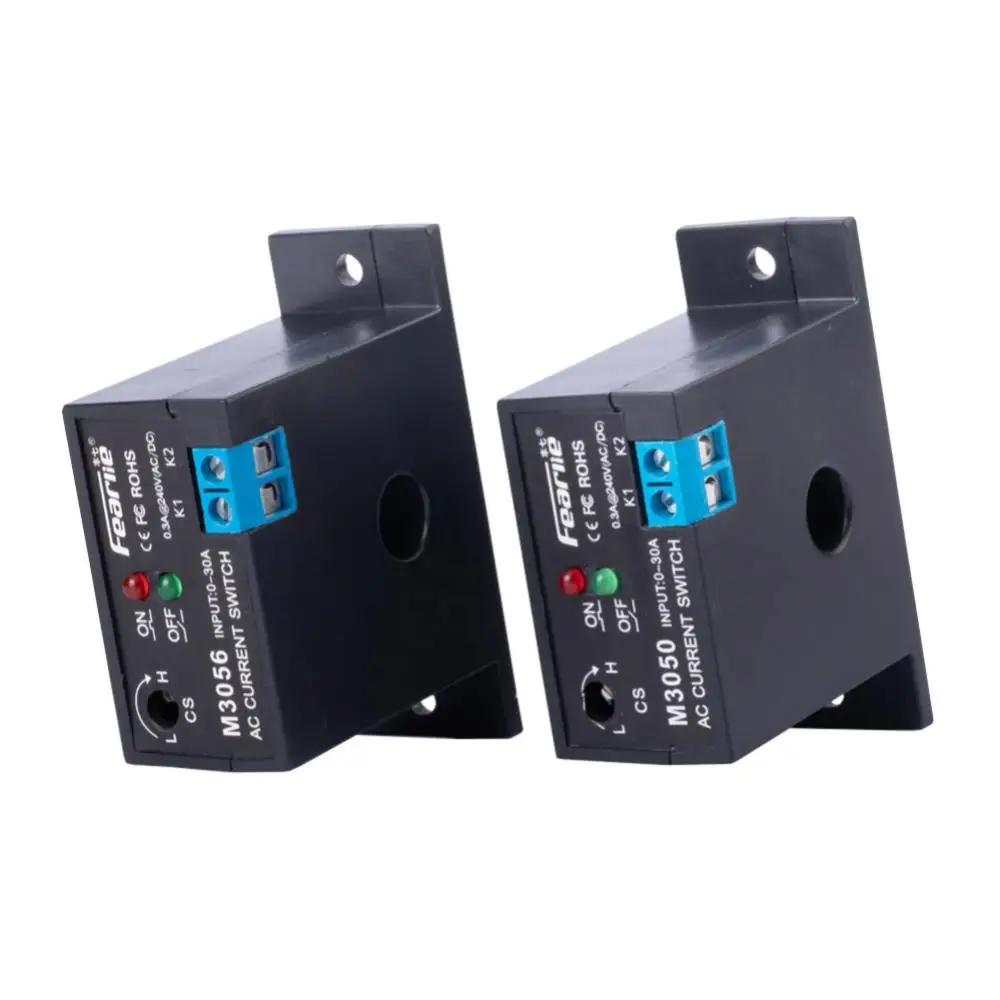

Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close

Code: TD-3256804007670277
Free Shipping
$ 39.79
Color:
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Current Detection Switch Induction Relay Adjustable Current 0.2-30A AC Self-Powered Sensing Switch Normally Open/Close
Note

Quantity:
Other people want this. 5 people have this in their carts right now.
Brand Name:  Aubess
Origin:  CN(Origin)
Certification:  CE
Monitoring current:  0.2-30A AC
The diameter of the perforation line:  10MM
Dimensions: 65x25x47MM:  65x25x47MM
Maximum leakage value:  0.1MA
Maximum overload capacity:  100%
Hysteresis:  less than 1%
The shell color:  black/blue
Support:  Dropshipping/Wholesale

Description:

Product datas:

Monitoring current: 0.2-30A AC

Contact capacity: 0.3A@240V AC/DC

The diameter of the perforation line: 10MM

Dimensions: 65*25*47MM

Maximum leakage value: 0.1MA

Maximum overload capacity: 100%

Operating temperature: -20-55℃

Hysteresis: less than 1%

The shell color: black/blue

>Mutual inductance current monitoring, security isolation of input and output, self power

>The range of the monitored current is up to 30A;the monitoring threshold is adjustable within 0.2-30A.

>Hysteresis is less than 1%. It can be used instrong magnetic environment.

>Non-contact electronic switch with fast reaction and unlimited number of on-and-off operations.

>The shell is made of environmentally-friendly flame-retardant PC material.

Specifications:

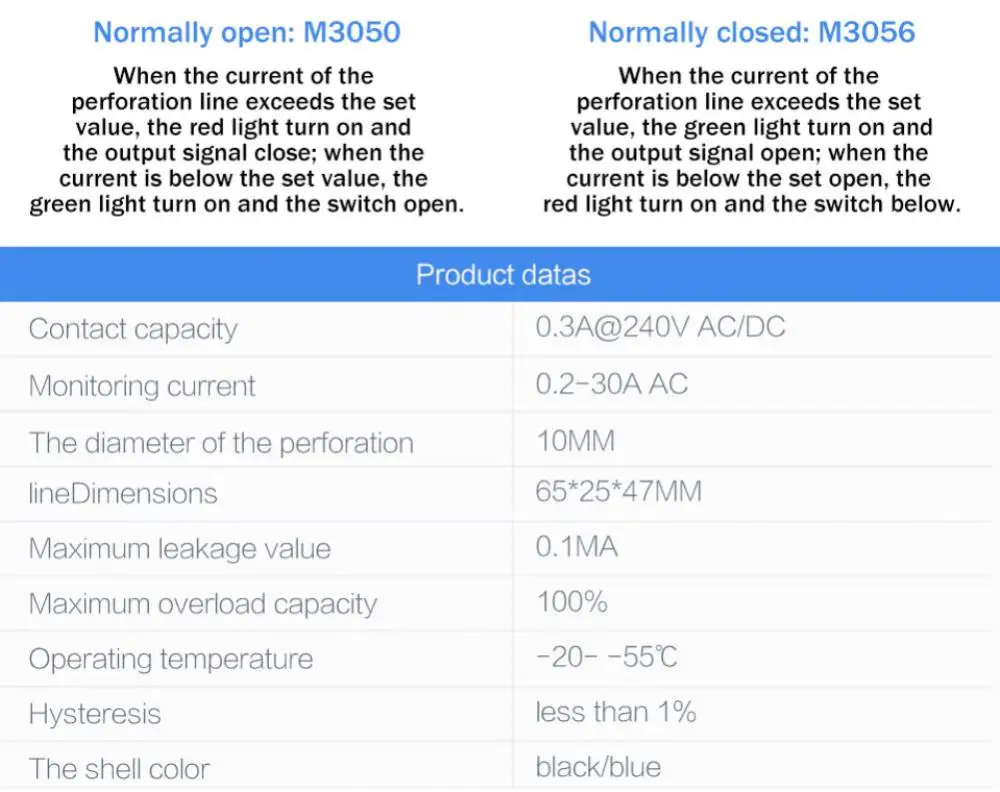

Operating principle:

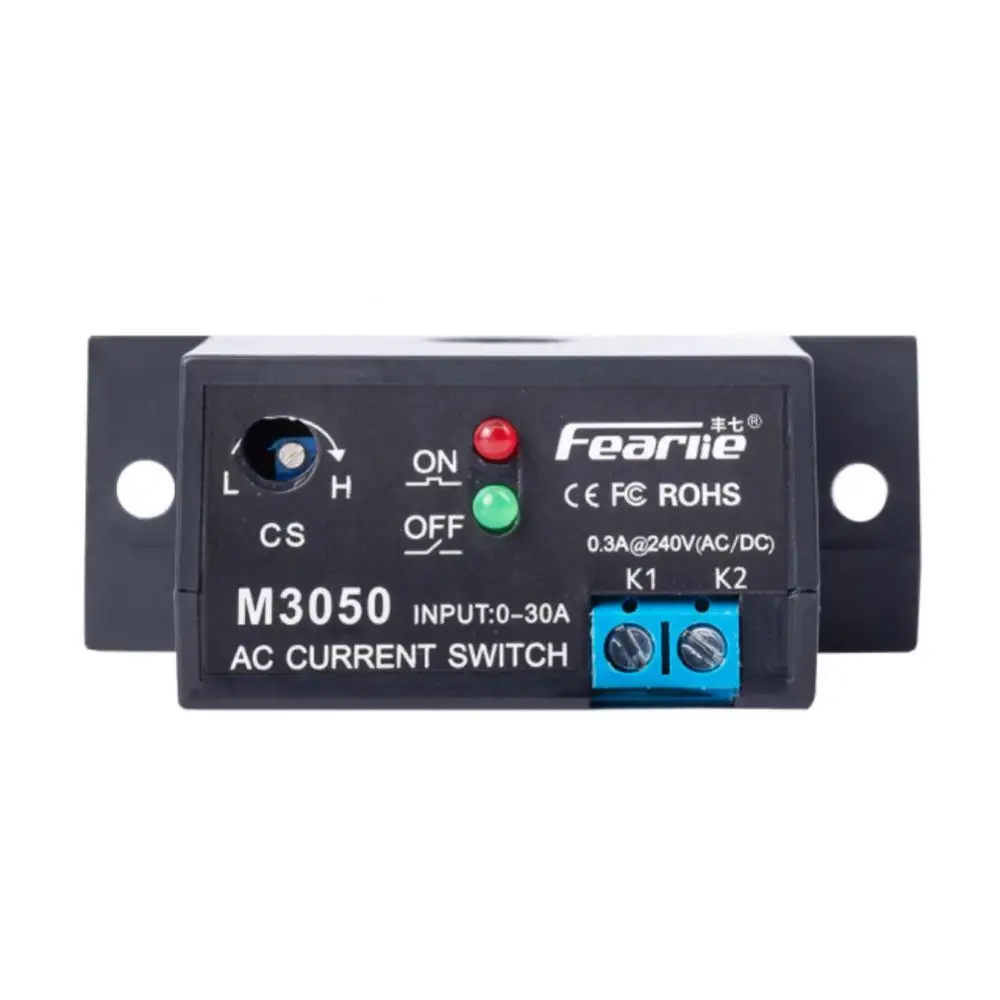

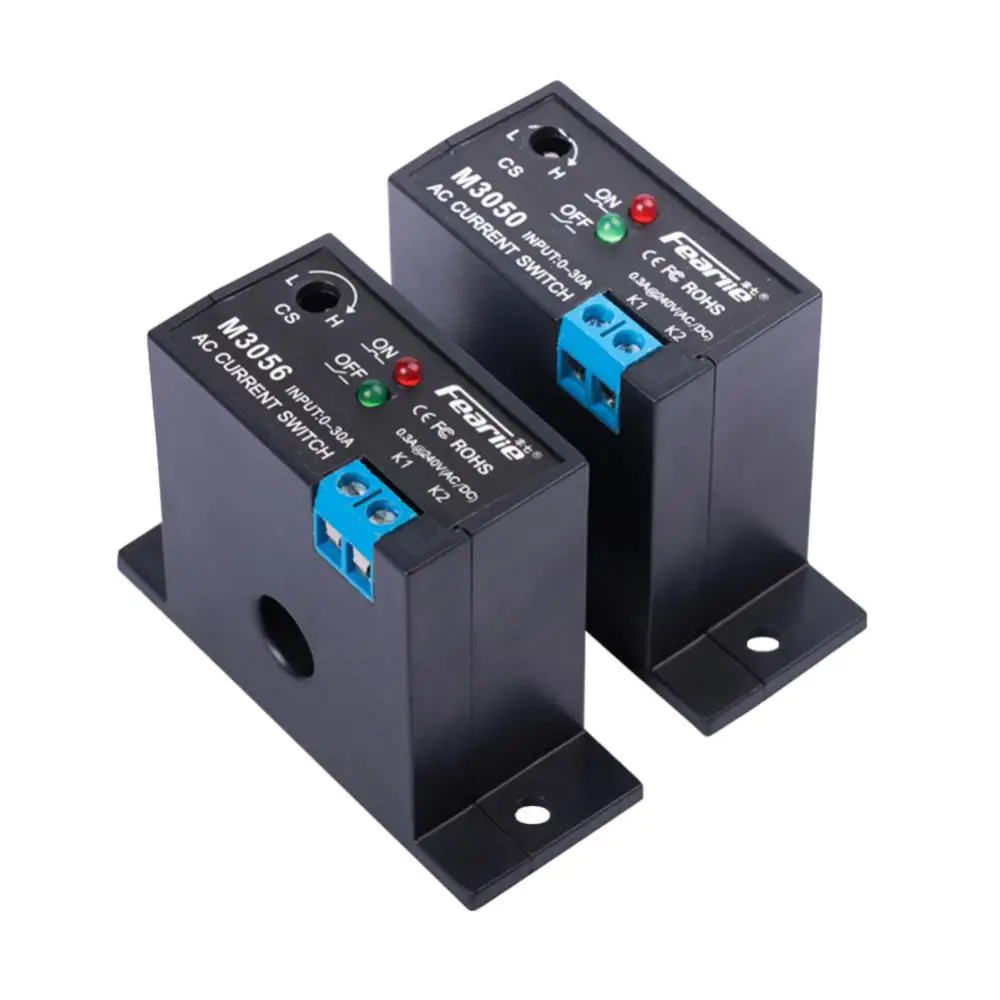

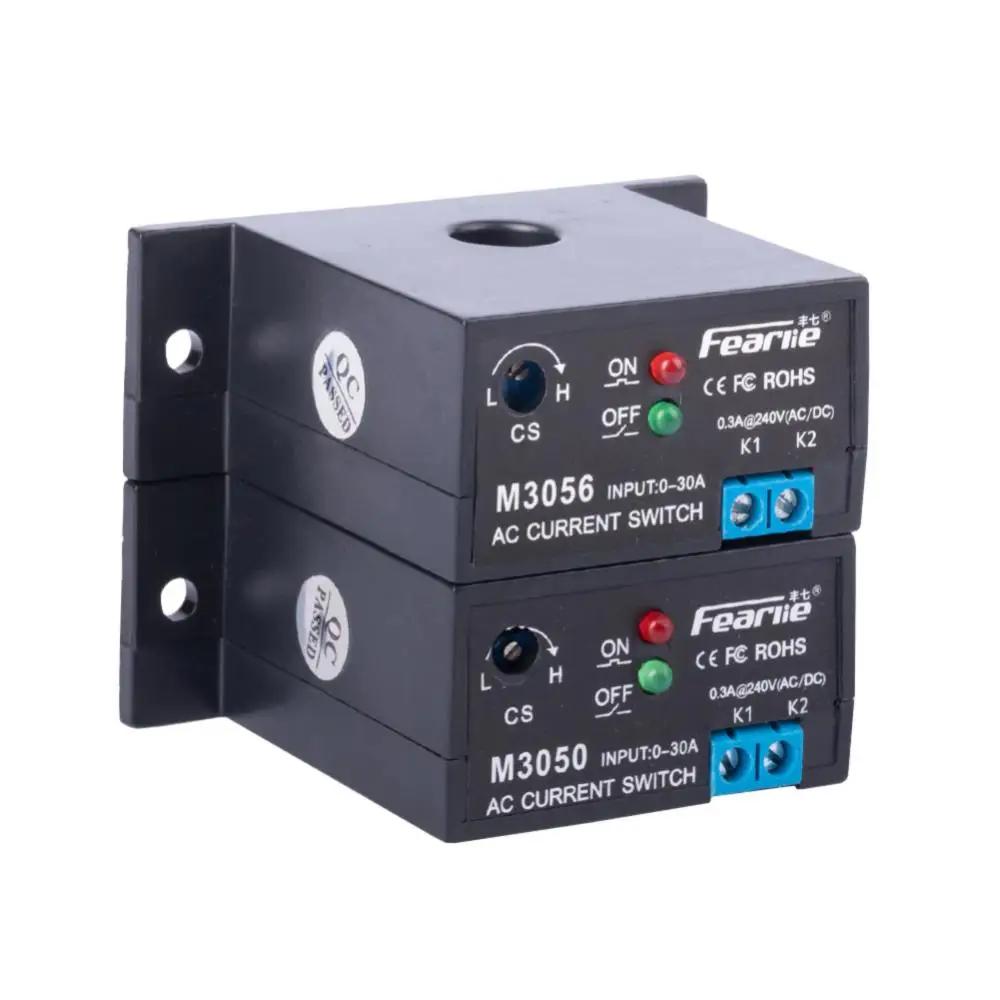

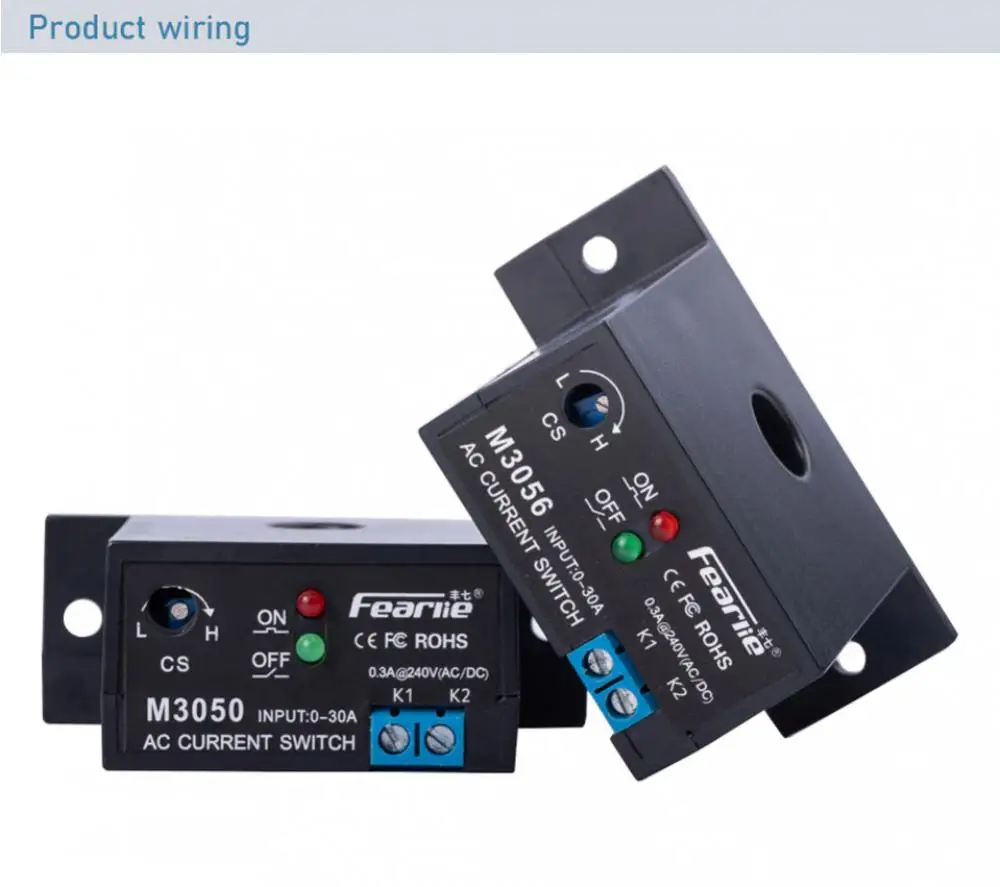

Normally open: M3050

When the current of the perforation line exceeds the set value, the red light turn on and the output signal close; when the current is below the set value, the green light turn on and the switch open.

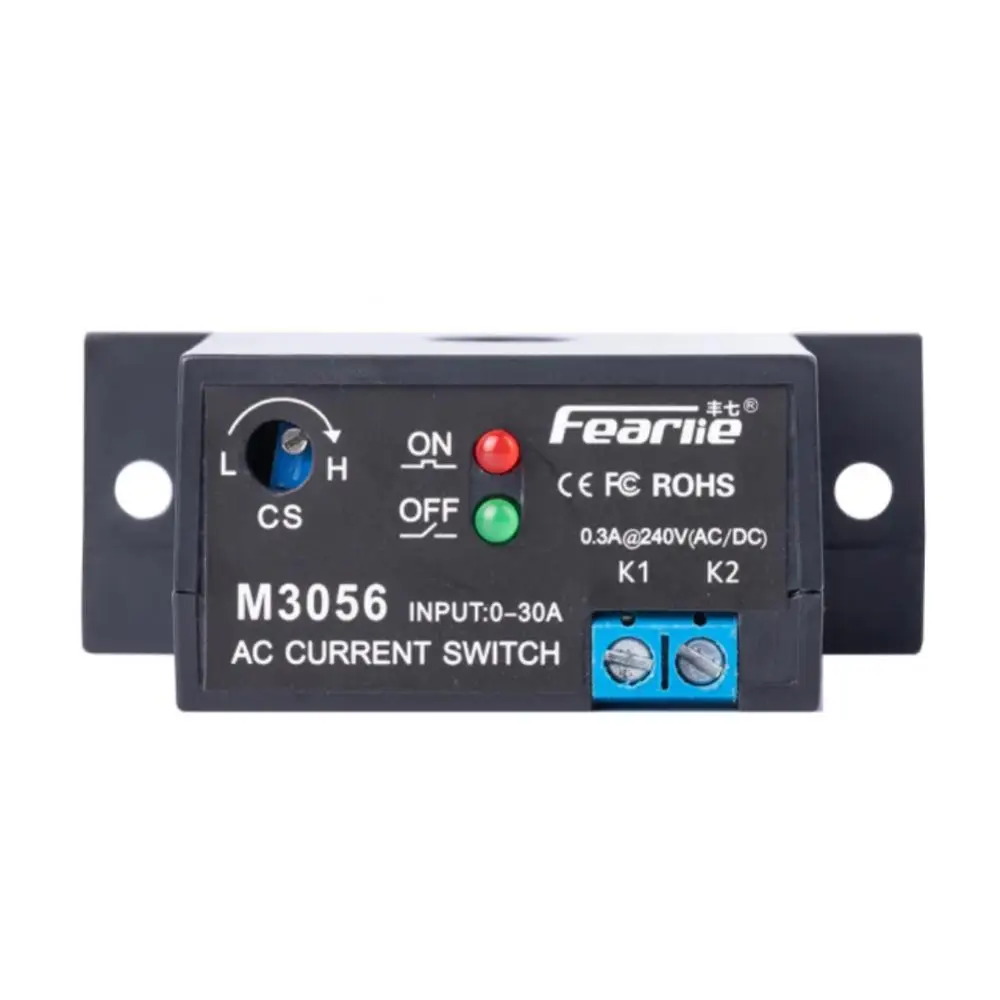

Normally closed: M3056

When the current of the perforation line exceeds the set value, the green light turn on and the output signal open ; when the current is below the set value, the red light turn on and the switchs close.

Package Included:

1*Current detection switch induction relay
