coolant temperature gauges 2022 Newest Breakout Tricore Cable GODIAG Full Protocol OBD2 Jumper Cable for MPPS Ke-ss V2 Fg-tech By-shut Dis-Prog Bench Work test car battery with multimeter Diagnostic Tools

Code: TD-3256804134373449 3 orders
Free Shipping
$ 71.64 $ 121.63
Quantity:
Other people want this. 18 people have this in their carts right now.
Brand Name:  OKDIAG
Origin:  CN(Origin)
External Testing Certification:  ce
Software Version:  The Newest
Item Type:  Car Diagnostic Cables and Connectors
Electronic:  No
Feature:  OBD2 Jumper Cable
Feature 1:  Engine Analyzer
Feature 2:  Full protocol OBD2 jumper
Feature 3:  GT100 OBD II Break Out Box

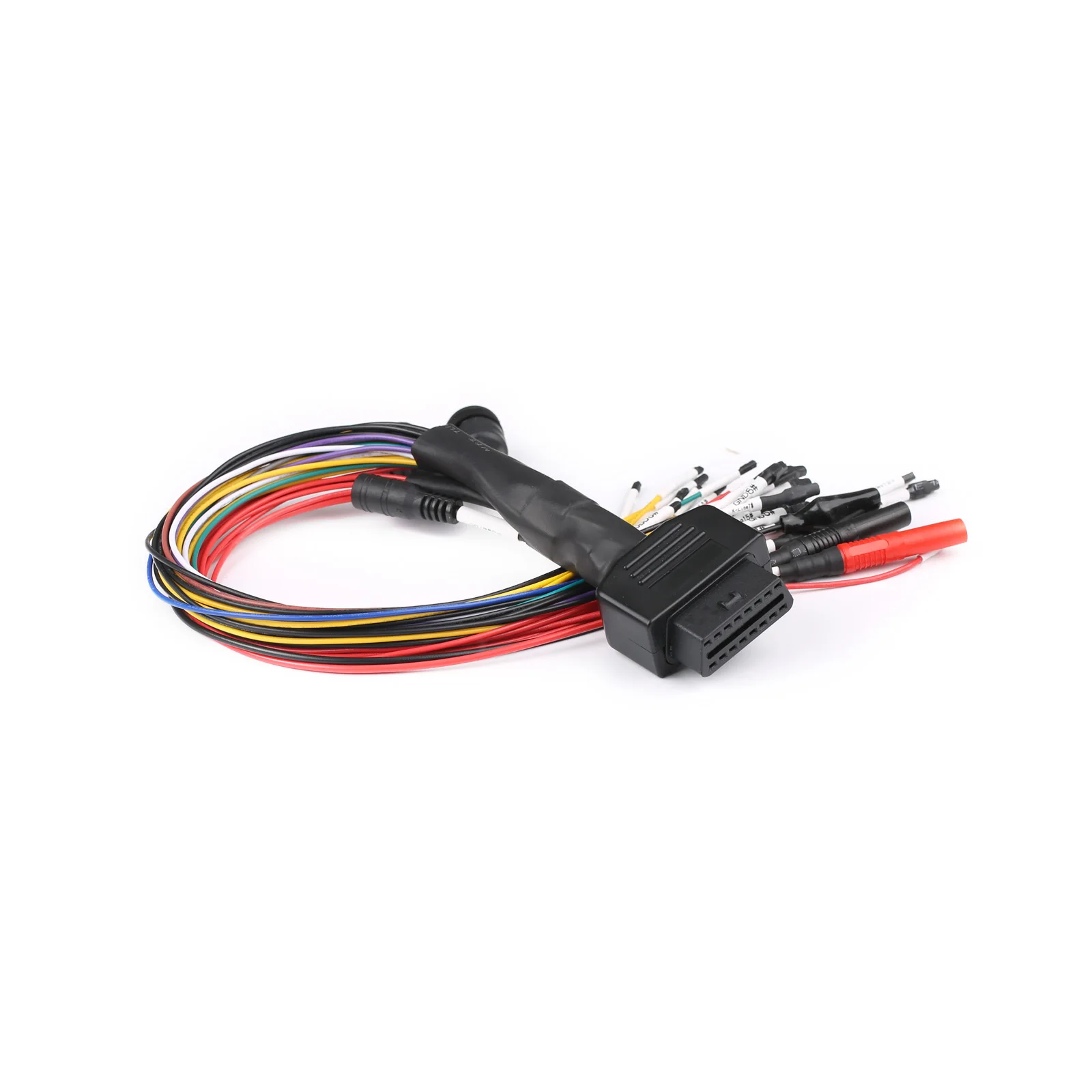

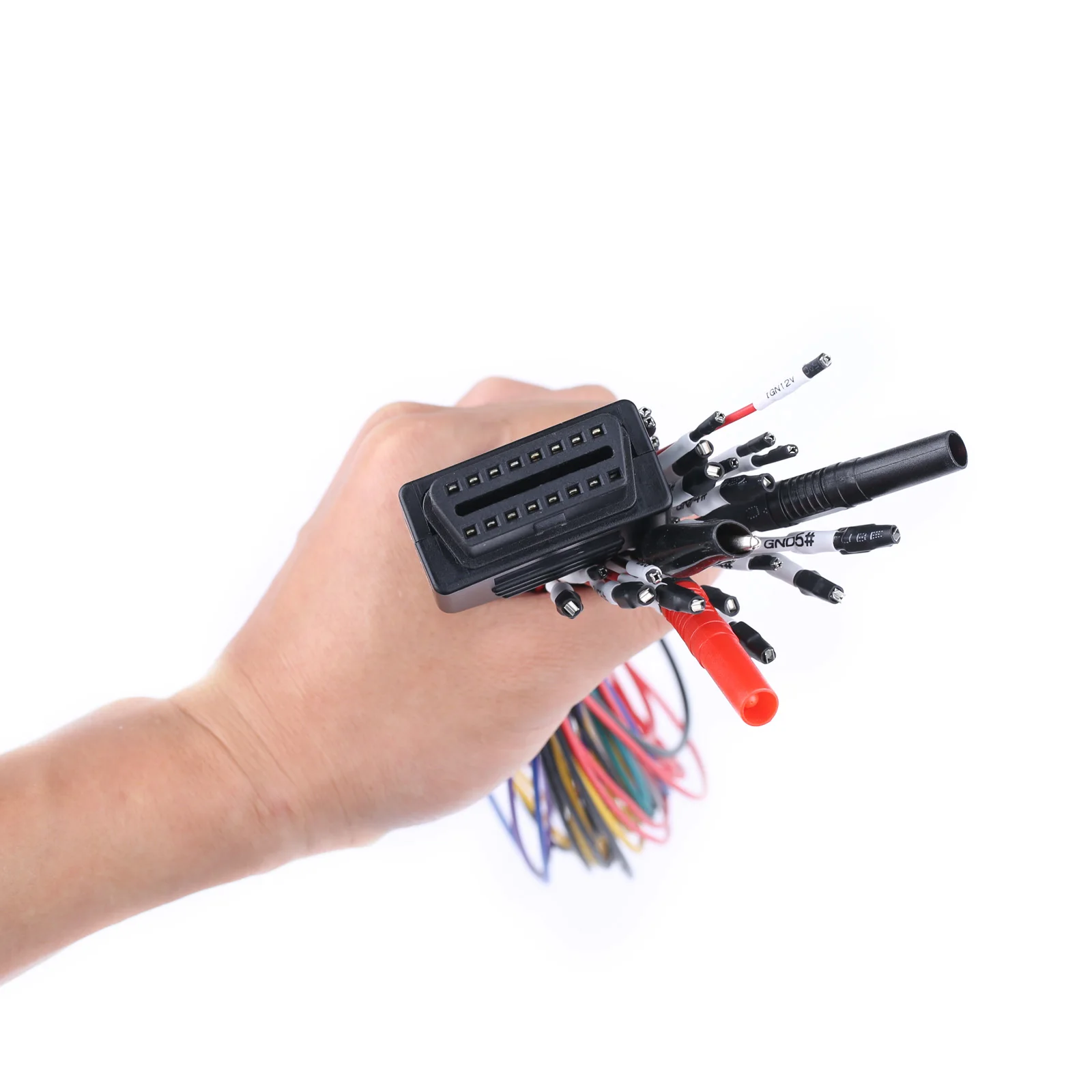

GODIAG Full Protocol OBD2 Jumper Used to Connect ECU for ECU Programing Via MPPS, FGTECH, KESSV2, BYSHUT, DISPROG

Product Functions:

1. Supports DC power supply

2. Support safety protection banana head super programming dedicated connection port power supply.

3. Independent GND4, GND5 [meet the needs of special ECU programming].

4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.

5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].

Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

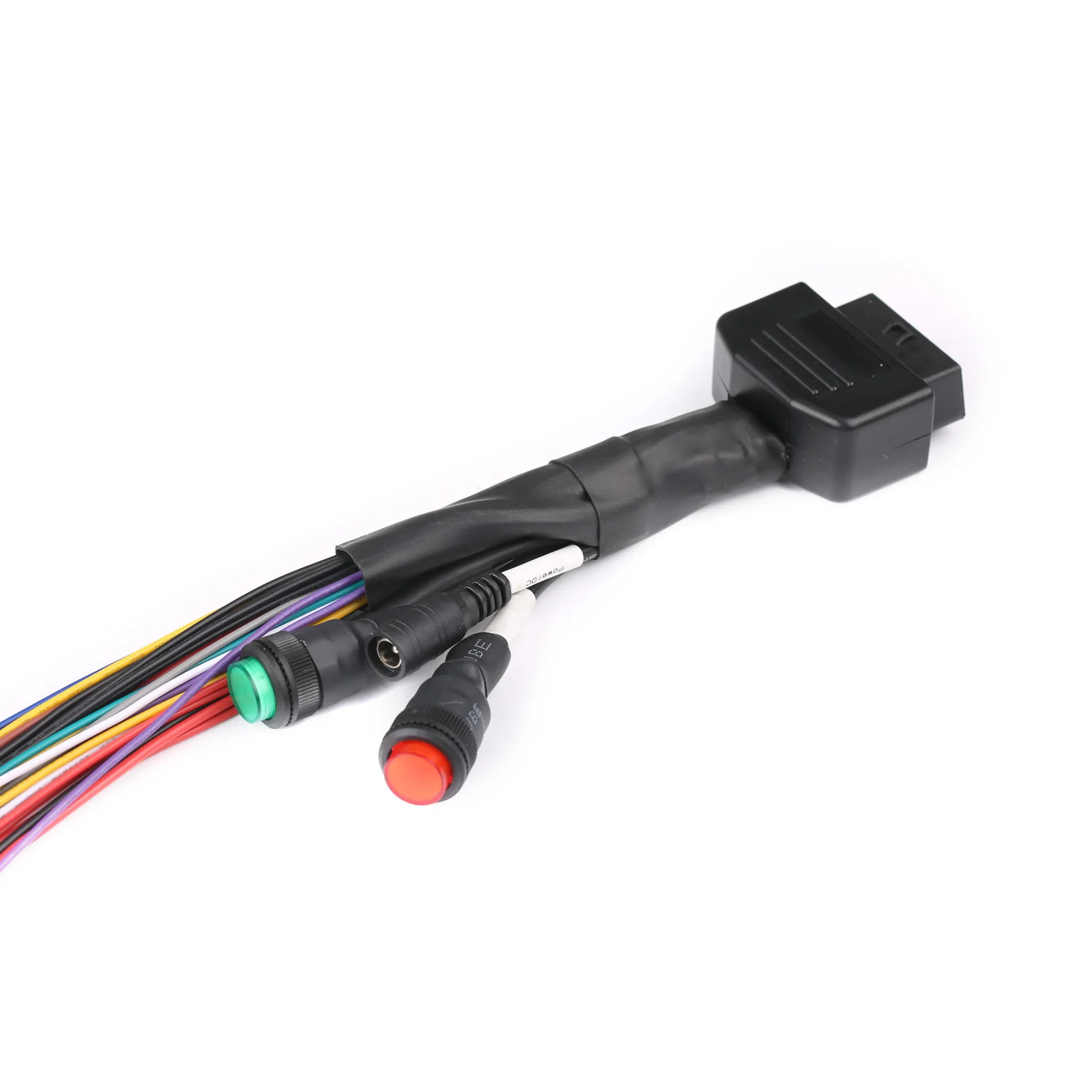

6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

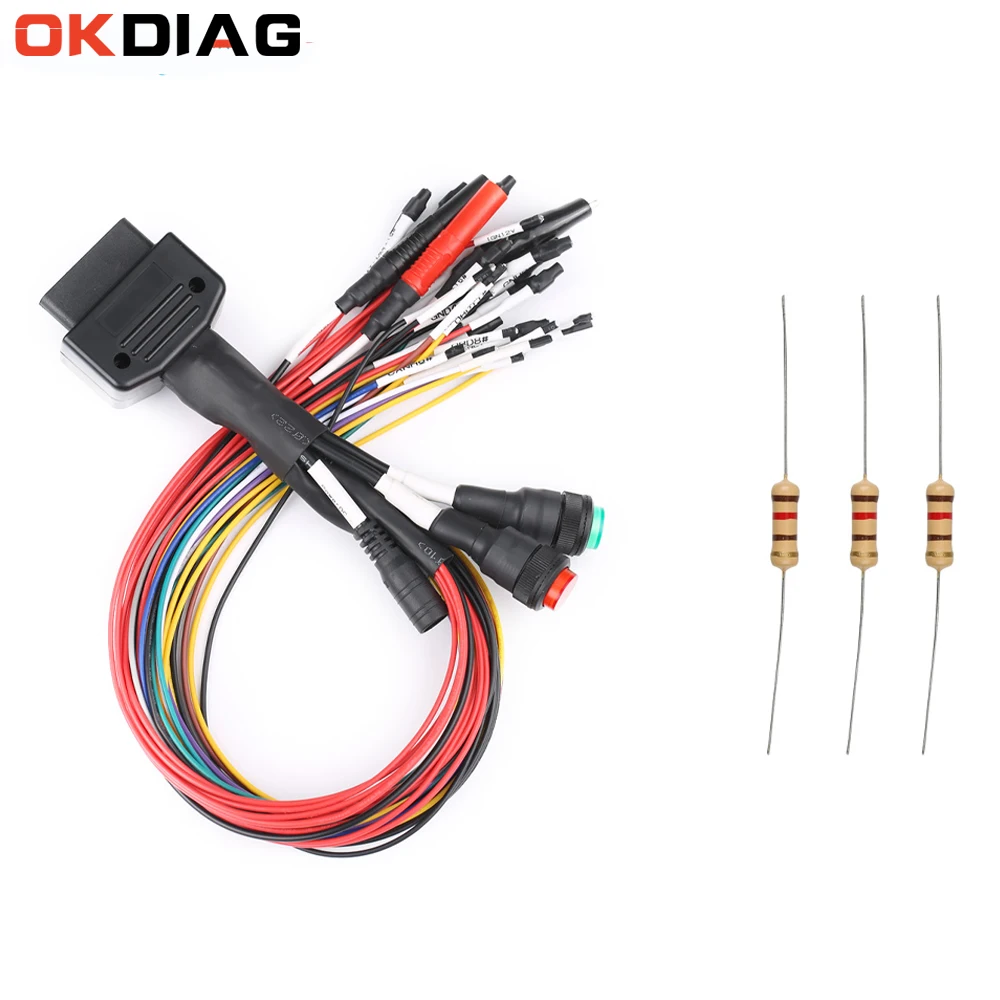

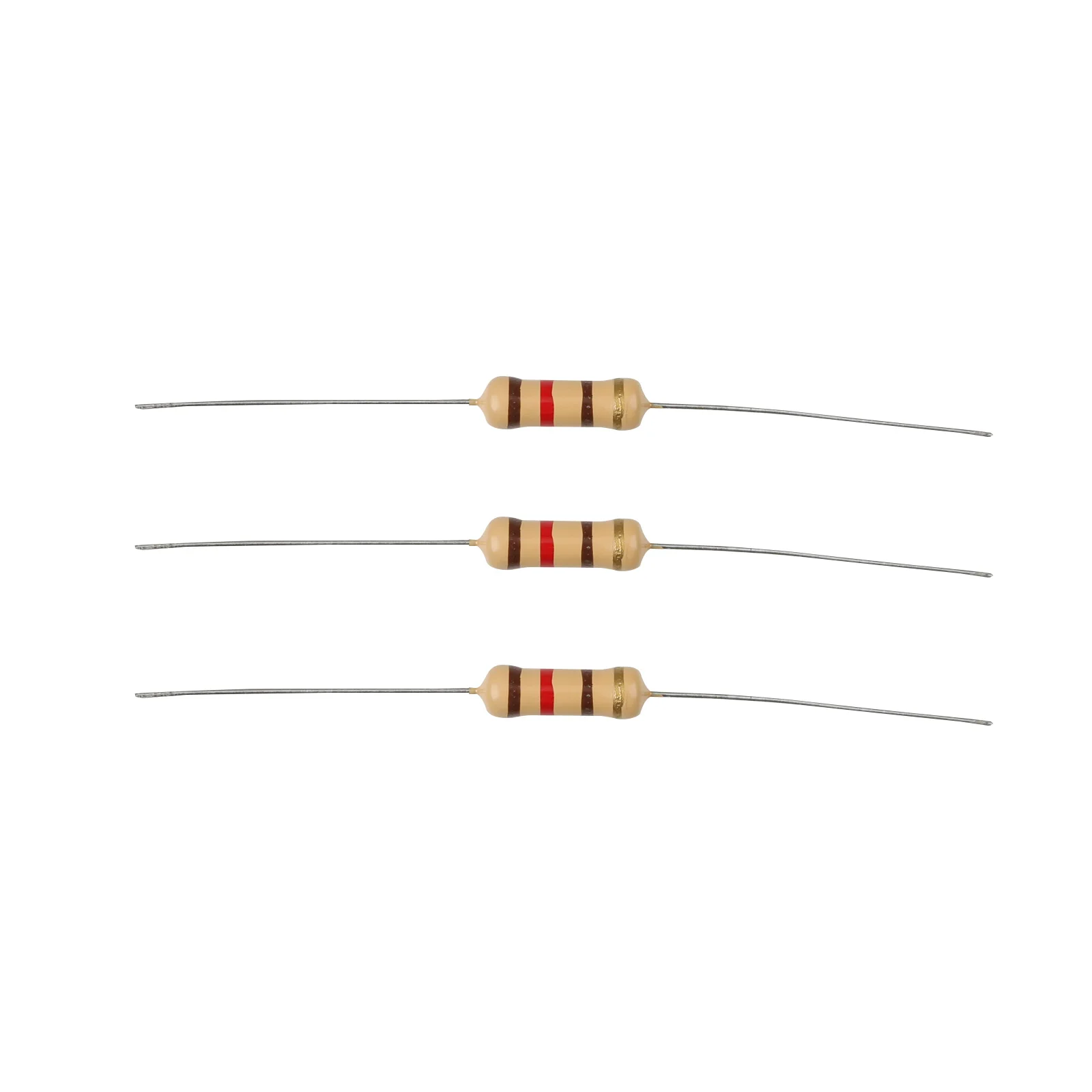

8. Equipped with CAN protocol communication resistance.

Connection diagram of the dedicated programming power connector.

FGTECH programming connection diagram

MPPS  ECU connection diagram

KESSV2 ECU connection diagram

What is the analog ignition switch?

After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.

Cable set contents:

7 pin Knorr, Wabco Trailer Adapter Cable X 1

12 pin MAN Adapter Cable X 1

37 pin MAN Adapter Cable X 1

IVECO-30P Adapter Cable X 1

SCANIA -16P Adapter Cable X 1

BENZ-14P Adapter Cable X 1

Renault-12P Adapter Cable X 1

VOLVO-8P Adapter Cable X 1

1set x GODIAG Full protocol OBD2 jumper
