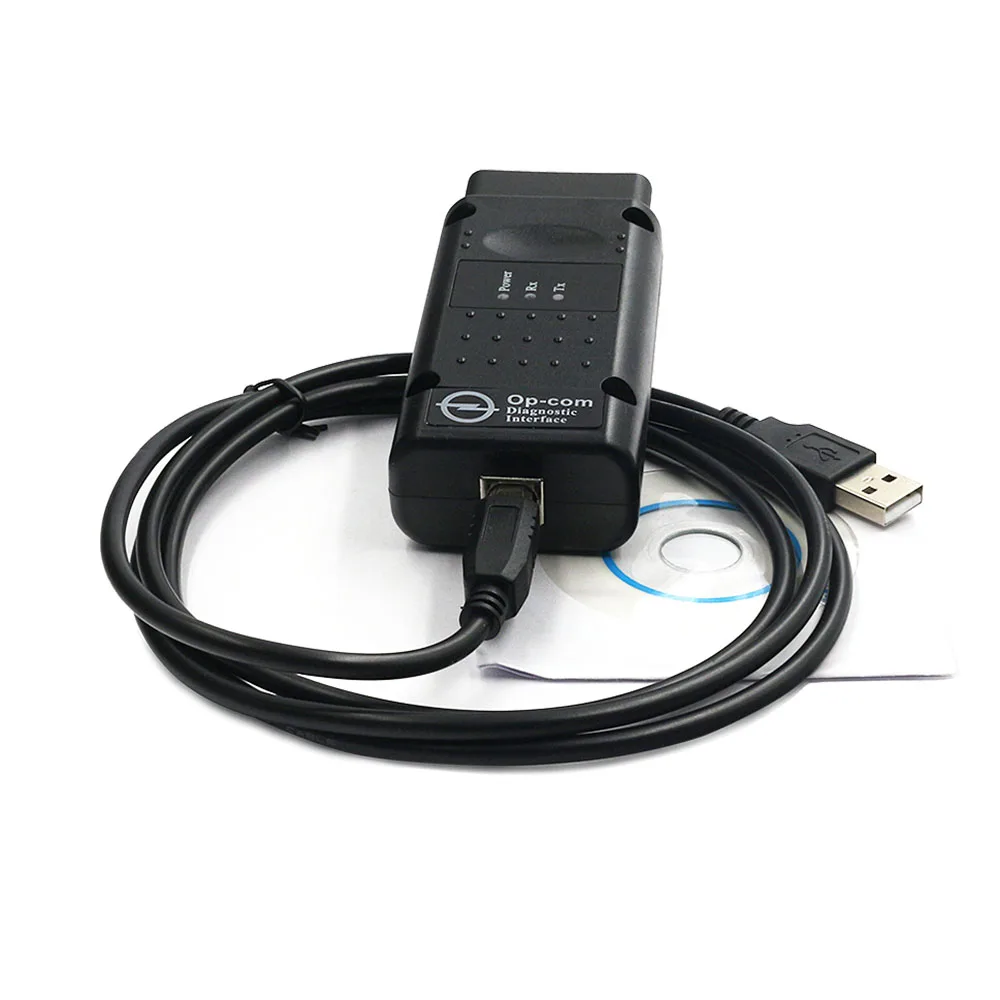

cheap car inspection equipment New Opcom 2021 200603a OP COM 1.95 1.99 PIC18F458 FTDI Can be Flash update OBD2 Car CAN BUS Diagnostic Tool For Opel Until 2021 best car inspection equipment Code Readers & Scanning Tools

Brand Name:	aermotor
Origin:	CN(Origin)
Hardware Version:	OP COM OP-COM V1.59 V1.70 V1.99
Software Version:	OP COM OP-COM 120309A
Item Type:	Code Readers & Scan Tools
Certification:	NONE
Software Update:	Yes
Firmware:	Opcom OP-COM V1.59 1.70 1.99
Operating Systems:	Windows XP & Windows 7 32 Bits Systems
Function:	OBD2 Diagnostic Scanner For Opel

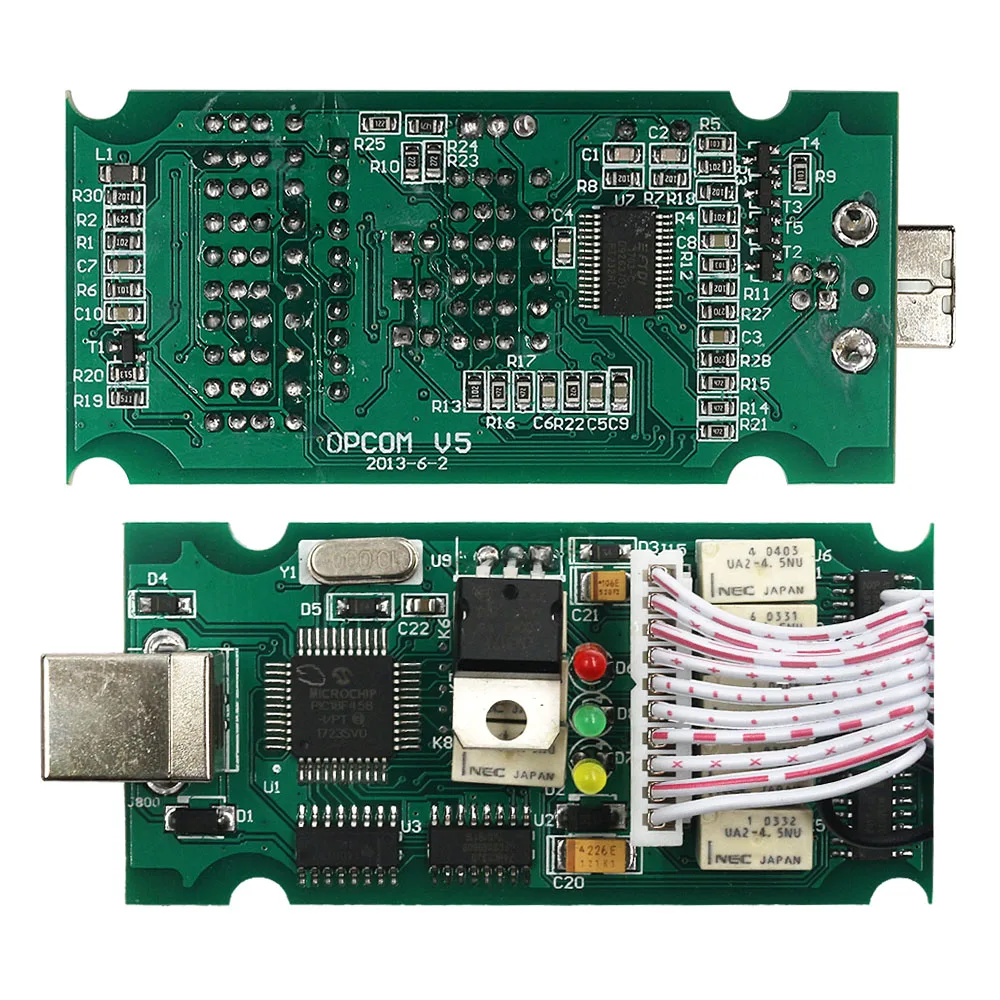

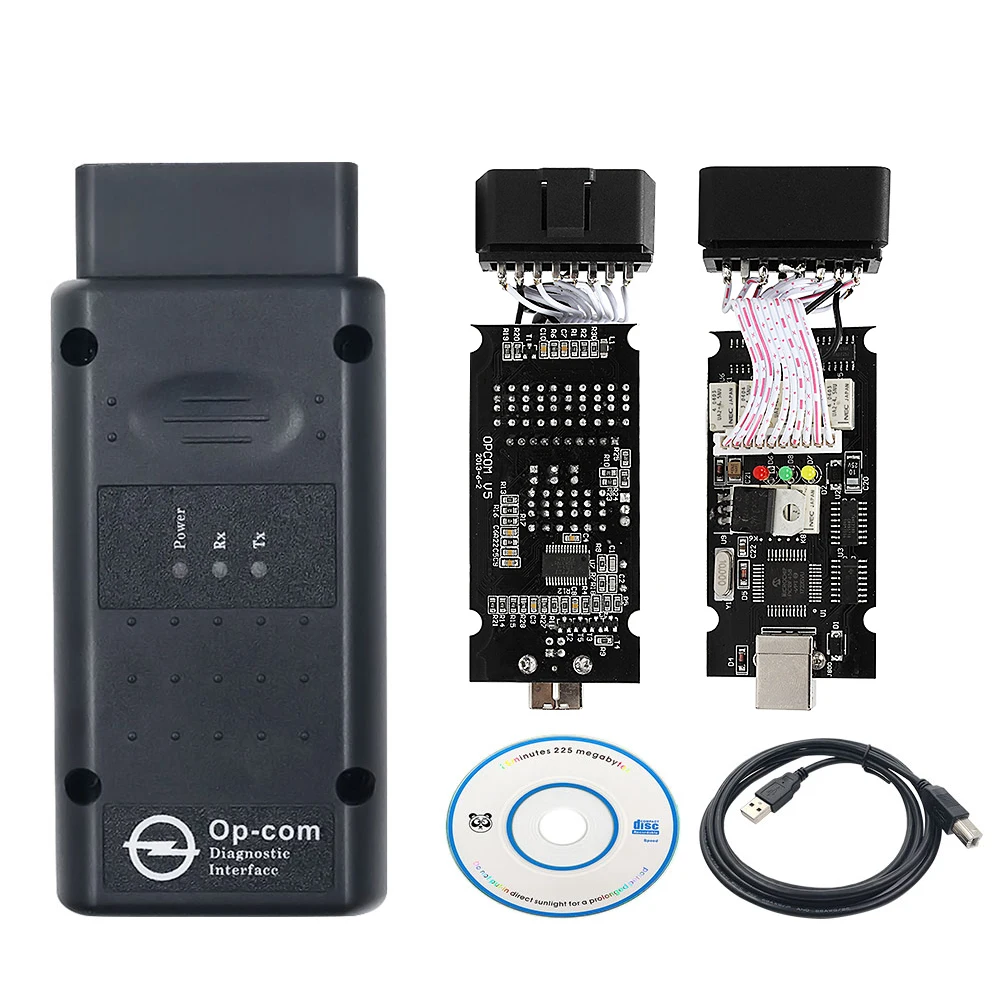

Feature:	PIC18F458 + FTDI Chip
Feature 2:	Support Can Bus OBD2 Protocols

Note：

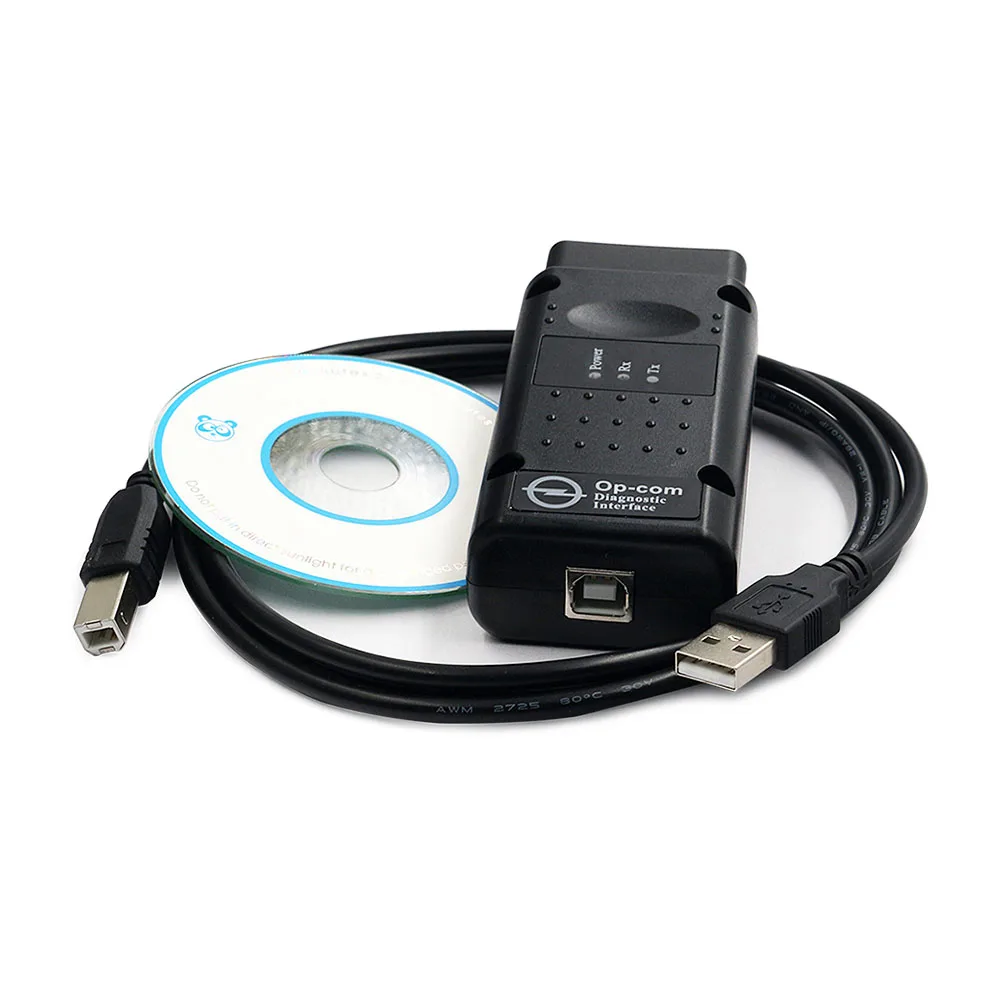

1.CD was easily broken during transportation process, please contact me to get the software link instead of opening disputes.

2.OPCOM 2021 can support cars until 2021. OPCOM V1.70/V1.95/1.99 support cars until 2014, if you have any problem when you received OPCOM or want to order OPCOM，please contact us first

3.If the driver is not recognized after the installation, please contact me to get the latest driver download link.

Please close the anti-virus software when installing the software.

Functions:

1.read out and clear fault codes

2. Engine

3.Automatic Transmission

4.ABS

5.Airbag

6.Engine Cooling module

7.Instrument Cluster

8.Electronic Climate Control

9.Body Control Unit

10.reset, and program ECM

11.reset, and program BCM

12.reset, and program IPC

Attention for Latest Opcom Software VAUX-COM_120309a.exe:

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully

Features:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bo-sch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

FAQ:

Q: Does this product has any other language other than English?

A: This product have only English version.

Q:What we can do with this device?

A:1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.

2. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.

3. You will need the vehicle security code, which can be found on the CAR-PASS.
4. You can also reset, and program the Service interval reminder for Astra-G/Zafira/Corsa-C/Meriva

5. You can code SAB6, and SAB8 airbags with the software.

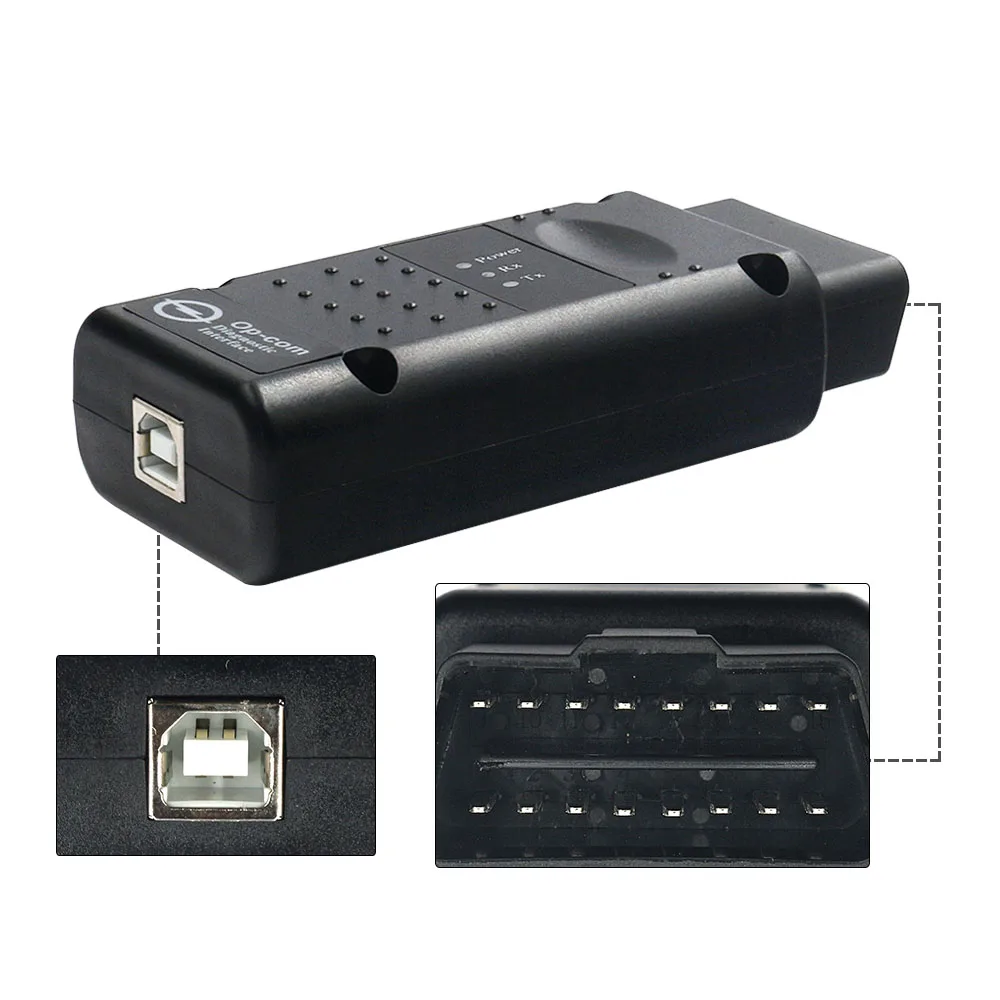

6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.

7. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

8. Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface), the price of OP-COM is quite afforda

ble.
